When the switch1is selected, the indicator2
will turn off and the sonar will be turned off
temporarily. The MOD system will also be turned
off at the same time. When the switch is selected
again, the indicator will turn on and the sonar will
turn back on.
In the below cases, the sonar will be turned back
on automatically:● When the shift selector is in the R (Reverse)
position.
● When the CAMERA button is pressed and a
screen other than the camera view is shown
on the display. ●
When vehicle speed decreases below ap-
proximately 6 mph (10 km/h).
● When the ignition switch is placed in the
OFF position and turned back to the ON
position again.
● When the switch is selected, the MOD func-
tion will also be turned off.
To prevent the sonar system from activating alto-
gether, use the “Camera Settings” menu. For
more information, see “Around View™ Monitor
settings” in this section.
MOVING OBJECT DETECTION
(MOD)
The Moving Object Detection (MOD) system can
inform the driver of the moving objects surround-
ing the vehicle when driving out of garages, ma-
neuvering into parking lots and in other such
instances.
The MOD system detects moving objects by
using image processing technology on the image
shown in the display.
The MOD system operates in the following con-
ditions when the camera view is displayed: ●
When the shift selector is in the P or N
position and the vehicle is stopped, the
MOD system detects the moving objects in
the bird-eye view. The MOD system will not
operate if the outside mirror is moving in or
out or if either door is opened.
● When the shift selector is in the D position
and the vehicle speed is below approxi-
mately 5 mph (8 km/h), the MOD system
detects moving objects in the front view or
front-wide view.
● When the shift selector is in the R position
and the vehicle speed is below approxi-
mately 5 mph (8 km/h), the MOD system
detects moving objects in the rearview or
rear-wide view. The MOD system will not
operate if the liftgate is open.
The MOD system does not detect moving ob-
jects in the front-side view. The MOD icon is not
displayed on the screen when in this view.
LHA2321
4-46Monitor, climate, audio, phone and voice recognition systems

WARNING
●The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with the ob-
jects surrounding the vehicle. When
maneuvering, always use the outside
mirror and rear view mirror and turn and
check the surrounding to ensure it is
safe to maneuver.
● The MOD system does not have the
function to detect the surrounding sta-
tionary objects.
Monitor, climate, audio, phone and voice recognition systems4-47

If the MOD system detects the moving objects
surrounding the vehicle, the yellow frame will be
displayed on the camera image and a chime
sounds.
When the MOD system detects a moving object
surrounding the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving ob-
jects, the yellow frame continues to be displayed.
In the bird-eye view, the yellow frame
1is dis-
played on each camera image (front, rear, right,
left) depending on where moving objects are
detected. The yellow frame
2is displayed on each view in
the front view, front-wide view, rear view and
rear-wide view modes.
While the sonar or the BCI chime (if so equipped)
is beeping, the MOD system does not chime.
A blue MOD icon is displayed in the view where
the MOD system is operative. A gray MOD icon is
displayed in the view where the MOD system is
not operative.
When the “MOD” key
4is selected, the MOD
system will turn off temporarily and the indicator
5will turn off. At the same time the camera-
aiding sonar will also be turned OFF. When the key is pressed again, the indicator will turn on and
the MOD system will turn back on.
If the MOD system is turned off, the MOD icon
3
is not displayed.
The MOD system will turn on automatically under
the following conditions:
● When the shift selector is in the R position.
● When the CAMERA button is pressed to
switch from a different screen to the camera
view on the display
● When vehicle speed decreases below ap-
proximately 5 mph (8 km/h).
LHA2322
4-48Monitor, climate, audio, phone and voice recognition systems

●When the ignition switch is placed in the
OFF position and then back to the ON posi-
tion.
To set the MOD system so that it remains off at all
times, use the camera settings menu. See
“Around View Monitor settings” in this section for
more information.
WARNING
● Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.
● Excessive noise (for example, audio
system volume or open vehicle window)
will interfere with the chime sound, and
it may not be heard.
● The MOD system performance will be
limited according to environmental
conditions and surrounding objects
such as:
– When there is low contrast between background and the moving objects.
– When there is blinking source of light.
– When strong light such as another vehicle’s headlight or sunlight is
present. – When camera orientation is not in its
usual position, such as when mirror
is folded.
– When there is dirt, water drops or snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
● The MOD system might detect some-
thing like flowing water droplets on the
camera lens, white smoke from the
muffler, moving shadows, etc.
● The MOD system may not function
properly depending on the speed, direc-
tion, distance or shape of the moving
objects.
● If your vehicle sustains damage to the
parts where the camera is installed,
leaving it misaligned or bent, the sens-
ing zone may be altered and the MOD
system may not detect objects properly.
Camera maintenance
If dirt, rain or snow accumulates on the camera,
the MOD system may not operate properly. Clean
the camera.
HOW TO ADJUST THE SCREEN
VIEW
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the Around
View Monitor, press the SETTING button with the
Around View Monitor on, select the item key and
adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the Around View Monitor
while the vehicle is moving. Make sure the park-
ing brake is firmly applied.
Monitor, climate, audio, phone and voice recognition systems4-49

AROUND VIEW MONITOR
SETTINGS
To set up the Around View Monitor to your pre-
ferred settings, press the SETTING button, se-
lect the “Camera” key and press the ENTER
button.
Predictive Course Lines:
When this item is turned to ON, the predictive
course lines are displayed in the front view, rear-
view and bird-eye view.Camera View Priority:
The view shown on the screen at the beginning of
the Around View Monitor operation can be se-
lected in order of priority.
Non-viewable Area Reminder:
With this item turned to ON, the non-viewable
area is highlighted in yellow for seven seconds
after the bird-eye view is displayed. It will only be
shown the first time after the ignition switch is
placed in the ON position.
Buzzer Volume:
Adjust the volume of the buzzer.
LHA2159LHA2160LHA2161
4-50Monitor, climate, audio, phone and voice recognition systems

Moving Object Detection (MOD):
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF (indi-
cator turns off) , the MOD system is deactivated.
“MOD”
2will disappear on the SW3and the
icon
1will disappear as well. When the sonar is
turned OFF on the setting menu as well, the SW
3will disappear. Sonar:
When this item is turned ON, the front and rear
sonar is activated. When this item is turned to
OFF (indicator turns off) , the front and rear sonar
is deactivated. The amber markers are displayed
at the corners of the vehicle icon and the parking
sensor icon will disappear on the SW3. When
the MOD is turned OFF on the setting menu as
well, the SW
3will disappear. The next time the
ignition switch is placed in the ON position, “So-
nar is OFF” is displayed briefly. Towing Mode:
When this item is turned ON, only the rear sonar
is OFF. The amber markers are displayed at the
rear corners of the vehicle icon.
Show Camera When Sonar Activates:
When this item is turned ON, the camera view is
automatically shown on the display in the case
that the distance to the objects measured by the
sonar is becoming short.
Sonar Sensitivity:
Adjust the sensitivity level of the corner sonar
higher (+) or lower (-) .
LHA2323LHA2216
Monitor, climate, audio, phone and voice recognition systems4-51

VIEW MALFUNCTION
When the “!” icon is displayed on the screen,
there will be abnormal conditions in the around
view monitor. This will not hinder normal driving
operation but the system should be inspected by
an INFINITI retailer.When the “[X]” icon is displayed on the screen,
the camera image may be receiving temporary
electronic disturbances from surrounding de-
vices. This will not hinder normal driving opera-
tion but the system should be inspected by an
INFINITI retailer if it occurs frequently.
OPERATING TIPS
CAUTION
●
Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with a di-
luted mild cleaning agent and then wipe
with a dry cloth.
● Do not damage the camera as the moni-
tor screen may be adversely affected.
● The screen displayed on the Around View
Monitor will automatically return to the pre-
vious screen three minutes after the CAM-
ERA button has been pressed with the shift
selector in a position other than the R (Re-
verse) position.
● When the view is switched, the display im-
ages on the screen may be displayed in
some delay.
● When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
● When strong light is directly hitting the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
LHA2220LHA2221
4-52Monitor, climate, audio, phone and voice recognition systems

●The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the Around View
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
● Objects on the Around View Monitor may
not be clear and the color of the object may
differ in a dark environment. This is not a
malfunction.
● There may be differences in sharpness be-
tween each camera view of the bird-eye
view.
● If dirt, rain or snow accumulates on the cam-
era, the Around View Monitor may not dis-
play objects clearly. Clean the camera.
● Do not use wax on the camera lens. Wipe off
any wax with a clean cloth that has been
dampened with a mild detergent diluted with
water.

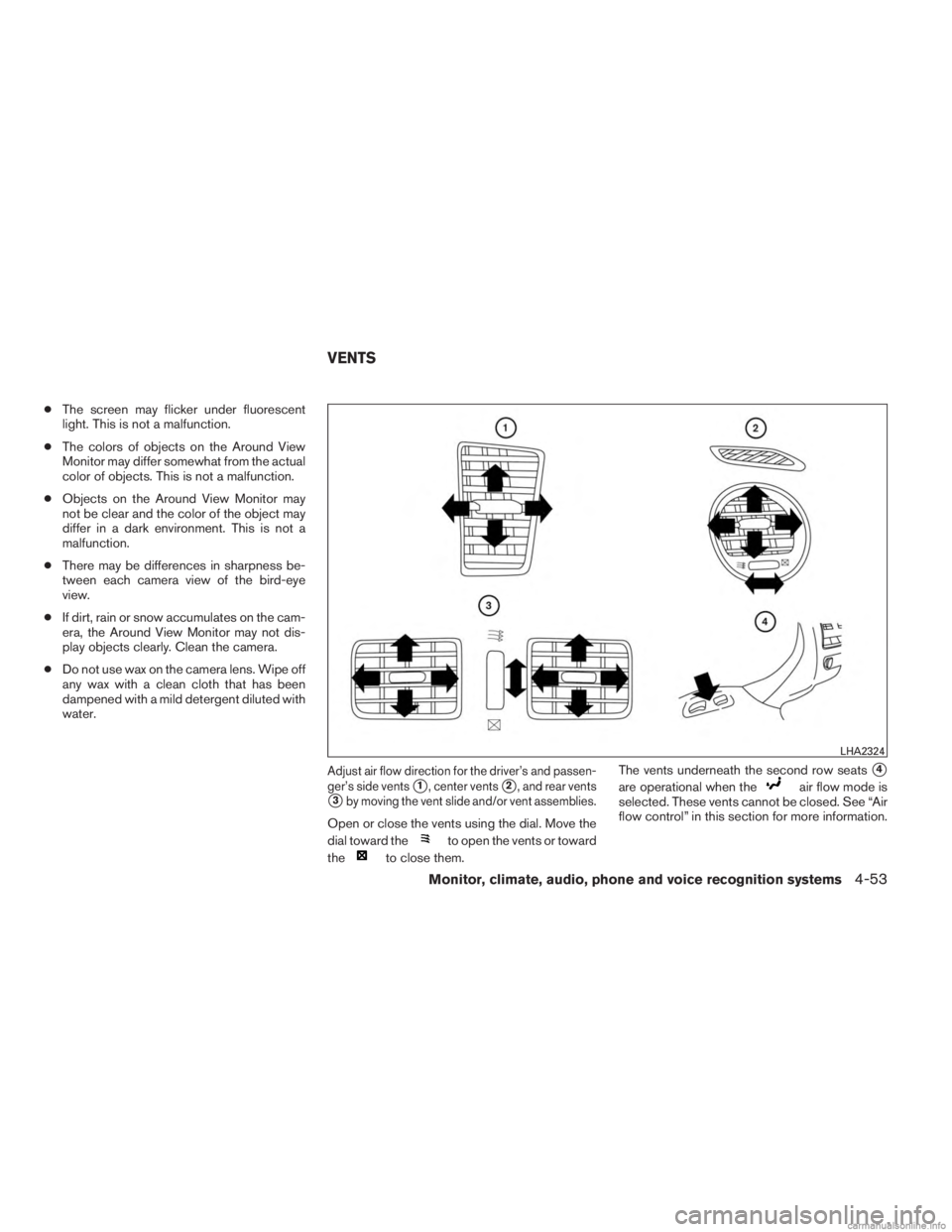

Adjust air flow direction for the driver’s and passen-
ger’s side vents
1, center vents2, and rear vents
3by moving the vent slide and/or vent assemblies.
Open or close the vents using the dial. Move the
dial toward the
to open the vents or toward
the
to close them. The vents underneath the second row seats
4
are operational when theair flow mode is
selected. These vents cannot be closed. See “Air
flow control” in this section for more information.
LHA2324
VENTS

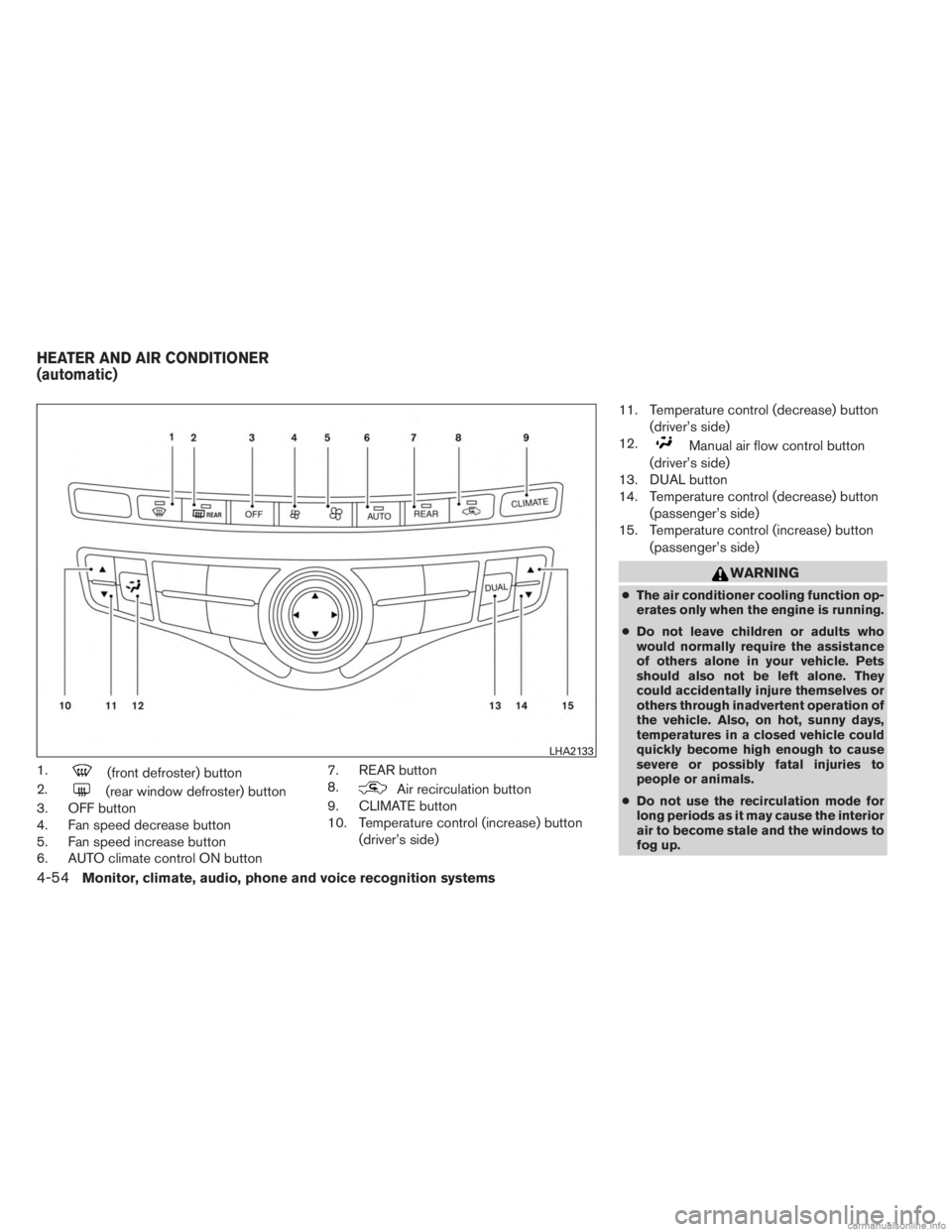

Monitor, climate, audio, phone and voice recognition systems4-53

1.(front defroster) button
2.
(rear window defroster) button
3. OFF button
4. Fan speed decrease button
5. Fan speed increase button
6. AUTO climate control ON button 7. REAR button
8.Air recirculation button
9. CLIMATE button
10. Temperature control (increase) button
(driver’s side) 11. Temperature control (decrease) button
(driver’s side)
12.
Manual air flow control button
(driver’s side)
13. DUAL button
14. Temperature control (decrease) button
(passenger’s side)
15. Temperature control (increase) button
(passenger’s side)
WARNING
●The air conditioner cooling function op-
erates only when the engine is running.
● Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
● Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA2133
HEATER AND AIR CONDITIONER
(automatic)
4-54Monitor, climate, audio, phone and voice recognition systems

Start the engine and operate the controls to
activate the air conditioner.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)
This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution and fan speed
are also controlled automatically.1. Press the AUTO button on. (The indicator on the button will illuminate and AUTO will be
displayed.)
2. Operate the driver’s side temperature con- trol buttons.
● Adjust the temperature display to about
75°F (24°C) for normal operation.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
● A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified defrosting or defogging
1. Press thefront defroster button on.
(The indicator light on the button will come
on.)
2. Operate the temperature control buttons to set the desired temperature.
● To quickly remove ice from the outside of the
windows, use the fan speed control dial to
set the fan speed to maximum.
● As soon as possible after the windshield is
clean, press the AUTO button to return to
the automatic mode.
● When the
front defroster button is
pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C) . The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance.
MANUAL OPERATION
Fan speed control
Press the fan control buttonsto manually
control the fan speed. Press the AUTO button to return to automatic
control of the fan speed.
Temperature control
Press the temperature control buttons up or
down to set the desired temperature.
The temperature can be set within the following
range:
● For U.S.: 60 to 90ºF (16 to 32ºC)
● For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode or the
front defrosting and foot out-
let mode.
Fresh air intake
Press thefresh air intake button to draw
outside air into the passenger compartment.
The
indicator light on the button will come
on.
Monitor, climate, audio, phone and voice recognition systems4-55
