check engine INFINITI JX 2013 Owner's Guide

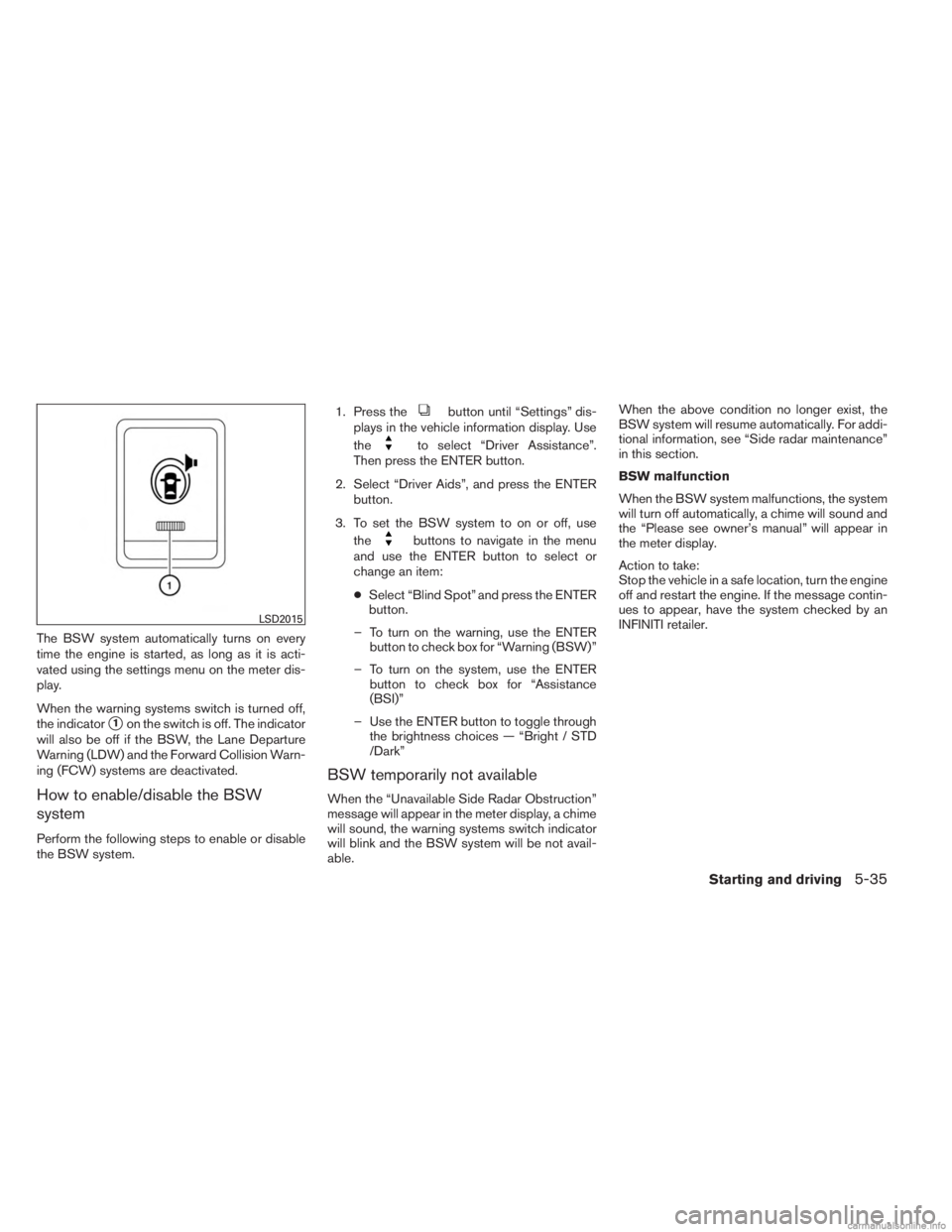

The BSW system automatically turns on every
time the engine is started, as long as it is acti-
vated using the settings menu on the meter dis-
play.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the BSW, the Lane Departure
Warning (LDW) and the Forward Collision Warn-
ing (FCW) systems are deactivated.
How to enable/disable the BSW
system
Perform the following steps to enable or disable
the BSW system. 1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the BSW system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “Warning (BSW)”
– To turn on the system, use the ENTER button to check box for “Assistance
(BSI)”
– Use the ENTER button to toggle through the brightness choices — “Bright / STD
/Dark”
BSW temporarily not available
When the “Unavailable Side Radar Obstruction”
message will appear in the meter display, a chime
will sound, the warning systems switch indicator
will blink and the BSW system will be not avail-
able. When the above condition no longer exist, the
BSW system will resume automatically. For addi-
tional information, see “Side radar maintenance”
in this section.
BSW malfunction
When the BSW system malfunctions, the system
will turn off automatically, a chime will sound and
the “Please see owner’s manual” will appear in
the meter display.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the message contin-
ues to appear, have the system checked by an
INFINITI retailer.
LSD2015
Starting and driving5-35

1. Press thebutton until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button. – To turn on the warning, use the ENTER
button to check box for “Warning (BSW)”
– To turn on the system, use the ENTER button to check box for “Assistance
(BSI)”
– Use the ENTER button to toggle through the brightness choices — “Bright / STD
/Dark”
BSI temporarily not available
When any of the following messages appear on
the meter display, a chime will sound and the BSI
system will be turned off automatically.
● “Unavailable Road is slippery” :
When the VDC system (except traction con-
trol system function) or ABS operates.
● “Unavailable VDC OFF” :
When the VDC system is turned off.
● “Unavailable Snow mode active” :
When the drive mode select switch is turned
to the SNOW mode.
● “Unavailable High Cabin Temp. ” :
When the camera detects that the interior
temperature is high (over approximately
104°F (40°C)) .
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected. Turn off the BSI system and turn it on again when
the above conditions no longer exist.
BSI malfunction
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound and
the BSI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
SSD0938
Starting and driving5-37

2. Select “Back-up Collision Interv.”, and pressthe ENTER button.
3. To set the BCI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item.
BCI temporarily not available
When the following message is appeared on the
meter display, a chime will sound, the BCI system
will be turned off automatically.
● “Unavailable High Accelarator Temp. ” :
When the accelerator pedal actuator de-
tects that the internal motor temperature is
high (over approximately 212°F (100°C)) .
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected.
Turn off the BCI system and turn it on again when
the above conditions no longer exist.
BCI malfunction
When the BCI system malfunction, they will be
turned off automatically, a chime will sound and
the BCI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
BSW/BSI DRIVING SITUATIONS
Another vehicle approaching from
behind
LSD2046SSD1026
Starting and driving5-41

PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON·OFF switch
●If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
in the vehicle information display will blink to
warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer. ●
The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the ACCEL/RES,
COAST/SET or CANCEL switch. To prop-
erly set the cruise control system, perform
the steps below in the order indicated.
WARNING
Do not use the cruise control when driving
under the following conditions:
●when it is not possible to keep the ve-
hicle at a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle
control and result in an accident.
SSD0941
CRUISE CONTROL (if so equipped)
Starting and driving5-47

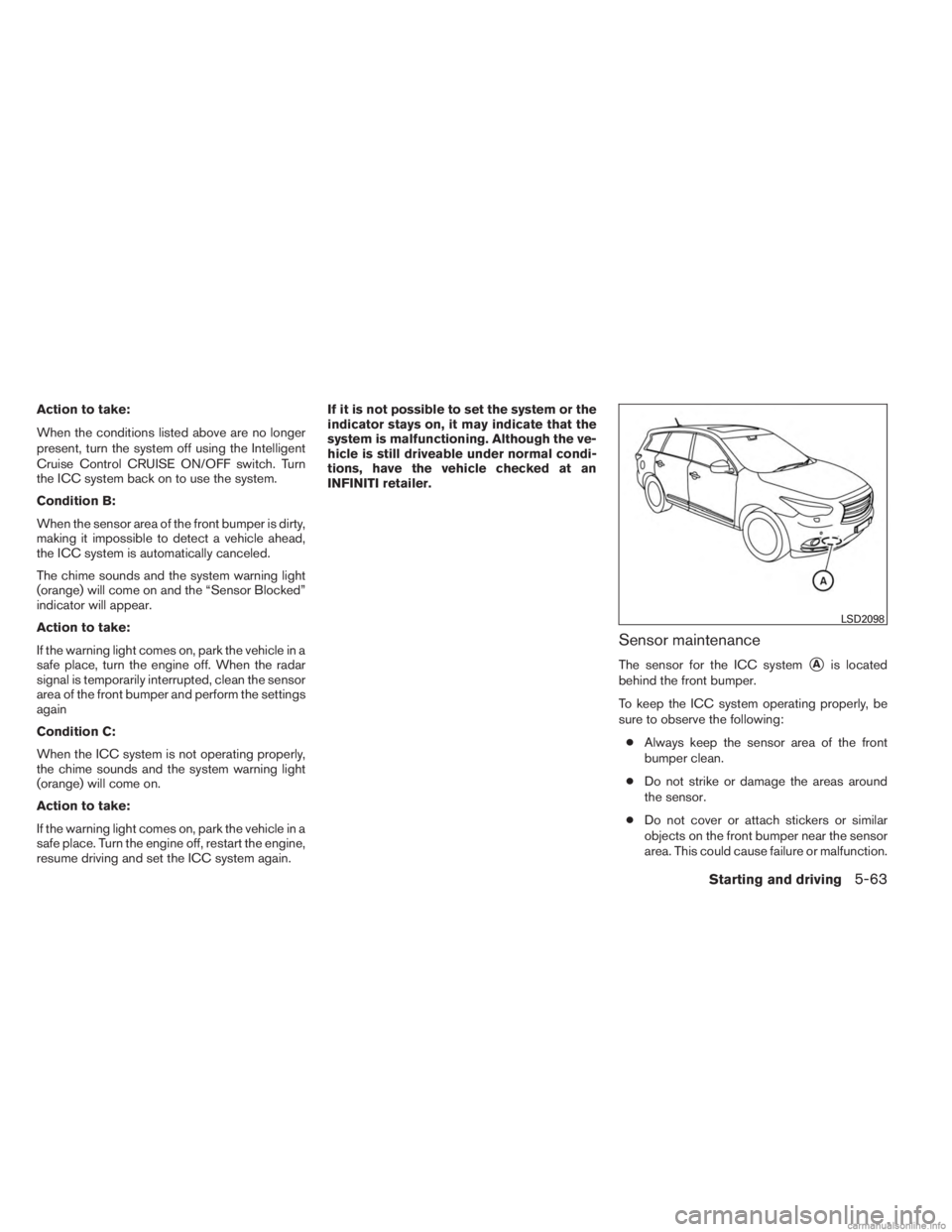

Action to take:
When the conditions listed above are no longer
present, turn the system off using the Intelligent
Cruise Control CRUISE ON/OFF switch. Turn
the ICC system back on to use the system.
Condition B:
When the sensor area of the front bumper is dirty,
making it impossible to detect a vehicle ahead,
the ICC system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.
Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. When the radar
signal is temporarily interrupted, clean the sensor
area of the front bumper and perform the settings
again
Condition C:
When the ICC system is not operating properly,
the chime sounds and the system warning light
(orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and set the ICC system again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked at an
INFINITI retailer.
Sensor maintenance
The sensor for the ICC systemAis located
behind the front bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor area of the front
bumper clean.
● Do not strike or damage the areas around
the sensor.
● Do not cover or attach stickers or similar
objects on the front bumper near the sensor
area. This could cause failure or malfunction.
LSD2098
Starting and driving5-63

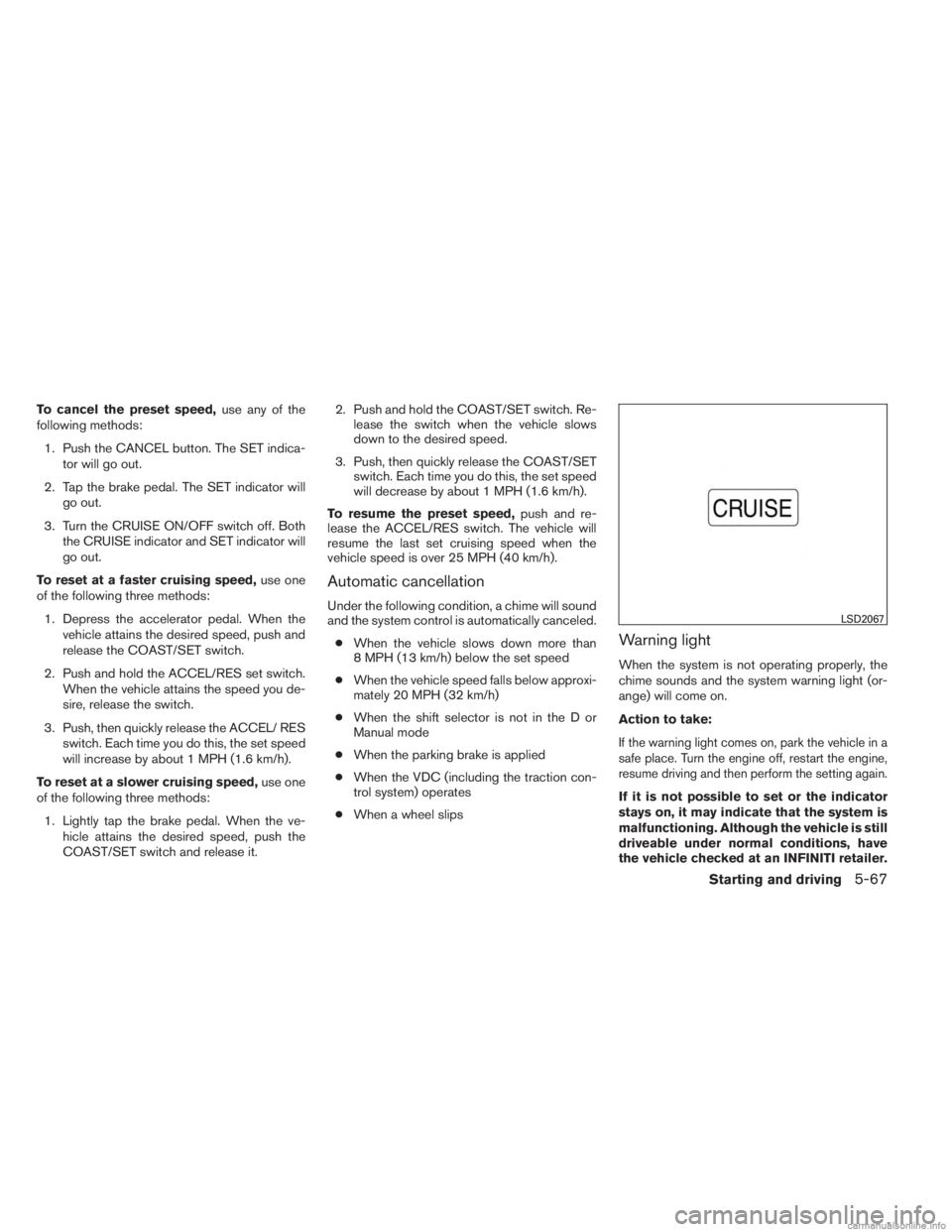

To cancel the preset speed,use any of the
following methods:
1. Push the CANCEL button. The SET indica- tor will go out.
2. Tap the brake pedal. The SET indicator will go out.
3. Turn the CRUISE ON/OFF switch off. Both the CRUISE indicator and SET indicator will
go out.
To reset at a faster cruising speed, use one
of the following three methods:
1. Depress the accelerator pedal. When the vehicle attains the desired speed, push and
release the COAST/SET switch.
2. Push and hold the ACCEL/RES set switch. When the vehicle attains the speed you de-
sire, release the switch.
3. Push, then quickly release the ACCEL/ RES switch. Each time you do this, the set speed
will increase by about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the ve- hicle attains the desired speed, push the
COAST/SET switch and release it. 2. Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
3. Push, then quickly release the COAST/SET switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle will
resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
Under the following condition, a chime will sound
and the system control is automatically canceled.
● When the vehicle slows down more than
8 MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the shift selector is not in the D or
Manual mode
● When the parking brake is applied
● When the VDC (including the traction con-
trol system) operates
● When a wheel slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light (or-
ange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and then perform the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
LSD2067
Starting and driving5-67

4. To turn on the “Assistance (DCA)” check thebox using the ENTER button.
If the LDP, BSI and DCA systems are set to OFF
on the information display and when the dynamic
driver assistance switch is pushed, the LDP ON
indicator light, BSI ON indicator light, and the
Distance Control Assist (DCA) system switch
indicator light will blink for approximately 2 sec-
onds.
For additional information on LDP and BSI, see
“Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system and Blind
Spot Warning/Blind Spot Intervention” in this
section.
Under the following conditions, the Distance
Control Assist system will not operate and the
DCA cancellation message will pop up: ● When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic driver
assistance switch.)
For details about the SNOW mode switch,
see “Snow mode switch” in this section. ●
When the VDC system is off (To use the
DCA system, turn on the VDC, then push the
dynamic driver assistance switch.)
For details about the VDC system, see “Ve-
hicle Dynamic Control (VDC) system” in this
section.
● When ABS or VDC (including the traction
control system) is operating
When the Conventional (fixed speed) cruise con-
trol mode is operating, the DCA system will not
operate. (To use the DCA system, turn the Con-
ventional (fixed speed) cruise control mode off,
then push the dynamic driver assistance switch.)
For details about the Conventional (fixed speed)
cruise control mode, see “Intelligent Cruise Con-
trol (ICC) system “Full speed range” in this sec-
tion.
When the engine is turned off, the system is
automatically turned off.
1System set display with vehicle ahead
2System set display without vehicle ahead
LSD2126
5-74Starting and driving

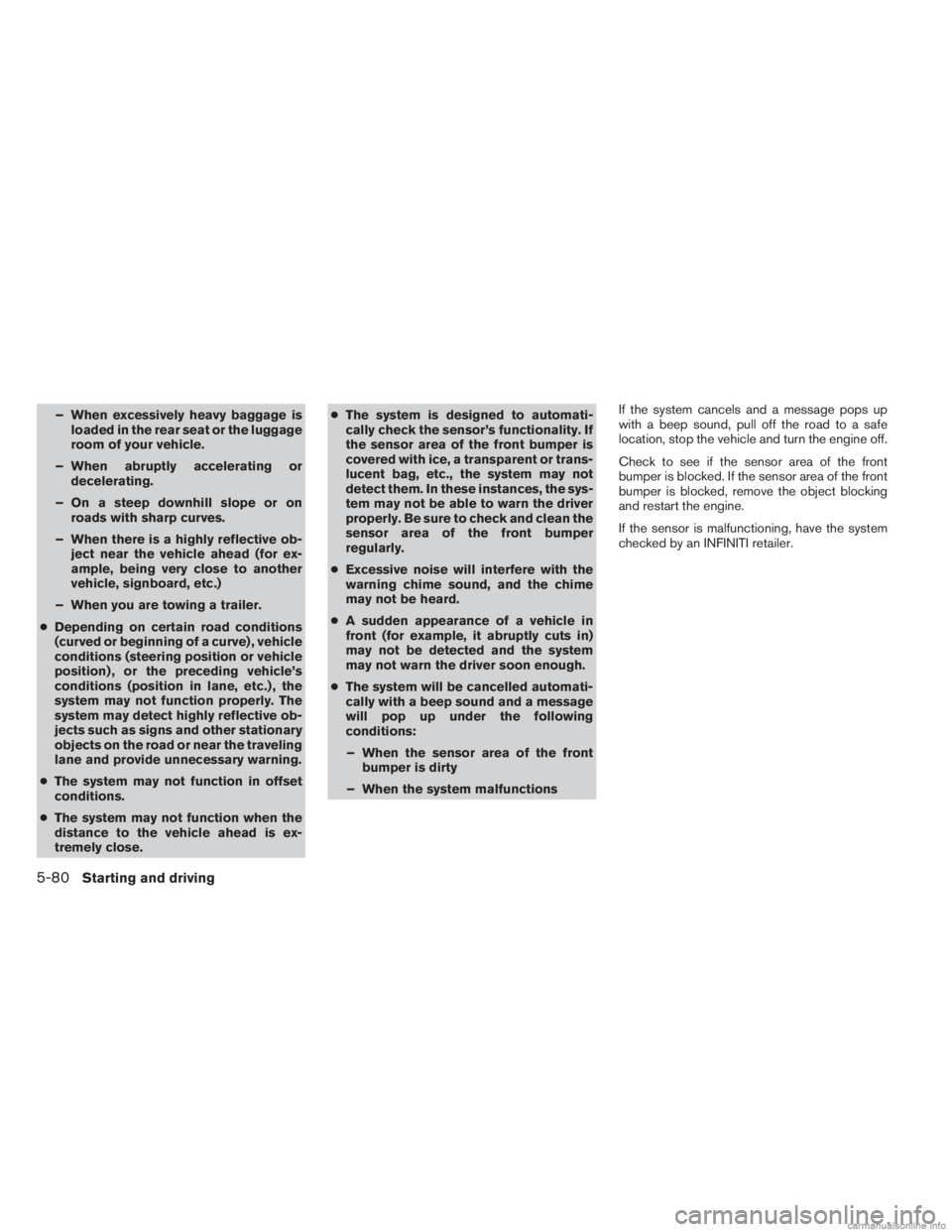

– When excessively heavy baggage isloaded in the rear seat or the luggage
room of your vehicle.
– When abruptly accelerating or decelerating.
– On a steep downhill slope or on roads with sharp curves.
– When there is a highly reflective ob- ject near the vehicle ahead (for ex-
ample, being very close to another
vehicle, signboard, etc.)
– When you are towing a trailer.
● Depending on certain road conditions
(curved or beginning of a curve) , vehicle
conditions (steering position or vehicle
position) , or the preceding vehicle’s
conditions (position in lane, etc.) , the
system may not function properly. The
system may detect highly reflective ob-
jects such as signs and other stationary
objects on the road or near the traveling
lane and provide unnecessary warning.
● The system may not function in offset
conditions.
● The system may not function when the
distance to the vehicle ahead is ex-
tremely close. ●
The system is designed to automati-
cally check the sensor’s functionality. If
the sensor area of the front bumper is
covered with ice, a transparent or trans-
lucent bag, etc., the system may not
detect them. In these instances, the sys-
tem may not be able to warn the driver
properly. Be sure to check and clean the
sensor area of the front bumper
regularly.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
● A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system
may not warn the driver soon enough.
● The system will be cancelled automati-
cally with a beep sound and a message
will pop up under the following
conditions:
– When the sensor area of the front bumper is dirty
– When the system malfunctions If the system cancels and a message pops up
with a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine off.
Check to see if the sensor area of the front
bumper is blocked. If the sensor area of the front
bumper is blocked, remove the object blocking
and restart the engine.
If the sensor is malfunctioning, have the system
checked by an INFINITI retailer.
5-80Starting and driving

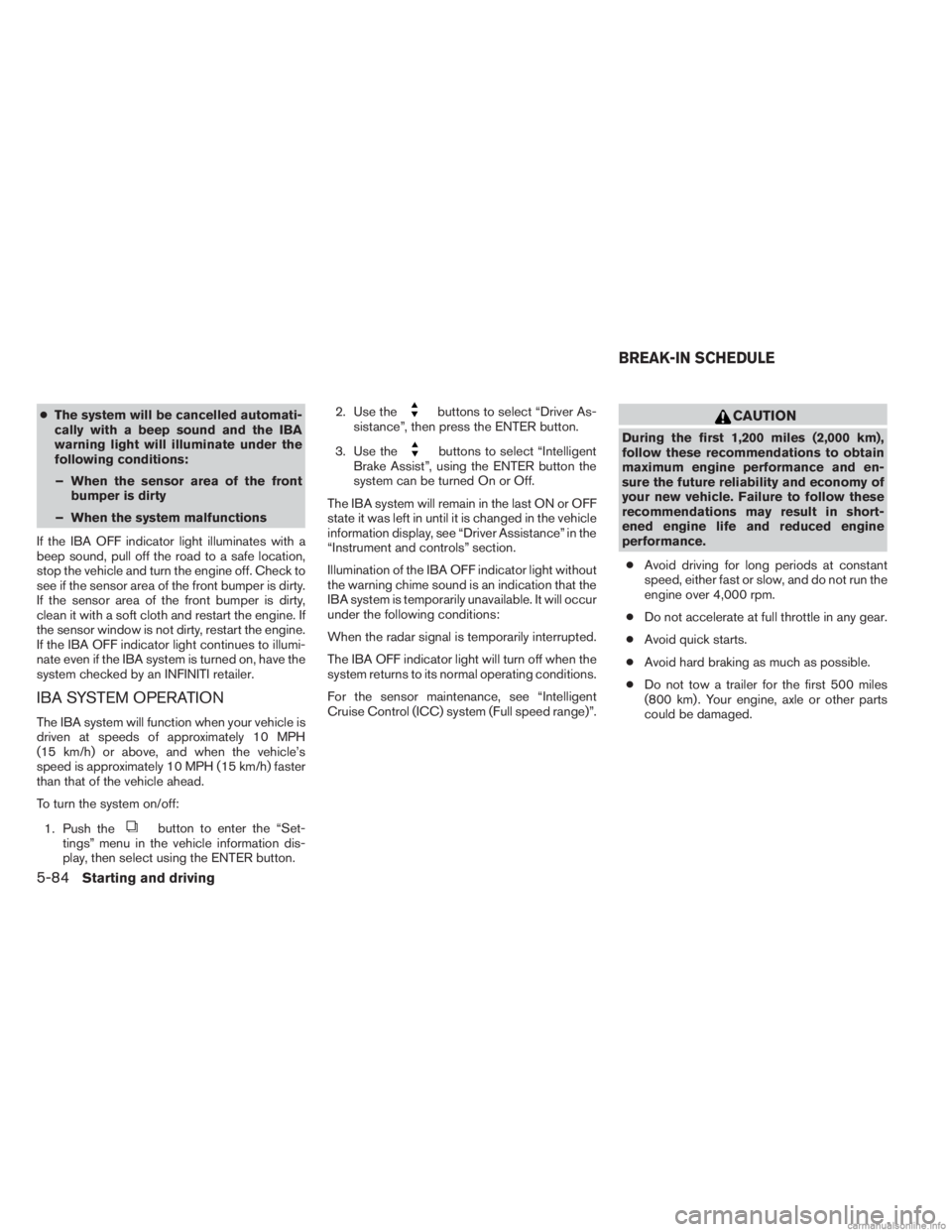

●The system will be cancelled automati-
cally with a beep sound and the IBA
warning light will illuminate under the
following conditions:
– When the sensor area of the front bumper is dirty
– When the system malfunctions
If the IBA OFF indicator light illuminates with a
beep sound, pull off the road to a safe location,
stop the vehicle and turn the engine off. Check to
see if the sensor area of the front bumper is dirty.
If the sensor area of the front bumper is dirty,
clean it with a soft cloth and restart the engine. If
the sensor window is not dirty, restart the engine.
If the IBA OFF indicator light continues to illumi-
nate even if the IBA system is turned on, have the
system checked by an INFINITI retailer.
IBA SYSTEM OPERATION
The IBA system will function when your vehicle is
driven at speeds of approximately 10 MPH
(15 km/h) or above, and when the vehicle’s
speed is approximately 10 MPH (15 km/h) faster
than that of the vehicle ahead.
To turn the system on/off:
1. Push the
button to enter the “Set-
tings” menu in the vehicle information dis-
play, then select using the ENTER button. 2. Use the
buttons to select “Driver As-
sistance”, then press the ENTER button.
3. Use the
buttons to select “Intelligent
Brake Assist”, using the ENTER button the
system can be turned On or Off.
The IBA system will remain in the last ON or OFF
state it was left in until it is changed in the vehicle
information display, see “Driver Assistance” in the
“Instrument and controls” section.
Illumination of the IBA OFF indicator light without
the warning chime sound is an indication that the
IBA system is temporarily unavailable. It will occur
under the following conditions:
When the radar signal is temporarily interrupted.
The IBA OFF indicator light will turn off when the
system returns to its normal operating conditions.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC) system (Full speed range)”.
CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and en-
sure the future reliability and economy of
your new vehicle. Failure to follow these
recommendations may result in short-
ened engine life and reduced engine
performance.
● Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
● Do not tow a trailer for the first 500 miles
(800 km) . Your engine, axle or other parts
could be damaged.
BREAK-IN SCHEDULE
5-84Starting and driving

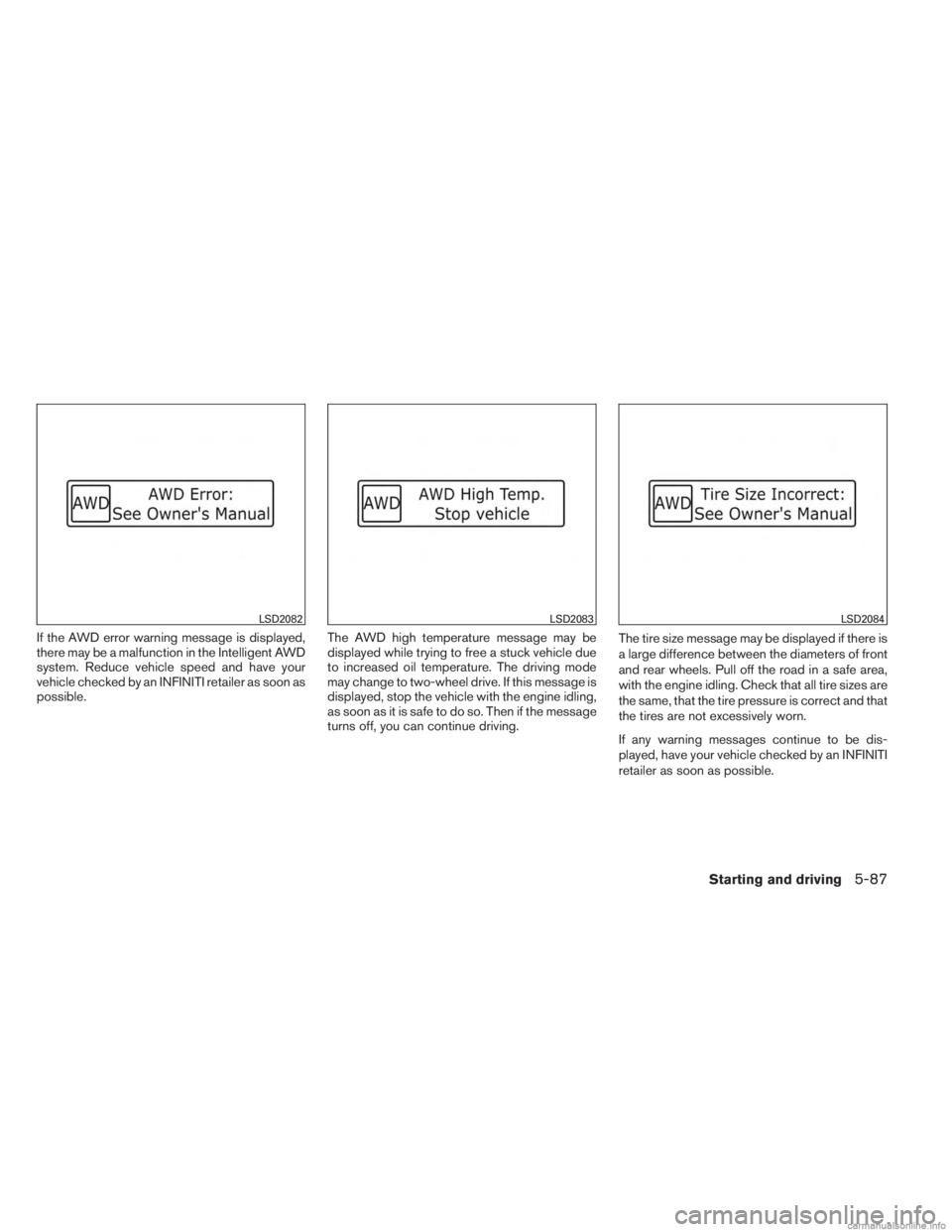

If the AWD error warning message is displayed,
there may be a malfunction in the Intelligent AWD
system. Reduce vehicle speed and have your
vehicle checked by an INFINITI retailer as soon as
possible.The AWD high temperature message may be
displayed while trying to free a stuck vehicle due
to increased oil temperature. The driving mode
may change to two-wheel drive. If this message is
displayed, stop the vehicle with the engine idling,
as soon as it is safe to do so. Then if the message
turns off, you can continue driving.The tire size message may be displayed if there is
a large difference between the diameters of front
and rear wheels. Pull off the road in a safe area,
with the engine idling. Check that all tire sizes are
the same, that the tire pressure is correct and that
the tires are not excessively worn.
If any warning messages continue to be dis-
played, have your vehicle checked by an INFINITI
retailer as soon as possible.
LSD2082LSD2083LSD2084
Starting and driving5-87
