display INFINITI JX 2013 Workshop Manual

HOW TO USE THE INFINITI
CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
2upward or downward.
Press the ENTER button
1to select an item.
If you press either of the
BACK buttons3
before the operation is completed, the operation
will be canceled and/or the display will return to
the previous screen.
After the operation is complete, press either of
the
BACK buttons3to return to the
previous screen. For the VOICE button
4functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
SAA2955
Monitor, climate, audio, phone and voice recognition systems4-15

●Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.
● OK:
Completes the character input.
Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first, and then wipe the
screen.
MENU OPTIONS
The start menu can be displayed using the menu
control switch on the steering wheel controls.
1. While the MAP or STATUS screen is dis- played, press and hold the menu control
switch until the “Menu Options” screen ap-
pears.
2. Highlight the preferred item by tilting the menu control switch up or down. Press the
menu control switch to select the high-
lighted item.
Available items
Destination/Route:
These items are for the navigation system. See
the separate Navigation System Owner’s Manual
for details.
Info:
Displays the information screen. It is the same
screen that appears when you press the INFO
button. Settings:
Displays the settings screen. It is the same
screen that appears when you press the SET-
TING button.
SAA2476
Monitor, climate, audio, phone and voice recognition systems4-17

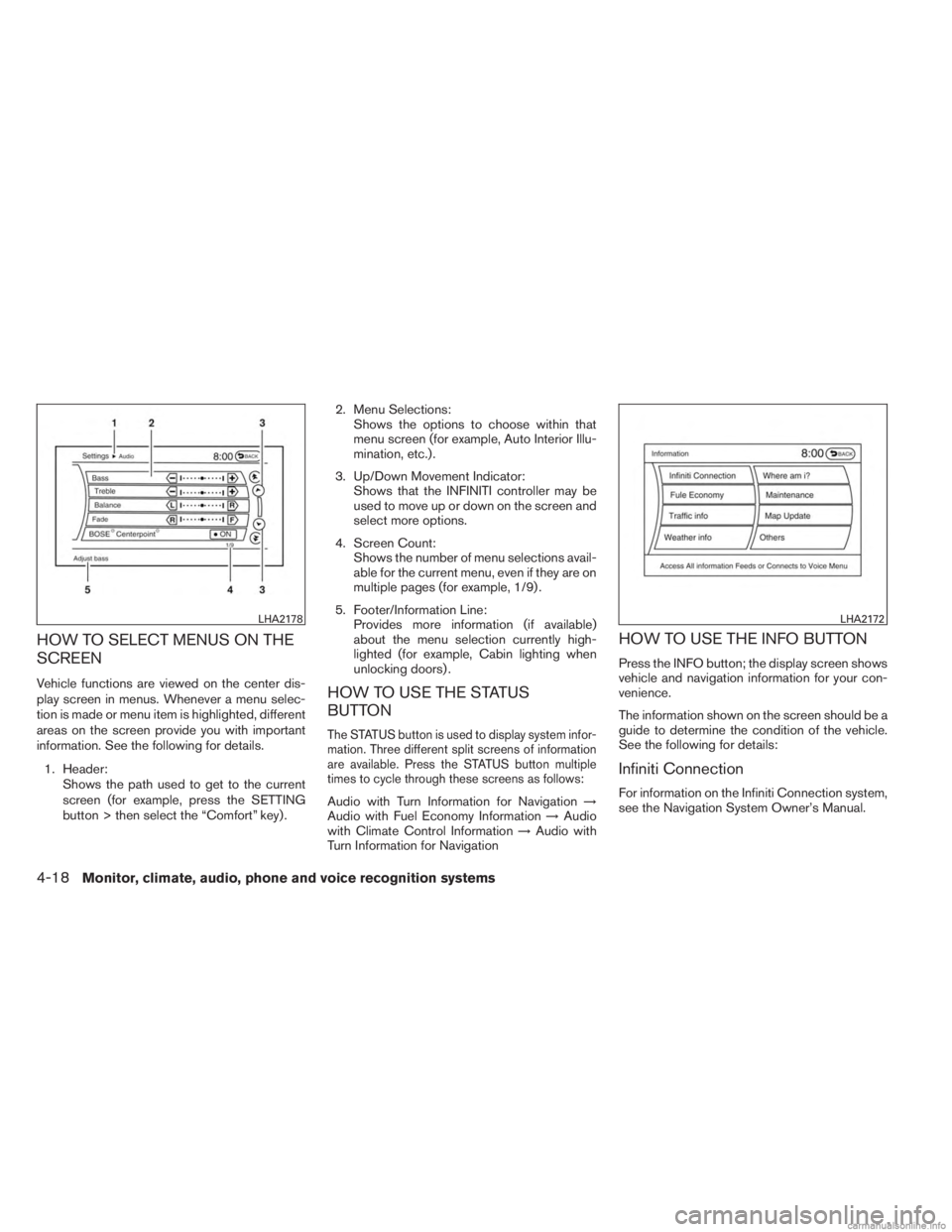

HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details.1. Header: Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Comfort” key) . 2. Menu Selections:
Shows the options to choose within that
menu screen (for example, Auto Interior Illu-
mination, etc.) .
3. Up/Down Movement Indicator: Shows that the INFINITI controller may be
used to move up or down on the screen and
select more options.
4. Screen Count: Shows the number of menu selections avail-
able for the current menu, even if they are on
multiple pages (for example, 1/9) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted (for example, Cabin lighting when
unlocking doors) .HOW TO USE THE STATUS
BUTTON
The STATUS button is used to display system infor-
mation. Three different split screens of information
are available. Press the STATUS button multiple
times to cycle through these screens as follows:
Audio with Turn Information for Navigation →
Audio with Fuel Economy Information →Audio
with Climate Control Information →Audio with
Turn Information for Navigation
HOW TO USE THE INFO BUTTON
Press the INFO button; the display screen shows
vehicle and navigation information for your con-
venience.
The information shown on the screen should be a
guide to determine the condition of the vehicle.
See the following for details:
Infiniti Connection
For information on the Infiniti Connection system,
see the Navigation System Owner’s Manual.
LHA2178LHA2172
4-18Monitor, climate, audio, phone and voice recognition systems

Fuel economy
Press the INFO button, then select the “Fuel
Economy” key using the INFINITI controller to
display Distance to Empty, Average Fuel
Economy and Fuel Economy History.
Distance to empty (MI or km)
The Distance to Empty (DTE) mode provides you
with an estimation of the distance that can be
driven before refueling. The DTE is constantly
calculated based on the amount of fuel in the fuel
tank and the actual fuel consumption. The display
is updated every 30 seconds. When the fuel level
is low, the DTE display will change to (*) .NOTE:
● If the amount of fuel added while the
ignition switch is OFF is small, the dis-
play just before the ignition switch is
placed in the OFF position may con-
tinue to be displayed.
● When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
Average fuel economy (MPG or L/100 km)
The Average Fuel Economy is calculated based
on fuel consumption since the last reset. The
display is updated every 30 seconds and 1/3 mi
(500 m) . After a reset or connecting the battery
cables, the display might show (**.*) .
Resetting fuel economy
The average fuel economy calculation can be
reset to 0. Press the INFO button and select the
“Fuel Economy” key, then select the “Reset Fuel
Eco” key using the INFINITI controller. Fuel economy record
Press the INFO button, then select the “Fuel
Economy” key, then select the “Fuel Eco History”
key using the INFINITI controller.
The average fuel consumption history will be
displayed in a graph form along with the average
fuel for the previous Reset-to-Reset period.
LHA1232LHA1233
Monitor, climate, audio, phone and voice recognition systems4-19

Maintenance items
Press the INFO button and select the “Mainte-
nance” key using the INFINITI controller and
press the ENTER button; the maintenance infor-
mation will be displayed on the screen.Changing the maintenance interval
Select one of the maintenance reminder keys
using the INFINITI controller to display the screen
to change the maintenance interval. You can
choose between Engine Oil, Oil Filter, Tire and
Other Reminder.
Select the “Interval” key using the INFINITI con-
troller. Touch the “+” or “-” keys or turn the
INFINITI controller to choose the desired dis-
tance. To accept the changes, press the BACK
button.Resetting the maintenance interval
To reset the reminder schedule (distance) to 0 mi
(km) , select the “Reset Distance” key using the
INFINITI controller.
LHA1234LHA1235
4-20Monitor, climate, audio, phone and voice recognition systems

Displaying the maintenance notice re-
minder
Select the “Interval Reminder ON” key to display
the MAINTENANCE INFORMATION automati-
cally at the set maintenance interval. The indica-
tor light will illuminate when it is ON.
The MAINTENANCE NOTICE screen will be au-
tomatically displayed as shown when both of the
following conditions are met:● The vehicle is driven the set distance and the
ignition switch is placed in the OFF position.
● The ignition switch is placed in the ON po-
sition the next time the vehicle is driven. To return to the previous display after the MAIN-
TENANCE NOTICE screen is displayed, press
the BACK button.
The MAINTENANCE NOTICE screen displays
each time the key is turned ON until one of the
following conditions are met:
● The “Reset” key is selected.
● The “Interval Reminder ON” key is set to
OFF (indicator light not illuminated) .
● The maintenance interval is set again.
Traffic Info
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Weather Info
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Where am I?
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Map Update
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
Other options
For Navigation Version and GPS Position, refer to
the separate Navigation System Owner’s
Manual.
For Voice Recognition settings, refer to “INFINITI
Voice Recognition system” in this section.
SAA3003
Monitor, climate, audio, phone and voice recognition systems4-21

HOW TO USE THE SETTING
BUTTON
Press the SETTING button to display the Set-
tings screen. You can select and/or adjust sev-
eral functions, features and modes that are avail-
able for your vehicle. Use the INFINITI controller
to select each item to be set.
Navigation settings
Refer to the separate Navigation System Owner’s
Manual for information regarding these settings.
Audio settings
For audio settings, refer to “Audio System” in this
section.
Phone settings
For phone settings refer to “Bluetooth® Hands-
Free Phone System with Navigation System” in
this section.
Bluetooth® settings
For Bluetooth® phone settings, refer to
“Bluetooth® Hands-Free Phone System with
Navigation System” in this section.
For Bluetooth® audio settings, refer to
“Bluetooth® streaming audio” in this section.
Volume & beeps settings
Navigation volume
For navigation volume settings, refer to the sepa-
rate Navigation System Owner’s Manual for infor-
mation regarding these settings.
Phone volume
For phone volume settings refer to “Bluetooth®
Hands-Free Phone System with Navigation Sys-
tem” in this section.
Infiniti Connection volume
For Infiniti Connection volume settings refer to
“Infiniti Connection” in this section.Switch beeps
With this option on (indicator light illuminated) , a
beep will sound if any control panel button is
pressed.LHA2152LHA1253
4-22Monitor, climate, audio, phone and voice recognition systems

Rear display settings
To control the rear display settings, select the
“Display Control” key. Select the “ON” key for
either the left or right display to alternately enable
or disable the display for the left or right rear
passengers. If the display is enabled, select the
key (DVD, USB, front AUX or rear AUX) that you
wish to have displayed on the corresponding
screen. The front AUX setting is for devices
plugged into the AUX jacks in the center console.
The rear AUX setting is for devices plugged into
the AUX jacks on the back of the center console.Select the “Auto Display” to set the rear displays
to always power on when a movie is played from
a DVD or USB device.
ECO DRIVE settings (if so equipped)
To adjust the Eco pedal driver’s assist, select the
“Standard”, “Soft” or “OFF” key and adjust it with
the INFINITI controller. For more information
about the ECO DRIVE system, see “ECO pedal
system” in the “Starting and driving” section.
LHA1254LHA2154LHA2155
Monitor, climate, audio, phone and voice recognition systems4-23

Others settings
Select the “Others” key using the INFINITI con-
troller. The voice recognition, language and units
setting screen will be displayed.Display settings
The display as illustrated will appear when press-
ing the SETTING button and selecting the “Oth-
ers” key and then selecting the “Display” key.
Display Adjustment:
To adjust the display settings, select the “Display
Adjustment” key. The following settings are avail-
able.
● Display
To turn off the screen, press the ENTER button
and turn the “Display” indicator off. The other method is to press and hold the
OFF button for more than two seconds.
When any mode button is pressed with the
screen off, the screen turns on for further opera-
tion. The screen will turn off automatically five
seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or press and hold the
OFF but-
ton.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast” key.
Use the INFINITI controller to adjust each item.
For information on the “Background Color” key,
refer to the separate Navigation System Owner’s
Manual.
Color Theme:
Choose between “Black”, “Brown” or “Silver” for
the theme color of the menu screen.
LHA2156LHA1237
4-24Monitor, climate, audio, phone and voice recognition systems

Comfort settings
Select the “Others” key using the INFINITI con-
troller, then select the “Comfort” key. The Com-
fort settings screen will be displayed.
You can set the following operating conditions by
selecting the desired item using the INFINITI
controller. The indicator light (box at the right of
the selected item) alternately turns on and off
each time the item is touched or the ENTER
button is pressed.
Indicator light is illuminated — ON
Indicator light is not illuminated — OFFLift Steering Wheel on Exit:
Select to turn on
or turn off the steering wheel moving upward for
easy exit when the ignition switch is in the OFF
position and the driver’s door is opened. After
getting into the vehicle and placing the ignition
switch in the ACC position, the steering wheel
moves to the previous position.
Slide Driver Seat Back on Exit: Select to turn
on or turn off the driver’s seat moving backward
for easy exit when the ignition switch is in the OFF
position and the driver’s door is opened. After
getting into the vehicle and placing the ignition
switch in the ACC position, the driver’s seat
moves to the previous position.
Return All Settings to Default: Select to
change all the comfort systems to their default
settings. Clock
The following display will appear after pressing
the SETTING button, then selecting the “Clock”
key using the INFINITI controller.
On-screen Clock:
When this item is enabled (indicator light illumi-
nated) , a clock is always displayed in the upper
right corner of the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS system.
LHA2157LHA2456
Monitor, climate, audio, phone and voice recognition systems4-25
