Page 13 of 554
1. Vent (P. 4-53)
2. Headlight/fog light/turn signal switch(P. 2-30)
3. Instrument brightness control (P. 2-34) 4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)
5. Driver supplemental air bag/Horn
(P.1-49, P. 2-35) 6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-30)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)
9. Vent (P. 4-53)
10. Rear window and outside mirror
defroster switch (P. 2-30)
11. Center display (P. 4-14,
4-4)/Navigation system*
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-54)
13. Vent (P. 4-53)
14. Front passenger supplemental air bag
(P. 1-49)
15. Vent (P. 4-53)
16. Glove box (P. 2-46)
17. Center multi-function control buttons
(P. 4-14, 4-4)
18. Power outlet (P.2-41)
19. Audio system controls (P. 4-61)
20. Shift selector (P.5-15)
21. Front passenger air bag status light
(P. 1-59)
22. Hazard light switch (P. 6-2)
LIC2290
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 14 of 554
23. Ignition switch (P. 5-10)
24. Cruise control main/set switches (if soequipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-47, P.5-49)
25. Distance Control Assist (DCA) system
switch (if so equipped) (P. 5-68)
26. Tilt steering wheel control (P. 3-26)
27. Bluetooth® Hands-Free Phone System
(P. 4-115, 4-129)
28. Steering wheel switch for audio control
(P.4-101)
29. Hood release (P. 3-20)
30. Vehicle dynamic control (VDC) OFF
switch (P. 2-41)
Heated steering wheel switch
(if so equipped) (P.2-39)
Headlight aiming control (P. 2-33)
Warning System switch
(if so equipped) (P. 2-40)
Power inverter switch (if so equipped)
(P. 2-41)
Liftgate release switch (P.3-20)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P.4-17, 2-14)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
Page 81 of 554
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.1. SRS Air Bag Warning LabelsThe warning labels are located on the sur-
face of the sun visor.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.
LRS2158LRS0100
1-64Safety—Seats, seat belts and supplemental restraint system
Page 83 of 554
2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer . . ...................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-7
Warning lights .................................2-7
Indicator lights ................................ 2-11
Audible reminders ............................. 2-13
Vehicle Information Display ........................2-14
How to use the vehicle information display .......2-14
Startup display ................................ 2-15
Settings ...................................... 2-15
Vehicle information display warnings and
indicators ..................................... 2-21
Security systems ................................. 2-24
Vehicle security system ......................... 2-24
INFINITI vehicle immobilizer system ..............2-25
Windshield wiper and washer switch ...............2-26
Switch operation .............................. 2-27Rain-sensing auto wiper system
(if so equipped)
............................... 2-28
Rear window wiper and washer switch ..............2-29
Rear window and outside mirror defroster switch .....2-30
Headlight and turn signal switch ....................2-30
Xenon headlights .............................. 2-30
Headlight control switch ........................ 2-31
Daytime running light system (Canada only) ......2-33
Instrument brightness control ...................2-34
Turn signal switch ............................. 2-34
Fog light switch ............................... 2-35
Horn ............................................ 2-35
Heated front seats (if so equipped) .................2-35
Heated rear seats (if so equipped) ..................2-37
Climate control seat switch (if so equipped) .........2-38
Heated steering wheel (if so equipped) .............2-39
Warning systems switch (if so equipped) ............2-40
V ehicle
Dynamic Control (VDC) off switch ...........2-41
Power inverter switch (if so equipped) ..............2-41
Power outlets .................................... 2-41
12v outlets ................................... 2-41
120v outlet (if so equipped) ....................2-43
Page 85 of 554
1. Vent (P. 4-53)
2. Headlight/fog light/turn signal switch(P. 2-30)
3. Instrument brightness control (P. 2-34) 4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)
5. Driver supplemental air bag/Horn
(P.1-49, P. 2-35) 6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-30)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)
9. Vent (P. 4-53)
10. Rear window and outside mirror
defroster switch (P. 2-30)
11. Center display (P. 4-14,
4-4)/Navigation system*
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-54)
13. Vent (P. 4-53)
14. Front passenger supplemental air bag
(P. 1-49)
15. Vent (P. 4-53)
16. Glove box (P. 2-46)
17. Center multi-function control buttons
(P. 4-14, 4-4)
18. Power outlet (P.2-41)
19. Audio system controls (P. 4-61)
20. Shift selector (P.5-15)
21. Front passenger air bag status light
(P. 1-59)
22. Hazard light switch (P. 6-2)
LIC2290
INSTRUMENT PANEL
2-2Instruments and controls
Page 86 of 554
23. Ignition switch (P. 5-10)
24. Cruise control main/set switches (if soequipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-47, P.5-49)
25. Distance Control Assist (DCA) system
switch (if so equipped) (P. 5-68)
26. Tilt steering wheel control (P. 3-26)
27. Bluetooth® Hands-Free Phone System
(P. 4-115, 4-129)
28. Steering wheel switch for audio control
(P.4-101)
29. Hood release (P. 3-20)
30. Vehicle dynamic control (VDC) OFF
switch (P. 2-41)
Heated steering wheel switch
(if so equipped) (P.2-39)
Headlight aiming control (P. 2-33)
Warning System switch
(if so equipped) (P. 2-40)
Power inverter switch (if so equipped)
(P. 2-41)
Liftgate release switch (P.3-20)
Power liftgate main switch (P. 3-23) 31. Control panel and Vehicle Information
Display switches (P.4-17, 2-14)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Instruments and controls2-3
Page 87 of 554
1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display
4. Speedometer
5. Fuel gauge
6. Odometer/Twin trip odometer7. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer1and the twin trip odometer2
are displayed below the Vehicle Information Dis-
play when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.LIC2217
LIC2218
METERS AND GAUGES
2-4Instruments and controls
Page 88 of 554

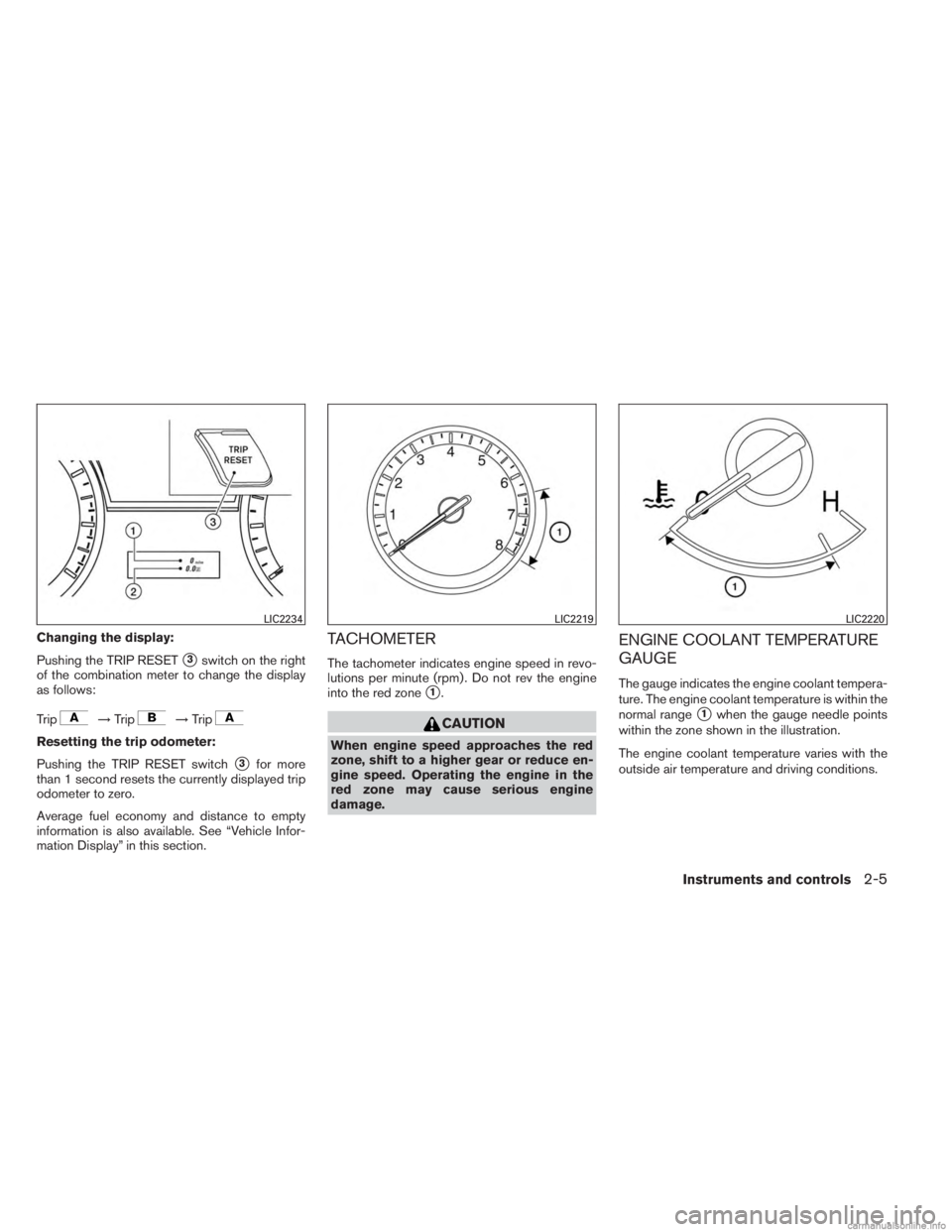

Changing the display:
Pushing the TRIP RESET
3switch on the right
of the combination meter to change the display
as follows:
Trip
→ Trip→Trip
Resetting the trip odometer:
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently displayed trip
odometer to zero.
Average fuel economy and distance to empty
information is also available. See “Vehicle Infor-
mation Display” in this section.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
LIC2234LIC2219LIC2220
Instruments and controls2-5
Page 90 of 554
Anti-lock Braking System (ABS) warning lightSeat belt warning light and chimeMalfunction indicator light (MIL)
orBrake warning lightSupplemental air bag warning lightSecurity indicator light
Charge warning lightFog light indicator lightSide light and headlight indicator light (green)
Low tire pressure warning lightFront passenger air bag status lightSlip indicator light
Master warning lightHigh beam indicator light (blue)Turn signal/hazard indicator lights
Power steering warning lightIntelligent Brake Assist (IBA) off indicator light
(if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,or,,
The following lights come on briefly and then go
off:
,,,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING LIGHTS
For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.
Anti-lock Braking System(ABS) warning light
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.
If the ABS light comes on while the engine is
running, it may indicate the anti-lock braking sys-
tem is not functioning properly. Have the system
checked by an INFINITI retailer.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7
Page 92 of 554
After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also
appears in the vehicle information display.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low
tire pressure warning light. Use a tire pres-
sure gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.For additional information, see “Vehicle informa-
tion display” in the “Instruments and controls”
section and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section and
in the “In case of emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked by
an INFINITI retailer. The CHECK TIRE PRES-
SURE warning does not appear if the low tire
pressure warning light illuminates to indicate a
TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section.
WARNING
●
Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use. ●
If the light does not illuminate with the
ignition switch placed in the ON posi-
tion, have the vehicle checked by an
INFINITI retailer as soon as possible.
● If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury. Check
the tire pressure for all four tires. Adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label located
in the driver’s door opening to turn the
low tire pressure warning light OFF. If
the light still illuminates while driving
after adjusting the tire pressure, a tire
may be flat. If you have a flat tire, re-
place it with a spare tire as soon as
possible.
Instruments and controls2-9
