window INFINITI M 2010 Owners Manual

1. Hood (P. 3-17)
2. Headlight and turn signal lightsÐ Switch operation (P. 2-29)
Ð Bulb replacement (P. 8-30)
Ð Adaptive Front lighting System (AFS)
(if so equipped) (P. 2-31) 3. Windshield wiper and washer
Ð Switch operation (P. 2-27)
Ð Rain-sensing auto wiper system
(P. 2-28)
Ð Blade replacement (P. 8-22)
Ð Window washer fluid (P. 8-17) 4. Moonroof (P. 2-46)
5. Power windows (P. 2-43)
6. Recovery hook (P. 6-14)
7. License plate installation (P. 9-14)
8. Fog lights (P. 2-33)
9. Tires
Ð Wheel and tires (P. 8-34, P. 9-9)
Ð Flat tire (P. 6-2)
Ð Tire Pressure Monitoring System
(TPMS) (P. 2-15, P. 5-3)
10. Outside mirrors (P. 3-24)
11. Doors Ð Keys (P. 3-2)
Ð Door locks (P. 3-4)
Ð Intelligent Key system (P. 3-6)
Ð Security system (P. 2-24)
SSI0369
EXTERIOR FRONT
Illustrated table of contents0-3
wÐ
Ð
05/19/09Ðtbrooks
X

1. TrunkÐ Trunk lid (P. 3-17)
Ð Intelligent Key system (P. 3-6)
2. High-mounted stop light Ð Bulb replacement (P. 8-30)
3. Rear window defroster (P. 2-28) 4. Satellite radio antenna (if so equipped)
(P. 4-35)
5. Fuel-filler door Ð Operation (P. 3-20)
Ð Fuel recommendation (P. 9-4) 6. Rear view camera (if so equipped)
(P. 4-22)
7. Back-up lights Ð Bulb replacement (P. 8-30)
8. Rear combination lights Ð Bulb replacement (P. 8-30)
9. Child safety rear door locks (P. 3-6)
SSI0370
EXTERIOR REAR
0-4Illustrated table of contents
wÐ
Ð
05/19/09Ðtbrooks
X

1. Rear sunshade (if so equipped) (P. 2-47)
2. Rear personal lights (P. 2-49)
3. Coat hooks (P. 2-43)4. Mobile Entertainment System (MES)
(if so equipped)
Ð Flip-down screen (P. 4-63)
Ð Digital Versatile Disc (DVD) drive
(P. 4-62)
Ð Headphones (P. 4-64)
Ð DVD remote controller (P. 4-65) 5. Door armrest
Ð Power window switches (P. 2-43)
Ð Power door lock switch (P. 3-5)
6. Automatic drive positioner switch (if so equipped) (P. 3-26)
7. Sun visors (P. 3-22)
8. Front map lights (P. 2-49)
9. Moonroof switch (P. 2-46)
10. Sunglasses holder (P. 2-41)
11. Inside rearview mirror (P. 3-23) Ð HomeLink Tuniversal transceiver
(P. 2-51)
Ð Compass (if so equipped) (P. 2-9)
12. Trunk pass-through/Rear armrest (P. 1-11)
13. Rear seat controls (if so equipped) Ð Rear power seat adjust switch (P. 1-4)
Ð Heated seat switches (P. 2-34)
Ð Automatic return ON/CANCEL switch
(P. 1-4)
Ð Rear sunshade control switch
(P. 2-47)
14. Rear passenger control switches (if so equipped)
Ð For climate control (P. 4-33)
Ð For audio system (P. 4-60)
15. Rear cup holders (P. 2-40)
SSI0371
PASSENGER COMPARTMENT
Illustrated table of contents0-5
wÐ
Ð
05/19/09Ðtbrooks
X

VK45DE ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7)
3. Engine oil filler cap (P. 8-12) 4. Brake fluid reservoir (P. 8-16)
5. Window washer fluid reservoir (P. 8-17)
6. Engine coolant reservoir (P. 8-10)
7. Power steering fluid reservoir (P. 8-16)8. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
9. Engine drive belt location (P. 8-19)
10. Engine oil dipstick (P. 8-12)
11. Air cleaner (P. 8-21)
* Shown with the engine compartment access panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2154
ENGINE COMPARTMENT
Illustrated table of contents0-11
wÐ
Ð
05/14/09Ðpattie
X

VQ35HR ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7) 3. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
4. Engine oil dipstick (P. 8-12)
5. Engine oil filler cap (P. 8-12)
6. Brake fluid reservoir (P. 8-16) 7. Window washer fluid reservoir (P. 8-17)
8. Power steering fluid reservoir (P. 8-16)
9. Air cleaner (P. 8-21)
10. Engine drive belt location (P. 8-19)
11. Engine coolant reservoir (P. 8-10)
* Shown with the engine compartment access
panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2307
0-12Illustrated table of contents
wÐ
Ð
05/14/09Ðpattie
X

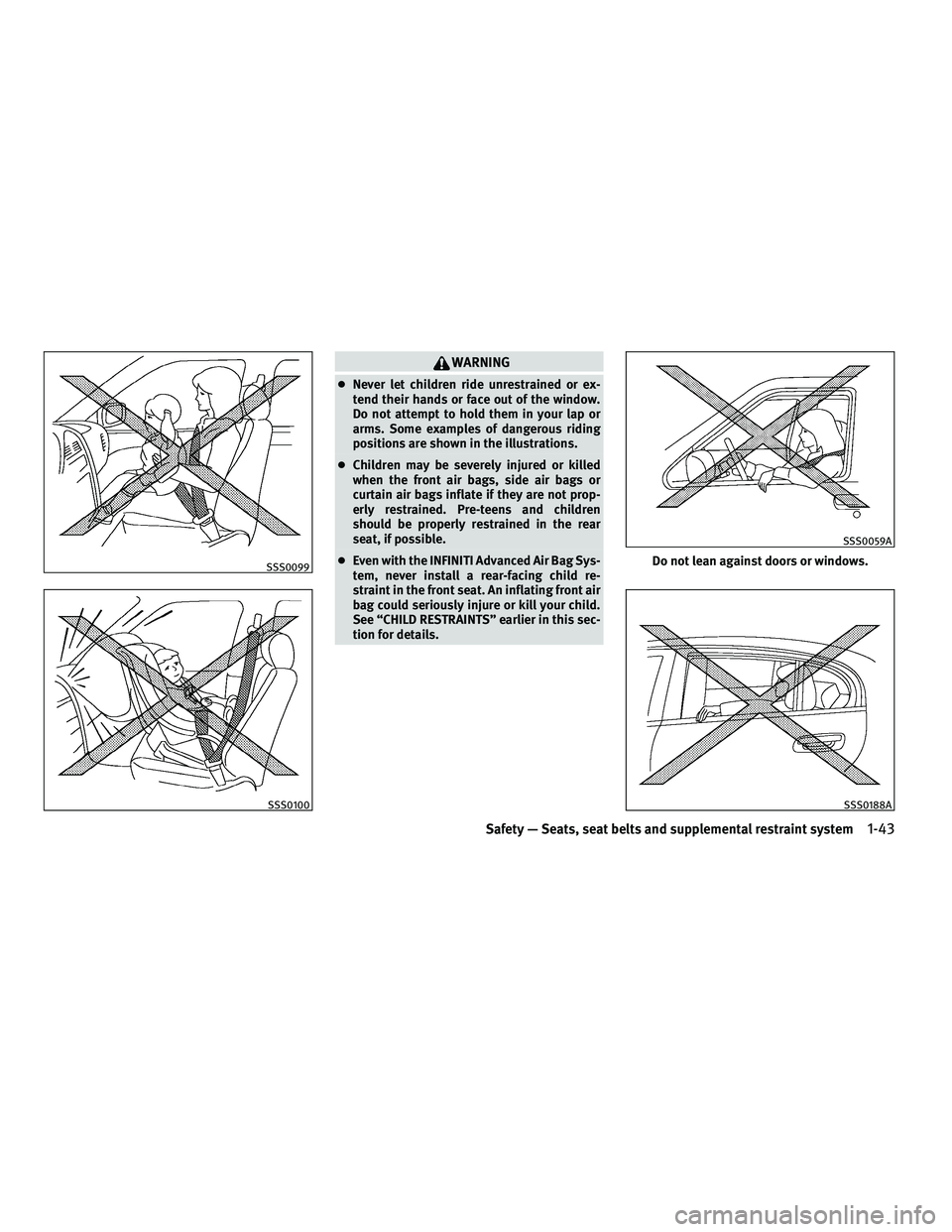

WARNING
cNever let children ride unrestrained or ex-
tend their hands or face out of the window.
Do not attempt to hold them in your lap or
arms. Some examples of dangerous riding
positions are shown in the illustrations.
c Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not prop-
erly restrained. Pre-teens and children
should be properly restrained in the rear
seat, if possible.
c Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child.
See ªCHILD RESTRAINTSº earlier in this sec-
tion for details.
SSS0099
SSS0100
Do not lean against doors or windows.
SSS0059A
SSS0188A
Safety Ð Seats, seat belts and supplemental restraint system1-43
wÐ
Ð
05/14/09Ðpattie
X

WARNING
Front seat-mounted side-impact supplemental
air bags and roof-mounted curtain side-impact
supplemental air bags:
cThe side air bags and curtain air bags ordi-
narily will not inflate in the event of a frontal
impact, rear impact, rollover or lower sever-
ity side collision. Always wear your seat
belts to help reduce the risk or severity of
injury in various kinds of accidents. c
The seat belts, the side air bags and curtain
air bags are most effective when you are
sitting well back and upright in the seat with
both feet on the floor. The side air bag and
curtain air bag inflate with great force. Do
not allow anyone to place their hand, leg or
face near the side air bag on the side of the
seatback of the front seat or near the side
roof rails. Do not allow anyone sitting in the
front seats or rear outboard seats to extend
their hand out of the window or lean against
the door. Some examples of dangerous
riding positions are shown in the previous
illustrations.
c When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
side air bag inflates, you may be seriously
injured. Be especially careful with children,
who should always be properly restrained.
Some examples of dangerous riding posi-
tions are shown in the illustrations.
c Do not use seat covers on the front seat-
backs. They may interfere with side air bag
inflation.
SSS0140
SSS0162
SSS0159
1-44Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-7
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-22
Security systems ................................. 2-24
Vehicle security system ........................ 2-24
INFINITI Vehicle Immobilizer System ............2-25
Windshield wiper and washer switch ...............2-27
Rain-sensing auto wiper system ................2-28
Rear window and outside mirror defroster switch . . . 2-28 Headlight and turn signal switch
..................2-29
Xenon headlights ............................. 2-29
Headlight switch .............................. 2-29
Turn signal switch ............................. 2-33
Fog light switch ............................... 2-33
Hazard warning flasher switch .....................2-33
Horn ............................................ 2-34
Heated seats (rear seats) (if so equipped) ..........2-34
Climate controlled seats (front seats) ..............2-35
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-36
SNOW mode switch (if so equipped) ...............2-37
Vehicle Dynamic Control (VDC) OFF switch ..........2-37
Clock ............................................ 2-38
Adjusting the time ............................. 2-38
Power outlets .................................... 2-38
Cigarette lighter and ashtrays .....................2-39
Front ......................................... 2-39
Rear ......................................... 2-39
Storage ......................................... 2-40
Cup holders .................................. 2-40
Sunglasses holder ............................. 2-41
Glove box .................................... 2-41
wÐ
Ð
05/19/09Ðtbrooks
X

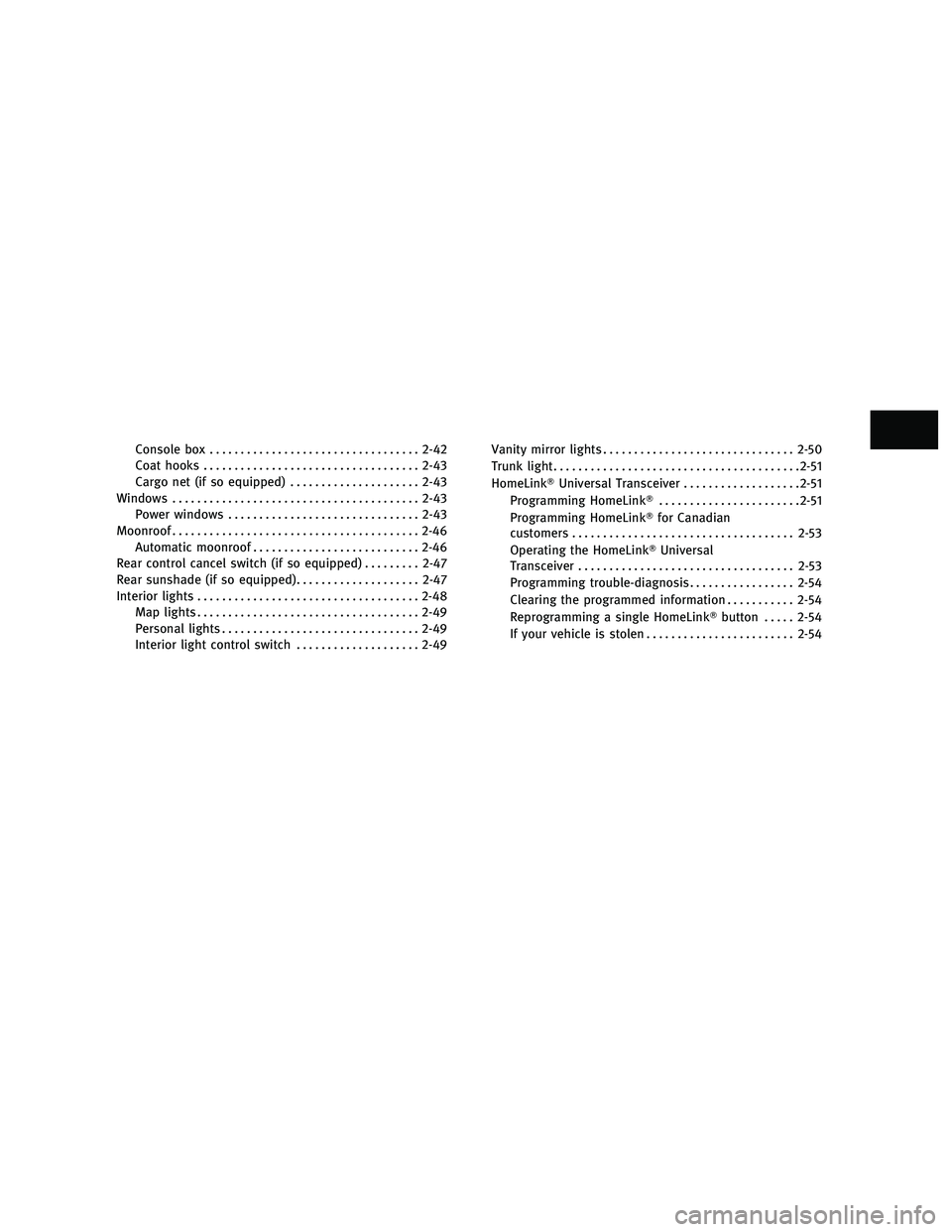

Console box.................................. 2-42
Coat hooks ................................... 2-43
Cargo net (if so equipped) .....................2-43
Windows ........................................ 2-43
Power windows ............................... 2-43
Moonroof ........................................ 2-46
Automatic moonroof ........................... 2-46
Rear control cancel switch (if so equipped) .........2-47
Rear sunshade (if so equipped) ....................2-47
Interior lights .................................... 2-48
Map lights .................................... 2-49
Personal lights ................................ 2-49
Interior light control switch ....................2-49Vanity mirror lights
............................... 2-50
Trunk light ........................................ 2-51
HomeLinkT Universal Transceiver ...................2-51
Programming HomeLinkT .......................2-51
Programming HomeLinkT for Canadian
customers .................................... 2-53
Operating the HomeLinkT Universal
Transceiver ................................... 2-53
Programming trouble-diagnosis .................2-54
Clearing the programmed information ...........2-54
Reprogramming a single HomeLinkT button.....2-54
If your vehicle is stolen ........................ 2-54
wÐ
Ð
05/14/09Ðpattie
X

cReplacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION
cThe TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
c If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
c Be sure to correctly install the specified size
of tires to the four wheels.
Low washer fluid warning
light
This light comes on when the washer tank fluid
is at a low level. Add washer fluid as necessary.
See ªWINDOW WASHER FLUIDº in the ª8. Main-
tenance and do-it-yourselfº section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in
the Brake Assist (with Preview Function) sys-
tem. If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
See ªPREVIEW FUNCTION (for Intelligent Cruise
Control (ICC) system equipped models)º in the
ª5. Starting and drivingº section.
Rear Active Steer warning
light (if so equipped)
If the light comes on while the engine is run-
ning, it may indicate that there is a malfunction
with the Rear Active Steer portion of the steer-
ing system. Have the system checked by an
INFINITI retailer.
For further information about the Rear Active
Steer system, see ªREAR ACTIVE STEER SYS-
TEMº in the ª5. Starting and drivingº section.
If a malfunction occurs in the system, the Rear
Active Steer function will cease but driving can
be continued.
If the light comes on while you are driving, con-
tact an INFINITI retailer for repair.
Seat belt warning
light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver's seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver's seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger's seat is occupied.
For 5 seconds after the ignition switch is in the
ON position, the system does not activate the
warning light for the front passenger.
See ªSEAT BELTSº in the ª1. Safety Ð Seats,
seat belts and supplemental restraint systemº
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational.
Instruments and controls2-17
