enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refueling.
Gasoline containing oxygenates can cause paint
damage.
E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
Technical and consumer information9-5
—
—
01/13/10—pattie

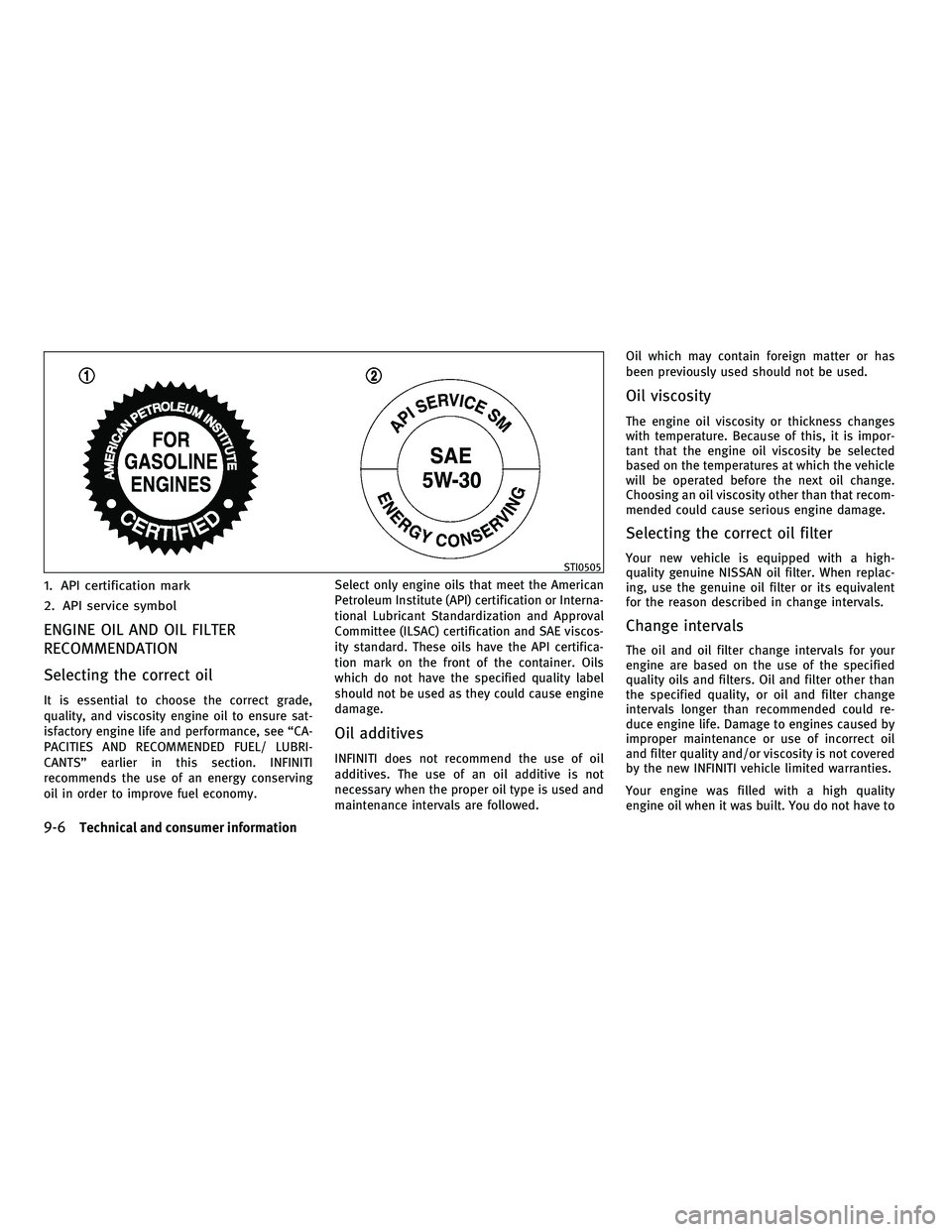

1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance, see “CA-
PACITIES AND RECOMMENDED FUEL/ LUBRI-
CANTS” earlier in this section. INFINITI
recommends the use of an energy conserving
oil in order to improve fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When replac-
ing, use the genuine oil filter or its equivalent
for the reason described in change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than
the specified quality, or oil and filter change
intervals longer than recommended could re-
duce engine life. Damage to engines caused by
improper maintenance or use of incorrect oil
and filter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have to
STI0505
9-6Technical and consumer information
—
—
01/13/10—tbrooks


ENGINE
ModelVK56VDVQ37VHR
Type Gasoline, 4-cycle Gasoline, 4-cycle
Cylinder arrangement 8-cylinder, V-slanted at
90° 6-cylinder, V-slanted at
60°
Bore × Stroke in (mm) 3.858 × 3.622
(98.0 × 92.0) 3.760 × 3.385
(95.5 × 86.0)
Displacement cu in (cm
3) 338.78 (5,552) 225.54 (3,696)
Firing order 1-8-7-3-6-5-4-21-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing
(B.T.D.C.) degree/rpm
Spark plug DILKAR7B11FXE24HR11
Spark plug gap
(Normal) in (mm)
0.043 (1.1) 0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
VK56VD engine
STI0397B
VQ37VHR engine
STI0425
SPECIFICATIONS
9-8Technical and consumer information
—
—
01/13/10—pattie


DIMENSIONS
IN (MM)
Overall length (with front license plate)194.7 (4,945)
Overall length (without front license plate) 194.5 (4,940)
Overall width 72.6 (1,845)
Overall height 59.1 (1,500)*1*2
59.6 (1,515)*3
Front tread 62.0 (1,575)
Rear tread 61.8 (1,570)*1*2
61.6 (1,565)*3
Wheelbase 114.2 (2,900)
*1: Two-Wheel Drive (2WD)/18-in tire models
*2: Two-Wheel Drive (2WD)/20-in tire models
*3: Intelligent All-Wheel Drive (AWD) models If you plan to travel in another country,
you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY
9-10Technical and consumer information
—
—
01/13/10—pattie

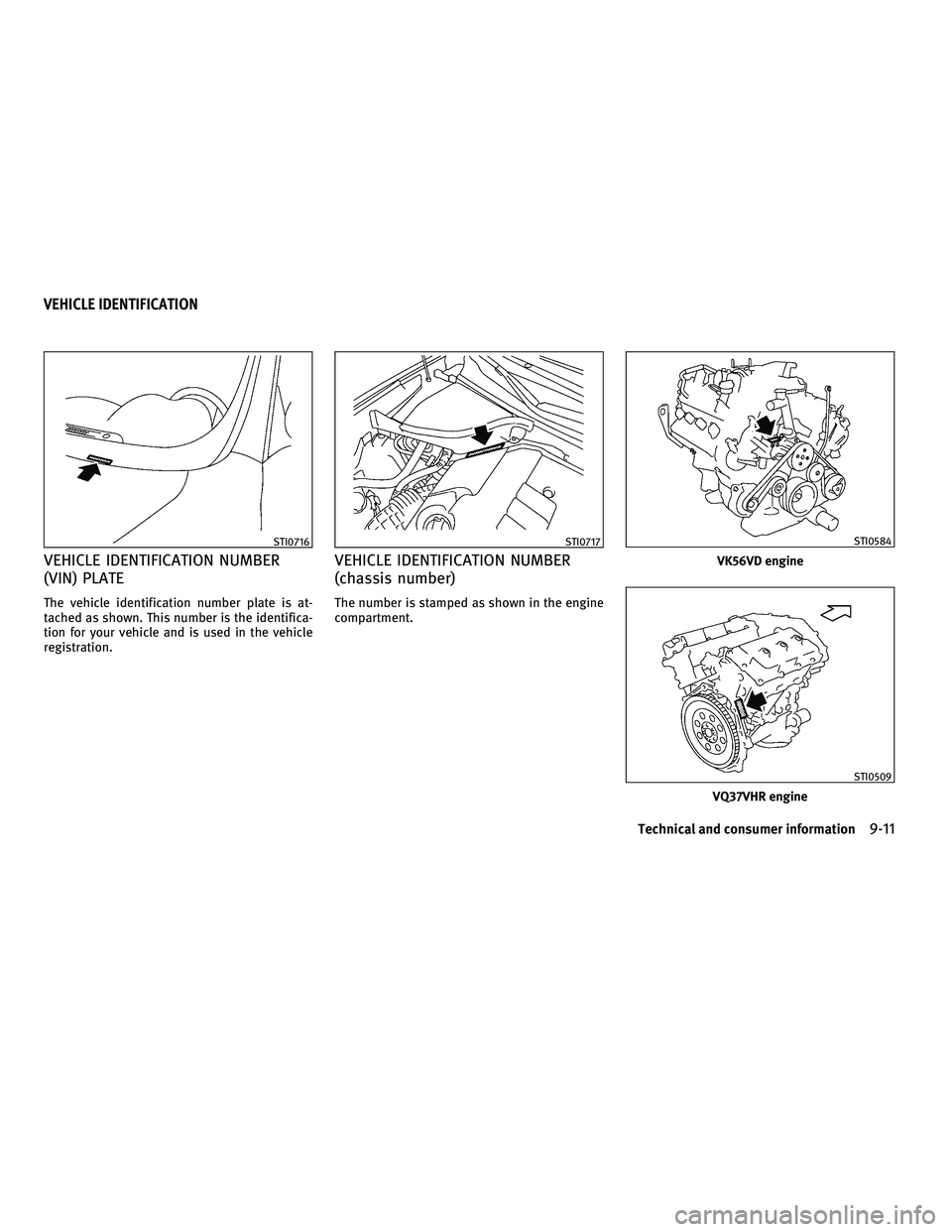

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
STI0716STI0717
VK56VD engine
STI0584
VQ37VHR engine
STI0509
VEHICLE IDENTIFICATION
Technical and consumer information9-11
—
—
01/13/10—pattie

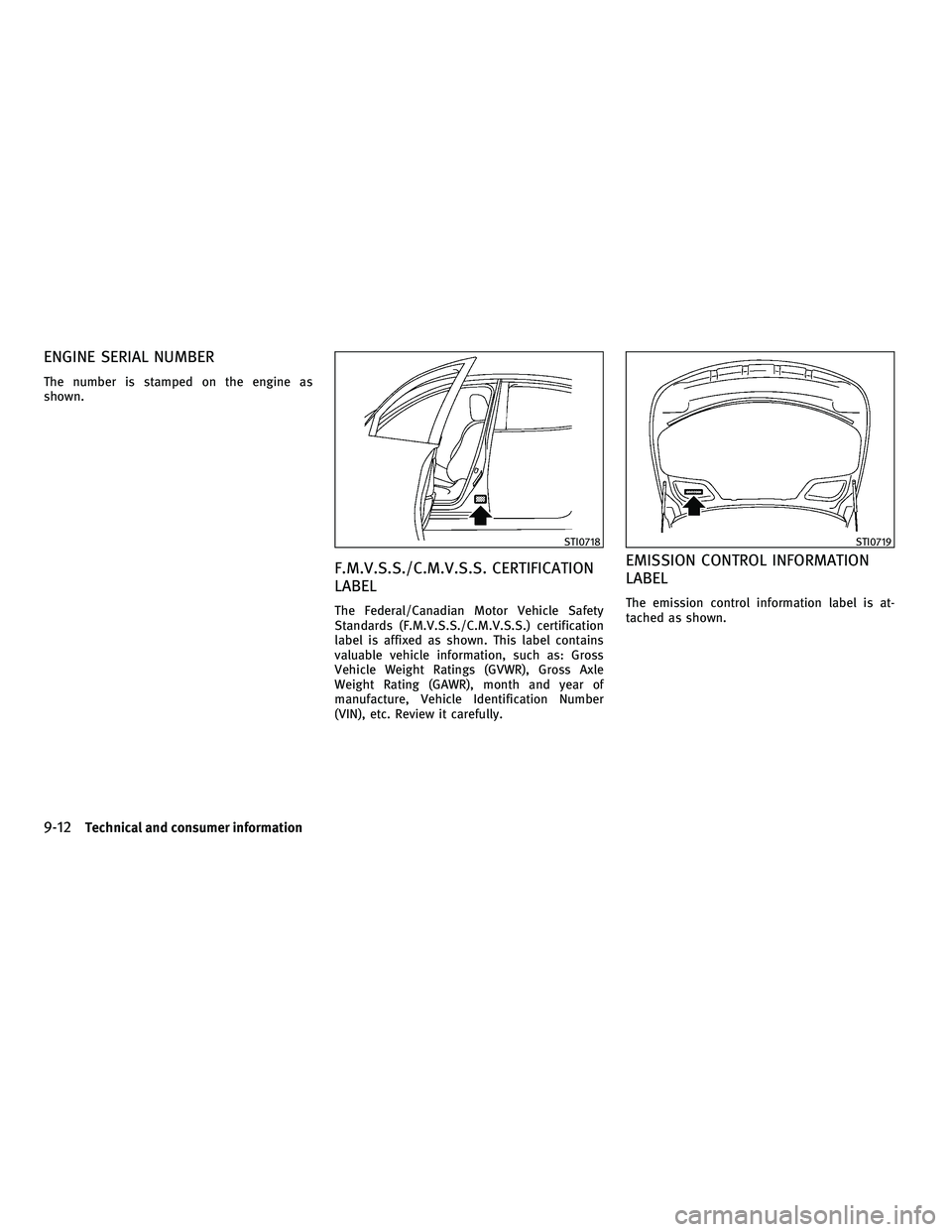

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR), Gross Axle
Weight Rating (GAWR), month and year of
manufacture, Vehicle Identification Number
(VIN), etc. Review it carefully.
EMISSION CONTROL INFORMATION
LABEL
The emission control information label is at-
tached as shown.
STI0718STI0719
9-12Technical and consumer information
—
—
01/13/10—pattie


Additional information concerning motor
vehicle safety may be obtained from
Transport Canada’s Road Safety Infor-
mation Centre at 1-800-333-0371 or on-
line at www.tc.gc.ca/roadsafety (English
speakers) or
www.tc.gc.ca/securiteroutiere (French
speakers).
To notify INFINITI of any safety concerns
please contact our Consumer Informa-
tion Centre toll free at 1-800-361-4792.A vehicle equipped with Intelligent All-Wheel
Drive (AWD) should never be tested using a two
wheel dynamometer (such as the dynamom-
eters used by some states for emissions test-
ing), or similar equipment. Make sure you in-
form test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equipment
may result in transmission damage or unex-
pected vehicle movement which could result in
serious vehicle damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/Mtest condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact an INFINITI retailer to set the “ready
condition” or to prepare the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)
9-22Technical and consumer information
—
—
07/26/10—dmoore


10 Index
4 Wheel Active Steer (4WAS) system.....5-91
4 Wheel Active Steer (4WAS) warning
light ...................... .2-12
A
ABS (Anti-lock Braking System) ........5-87
Adaptive front lighting system (AFS) .....2-35
Advanced air bag system ...........1-41
Aiming control, Adaptive front lighting
system (AFS) ................. .2-35
Air bag system Advanced air bag system .........1-41
Front passenger air bag and status
light ..................... 1-43
Front-seat mounted side-impact
supplemental air bag system .......1-46
Roof-mounted curtain side-impact
supplemental air bag system .......1-46
Air bag warning labels .............1-48
Air bag warning light ..........1-48 , 2-15
Air cleaner housing filter ...........8-19
Air conditioner Air conditioner service ...........4-44
Air conditioner specification label ....9-13
Air conditioning system refrigerant and
lubricant recommendations .......4-44
Automatic climate control ........4-30
In-cabin microfilter ............4-43
Operation
(See automatic climate control) .....4-30 Alarm, How to stop alarm
(see vehicle security system)
.........2-28
Alcohol, drugs and driving ...........5-6
Antenna .................... .4-85
Anti-lock Braking System (ABS) ........5-87
Anti-lock braking system (ABS) warning
light ...................... .2-10
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-10
Ashtrays
(See cigarette lighter and ashtrays) .....2-44
Audible reminders .............. .2-18
Audio operation precautions .........4-44
Audio system ................. .4-44
Audio system, Steering wheel audio
controls .................... .4-83
Autolight system ............... .2-33
Automatic Automatic

climate control .........4-32
Automatic transmission fluid (ATF) ....8-14
Climate control .............. 4-30
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-5
Automatic drive positioner ..........3-26
Automatic seat positioner ...........3-26
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-16
Battery Battery saver system ...........2-34
Intelligent Key ............... 8-25
Variable voltage control system .....8-18
Before starting the engine ...........5-10
Belts (See drive belts) .............8-18
Bluetooth hands-free phone system
(models with navigation system) . . . . . . .4-86
Booster seats ................. .1-33
Brake Anti-lock Braking System (ABS) . .....5-87
Brake fluid ................. 8-15
Brake system ............... 5-84
Parking brake operation .........5-16
Brake warning light .............. .2-11
Break-in schedule .............. .5-80
Brightness control and display ON/OFF
button ..................... .4-8
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel .........2-10
Bulb replacement .............. .8-27
C
Cabin air filter ................ .4-43
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
07/26/10—dmoore


Card holder.................. .2-48
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Child restraints Booster seats ............... .1-33
LATCH system ................ 1-21
Precautions on child restraints ......1-19
Child safety .................. .1-17
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-14
Cigarette lighter and ashtrays ........2-44
Circuit breaker, Fusible link ..........8-23
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic climate
control ..................... .4-30
Clock ..................... .2-43
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-92
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-61
Compact spare tire ............. .8-40
Console box ................. .2-47
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-30 Coolant
Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine coolant .........8-11
Checking engine coolant level ......8-10
Corrosion protection ..............7-6
Cruise control ..................5-39
Cruise

control
Fixed speed cruise control (on ICC
system) .................. .5-58
Intelligent cruise control (ICC) system . . 5-41
Cruise indicator ............... .2-22
Cup holders .................. .2-45
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-10
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance Control Assist (DCA) system . . . .5-62
Distance Control Assist (DCA) system
switch indicator ............... .2-23
Distance Control Assist (DCA) system
warning light ................. .2-12
Distance to empty .............. .2-25
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-18
Drive positioner ............... .3-26
Driving Cold weather driving ............5-92 Driving with automatic transmission . . . 5-12
Precautions when starting and driving . . 5-2
E
Economy, Fuel ................ .5-81
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label ......9-12
Emission control system warranty ......9-21
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-80
Capacities and recommended
fuel/lubricants ...............9-2
Changing engine coolant .........8-11
Changing engine oil and filter ......8-12
Checking engine coolant level . . ....8-10
Checking engine oil level .........8-11
Engine block heater ............5-93
Engine compartment check locations . . . 8-6
Engine cooling system ..........8-10
Engine oil .................. 8-11
Engine

oil and oil filter
recommendation ..............9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator . . . . . 2-21
If your vehicle overheats .........6-11
Starting the engine ............. 5-11
Engine coolant temperature gauge . .....2-7
Entry/exit function, Automatic drive
positioner ................... .3-26
10-2
—
—
07/26/10—dmoore


Event Data Recorders (EDR)..........9-23
Exhaust gas (carbon monoxide) ........5-2
Filter Air cleaner housing filter .........8-19
Changing engine oil and filter ......8-12
F
Flashers
(See hazard warning flasher switch) .....2-37
Flat tire ..................... .6-2
Flat towing .................. .9-19
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-14
Brake fluid ................. 8-15
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ............... 8-10
Engine oil .................. 8-11
Power steering fluid ............8-14
Window washer fluid ...........8-15
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-58
F.M.V.S.S./C.M.V.S.S. certification label . . .9-12
Fog light switch ............... .2-37
Forward Collision Warning (FCW) system . .5-73
Front passenger air bag and status light . .1-43
Front power seat adjustment ..........1-3
Front-seat active head restraints ........1-7
Front seat, Front seat adjustment .......1-3
Fuel Capacities and recommended
fuel/lubricants ............... .9-2
Fuel economy ................ 5-81
Fuel economy information (display) . . . 4-10 Fuel-filler cap
................ 3-19
Fuel-filler door ............... 3-19
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Gauge ....................2-8
Fuses ..................... .8-22
Fusible links ................. .8-23
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-19
Gauge ...................... .2-5
Gauge Engine coolant temperature gauge .
. . .2-7
Fuel gauge ..................2-8
Odometer ..................2-6
Speedometer ................2-6
Tachometer .................2-7
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-47
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-86
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch ........2-37
Headlights Aiming control (See adaptive front
lighting system (AFS)) ...........2-35 Bulb replacement
............. 8-28
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Head restraints ................. .1-4
Heated seats ................. .2-39
Heated steering wheel .............2-38
Heater Automatic climate control . . . . .....4-30
Engine block heater ............5-93
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-16
Hook, Coat hooks .............. .2-48
Horn ...................... .2-39
I
Ignition switch, Automatic transmission
models ..................... .5-12
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-43
Indicator, Dot matrix display .........2-19
Indicator lights ................ .2-15
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
INFINITI

voice recognition system ......4-109
INFO button .................. .4-8
Inside mirror ................. .3-23
Inspection/maintenance (I/M) test ......9-22
Instrument brightness control ........2-36
Instrument panel ............... .2-4
Intelligent Brake Assist (IBA) off indicator
light ...................... .2-16
Intelligent Brake Assist (IBA) system .....5-77
10-3
—
—
07/26/10—dmoore
