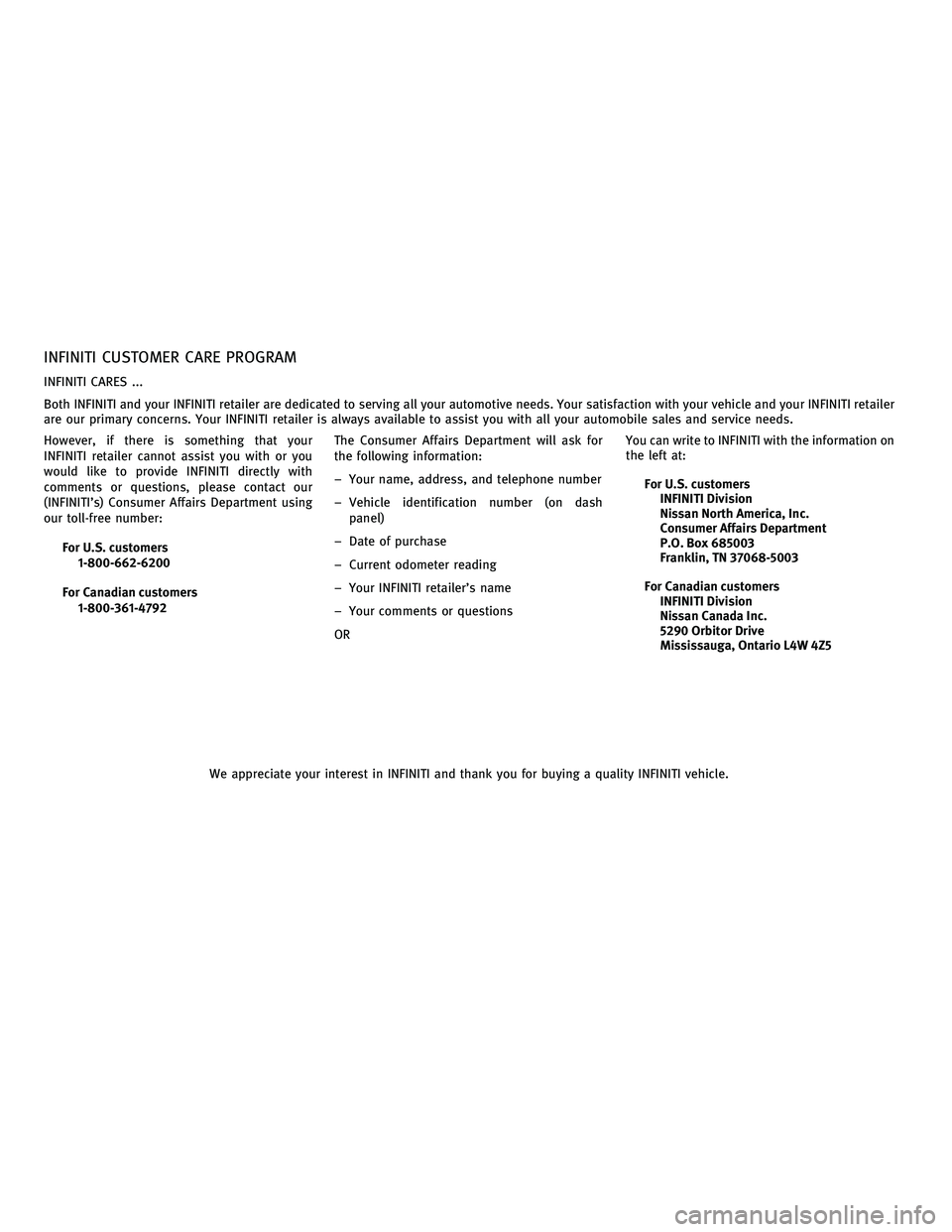

INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI retailer
are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your
INFINITI retailer cannot assist you with or you
would like to provide INFINITI directly with
comments or questions, please contact our
(INFINITI’s) Consumer Affairs Department using
our toll-free number:For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask for
the following information:
– Your name, address, and telephone number
– Vehicle identification number (on dash
panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
OR You can write to INFINITI with the information on
the left at:
For U.S. customersINFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
—
—
01/11/10—pattie


1. Instrument brightness control switch(P. 2-36)
2. AFS switch (if so equipped) (P. 2-35)
3. Headlight, fog light and turn signal switch (P. 2-32) 4. Trip computer switch (P. 2-24)
5. TRIP/RESET switch for twin trip odometer
(P. 2-6)
6. Windshield wiper and washer switch (P. 2-30) 7. Vehicle Dynamic Control (VDC) OFF switch
(P. 5-89)
8. Rear sunshade switch (if so equipped) (P. 2-53)
9. Steering heater switch (if so equipped) (P. 2-38)
10. Trunk lid release switch (P. 3-17)
11. Warning systems switch (if so equipped) (P. 5-20, P. 5-28, P. 5-73)
12. IBA OFF switch (if so equipped) (P. 5-77)
13. Electric tilting/telescopic steering wheel lever (P. 3-21)
14. Steering-wheel-mounted controls (left side)
— Menu control switch (models with
navigation system)/Audio tuning switch
(models without navigation system)
(P. 4-83)
— BACK switch (models with navigation
system) (P. 4-83)
— TALK switch (if so equipped)
(P. 4-109)/Phone switch (if so equipped)
(P. 4-86)
— Volume control switch (P. 4-83)
— Audio source switch (P. 4-44)
SSI0689
COCKPIT
0-6Illustrated table of contents
—
—
07/15/10—tbrooks


1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-9)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-19)
6. Fuel gauge (P. 2-8)
SIC4317
METERS AND GAUGES
Illustrated table of contents0-9
—
—
07/15/10—tbrooks


2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Warning/indicator lights and audible reminders ...... 2-9
Checking bulbs ............................... 2-10
Warning lights ................................ 2-10
Indicator lights ................................. 2-15
Audible reminders ............................. 2-18
Dot matrix liquid crystal display ...................2-19
Indicators for operation ........................ 2-21
Indicators for maintenance .....................2-23
Trip computer ................................. 2-24
Security systems ................................. 2-27
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............2-29
Windshield wiper and washer switch ...............2-30
Rain-sensing auto wiper system ................2-31
Rear window and outside mirror defroster switch . . . 2-32
Headlight and turn signal switch ..................2-32Xenon headlights
............................. 2-32
Headlight switch .............................. 2-33
Turn signal switch ............................. 2-37
Fog light switch ............................... 2-37
Hazard warning flasher switch .....................2-37
Heated steering wheel (if so equipped) .............2-38
Horn ............................................ 2-39
Heated seats (if so equipped) .....................2-39
Climate controlled seats (if so equipped) ...........2-40
Warning systems switch (if so equipped) ...........2-41
Intelligent Brake Assist (IBA) OFF switch (if so
equipped) ....................................... 2-42
Vehicle Dynamic Control (VDC) OFF switch ..........2-43
Clock ............................................ 2-43
Adjusting the time ............................. 2-43
Power outlet ..................................... 2-44
Cigarette
lighter and ashtrays ..................... 2-44
Front ......................................... 2-44
Rear ......................................... 2-45
Storage ......................................... 2-45
Cup holders .................................. 2-45
Sunglasses holder ............................. 2-46
Glove box .................................... 2-47
—
—
07/15/10—tbrooks


1. Instrument brightness control switch(P. 2-36)
2. AFS switch (if so equipped) (P. 2-35)
3. Headlight, fog light and turn signal switch (P. 2-32) 4. Trip computer switch (P. 2-24)
5. TRIP/RESET switch for twin trip odometer
(P. 2-6)
6. Windshield wiper and washer switch (P. 2-30) 7. Vehicle Dynamic Control (VDC) OFF switch
(P. 5-89)
8. Rear sunshade switch (if so equipped) (P. 2-53)
9. Steering heater switch (if so equipped) (P. 2-38)
10. Trunk lid release switch (P. 3-17)
11. Warning systems switch (if so equipped) (P. 5-20, P. 5-28, P. 5-73)
12. IBA OFF switch (if so equipped) (P. 5-77)
13. Electric tilting/telescopic steering wheel lever (P. 3-21)
14. Steering-wheel-mounted controls (left side)
— Menu control switch (models with
navigation system)/Audio tuning switch
(models without navigation system)
(P. 4-83)
— BACK switch (models with navigation
system) (P. 4-83)
— TALK switch (if so equipped)
(P. 4-109)/Phone switch (if so equipped)
(P. 4-86)
— Volume control switch (P. 4-83)
— Audio source switch (P. 4-44)
SSI0689
COCKPIT
2-2Instruments and controls
—
—
07/15/10—tbrooks


1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-9)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-19)
6. Fuel gauge (P. 2-8)
*: The needle indicators in the speedometer, ta- chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the ignition switch is pushed to the LOCK posi-
tion. This is not a malfunction.
SIC4317
METERS AND GAUGES
Instruments and controls2-5
—
—
07/15/10—tbrooks

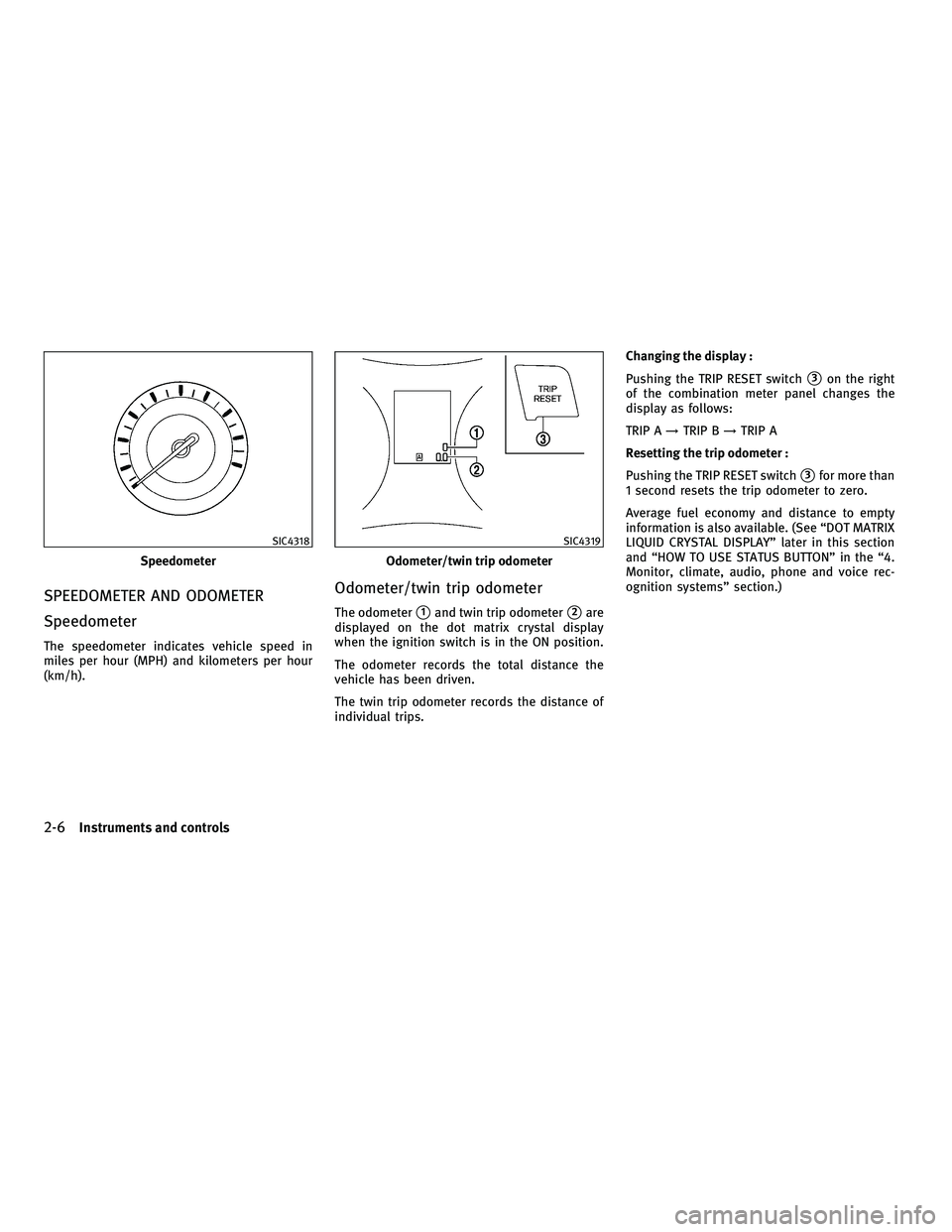

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display :
Pushing the TRIP RESET switch
3on the right
of the combination meter panel changes the
display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP RESET switch
3for more than
1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
Speedometer
SIC4318
Odometer/twin trip odometer
SIC4319
2-6Instruments and controls
—
—
01/13/10—tbrooks

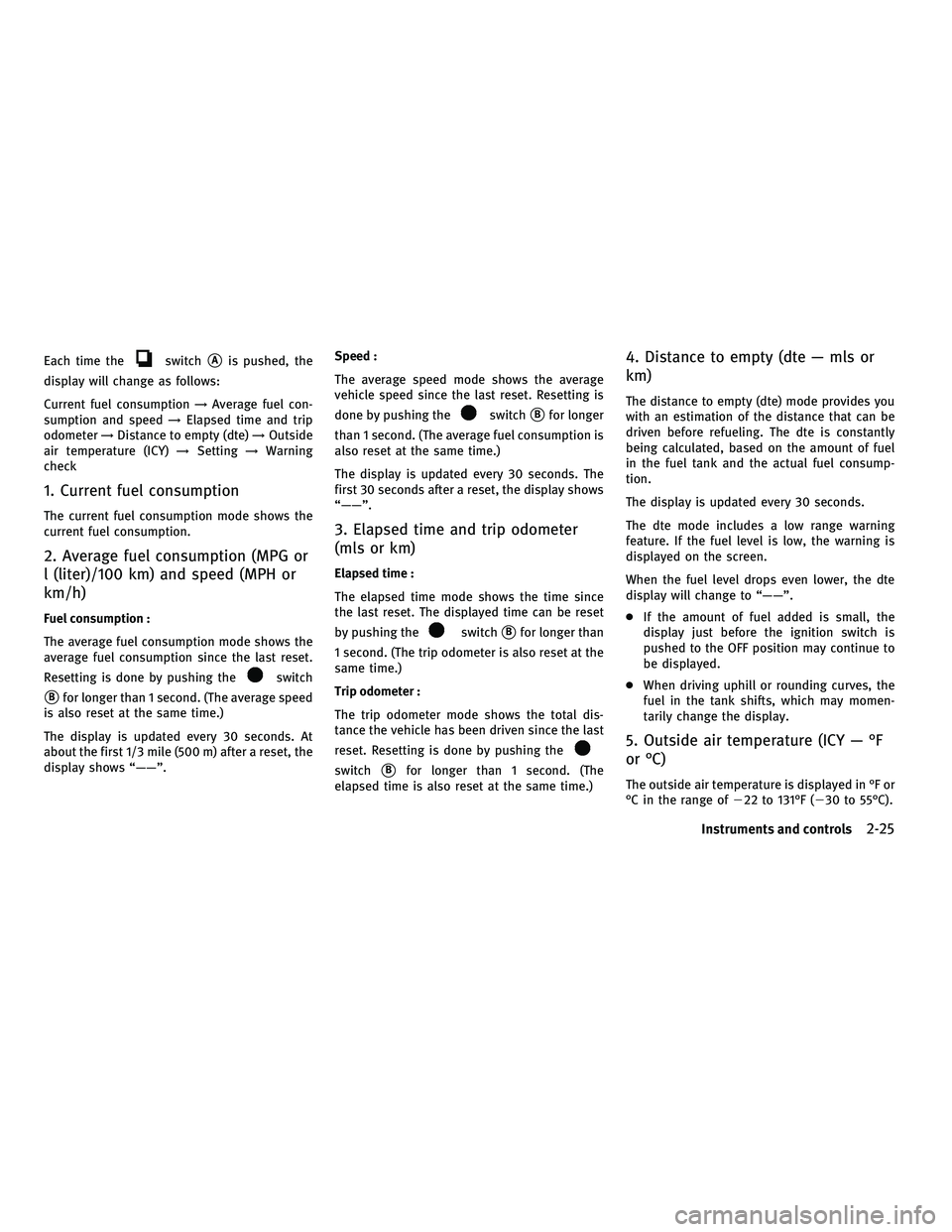

Each time theswitchAis pushed, the
display will change as follows:
Current fuel consumption →Average fuel con-
sumption and speed →Elapsed time and trip
odometer →Distance to empty (dte) →Outside
air temperature (ICY) →Setting →Warning
check
1. Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
2. Average fuel consumption (MPG or
l (liter)/100 km) and speed (MPH or
km/h)
Fuel consumption :
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch
Bfor longer than 1 second. (The average speed
is also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”. Speed :
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
switchBfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Elapsed time :
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switchBfor longer than
1 second. (The trip odometer is also reset at the
same time.)
Trip odometer :
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
4. Distance to empty (dte — mls or
km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel
in the fuel tank and the actual fuel consump-
tion.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C).
Instruments and controls2-25
—
—
07/15/10—tbrooks


Card holder.................. .2-48
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Child restraints Booster seats ............... .1-33
LATCH system ................ 1-21
Precautions on child restraints ......1-19
Child safety .................. .1-17
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-14
Cigarette lighter and ashtrays ........2-44
Circuit breaker, Fusible link ..........8-23
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic climate
control ..................... .4-30
Clock ..................... .2-43
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-92
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-61
Compact spare tire ............. .8-40
Console box ................. .2-47
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-30 Coolant
Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine coolant .........8-11
Checking engine coolant level ......8-10
Corrosion protection ..............7-6
Cruise control ..................5-39
Cruise

control
Fixed speed cruise control (on ICC
system) .................. .5-58
Intelligent cruise control (ICC) system . . 5-41
Cruise indicator ............... .2-22
Cup holders .................. .2-45
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-10
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance Control Assist (DCA) system . . . .5-62
Distance Control Assist (DCA) system
switch indicator ............... .2-23
Distance Control Assist (DCA) system
warning light ................. .2-12
Distance to empty .............. .2-25
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-18
Drive positioner ............... .3-26
Driving Cold weather driving ............5-92 Driving with automatic transmission . . . 5-12
Precautions when starting and driving . . 5-2
E
Economy, Fuel ................ .5-81
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label ......9-12
Emission control system warranty ......9-21
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-80
Capacities and recommended
fuel/lubricants ...............9-2
Changing engine coolant .........8-11
Changing engine oil and filter ......8-12
Checking engine coolant level . . ....8-10
Checking engine oil level .........8-11
Engine block heater ............5-93
Engine compartment check locations . . . 8-6
Engine cooling system ..........8-10
Engine oil .................. 8-11
Engine

oil and oil filter
recommendation ..............9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator . . . . . 2-21
If your vehicle overheats .........6-11
Starting the engine ............. 5-11
Engine coolant temperature gauge . .....2-7
Entry/exit function, Automatic drive
positioner ................... .3-26
10-2
—
—
07/26/10—dmoore


Event Data Recorders (EDR)..........9-23
Exhaust gas (carbon monoxide) ........5-2
Filter Air cleaner housing filter .........8-19
Changing engine oil and filter ......8-12
F
Flashers
(See hazard warning flasher switch) .....2-37
Flat tire ..................... .6-2
Flat towing .................. .9-19
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-14
Brake fluid ................. 8-15
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ............... 8-10
Engine oil .................. 8-11
Power steering fluid ............8-14
Window washer fluid ...........8-15
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-58
F.M.V.S.S./C.M.V.S.S. certification label . . .9-12
Fog light switch ............... .2-37
Forward Collision Warning (FCW) system . .5-73
Front passenger air bag and status light . .1-43
Front power seat adjustment ..........1-3
Front-seat active head restraints ........1-7
Front seat, Front seat adjustment .......1-3
Fuel Capacities and recommended
fuel/lubricants ............... .9-2
Fuel economy ................ 5-81
Fuel economy information (display) . . . 4-10 Fuel-filler cap
................ 3-19
Fuel-filler door ............... 3-19
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Gauge ....................2-8
Fuses ..................... .8-22
Fusible links ................. .8-23
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-19
Gauge ...................... .2-5
Gauge Engine coolant temperature gauge .
. . .2-7
Fuel gauge ..................2-8
Odometer ..................2-6
Speedometer ................2-6
Tachometer .................2-7
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-47
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-86
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch ........2-37
Headlights Aiming control (See adaptive front
lighting system (AFS)) ...........2-35 Bulb replacement
............. 8-28
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Head restraints ................. .1-4
Heated seats ................. .2-39
Heated steering wheel .............2-38
Heater Automatic climate control . . . . .....4-30
Engine block heater ............5-93
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-16
Hook, Coat hooks .............. .2-48
Horn ...................... .2-39
I
Ignition switch, Automatic transmission
models ..................... .5-12
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-43
Indicator, Dot matrix display .........2-19
Indicator lights ................ .2-15
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
INFINITI

voice recognition system ......4-109
INFO button .................. .4-8
Inside mirror ................. .3-23
Inspection/maintenance (I/M) test ......9-22
Instrument brightness control ........2-36
Instrument panel ............... .2-4
Intelligent Brake Assist (IBA) off indicator
light ...................... .2-16
Intelligent Brake Assist (IBA) system .....5-77
10-3
—
—
07/26/10—dmoore
