INFINITI M 2012 Owners Manual

4-10Monitor, climate, audio, phone and voice recognition systems
HOW TO USE STATUS BUTTON
To display the status of the audio, climate
control system, fuel consumption and
navigation system (if so equipped), push
the STATUS button. The following informa-
tion will appear when the STATUS button is
pushed repeatedly.
Audio and Climate control system?Audio
and fuel economy ?Audio and Navigation
system (if so equipped)
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
Push the “OFF”button to switch the
display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.
Push and hold the “
OFF”button for
more than 2 seconds to turn the display
off. Push the button again to turn the
display on.
Models without navigation system:
The display brightness can also be ad-
justed using the “
”button or “”
button.
HOW TO USE DISP BUTTON
Push the DISP button to show the display
setting screen. (See “Display settings
(models with navigation system) ”later in
this section.)
HOW TO USEECON BUTTON
(models without navigation system)
Push the “ECON ”button to show fuel
economy information. (See “Fuel Economy
information ”later in this section.)
HOW TO USE INFO BUTTON
The display screen shows vehicle and
navigation (if so equipped) information
for your convenience.
The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.SAA3144
Models with navigation system
SAA2145
Models without navigation system
VEHICLE INFORMATION AND SETTINGS

Vehicle information display
1. Push the INFO button on the controlpanel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informa- tion on the following screens, push the
BACK button to return to the INFO
menu.
See the separate Navigation System Own-
er’ s Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
When the ignition switch is in the ON
position, the “Navigation Version ”key is
displayed after selecting the “Others ”key.
SAA2479
Models with navigation system
SAA2480
Models with navigation system
JVH0056M
Models without navigation system
JVH0057M
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-11

4-12Monitor, climate, audio, phone and voice recognition systems
Fuel Economy information
The approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.
To reset the average fuel economy (Avg
Fuel Econ), select the“Reset Fuel Eco ”or
“ Reset ”key.
If the “Fuel Eco History” or“View ”key is
selected, the average fuel consumption
history will be displayed in graph form
along with the average for the previous
Reset-to-Reset period.
The unit can be converted between “US ”
and “Metric ”. (See “How to use SETTING
button ”later in this section.)
The fuel economy information may differ
from the information displayed on the
vehicle information display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.
For models without the navigation system,
the information can be displayed by
pushing the
ECON button on the
control panel.
SAA3146
Models with navigation system
SAA3147
Models without navigation system
TIRE PRESSURE information
WARNING
. When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
The tire pressure will be displayed for
reference.
The pressure indication “** kPa” or“**
psi ”on the screen means that the pressure
is being measured. After a few driving
trips, the pressure for each tire will be
displayed.
For models with navigation system, to
change the measurement units, select the
“ Select Units ”key with the INFINITI con-
troller and push the ENTER button.

The unit can be converted in the LANGUAGE
& UNITS settings display. (See“How to use
SETTING button ”later in this section for
details.)
In case of low tire pressure, LOW PRES-
SURE information will be displayed on the
screen. Check the pressure of all tires.
Tire pressure rises and falls depending on
the heat caused by the vehicle ’s traveling
condition and the temperature.
After tire rotation is performed, tire pres-
sure will not be displayed in the actual tire
position. Drive the vehicle at over 25 MPH
(40 km/h) for approximately 10 minutes to
reset the display.
For more details about the Tire Pressure
Monitoring System (TPMS), see “Tire Pres-
sure Monitoring System (TPMS) ”in the “5.
Starting and driving ”section.
When the ignition switch is in the ACC
position, the “Tire Pressure” key is not
displayed.
SAA2481
SAA2482
Models with navigation system
SAA2830
SAA3141
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-13

4-14Monitor, climate, audio, phone and voice recognition systems
Maintenance information
The maintenance intervals can be dis-
played for the engine oil, oil filter, tire
and other reminders.
To set a maintenance interval, select a
preferred item from the list.
You can also set to display a message to
remind you that the maintenance needs to
be performed.
The following example shows how to set
the engine oil maintenance information.
Use the same steps to set the other
maintenance information.
1. Set the interval (mileage) of the main-tenance schedule. To determine the
recommended maintenance interval,
refer to your “INFINITI Service and
Maintenance Guide ”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder ”key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US ”
and “Metric ”. (See “How to use SETTING button
”later in this section.)
SAA3003
Models with navigation system
SAA1611
Models without navigation system

The Reminder will be automatically dis-
played when the specified distance has
been driven and every time the ignition
switch is pushed to the ACC or ON position.
The reminder will not appear while driving.
Select the“OK” key to hide the reminder
for the rest of the current drive.
To stop the reminder from appearing,
perform one of the following actions:
. Select the “Reset Distance ”key.
. Deactivate the “Reminder ”.
. Increase the “Interval ”distance to be
more than the current distance being
tracked.
SAA3145
Others information (models with
navigation system)
The Others information display will appear
when pushing the INFO button and select-
ing the “Others ”key.
Navigation Version:
For the details of this item, see the
separate Navigation System Owner ’s Man-
ual.
When the ignition switch is in the ignition
position, the “Navigation Version ”key is
displayed after pushing the INFO button. GPS Position:
For the details of this item, see the
separate Navigation System Owner
’s Man-
ual.
Voice Recognition:
For the details of this item, see “INFINITI
Voice Recognition system (models with
navigation system) ”later in this section.
Monitor, climate, audio, phone and voice recognition systems4-15

4-16Monitor, climate, audio, phone and voice recognition systems
SAA3009
Models with navigation system
SAA3013
Models without navigation system
HOW TO USE SETTING BUTTON
The display as illustrated will appear when
the SETTING button is pushed.
For navigation settings, refer to the sepa-
rate Navigation System Owner’s Manual.
SAA2485
Models with navigation system
SAA2740
Models without navigation system

Audio settings
The display as illustrated will appear when
pushing the SETTING button and selecting
the“Audio ”key.
Bass/Treble/Balance/Fade:
To adjust the speaker tone quality and
sound balance, select the “Bass ”, “Treble” ,
“ Balance ”or “Fade” key and adjust it with
the INFINITI controller.
Theseitemscanalsobeadjustedby
pushing and turning the AUDIO knob.
Speed Sensitive Vol. (if so equipped):
The audio system’ s volume is increased
with the vehicle speed. Select the “Speed
Sensitive Vol.” key and adjust the effect
level with the INFINITI controller. The Speed
Sensitive Volume function is turned off
when the level is set to OFF. Increasing the
value will cause the volume to increase
faster with vehicle speed.
Precision Phased Audio (if so equipped):
When this item is turned to ON, super high
pitch sound and super low pitch sound are
emphasized and midrange sound is played
naturally. BOSE
®Centerpoint®(if so equipped):
When this item is turned to ON, an exciting
surround sound effect is generated from a
traditional stereo recording.
BOSE
®AudioPilot®(if so equipped):
When this item is turned to ON, Audio-
Pilot
®2 Noise Compensation Technology
monitors noise in the passenger compart-
ment with a microphone and compensates
for any unpleasant noise.
Surround Effect (if so equipped):
To adjust the surround sound volume,
select “Surround Effect ”key and adjust it
with the INFINITI controller.
DivX
®Registration Code (models with
navigation system):
The registration code for a device that is
used to download DivX
®files will be
displayed on the screen. If a disc is loaded
or a USB memory is connected to the audio
system, this function will not be activated.
Display Album Cover Art (models with
navigation system):
When this item is turned to ON, the album
cover image is displayed when playing
iPod
®or MP3 music files through a CD,
DVD or USB memory. When the image is not properly embedded in the file or
device, the image will not be displayed.
Phone settings (models with navi-
gation system)
For details of the
“Phone” settings, see
“ Bluetooth®Hands-Free Phone System
(models with navigation system) ”later in
this section.
Bluetooth®settings (models with
navigation system)
For details of the “Bluetooth®” settings,
see “Bluetooth®Hands-Free Phone System
(models with navigation system) ”later in
this section or “Bluetooth
®streaming
audio (models with navigation system) ”
later in this section.
Monitor, climate, audio, phone and voice recognition systems4-17

4-18Monitor, climate, audio, phone and voice recognition systems

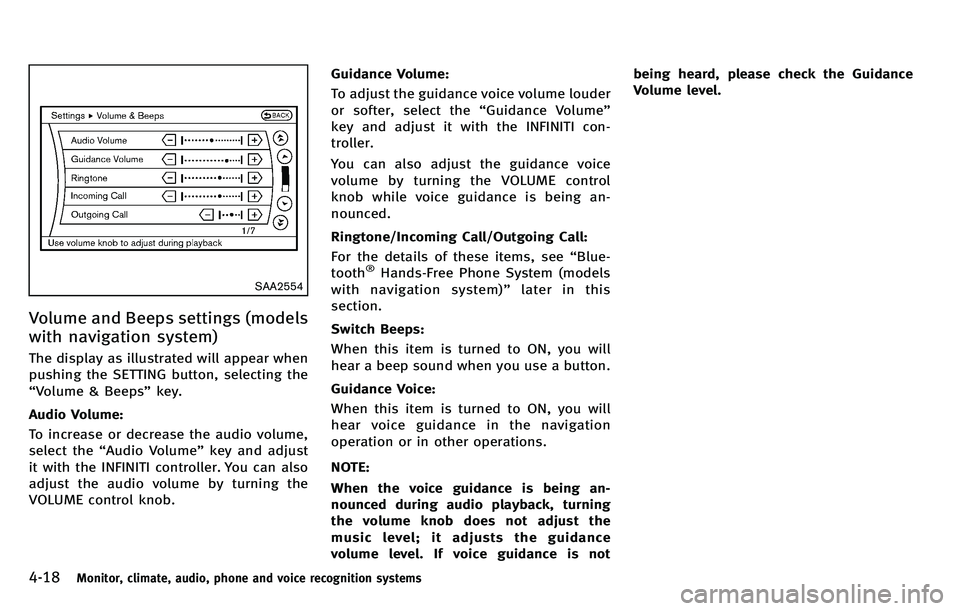

SAA2554
Volume and Beeps settings (models
with navigation system)
The display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps” key.
Audio Volume:
To increase or decrease the audio volume,
select the “Audio Volume ”key and adjust
it with the INFINITI controller. You can also
adjust the audio volume by turning the
VOLUME control knob. Guidance Volume:
To adjust the guidance voice volume louder
or softer, select the
“Guidance Volume ”
key and adjust it with the INFINITI con-
troller.
You can also adjust the guidance voice
volume by turning the VOLUME control
knob while voice guidance is being an-
nounced.
Ringtone/Incoming Call/Outgoing Call:
For the details of these items, see “Blue-
tooth
®Hands-Free Phone System (models
with navigation system)” later in this
section.
Switch Beeps:
When this item is turned to ON, you will
hear a beep sound when you use a button.
Guidance Voice:
When this item is turned to ON, you will
hear voice guidance in the navigation
operation or in other operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the
music level; it adjusts the guidance
volume level. If voice guidance is not being heard, please check the Guidance
Volume level.

SAA2605
Button Beeps settings (models
without navigation system)
The“Button Beeps” screen will appear
when pushing the SETTING button, select-
ing the “Button Beeps ”keywiththe
INFINITI controller and pushing the ENTER
button.
Button Beeps:
When this item is turned to ON, you will
hear a beep sound when you use a button.
ECO DRIVE settings (if so equipped)
To adjust the Eco pedal driver ’s assist,
select the “Standard ”, “Soft “or “OFF ”key and adjust it with the INFINITI controller.
For the details of
“ECO DRIVE ”, see “ECO
pedal system ”in the “5. Starting and
driving ”section.
DRIVER ASSISTANCE settings (if so
equipped)
For the details of the “Driver Assistance ”
settings, see the following items:
. “Lane Departure Warning (LDW) sys-
tem/Lane Departure Prevention (LDP)
system” in the“5. Starting and driving ”
section.
. “Blind Spot Warning (BSW) system/
Blind Spot Intervention
TM(BSI) system ”
in the “5. Starting and driving ”section.
. “Distance Control Assist (DCA) system ”
in the “5. Starting and driving ”section.
. “Forward Collision Warning (FCW) sys-
tem ”in the “5. Starting and driving ”
section.
SAA3008
Others settings (models with navi-
gation system)
The Others settings display will appear
when pushing the SETTING button and
selecting the “Others ”key.
The following items are available:
. Comfort
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
Depending on the vehicle equipment,
pushing SETTING button will display the
Monitor, climate, audio, phone and voice recognition systems4-19
