Hybrid System Overview
Infiniti Direct Response
HybridTMSystem.............................. Hybrid System-2
Lithium-ion (Li-ion) battery............... Hybrid System-2
High voltage cautions ...................... Hybrid System-2
Road accident cautions.................... Hybrid System-3
Emergency shut-off system .............. Hybrid System-4
Operation of the hybrid system ....... Hybrid System-4 Starting and slow speed driving ... Hybrid System-4
Medium or high speed driving..... Hybrid System-4
Rapid acceleration ....................... Hybrid System-5
Deceleration and braking............. Hybrid System-5
Stopping ..................................... Hybrid System-5 Energy monitors .............................. Hybrid System-5
Assist charge gauge................... Hybrid System-5
Energy Flow (models with
navigation system)..................... Hybrid System-5
Fuel economy history
(models with
navigation system)..................... Hybrid System-7
Regenerative brake ......................... Hybrid System-8
Efficient use of your vehicle ............ Hybrid System-8
Approaching Vehicle Sound for
Pedestrians (VSP) system ................ Hybrid System-9
Hybrid vehicle precautions ............ Hybrid System-10 High voltage components ........ Hybrid System-10
Hybrid vehicle
characteristics ......................... Hybrid System-11
Hybrid System Overview
Infiniti Direct Response
HybridTMSystem.............................. Hybrid System-2
Lithium-ion (Li-ion) battery............... Hybrid System-2
High voltage cautions ...................... Hybrid System-2
Road accident cautions.................... Hybrid System-3
Emergency shut-off system .............. Hybrid System-4
Operation of the hybrid system ....... Hybrid System-4 Starting and slow speed driving ... Hybrid System-4
Medium or high speed driving..... Hybrid System-4
Rapid acceleration ....................... Hybrid System-5
Deceleration and braking............. Hybrid System-5
Stopping ..................................... Hybrid System-5 Energy monitors .............................. Hybrid System-5
Assist charge gauge................... Hybrid System-5
Energy Flow (models with
navigation system)..................... Hybrid System-5
Fuel economy history
(models with
navigation system)..................... Hybrid System-7
Regenerative brake ......................... Hybrid System-8
Efficient use of your vehicle ............ Hybrid System-8
Approaching Vehicle Sound for
Pedestrians (VSP) system ................ Hybrid System-9
Hybrid vehicle precautions ............ Hybrid System-10 High voltage components ........ Hybrid System-10
Hybrid vehicle
characteristics ......................... Hybrid System-11

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 4 B
Hybrid System-2Hybrid System Overview
The INFINITI Direct Response HybridTM
System combines the power of a gasoline
engine and an electric motor to help
minimize fuel consumption and emissions.
Depending on driving conditions, the
vehicle runs on a combination of the
gasoline engine and the electric motor,
whichever is best for those conditions.
Because the gasoline engine charges the
Lithium-ion (Li-ion) battery as needed, the
battery does not have to be charged from
an outside source like an all-electric
vehicle.WARNING
Your vehicle contains a sealed Lithium ion
(Li-ion) high voltage battery. If the Li-ion
battery is disposed of improperly, there is a
risk of severe burns and electrical shock
that may result in serious injury or death
and there is also a risk of environmental
damage.
CAUTION
Do not misuse of Li-ion battery (to use the
Li-ion battery for completely another pur-
pose).
The Li-ion battery is used to drive the
electric motors in the INFINITI Direct
Response Hybrid
TMSystem.
The Li-ion battery has a limited service life.
Contact your INFINITI retailer for informa-
tion about recycling or disposal of the
battery.
WARNING
. The INFINITI Direct Response HybridTM
System uses high voltage up to approxi-
mately 408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the warning labels
attached to the vehicle.
. Never disassemble, remove or replace
high-voltage parts and harnesses as
well as their connectors. Doing so could
cause severe burns or an electric shock
that may result in serious injury or
death. High-voltage harnesses are co-
lored orange. The vehicle high voltage
system has no user serviceable parts.
Take your vehicle to an INFINITI retailer
for any necessary maintenance.
. Never try to remove the service plug
located in the trunk. The service plug is
used only when the vehicle is serviced
by trained technicians wearing personal
protection equipment and is part of the
high voltage system. Touching the ser-
vice plug can cause severe burns or
electric shock that may result in serious
injury or death.
INFINITI DIRECT RESPONSE HYBRIDTM
SYSTEM LITHIUM-ION (Li-ion) BATTERY HIGH VOLTAGE CAUTIONS
Hybrid System-2Hybrid System Overview
The INFINITI Direct Response HybridTM
System combines the power of a gasoline
engine and an electric motor to help
minimize fuel consumption and emissions.
Depending on driving conditions, the
vehicle runs on a combination of the
gasoline engine and the electric motor,
whichever is best for those conditions.
Because the gasoline engine charges the
Lithium-ion (Li-ion) battery as needed, the
battery does not have to be charged from
an outside source like an all-electric
vehicle.WARNING
Your vehicle contains a sealed Lithium ion
(Li-ion) high voltage battery. If the Li-ion
battery is disposed of improperly, there is a
risk of severe burns and electrical shock
that may result in serious injury or death
and there is also a risk of environmental
damage.
CAUTION
Do not misuse of Li-ion battery (to use the
Li-ion battery for completely another pur-
pose).
The Li-ion battery is used to drive the
electric motors in the INFINITI Direct
Response Hybrid
TMSystem.
The Li-ion battery has a limited service life.
Contact your INFINITI retailer for informa-
tion about recycling or disposal of the
battery.
WARNING
. The INFINITI Direct Response HybridTM
System uses high voltage up to approxi-
mately 408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the warning labels
attached to the vehicle.
. Never disassemble, remove or replace
high-voltage parts and harnesses as
well as their connectors. Doing so could
cause severe burns or an electric shock
that may result in serious injury or
death. High-voltage harnesses are co-
lored orange. The vehicle high voltage
system has no user serviceable parts.
Take your vehicle to an INFINITI retailer
for any necessary maintenance.
. Never try to remove the service plug
located in the trunk. The service plug is
used only when the vehicle is serviced
by trained technicians wearing personal
protection equipment and is part of the
high voltage system. Touching the ser-
vice plug can cause severe burns or
electric shock that may result in serious
injury or death.
INFINITI DIRECT RESPONSE HYBRIDTM
SYSTEM LITHIUM-ION (Li-ion) BATTERY HIGH VOLTAGE CAUTIONS

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 5 A
WARNING
In case of a collision:
.If your vehicle is drivable, pull your
vehicle off the road, put the transmis-
sion in the P (Park) position, apply the
parking brake and turn the INFINITI
Direct Response Hybrid
TMSystem off.
. Check to see if there are exposed high
voltage parts and cables. Never touch
the parts and cables. For their locations,

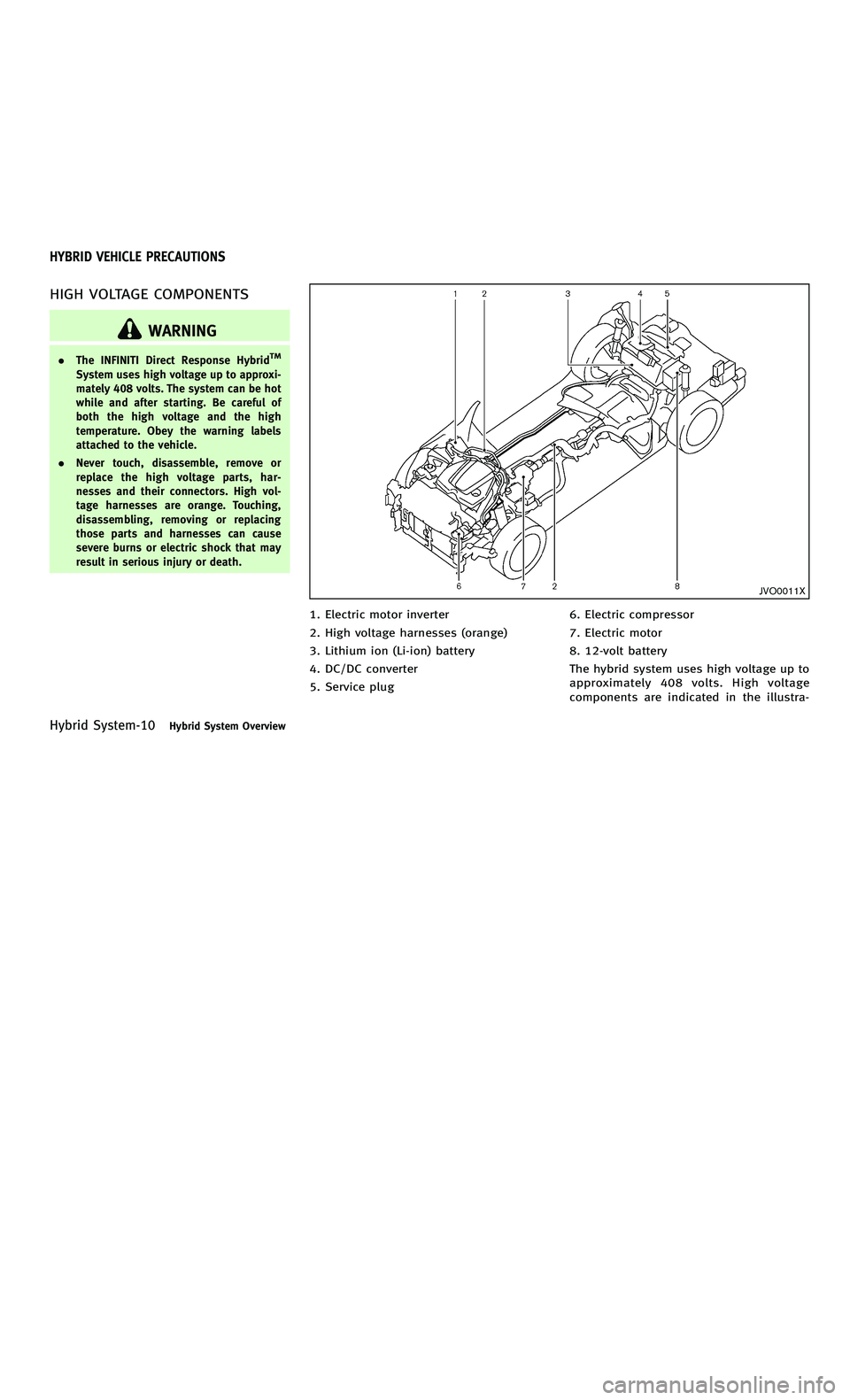

see “High voltage components ”later in
this section. To avoid personal injury,
never touch high-voltage wiring, con-
nectors, and other high-voltage parts,
such as electric motor inverter and
Lithium ion (Li-ion) battery. An electric
shock may occur if exposed electric
wires are visible when viewed from
inside or outside of your vehicle. There-
fore, never touch exposed electric wires.
. If the vehicle receives a strong impact to
the floor while driving, stop the vehicle
in a safe location and check the floor.
. Inspect the ground under the vehicle. If
liquid has leaked onto the ground, the
fuel system may have been damaged. Leave the vehicle as soon as possible.
. Leaks or damage to the Li-ion battery
may result in a fire. If you discover them,
contact emergency services immedi-
ately. Since the fluid leak may be lithium
organic electrolyte from the Li-ion bat-
tery, never touch the fluid leak inside or
outside the vehicle. If the fluid contacts
your skin or eyes, wash it off immedi-
ately with a large amount of water and
receive immediate medical attention to
help avoid serious injury.
. If a fire occurs in the hybrid vehicle,
leave the vehicle as soon as possible.
Only use a type ABC, BC or C fire
extinguisher that is meant for use on
electrical fires. Using water or the
incorrect fire extinguisher can result in
serious injury or death from electrical
shock.
. If you are not able to safely assess the
vehicle due to vehicle damage, do not
touch the vehicle. Leave the vehicle and
contact emergency services. Advise 1st
responders that this is a hybrid vehicle.
. In the event of an accident that requires
body repair and painting, the vehicle
should be delivered to an INFINITI retailer to have the Li-ion battery pack
and high voltage parts such as the
inverter, including the wiring harness,
removed prior to painting. Li-ion battery
packs exposed to heat in the paint booth
will experience capacity loss. Damaged
Li-ionbatterypacksmayalsopose
safety risks to untrained mechanics
and repair personnel.
Hybrid System OverviewHybrid System-3
ROAD ACCIDENT CAUTIONS
WARNING
In case of a collision:
.
If your vehicle is drivable, pull your
vehicle off the road, put the transmis-
sion in the P (Park) position, apply the
parking brake and turn the INFINITI
Direct Response Hybrid
TMSystem off.
. Check to see if there are exposed high
voltage parts and cables. Never touch
the parts and cables. For their locations,
see “High voltage components ”later in
this section. To avoid personal injury,
never touch high-voltage wiring, con-
nectors, and other high-voltage parts,
such as electric motor inverter and
Lithium ion (Li-ion) battery. An electric
shock may occur if exposed electric
wires are visible when viewed from
inside or outside of your vehicle. There-
fore, never touch exposed electric wires.
. If the vehicle receives a strong impact to
the floor while driving, stop the vehicle
in a safe location and check the floor.
. Inspect the ground under the vehicle. If
liquid has leaked onto the ground, the
fuel system may have been damaged. Leave the vehicle as soon as possible.
. Leaks or damage to the Li-ion battery
may result in a fire. If you discover them,
contact emergency services immedi-
ately. Since the fluid leak may be lithium
organic electrolyte from the Li-ion bat-
tery, never touch the fluid leak inside or
outside the vehicle. If the fluid contacts
your skin or eyes, wash it off immedi-
ately with a large amount of water and
receive immediate medical attention to
help avoid serious injury.
. If a fire occurs in the hybrid vehicle,
leave the vehicle as soon as possible.
Only use a type ABC, BC or C fire
extinguisher that is meant for use on
electrical fires. Using water or the
incorrect fire extinguisher can result in
serious injury or death from electrical
shock.
. If you are not able to safely assess the
vehicle due to vehicle damage, do not
touch the vehicle. Leave the vehicle and
contact emergency services. Advise 1st
responders that this is a hybrid vehicle.
. In the event of an accident that requires
body repair and painting, the vehicle
should be delivered to an INFINITI retailer to have the Li-ion battery pack
and high voltage parts such as the
inverter, including the wiring harness,
removed prior to painting. Li-ion battery
packs exposed to heat in the paint booth
will experience capacity loss. Damaged
Li-ionbatterypacksmayalsopose
safety risks to untrained mechanics
and repair personnel.
Hybrid System OverviewHybrid System-3
ROAD ACCIDENT CAUTIONS

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 5 B
Hybrid System-4Hybrid System Overview
The emergency shut-off system is activated
and the high-voltage system automatically
turns off in the following conditions:
.Front and side collisions in which the
air bags are deployed.
. Certain rear collisions.
. Certain INFINITI Direct Response Hy-
brid
TMSystem malfunctions
For the above collisions and the certain
hybrid system malfunctions, the READY to
drive indicator light will turn off. See
“ Warning/indicator lights and audible re-
minders ”in the “2. Instruments and
controls ”.
The emergency shut-off activates for the
above collisions to minimize risk of an
event that could cause injury or an
accident. If the emergency shut-off system
activates, the hybrid system may not
switched to READY to drive position,
contact an INFINITI retailer. Even if the
ignition switch is switched to READY to
drive position, the system may shut-off
suddenly. Therefore, drive cautiously to the
nearest INFINITI retailer or contact an
INFINITI retailer as soon as possible. Depress the brake pedal and place the
ignition switch in the ON position when the
transmission is in the P (Park) position or N
(Neutral) position (P is recommended) to
start the INFINITI Direct Response Hybrid
TM
System.
The READY to drive indicator light
flashes until hybrid system becomes the
ready to drive mode.
When the READY to drive indicator light
illuminates, the vehicle can be
driven, even if the gasoline engine is not
running.
NOTE:
The gasoline engine starts and stops
automatically. It may stop during low
speed driving, deceleration or when the
vehicle is stopped.
The gasoline engine may automatically
run in the following conditions:
. The level of remaining charge in the
Lithium ion (Li-ion) battery is low. The
engine runs to charge the Li-ion battery
and to provide power to the drive the
vehicle.
. The temperature of the engine coolant
is low. .
Based on driving conditions.
. The selector lever is shifted to the P
(Park) position, the driver ’s seat belt is
released and the driver ’s side door is
then opened.
The hybrid system operates as follows
based on driving conditions and the Li-ion
battery charge.STARTING AND SLOW SPEED DRIV-
ING
The vehicle is driven by the electric motor
depending on the available Li-ion battery
charge.
MEDIUM OR HIGH SPEED DRIVING
The system automatically controls the
gasoline engine and electric motor in order
to obtain the optimum fuel mileage and
performance, depending on the driving
situation and available Li-ion battery
charge.
When the remaining battery level is low,
the Li-ion battery is charged by the electric
motor that is driven to generate electric
power while the vehicle is driving.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM
Hybrid System-4Hybrid System Overview
The emergency shut-off system is activated
and the high-voltage system automatically
turns off in the following conditions:
.Front and side collisions in which the
air bags are deployed.
. Certain rear collisions.
. Certain INFINITI Direct Response Hy-
brid
TMSystem malfunctions
For the above collisions and the certain
hybrid system malfunctions, the READY to
drive indicator light will turn off. See
“ Warning/indicator lights and audible re-
minders ”in the “2. Instruments and
controls ”.
The emergency shut-off activates for the
above collisions to minimize risk of an
event that could cause injury or an
accident. If the emergency shut-off system
activates, the hybrid system may not
switched to READY to drive position,
contact an INFINITI retailer. Even if the
ignition switch is switched to READY to
drive position, the system may shut-off
suddenly. Therefore, drive cautiously to the
nearest INFINITI retailer or contact an
INFINITI retailer as soon as possible. Depress the brake pedal and place the
ignition switch in the ON position when the
transmission is in the P (Park) position or N
(Neutral) position (P is recommended) to
start the INFINITI Direct Response Hybrid
TM
System.
The READY to drive indicator light
flashes until hybrid system becomes the
ready to drive mode.
When the READY to drive indicator light
illuminates, the vehicle can be
driven, even if the gasoline engine is not
running.
NOTE:
The gasoline engine starts and stops
automatically. It may stop during low
speed driving, deceleration or when the
vehicle is stopped.
The gasoline engine may automatically
run in the following conditions:
. The level of remaining charge in the
Lithium ion (Li-ion) battery is low. The
engine runs to charge the Li-ion battery
and to provide power to the drive the
vehicle.
. The temperature of the engine coolant
is low. .
Based on driving conditions.
. The selector lever is shifted to the P
(Park) position, the driver ’s seat belt is
released and the driver ’s side door is
then opened.
The hybrid system operates as follows
based on driving conditions and the Li-ion
battery charge.STARTING AND SLOW SPEED DRIV-
ING
The vehicle is driven by the electric motor
depending on the available Li-ion battery
charge.
MEDIUM OR HIGH SPEED DRIVING
The system automatically controls the
gasoline engine and electric motor in order
to obtain the optimum fuel mileage and
performance, depending on the driving
situation and available Li-ion battery
charge.
When the remaining battery level is low,
the Li-ion battery is charged by the electric
motor that is driven to generate electric
power while the vehicle is driving.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 6 A
RAPID ACCELERATION
The vehicle is accelerated using both the
gasoline engine and the electric motor
depending on the available Li-ion battery
charge.
DECELERATION AND BRAKING
The Li-ion battery is charged by the electric
motor that changes the energy of the
rotating wheels into electric power. See
“Regenerative brake ”later in this section.
STOPPING
The gasoline engine may stop running to
save fuel depending on the available Li-ion
battery charge. The INFINITI Direct Response Hybrid
TM
System monitors the status of power being
sent to the electric motor and the Lithium
ion (Li-ion) battery state of charge. The
status is shown on the assist charge gauge
in the meter and the energy flow/remain-
ing Li-ion battery charge in the dot matrix
display. System status can also be shown
on the navigation system display (if so
equipped) when the screen is in the energy
flow mode or energy/fuel history mode.
JVO0001X
ASSIST CHARGE GAUGE
This meter displays the actual electric
motor power consumption and the char-
ging power to the Li-ion battery.
For additional information, See
“Assist
charge gauge ”in the “2. Instruments and
controls ”section.
ENERGY FLOW (models with navi-
gation system)
When you use this system, make sure the
hybrid system is in the ready to drive
mode. See “Operation of the hybrid
system” earlier in this section.
Hybrid System OverviewHybrid System-5
ENERGY MONITORS
RAPID ACCELERATION
The vehicle is accelerated using both the
gasoline engine and the electric motor
depending on the available Li-ion battery
charge.
DECELERATION AND BRAKING
The Li-ion battery is charged by the electric
motor that changes the energy of the
rotating wheels into electric power. See
“Regenerative brake ”later in this section.
STOPPING
The gasoline engine may stop running to
save fuel depending on the available Li-ion
battery charge. The INFINITI Direct Response Hybrid
TM
System monitors the status of power being
sent to the electric motor and the Lithium
ion (Li-ion) battery state of charge. The
status is shown on the assist charge gauge
in the meter and the energy flow/remain-
ing Li-ion battery charge in the dot matrix
display. System status can also be shown
on the navigation system display (if so
equipped) when the screen is in the energy
flow mode or energy/fuel history mode.
JVO0001X
ASSIST CHARGE GAUGE
This meter displays the actual electric
motor power consumption and the char-
ging power to the Li-ion battery.
For additional information, See
“Assist
charge gauge ”in the “2. Instruments and
controls ”section.
ENERGY FLOW (models with navi-
gation system)
When you use this system, make sure the
hybrid system is in the ready to drive
mode. See “Operation of the hybrid
system” earlier in this section.
Hybrid System OverviewHybrid System-5
ENERGY MONITORS

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 6 B
Hybrid System-6Hybrid System Overview
If you use the system with the hybrid
system off (ignition switch placed in the
ACC position) for a long time, it will
discharge the 12-volt battery power, and
the hybrid system will not start.
Energy Flow for various operating modes
can be displayed on the navigation system
monitor.
JVH0034M
Push the INFO button on the control panel
and highlight the“Energy Flow” key on the
display using the INFINITI controller then
push the ENTER button.
JVO0008M
This is an example of the Energy Flow
display. The Energy Flow display changes,
depending on the following operating
conditions. The graphic indicates the
amount of power in the Li-ion battery.
The following are displayed on the Energy
Flow screen.
. When the vehicle is powered only by
the electric motor or gasoline engine.
. When the vehicle is powered by both
the electric motor and the gasoline
engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake and
Hybrid System-6Hybrid System Overview
If you use the system with the hybrid
system off (ignition switch placed in the
ACC position) for a long time, it will
discharge the 12-volt battery power, and
the hybrid system will not start.
Energy Flow for various operating modes
can be displayed on the navigation system
monitor.
JVH0034M
Push the INFO button on the control panel
and highlight the “Energy Flow” key on the
display using the INFINITI controller then
push the ENTER button.
JVO0008M
This is an example of the Energy Flow
display. The Energy Flow display changes,
depending on the following operating
conditions. The graphic indicates the
amount of power in the Li-ion battery.
The following are displayed on the Energy
Flow screen.
. When the vehicle is powered only by
the electric motor or gasoline engine.
. When the vehicle is powered by both
the electric motor and the gasoline
engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake and

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 7 A
gasoline engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake and
gasoline engine.
. When the vehicle is powered by the
gasoline engine and is charging the Li-
ion battery.
. When there is no Energy Flow in the
vehicle
The Energy Flow an d remaining Li-ion
battery charge can be also shown on the
dot matrix display. See “Trip computer ”in
the “2. Instruments and controls ”section.
FUEL ECONOMY HISTORY (models
with navigation system)
The Fuel Economy History screen appears
in the display with the navigation system
when the screen is in the Fuel Economy
History mode.
JVH0034M
1. Push the INFO button on the control
panel and highlight the “Energy Flow ”
key on the display using the INFINITI
controller. Then push the ENTER button.
2. Highlight the “History ”key, and push
the ENTER button.
JVO0009M
The Fuel Economy History can be displayed
on the navigation system monitor. This
displays the vehicle ’s average fuel con-
sumption and regenerative electric power
at 2 minute intervals.
The displayed values on the screen in-
dicate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
1. Regenerated energy in the past 12 minutes: The regenerated energy in
the past 12 minutes is indicated with
symbols. One symbol indicates 30
watt-hour. The energy of 30 watt-hour
illuminates a 30 watt bulb for an hour.
Hybrid System OverviewHybrid System-7
gasoline engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake and
gasoline engine.
. When the vehicle is powered by the
gasoline engine and is charging the Li-
ion battery.
. When there is no Energy Flow in the
vehicle
The Energy Flow an d remaining Li-ion
battery charge can be also shown on the
dot matrix display. See “Trip computer ”in
the “2. Instruments and controls ”section.
FUEL ECONOMY HISTORY (models
with navigation system)
The Fuel Economy History screen appears
in the display with the navigation system
when the screen is in the Fuel Economy
History mode.
JVH0034M
1. Push the INFO button on the control
panel and highlight the “Energy Flow ”
key on the display using the INFINITI
controller. Then push the ENTER button.
2. Highlight the “History ”key, and push
the ENTER button.
JVO0009M
The Fuel Economy History can be displayed
on the navigation system monitor. This
displays the vehicle ’s average fuel con-
sumption and regenerative electric power
at 2 minute intervals.
The displayed values on the screen in-
dicate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
1. Regenerated energy in the past 12 minutes: The regenerated energy in
the past 12 minutes is indicated with
symbols. One symbol indicates 30
watt-hour. The energy of 30 watt-hour
illuminates a 30 watt bulb for an hour.
Hybrid System OverviewHybrid System-7

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 7 B
Hybrid System-8Hybrid System Overview
2. Fuel consumption in the past 12minutes: Fuel consumption in the past
12 minutes is displayed.
3. Current fuel consumption (Latest col- umn): The current fuel consumption is
calculated and displayed based on
distance and fuel consumption.
NOTE:
Information shown in the yellow column
means current (within 2 minutes) and
information shown in the blue columns
means past (more than 2 minutes). When the vehicle decelerates while the
vehicle is driven with the selector lever in
the D (drive) position or in the manual shift
mode, the Lithium ion (Li-ion) battery can
be charged by the electric motor. The
electric motor converts the energy of the
rotating wheels into electric power under
the following circumstances:
.
When the accelerator pedal is released.
. When the brake pedal is depressed
. When there is no malfunction in the
brake system or the INFINITI Direct
Response Hybrid
TMSystem
The regenerative brake may not work
properly if the vehicle is installed with
tires and road wheels other than the ones
specified in this manual. Drive your vehicle with smooth accelera-
tion and deceleration.
.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for most
efficient use, do not accelerate or
decelerate your vehicle more than
necessary.
. Avoid abrupt acceleration and decelera-
tion.
. The power of the Lithium ion (Li-ion)
battery can be checked on the Energy
Flow in the center display (models with
navigation system) or Li-ion battery
status meter in the dot matrix display.
See “Energy Flow (models with naviga-
tion system) ”or “Trip computer ”in the
“ 2. Instruments and controls ”section.
Gradual or non-abrupt acceleration and
deceleration will make more effective
use of the electric using gasoline
engine power.
. When parking, be sure to place the
selector lever in the P (Park) position.
While driving, place the selector lever
in the D (Drive) position.
REGENERATIVE BRAKE EFFICIENT USE OF YOUR VEHICLE
Hybrid System-8Hybrid System Overview
2. Fuel consumption in the past 12
minutes: Fuel consumption in the past
12 minutes is displayed.
3. Current fuel consumption (Latest col- umn): The current fuel consumption is
calculated and displayed based on
distance and fuel consumption.
NOTE:
Information shown in the yellow column
means current (within 2 minutes) and
information shown in the blue columns
means past (more than 2 minutes). When the vehicle decelerates while the
vehicle is driven with the selector lever in
the D (drive) position or in the manual shift
mode, the Lithium ion (Li-ion) battery can
be charged by the electric motor. The
electric motor converts the energy of the
rotating wheels into electric power under
the following circumstances:
.
When the accelerator pedal is released.
. When the brake pedal is depressed
. When there is no malfunction in the
brake system or the INFINITI Direct
Response Hybrid
TMSystem
The regenerative brake may not work
properly if the vehicle is installed with
tires and road wheels other than the ones
specified in this manual. Drive your vehicle with smooth accelera-
tion and deceleration.
.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for most
efficient use, do not accelerate or
decelerate your vehicle more than
necessary.
. Avoid abrupt acceleration and decelera-
tion.
. The power of the Lithium ion (Li-ion)
battery can be checked on the Energy
Flow in the center display (models with
navigation system) or Li-ion battery
status meter in the dot matrix display.
See “Energy Flow (models with naviga-
tion system) ”or “Trip computer ”in the
“ 2. Instruments and controls ”section.
Gradual or non-abrupt acceleration and
deceleration will make more effective
use of the electric using gasoline
engine power.
. When parking, be sure to place the
selector lever in the P (Park) position.
While driving, place the selector lever
in the D (Drive) position.
REGENERATIVE BRAKE EFFICIENT USE OF YOUR VEHICLE

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 8 B
Hybrid System-10Hybrid System Overview
HIGH VOLTAGE COMPONENTS
WARNING
.The INFINITI Direct Response HybridTM
System uses high voltage up to approxi-
mately 408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the warning labels
attached to the vehicle.
. Never touch, disassemble, remove or
replace the high voltage parts, har-
nesses and their connectors. High vol-
tage harnesses are orange. Touching,
disassembling, removing or replacing
those parts and harnesses can cause
severe burns or electric shock that may
result in serious injury or death.
JVO0011X
1. Electric motor inverter
2. High voltage harnesses (orange)
3. Lithium ion (Li-ion) battery
4. DC/DC converter
5. Service plug 6. Electric compressor
7. Electric motor
8. 12-volt battery
The hybrid system uses high voltage up to
approximately 408 volts. High voltage
components are indicated in the illustra-
HYBRID VEHICLE PRECAUTIONS
Hybrid System-10Hybrid System Overview
HIGH VOLTAGE COMPONENTS
WARNING
.
The INFINITI Direct Response HybridTM
System uses high voltage up to approxi-
mately 408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the warning labels
attached to the vehicle.
. Never touch, disassemble, remove or
replace the high voltage parts, har-
nesses and their connectors. High vol-
tage harnesses are orange. Touching,
disassembling, removing or replacing
those parts and harnesses can cause
severe burns or electric shock that may
result in serious injury or death.
JVO0011X
1. Electric motor inverter
2. High voltage harnesses (orange)
3. Lithium ion (Li-ion) battery
4. DC/DC converter
5. Service plug 6. Electric compressor
7. Electric motor
8. 12-volt battery
The hybrid system uses high voltage up to
approximately 408 volts. High voltage
components are indicated in the illustra-
HYBRID VEHICLE PRECAUTIONS

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 9 A
tion. High voltage harnesses are orange.
The system can be hot while and after
starting. Be careful of both the high voltage
and the high temperature.
HYBRID VEHICLE CHARACTERISTICS
WARNING
.When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
. Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indicator
light is on even if the gasoline engine is
not running. When the READY to drive
indicator light is on, do not leave your
vehicle in a shift position other than the
P (Park) position. The vehicle will creep
and start abruptly if the accelerator
pedal is depressed by mistake. This
may cause serious injury or death.
CAUTION
If the vehicle is parked for a long period of
time, the battery discharges gradually. To avoid this occurrence, drive the vehicle for
approximately 30 minutes at least once
every two to three months. Otherwise, the
Lithium ion (Li-ion) battery may be da-
maged. If the Li-ion battery is completely
discharged and the hybrid system cannot be
activated, contact an INFINITI retailer.
High voltage parts and harnesses on the
hybrid vehicles emit approximately the
same amount of electromagnetic waves
as the conventional gasoline-powered ve-
hicles or home electronic appliances de-
spite of their electromagnetic shieldings.
Unwanted noise may occur in the reception
of a mobile two-way radio.
Charging the Li-ion battery while driving is
important. The vehicle cannot run if the Li-
ion battery is discharged. In the N (Neutral)
position, the Li-ion battery does not
recharge. Leaving the transmission in the
N (Neutral) position for an extended period
of time may discharge the Li-ion battery.
The Li-ion battery recharges when the shift
selector is in any position other than N
(Neutral).
JVO0019X
An air vent*Ais located on the rear parcel
shelf to cool the Li-ion battery. If the vent is
covered, the battery will overheat resulting
in reduced output performance of the
hybrid system. See “Lithium-ion (Li-ion)
battery air vent ”in the “7. Appearance and
care ”section.
Hybrid System OverviewHybrid System-11
tion. High voltage harnesses are orange.
The system can be hot while and after
starting. Be careful of both the high voltage
and the high temperature.
HYBRID VEHICLE CHARACTERISTICS
WARNING
. When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
. Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indicator
light is on even if the gasoline engine is
not running. When the READY to drive
indicator light is on, do not leave your
vehicle in a shift position other than the
P (Park) position. The vehicle will creep
and start abruptly if the accelerator
pedal is depressed by mistake. This
may cause serious injury or death.
CAUTION
If the vehicle is parked for a long period of
time, the battery discharges gradually. To avoid this occurrence, drive the vehicle for
approximately 30 minutes at least once
every two to three months. Otherwise, the
Lithium ion (Li-ion) battery may be da-
maged. If the Li-ion battery is completely
discharged and the hybrid system cannot be
activated, contact an INFINITI retailer.
High voltage parts and harnesses on the
hybrid vehicles emit approximately the
same amount of electromagnetic waves
as the conventional gasoline-powered ve-
hicles or home electronic appliances de-
spite of their electromagnetic shieldings.
Unwanted noise may occur in the reception
of a mobile two-way radio.
Charging the Li-ion battery while driving is
important. The vehicle cannot run if the Li-
ion battery is discharged. In the N (Neutral)
position, the Li-ion battery does not
recharge. Leaving the transmission in the
N (Neutral) position for an extended period
of time may discharge the Li-ion battery.
The Li-ion battery recharges when the shift
selector is in any position other than N
(Neutral).
JVO0019X
An air vent*Ais located on the rear parcel
shelf to cool the Li-ion battery. If the vent is
covered, the battery will overheat resulting
in reduced output performance of the
hybrid system. See “Lithium-ion (Li-ion)
battery air vent ”in the “7. Appearance and
care ”section.
Hybrid System OverviewHybrid System-11
