1-52Safety—Seats, seat belts and supplemental restraint system

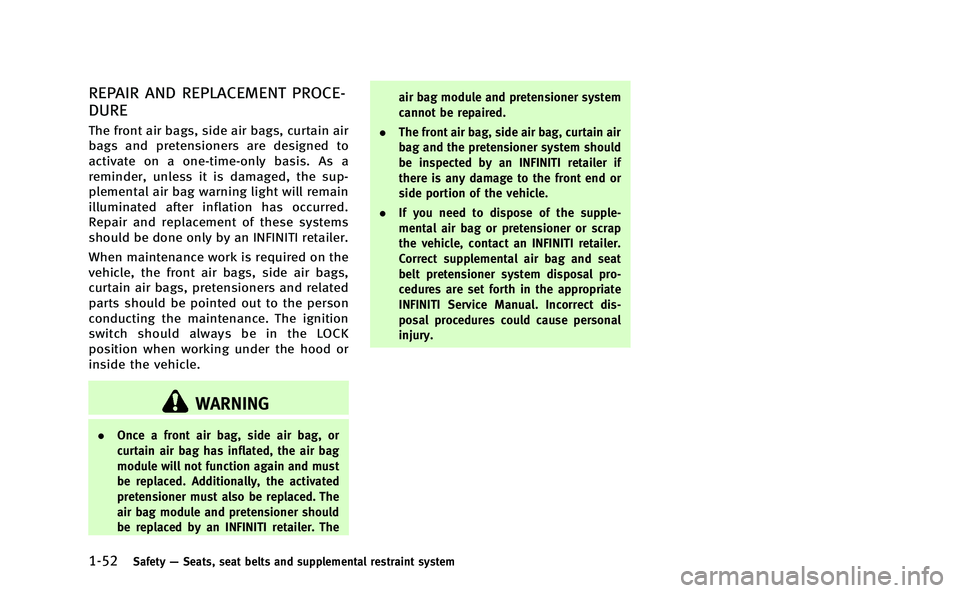

REPAIR AND REPLACEMENT PROCE-
DURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner should
be replaced by an INFINITI retailer. The air bag module and pretensioner system
cannot be repaired.
. The front air bag, side air bag, curtain air
bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the supple-
mental air bag or pretensioner or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and seat
belt pretensioner system disposal pro-
cedures are set forth in the appropriate
INFINITI Service Manual. Incorrect dis-
posal procedures could cause personal
injury.

2 Instruments and controls
Cockpit................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6
Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Assist charge gauge ........................................ 2-8
Fuel gauge ...................................................... 2-8
Warning/indicator lights and
audible reminders ............................................. 2-10 Checking bulbs.............................................. 2-11
Warning lights ............................................... 2-11
Indicator lights .............................................. 2-17
Audible reminders ......................................... 2-20
Dot matrix liquid crystal display ........................ 2-21 Operational indicators ................................... 2-24
Maintenance indicators ................................. 2-27
Trip computer ................................................ 2-29
Security systems ............................................... 2-33 Vehicle Security System ................................ 2-34
INFINITI Vehicle Immobilizer System .............. 2-35
Windshield wiper and washer switch ................. 2-36 Rain-sensing auto wiper system .................... 2-38
Rear window and outside mirror
defroster switch ................................................. 2-39
Headlight and turn signal switch ....................... 2-39 Xenon headlights......................................... 2-39
Headlight switch .......................................... 2-40
Turn signal switch........................................ 2-44
Fog light switch ........................................... 2-44
Hazard warning flasher switch .......................... 2-45
Heated steering wheel (if so equipped) ............. 2-45
Horn ................................................................. 2-46
Heated seats (if so equipped) ........................... 2-46
Climate controlled seats (if so equipped) .......... 2-48
Warning systems switch (if so equipped) .......... 2-49
Intelligent Brake Assist (IBA) OFF switch (if
so equipped)..................................................... 2-49
Vehicle Dynamic Control (VDC) OFF switch ......... 2-50
Clock................................................................. 2-51 Adjusting the time ....................................... 2-51
Power outlet ..................................................... 2-51
Cigarette lighter and ashtrays ........................... 2-52 Front............................................................ 2-52
Rear............................................................. 2-53
Storage ............................................................. 2-53
Cup holders ................................................. 2-53
Sunglasses holder ...................................... 2-54
Glove box .................................................... 2-55
Console box................................................. 2-55
Card holder.................................................. 2-56

JVC0259X
1. Instrument brightness control switch(P.2-44)
2. AFS switch (if so equipped) (P.2-42)
3. Headlight, fog light and turn signal switch (P.2-39)
4. Trip computer switch (P.2-29) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-36)
7. Selector lever (P.5-14) 8. Vehicle Dynamic Control (VDC) OFF
switch (P.5-98)
9. Rear sunshade switch (if so equipped) (P.2-62)
10. Steering heater switch (if so equipped) (P.2-45)
11. Trunk lid release switch (P.3-19)
12. Sonar system off switch (if so equipped) (P.5-93)
13. Warning systems switch (if so equipped) (P.5-22, P.5-31, P.5-81)
14. Intelligent Brake Assist (IBA) OFF switch (if so equipped) (P.5-85)
15. Electric tilting/telescopic steering wheel lever (P.3-24)
16. Steering-wheel-mounted controls (left side)
—Menu control switch (models with
navigation system)/Audio tuning
switch (models without navigation
system) (P.4-85)
— Hands-Free Phone System switch
(P.4-100, P.4-90)
17. Steering wheel —Horn (P.2-46)
— Driver supplemental air bag
(P.1-38)
Instruments and controls2-3
COCKPIT

JVC0290X
1. Side ventilator (P.4-34)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-45)
4. Rear window and outside mirrordefroster switch (P.2-39)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped)
6. Clock (P.2-51)
7. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Bluetooth
®Hands-Free Phone Sys-
tem (P.4-88, P.4-98)
— Audio system (P.4-49)
8. Automatic climate control system (P.4-34)/Forest Air
®system* (P.4-34)
9. Center ventilator (P.4-34)
10. Audio system (P.4-49)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-24)
14. Parking brake —Parking (P.5-18)
15. Push-button ignition switch (P.5-9)
16. Front passenger air bag status light (P.1-45)
17. Climate controlled seat switch (if so equipped) (P.2-48)/Seat heater switch
(if so equipped) (P.2-46)
18. Drive mode select switch (P.5-19)
19. Cigarette lighter and ashtray (P.2-52)
20. Glove box lid release handle (P.2-55)
21. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

2-6Instruments and controls
JVI0200X
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-10)
3. Speedometer (P.2-7)
4. Assist charge gauge (P.2-8)5. Dot matrix liquid crystal display/
Odometer/twin trip odometer
(P.2-21)
6. Fuel gauge (P.2-8) *: The needle indicators in the speed-
ometer, tachometer, assist charge gauge
and fuel gauge may move slightly after the
ignition switch is pushed to the LOCK
position. This is not a malfunction.
METERS AND GAUGES

2-8Instruments and controls
JVI0196X

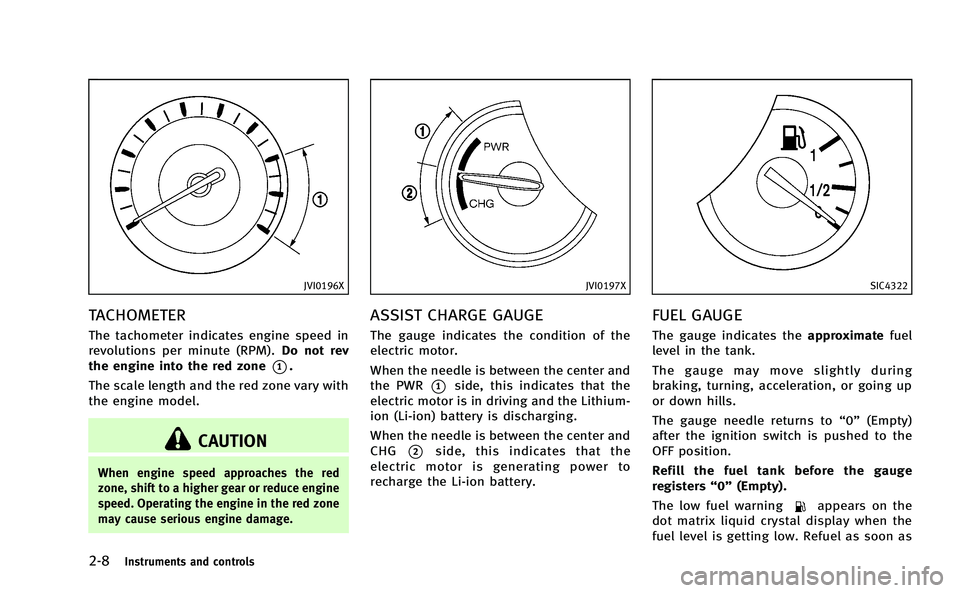

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (RPM).Do not rev
the engine into the red zone
*1.
The scale length and the red zone vary with
the engine model.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce engine
speed. Operating the engine in the red zone
may cause serious engine damage.
JVI0197X
ASSIST CHARGE GAUGE
The gauge indicates the condition of the
electric motor.
When the needle is between the center and
the PWR
*1side, this indicates that the
electric motor is in driving and the Lithium-
ion (Li-ion) battery is discharging.
When the needle is between the center and
CHG
*2side, this indicates that the
electric motor is generating power to
recharge the Li-ion battery.
SIC4322
FUEL GAUGE
The gauge indicates the approximatefuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to “0”(Empty)
after the ignition switch is pushed to the
OFF position.
Refill the fuel tank before the gauge
registers “0”(Empty).
The low fuel warning
appears on the
dot matrix liquid crystal display when the
fuel level is getting low. Refuel as soon as

2-10Instruments and controls

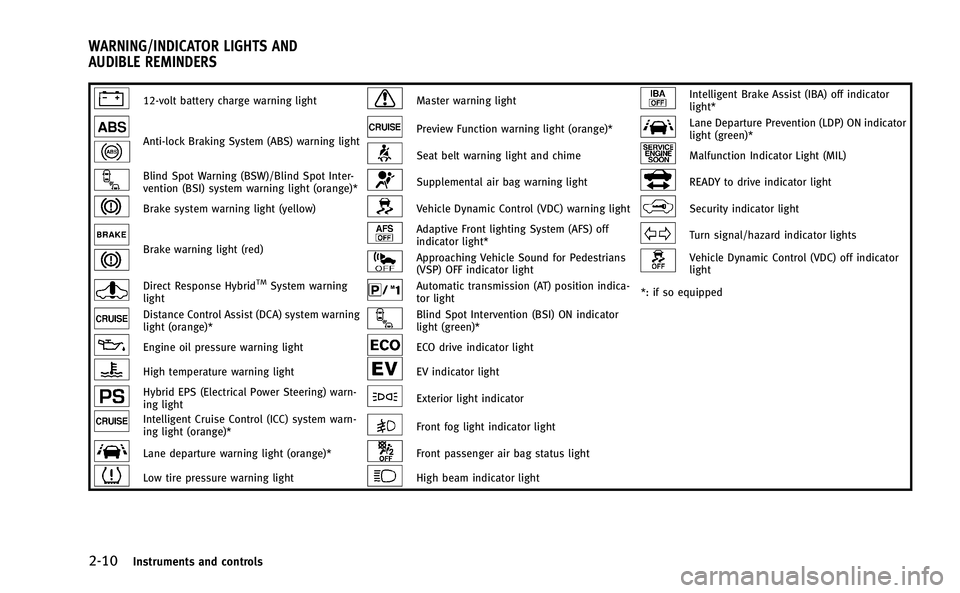

12-volt battery charge warning lightMaster warning lightIntelligent Brake Assist (IBA) off indicator
light*
Anti-lock Braking System (ABS) warning lightPreview Function warning light (orange)*Lane Departure Prevention (LDP) ON indicator
light (green)*
Seat belt warning light and chimeMalfunction Indicator Light (MIL)
Blind Spot Warning (BSW)/Blind Spot Inter-
vention (BSI) system warning light (orange)*Supplemental air bag warning lightREADY to drive indicator light
Brake system warning light (yellow)Vehicle Dynamic Control (VDC) warning lightSecurity indicator light
Brake warning light (red)
Adaptive Front lighting System (AFS) off
indicator light*Turn signal/hazard indicator lights
Approaching Vehicle Sound for Pedestrians
(VSP) OFF indicator lightVehicle Dynamic Control (VDC) off indicator
light
Direct Response HybridTMSystem warning
lightAutomatic transmission (AT) position indica-
tor light *: if so equipped
Distance Control Assist (DCA) system warning
light (orange)*Blind Spot Intervention (BSI) ON indicator
light (green)*
Engine oil pressure warning lightECO drive indicator light
High temperature warning lightEV indicator light
Hybrid EPS (Electrical Power Steering) warn-
ing lightExterior light indicator
Intelligent Cruise Control (ICC) system warn-
ing light (orange)*Front fog light indicator light
Lane departure warning light (orange)*Front passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

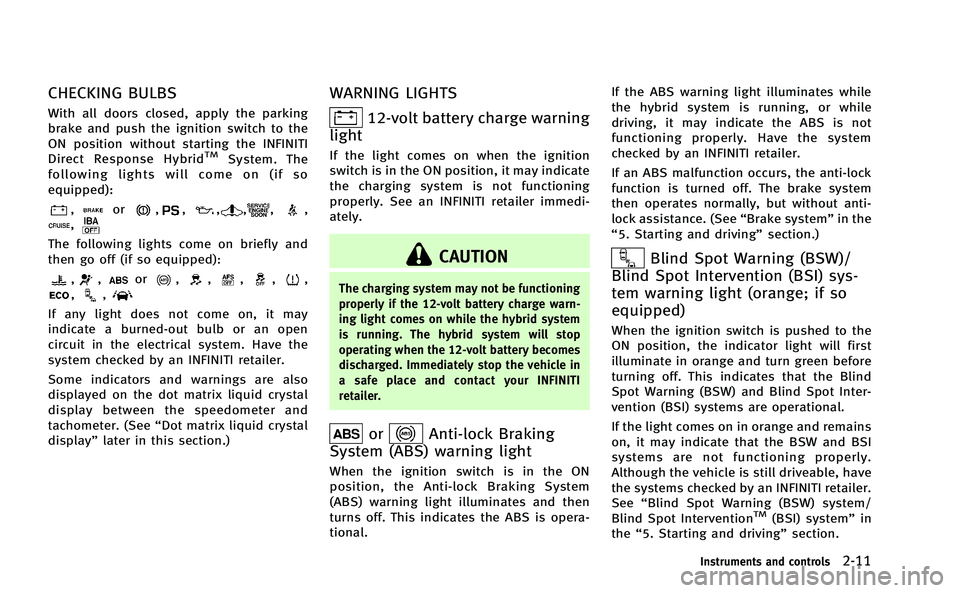

CHECKING BULBS
With all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the INFINITI
Direct Response Hybrid
TMSystem. The
following lights will come on (if so
equipped):
,or,,,,,,,
The following lights come on briefly and
then go off (if so equipped):
,,or,,,,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open
circuit in the electrical system. Have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed on the dot matrix liquid crystal
display between the speedometer and
tachometer. (See “Dot matrix liquid crystal
display” later in this section.)
WARNING LIGHTS
12-volt battery charge warning
light
If the light comes on when the ignition
switch is in the ON position, it may indicate
the charging system is not functioning
properly. See an INFINITI retailer immedi-
ately.
CAUTION
The charging system may not be functioning
properly if the 12-volt battery charge warn-
ing light comes on while the hybrid system
is running. The hybrid system will stop
operating when the 12-volt battery becomes
discharged. Immediately stop the vehicle in
a safe place and contact your INFINITI
retailer.
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional. If the ABS warning light illuminates while
the hybrid system is running, or while
driving, it may indicate the ABS is not
functioning properly. Have the system
checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. (See
“Brake system”in the
“5. Starting and driving” section.)
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI) sys-
tem warning light (orange; if so
equipped)
When the ignition switch is pushed to the
ON position, the indicator light will first
illuminate in orange and turn green before
turning off. This indicates that the Blind
Spot Warning (BSW) and Blind Spot Inter-
vention (BSI) systems are operational.
If the light comes on in orange and remains
on, it may indicate that the BSW and BSI
systems are not functioning properly.
Although the vehicle is still driveable, have
the systems checked by an INFINITI retailer.
See “Blind Spot Warning (BSW) system/
Blind Spot Intervention
TM(BSI) system” in
the “5. Starting and driving” section.
Instruments and controls2-11

2-12Instruments and controls

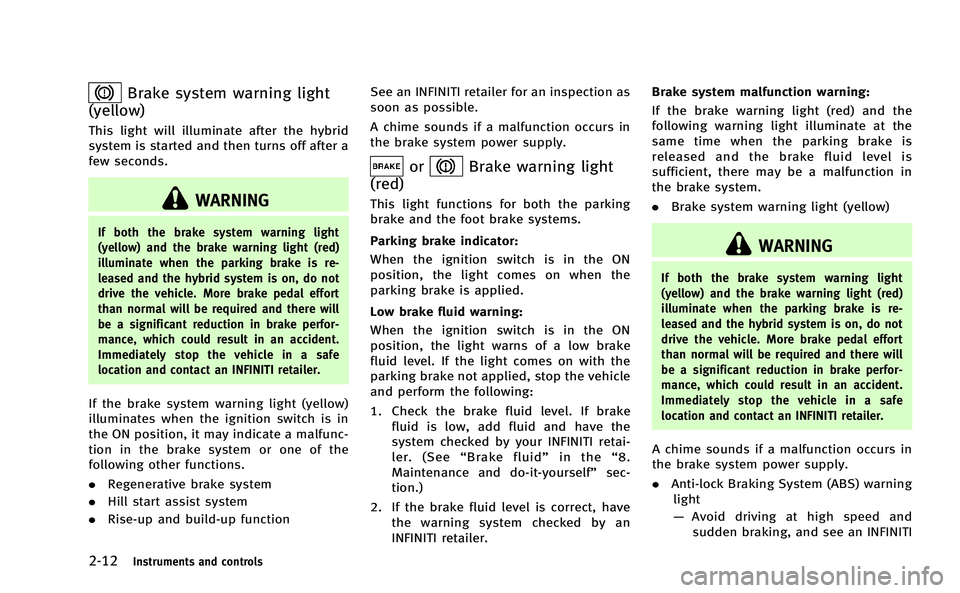

Brake system warning light
(yellow)
This light will illuminate after the hybrid
system is started and then turns off after a
few seconds.
WARNING
If both the brake system warning light
(yellow) and the brake warning light (red)
illuminate when the parking brake is re-
leased and the hybrid system is on, do not
drive the vehicle. More brake pedal effort
than normal will be required and there will
be a significant reduction in brake perfor-
mance, which could result in an accident.
Immediately stop the vehicle in a safe
location and contact an INFINITI retailer.
If the brake system warning light (yellow)
illuminates when the ignition switch is in
the ON position, it may indicate a malfunc-
tion in the brake system or one of the
following other functions.
. Regenerative brake system
. Hill start assist system
. Rise-up and build-up function See an INFINITI retailer for an inspection as
soon as possible.
A chime sounds if a malfunction occurs in
the brake system power supply.
orBrake warning light
(red)
This light functions for both the parking
brake and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.
Low brake fluid warning:
When the ignition switch is in the ON
position, the light warns of a low brake
fluid level. If the light comes on with the
parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. If brake
fluid is low, add fluid and have the
system checked by your INFINITI retai-
ler. (See “Brake fluid” in the“8.
Maintenance and do-it-yourself” sec-
tion.)
2. If the brake fluid level is correct, have the warning system checked by an
INFINITI retailer. Brake system malfunction warning:
If the brake warning light (red) and the
following warning light illuminate at the
same time when the parking brake is
released and the brake fluid level is
sufficient, there may be a malfunction in
the brake system.
. Brake system warning light (yellow)
WARNING
If both the brake system warning light
(yellow) and the brake warning light (red)
illuminate when the parking brake is re-
leased and the hybrid system is on, do not
drive the vehicle. More brake pedal effort
than normal will be required and there will
be a significant reduction in brake perfor-
mance, which could result in an accident.
Immediately stop the vehicle in a safe
location and contact an INFINITI retailer.
A chime sounds if a malfunction occurs in
the brake system power supply.
.Anti-lock Braking System (ABS) warning
light
— Avoid driving at high speed and
sudden braking, and see an INFINITI

retailer as soon as possible for an
inspection.
WARNING
.Your brake system may not be working
properly if the brake warning light (red)
is on. Driving could be dangerous. If you
judge it to be safe, drive carefully to the
nearest service station for repairs.
Otherwise, have your vehicle towed
because driving it could be dangerous.
. Pressing the brake pedal with the hybrid
system stopped and/or low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked at an INFINITI
retailer.
Direct Response HybridTM
System warning light
When the ignition switch is in the "ON"
position, the Direct Response HybridTM
System warning light illuminates. After starting the hybrid system, the hybrid
system warning light turns off.
If the hybrid system warning light illumi-
nates while driving, it may indicate that
there is a malfunction in the electric motor
and/or other hybrid system components.
Stop your vehicle immediately and contact
your INFINITI retailer.
If the hybrid system warning light blinks
while driving, it may indicate that the Li-ion
battery charge is low and you cannot
continue to drive.
Do not allow the vehicle to coast when the
Li-ion battery is low or when the hybrid
system warning light blinks while driving.
The engine will not automatically start to
charge the Li-ion battery while the vehicle
is coasting.
Distance Control Assist (DCA)
system warning light (orange; if so
equipped)
This light comes on if there is a malfunc-
tion in the Distance Control Assist (DCA)
system.
If the warning light illuminates, park the
vehicle in a safe place. Stop the hybrid
system, restart the hybrid system, resume driving and turn on the DCA system again.
If it is not possible to turn on the system
or the warning light stays on, it may
indicate that the system is malfunctioning.
Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
Engine oil pressure warning
light
This light warns of low engine oil pressure.
If the light flickers or comes on during
normal driving, pull off the road in a safe
area, stop the engine immediatelyand call
an INFINITI retailer or other authorized
repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” in the“8. Maintenance and
do-it-yourself” section.)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not covered
Instruments and controls2-13
