DI-86
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45

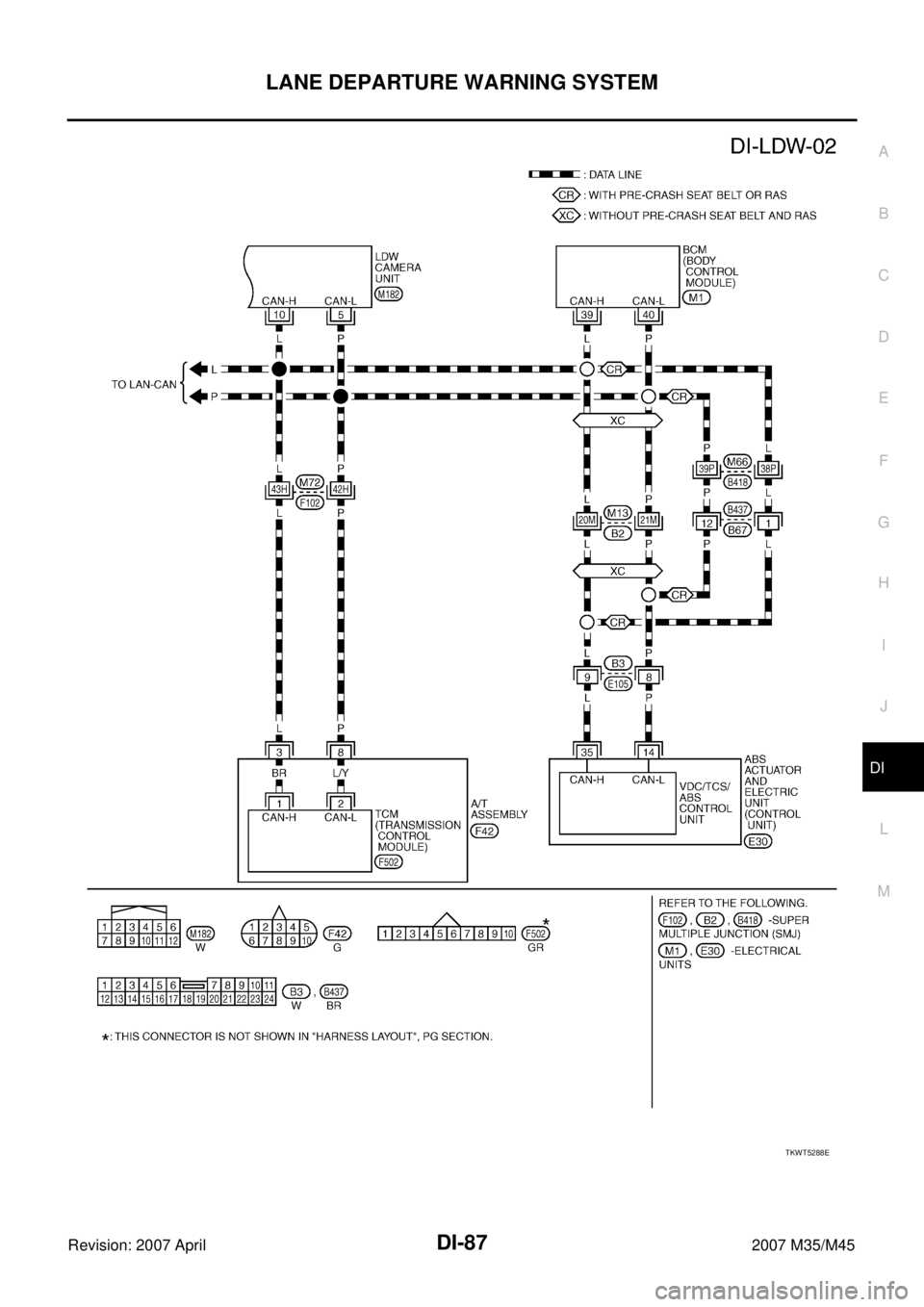

Wiring Diagram — LDW —NKS003VK
TKWT5287E

LANE DEPARTURE WARNING SYSTEM
DI-87
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
TKWT5288E

DI-88
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for LDW Camera UnitNKS003VL
NOTE:
*: Perform “ACTIVE TEST” with CONSULT-II. Refer to DI-91, "
ACTIVE TEST" .
CONSULT-II Function (LDW)NKS003VM
DESCRIPTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, and then turn
ignition switch ON.
Te r m i n a l
No.Wire
colorItemCondition
Reference value
(Approx.) Ignition
switchOperation or condition
1 B/R Ignition switch ON or START ON — Battery voltage
3 R/W LDW chime ON LDW chimeActivated
*0 V
Not activated 12 V
4 V System ON indicator ON LDW systemON 0 V
OFF 12 V
5 P CAN–L — — —
6 B Ground ON — 0 V
8 G/W LDW indicator lamp ON LDW indicator lamp Illuminated
*0 V
Turned OFF 12 V
9 GR LDW switch ON LDW switchPushed 0 V
Released 5 V
10 L CAN–H — — —
12 B Ground ON — 0 V
System Diagnosis mode DescriptionReference
page
LDWWORK SUPPORT Displays causes of automatic cancellation of the LDW system.DI-89
SELF-DIAG RESULTS Displays malfunctioning system memorized in LDW camera unit.DI-89
DATA MONITOR Displays real-time input/output data of LDW camera unit.DI-90
CAN DIAG SUPPORT MNTR Displays the results of transmit/receive diagnosis of CAN communication.LAN-44
ACTIVE TEST Enables operation check of electrical loads by sending driving signal to them.DI-91
ECU PART NUMBER Displays part number of LDW camera unit. —
SKIB3794E

LANE DEPARTURE WARNING SYSTEM
DI-89
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “LDW” on “SELECT SYSTEM” screen.
If “LDW” is not displayed, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch any field, “WORK SUPPORT”, “SELF-DIAG RESULTS”,
“DATA MONITOR”, “CAN DIAG SUPPORT MNTR”, “ACTIVE
TEST” or “ECU PART NUMBER”, on selection screen.
WORK SUPPORT
Operation Procedure
Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
Display Item List
SELF-DIAG RESULTS
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
2. See the displayed result of self-diagnosis.
Display Item List
BCIA0029E
BCIA0030E
BCIA0031E
Operation Function Reference page
AUTO AIM LDW camera unit calculates dislocation of the camera. Adjustment direction is displayed. DI-78
Display item [Code] Malfunction is detected when...Reference
page
CAMERA UNIT MALF [C1B00] LDW camera unit internal malfunctionDI-94
CAM AIMING INCMP [C1B01] LDW camera aiming is not adjusted.DI-94
VHCL SPD DATA MALF [C1B02]LDW camera unit detected different vehicle speed signal from TCM and
ABS actuator and electric unit (control unit).DI-94
ABNRML TEMP DETECT [C1B03] Temperature around LDW camera unit is excessively high.DI-94

DI-90
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
NOTE:

When a DTC is detected, the LDW system dose not operate.

When the DTC except “ABNRML TEMP DETECT [C1B03] ” is detected, the LDW indicator lamp turns ON.

When the DTC “ABNRML TEMP DETECT [C1B03] ” is detected, the LDW system ON indicator lamp blinks.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch any of “ALL SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Display Item List
CAN COMM CIRCUIT [U1000] LDW camera unit detected CAN communication malfunction.DI-95
CONTROL UNIT (CAN) [U1010] LDW camera unit detected internal CAN communication circuit malfunction.DI-95
Display item [Code] Malfunction is detected when...Reference
page
Monitored Item [unit] Description
MAIN SW [ON/OFF] Displays [ON/OFF] status as judged from LDW switch signal.
SW ON LAMP [ON/OFF] Displays [ON/OFF] status of LDW system ON indicator signal output.
INDICATE LAMP [ON/OFF] Displays [ON/OFF] status of LDW indicator signal output.
BUZZER OUTPUT [ON/OFF] Displays [ON/OFF] status of LDW chime operation signal output.
LDW INACCURAT [ON/OFF] Displays LDW camera unit status.
VHCL SPD SE [km/h] or [mph]Displays vehicle speed calculated by LDW camera unit through CAN communication [ABS
actuator and electric unit (control unit) transmits wheel sensor signal through CAN communi-
cation].
VHCL SPD AT [km/h] or [mph]Displays vehicle speed calculated from A/T vehicle speed sensor by LDW camera unit through
CAN communication (TCM transmits A/T vehicle speed sensor signal through CAN communi-
cation).
TURN SIGNAL [OFF/LH/RH] Displays “Turn signal” status, determined from BCM through CAN communication.
LANE DETCT LH [ON/OFF] Displays left lane marker is detected.
LANE DETCT RH [ON/OFF] Displays right lane marker is detected.
CROSS LANE LH [ON/OFF] Displays vehicle is crossing left lane.
CROSS LANE RH [ON/OFF] Displays vehicle is crossing right lane.
WARN LANE LH [ON/OFF] Displays warning for left lane.
WARN LANE RH [ON/OFF] Displays warning for right lane.
VALID POS LH [VLD/INVLD] Displays lateral position for left lane marker is valid.
VALID POS RH [VLD/INVLD] Displays lateral position for right lane marker is valid.
AIMING DONE [OK/NG] Displays camera aiming done.
AIMING RESULT [OK/NOK] Displays camera aiming result.
FCTRY AIM YAW [deg] Displays camera unit installation condition.
FCTRY AIM ROL [deg] Displays camera unit installation condition.
FCTRY AIM PIT [deg] Displays camera unit installation condition.
XOFFSET [pixel] Displays camera unit installation condition.

LANE DEPARTURE WARNING SYSTEM
DI-91
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
ACTIVE TEST
CAUTION:

Never perform the active test while driving.

Active test cannot be started while LDW indicator lamp is illuminated.
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen. Refer to DI-88, "
CONSULT-II BASIC OPERA-
TION" .
2. Touch any field, “BUZZER DRIVE ”, “SYSTEM ON LAMP DRIVE” and “INDICATOR LAMP DRIVE”, on
selection screen.
3. Touch necessary item and “START”.
4. Active test screen will be shown.
Display Item List
BUZZER DRIVE
Touch “ON” and “OFF” to check if LDW chime operates as follows.
SYSTEM ON LAMP DRIVE
Touch “ON” and “OFF” to check if LDW system ON indicator oper-
ates as follows.
NOTE:
Perform “SYSTEM ON LAMP DRIVE” when LDW system ON indica-
tor turns OFF.
INDICATOR LAMP DRIVE
Touch “ON” and “OFF” to check that LDW indicator lamp operates as
follows.
Display item Operation item FunctionReference
page
BUZZER DRIVE LDW chime Checks LDW chime operation. DI-91
SYSTEM ON LAMP DRIVE LDW system ON indicator Checks LDW system ON indicator operation.DI-91
INDICATOR LAMP DRIVE LDW indicator lamp Checks LDW indicator lamp operation.DI-91
“BUZZER DRIVE”
Touch “ON” : LDW chime is activated.
Touch “OFF” : LDW chime is not activated.
SKIB1787E
“SYSTEM ON LAMP DRIVE”
Touch “ON” : LDW system ON indicator illuminates.
Touch “OFF” : LDW system ON indicator turns OFF.
SKIB1788E
“INDICATOR LAMP DRIVE”
Touch “ON” : LDW indicator lamp illuminates.
Touch “OFF” : LDW indicator lamp OFF.
PKIB4692E

DI-92
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
Trouble DiagnosisNKS003VN
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Check the symptom and customer complaint.
2. Understand the outline of system. Refer to DI-75, "
System Description" .
3. Perform the preliminary inspection. Refer to DI-92, "
PRELIMINARY INSPECTION" .
4. Referring to symptom chart, make sure the cause of the malfunction and repair or replace applicable
parts. Refer to DI-93, "
SYMPTOM CHART" .
5. Erase DTC and perform self-diagnosis of LDW system again. Then perform LDW system running test.
Refer to DI-88, "
CONSULT-II Function (LDW)" and DI-77, "LDW SYSTEM RUNNING TEST" .
6. Does LDW system operate normally? If yes, GO TO 7. If no, GO TO 3.
7. INSPECTION END
PRELIMINARY INSPECTION
1. CHECK CAMERA LENS AND WINDSHIELD
Are camera lens and windshield contaminated with foreign materials?
YES >> Clean camera lens and windshield.
NO >> GO TO 2.
2. CHECK CAMERA UNIT INSTALLATION CONDITION
Check camera unit installation condition (installation position, properly tightened, a bent bracket).
OK or NG
OK >> GO TO 3.
NG >> Install camera unit properly, and adjust camera aiming. Refer to DI-78, "
Camera Aiming Adjust-
ment" .
3. CHECK VEHICLE HEIGHT
Check vehicle height. Refer to FSU-19, "
SERVICE DATA AND SPECIFICATIONS (SDS)" (2WD) or FSU-37,
"SERVICE DATA AND SPECIFICATIONS (SDS)" (AWD).
Is vehicle height appropriate?
OK >> GO TO 4.
NG >> Repair vehicle to appropriate height.
4. CHECK LDW CAMERA UNIT (CONSULT-II)
Perform self-diagnosis of LDW camera unit. Refer to DI-88, "
CONSULT-II Function (LDW)" .
Self
-diagnostic results content
No malfunction detected>>GO TO 5.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
5. CHECK COMBINATION METER
Check combination meter function.
Do speedometer and turn signal indicator function normally?
YES >> INSPECTION END
NO >> Check combination meter. Refer to DI-18, "
Trouble Diagnosis" .

LANE DEPARTURE WARNING SYSTEM
DI-93
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
SYMPTOM CHART
Power Supply and Ground Circuit InspectionNKS003VO
1. CHECK FUSE
Check for blown LDW camera unit fuse.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between LDW camera unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between LDW camera unit and fuse.
Symptom Diagnosis/Service procedure
LDW system is not activated.
(LDW system ON indicator turns ON/OFF.)Perform the following inspections.
1.DI-95, "
LDW Chime Circuit Inspection"
2.DI-99, "LDW Indicator Lamp Circuit Inspection"
Replace LDW camera unit, found normal function in the above inspections.
LDW system does not turn ON/OFF.
(LDW system ON indicator does not turn ON/OFF.)Perform DI-96, "
LDW Switch Circuit Inspection" .
Replace LDW camera unit, found normal function in the above inspection.
Warning functions are untimely.
(Example)

Warning does not function when driving on lane mark-
ers.

Warning functions when driving in a lane.

Differs position from actual condition functions.Perform DI-78, "
Camera Aiming Adjustment" .
Functions when changing the course to the turn signal
direction.Perform DI-100, "
Turn Signal Input Inspection" .
Replace LDW camera unit, found normal function in the above inspection.
LDW indicator lamp does not illuminate with ignition
switch ON.Perform DI-99, "
LDW Indicator Lamp Circuit Inspection" .
Replace LDW camera unit, found normal function in the above inspection.
Unit Power source Fuse No.
LDW camera unit Ignition switch ON or START 12
Terminals Ignition switch position
(+)
(–) OFF ON
LDW camera
unit connectorTerminal
M182 1 Ground 0 V Battery voltage
PKIC0246E

DI-94
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW camera unit connector.
3. Check continuity between LDW camera unit harness connector
and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair ground harness.
DTC [C1B00] CAMERA UNIT MALFNKS003VP
1. CHECK LDW CAMERA UNIT
1. Perform self-diagnosis of LDW camera unit.
2. Check if any item other than “[C1B00] CAMERA UNIT” is displayed on self-diagnosis display.
Is any displayed?
YES >> Repair or replace applicable item.
NO >> Replace LDW camera unit.
DTC [C1B01] CAM AIMING INCMPNKS003VQ
1. PREFORM CAMERA AIMING ADJUSTMENT
1. Preform camera aiming adjustment. Refer to DI-78, "
Camera Aiming Adjustment" .
2. Erase DTC and perform LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
DTC [C1B02] VHCL SPD DATA MALFNKS003VR
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) {CONSULT-II}
Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-23, "
CONSULT-II Functions
(ABS)" .
Self
-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
2. CHECK TCM (CONSULT-II)
Perform TCM self-diagnosis. Refer to AT- 9 0 , "
CONSULT-II Function (A/T)" .
Self
-diagnostic results content
No malfunction detected>>Replace LDW camera unit.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
DTC [C1B03] ABNRML TEMP DETECTNKS003VS
1. COOLING CAMERA UNIT
1. Cooling camera unit.
2. Erase DTC and perform LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
LDW camera unit connector Terminal
GroundContinuity
M1826
Ye s
12
PKIC0247E

LANE DEPARTURE WARNING SYSTEM
DI-95
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
DTC [U1000] CAN COMM CIRCUITNKS003VT
1. CHECK CAN COMMUNICATION
1. Select “SELF-DIAG RESULTS” mode for “LDW” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “LAN SYSTEM”. Refer to LAN-44, "
CAN Diagnostic Support Monitor" .
DTC [U1010] CONTROL UNIT (CAN)NKS003VU
Replace LDW camera unit, when “[U1010] CONTROL UNIT (CAN)” is displayed on self-diagnosis display.
LDW Chime Circuit InspectionNKS003VV
1. CHECK OPERATION OF LDW CHIME
Check LDW chime operation “BUZZER DRIVE” in “ACTIVE TEST”
mode with CONSULT-II.
OK or NG
OK >> LDW chime is OK. Return to DI-93, "SYMPTOM
CHART" .
NG >> GO TO 2.
2. CHECK LDW CHIME POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW chime connector.
3. Turn ignition switch ON.
4. Check voltage between LDW chime harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between fuse and LDW chime.
3. CHECK LDW CHIME GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between LDW chime harness connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.“BUZZER DRIVE”
Touch “ON” : LDW chime is activated.
Touch “OFF” : LDW chime is not activated.
SKIB1787E
Te r m i n a l s
Voltage (Approx.) (+)
(–)
LDW chime connector Terminal
M58 1 Ground Battery voltage
PKIC0248E
LDW chime connector Terminal
GroundContinuity
M58 3 Yes
PKIC0249E
