INFINITI M35 2007 Factory Service Manual

EC-812
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
1. ECM 2. Data link connector 3. Accelerator pedal position sensor
4. Stop lamp switch 5. ICC brake switch
(models with ICC)
ASCD brake switch
(models with ASCD)6. ICC steering switch
(models with ICC)
ASCD steering switch
(models with ASCD)
7. RESUME/ACCELERATE switch 8. SET/COAST switch 9. CANCEL switch
10. DISTANCE switch
(ICC models only)11. MAIN switch
PBIB2680E

TROUBLE DIAGNOSIS
EC-813
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
: Vehicle front
1. Fuel level sensor unit and fuel pump
harness connector2. Fuel level sensor unit and fuel pump 3. Fuel pressure regulator
4. Fuel tank temperature sensor 5. FPCM 6. Dropping resistor
PBIB2681E

EC-814
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
Vacuum Hose DrawingNBS005AJ
Refer to EC-732, "System Diagram" for Vacuum Control System.
: Vehicle front : To EVAP canister purge volume control solenoid valve
1. Intake manifold collector 2. Vacuum tank 3. VIAS control solenoid valve
4. Power valve actuator
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
PBIB2732E

TROUBLE DIAGNOSIS
EC-815
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

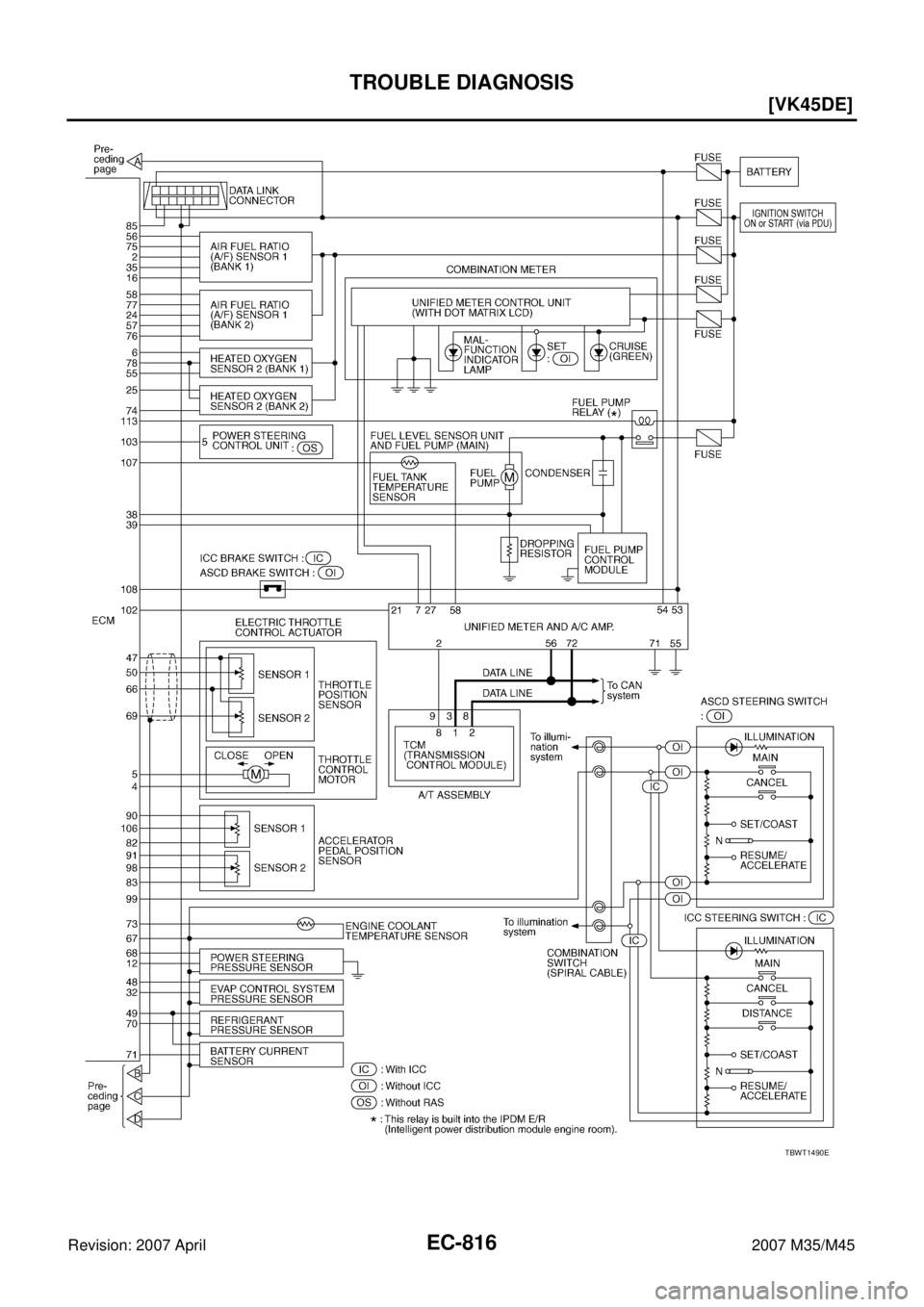

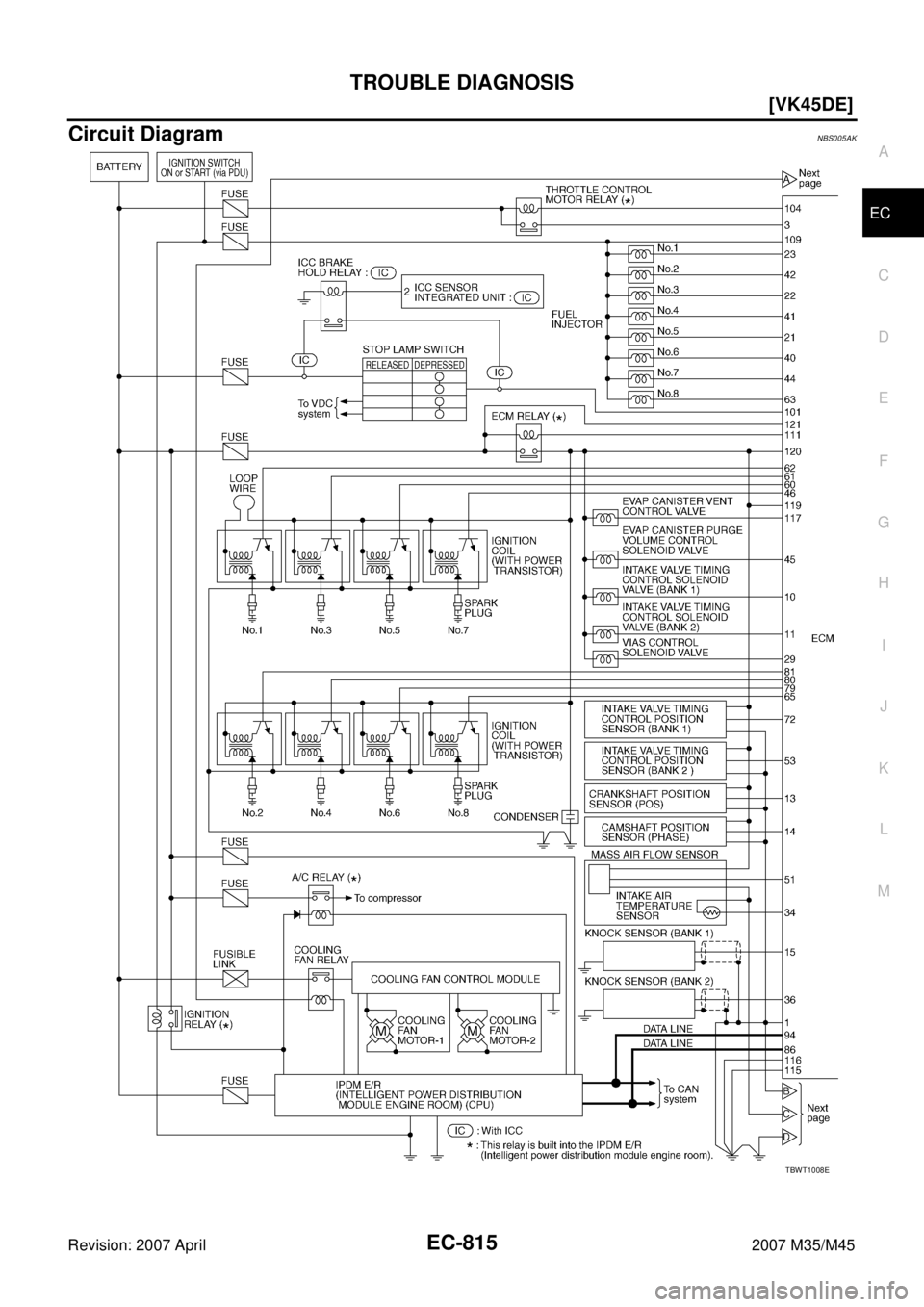

Circuit DiagramNBS005AK
TBWT1008E

EC-816
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TBWT1490E

TROUBLE DIAGNOSIS
EC-817
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
ECM Harness Connector Terminal LayoutNBS005AL
ECM Terminals and Reference ValueNBS005AM
PREPARATION
1. ECM (1) is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument
lower panel.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen (A) it with
levers (2) as far as they will go as shown in the figure.

ECM (1)

Fasten (B)
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
PBIB2703E
PBIB2714E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground
2SBA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speedApproximately 5V
PBIB1584E

EC-818
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
3RThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4WThrottle control motor
(Close)[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Released0 - 14V
5BThrottle control motor
(Open)[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully depressed0 - 14V
6R/LHeated oxygen sensor 2
heater (bank 1)[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
10 W/GIntake valve timing control
solenoid valve (bank 1)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000rpm7 - 12V
11 G/OIntake valve timing control
solenoid valve (bank 2)[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000rpm7 - 12V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1104E
PBIB1105E
PBIB1790E
PBIB1790E

TROUBLE DIAGNOSIS
EC-819
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M4512 R/GPower steering pressure
sensor[Engine is running]
Steering wheel: Being turned0.5 - 4.5V
[Engine is running]

Steering wheel: Not being turned0.4 - 0.8V
13 W/RCrankshaft position sensor
(POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 2.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 2.0V
14 GCamshaft position sensor
(PHASE)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 4.0V
15 W Knock sensor (bank 1)[Engine is running]

Idle speedApproximately 2.5V
16 W/L
A/F sensor 1 (bank 1)[Engine is running]

Warm-up condition

Idle speedApproximately 3.1V
35 GR/LApproximately 2.6V
56 LG/BApproximately 2.3V
75 YApproximately 2.3V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E

EC-820
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
21
22
23
40
41
42
44
63W/B
R/Y
R/B
V/R
P/L
R/W
O
G/YFuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 7
Fuel injector No. 8[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
24 SBA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speedApproximately 5V
25 P/BHeated oxygen sensor 2
heater (bank 2)[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
29 V VIAS control solenoid valve[Engine is running]

Selector lever: P or N0 - 1.0V
[Engine is running]

Selector lever: D

Engine speed: Below 5,000 rpmBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: Above 5,000 rpm0 - 1.0V
32 R/GEVAP control system pres-
sure sensor[Ignition switch: ON]Approximately 1.8 - 4.8V
34 Y/GIntake air temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
36 W Knock sensor (bank 2)[Engine is running]

Idle speedApproximately 2.5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0042E
PBIB0043E
PBIB1584E

TROUBLE DIAGNOSIS
EC-821
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M4538 G/BFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]
Warm-up condition

Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]

Warm-up condition

Idle speed8 - 12V
45 VEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speed

Accelerator pedal: Not depressed even
slightly, after engine startingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)BATTERY VOLTAGE
(11 - 14V)
46
60
61
62
65
79
80
81L/O
V/W
P
Y/R
BR/R
GR/R
GR/B
G/RIgnition signal No. 7
Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1
Ignition signal No. 8
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
48 BRSensor power supply
(EVAP control system pres-
sure sensor)[Ignition switch: ON]Approximately 5V
49 B/YSensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)[Ignition switch: ON]Approximately 5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
SEC990C
SEC991C
PBIB0044E
PBIB0045E
