TURN SIGNAL AND HAZARD WARNING LAMPS
LT-227
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

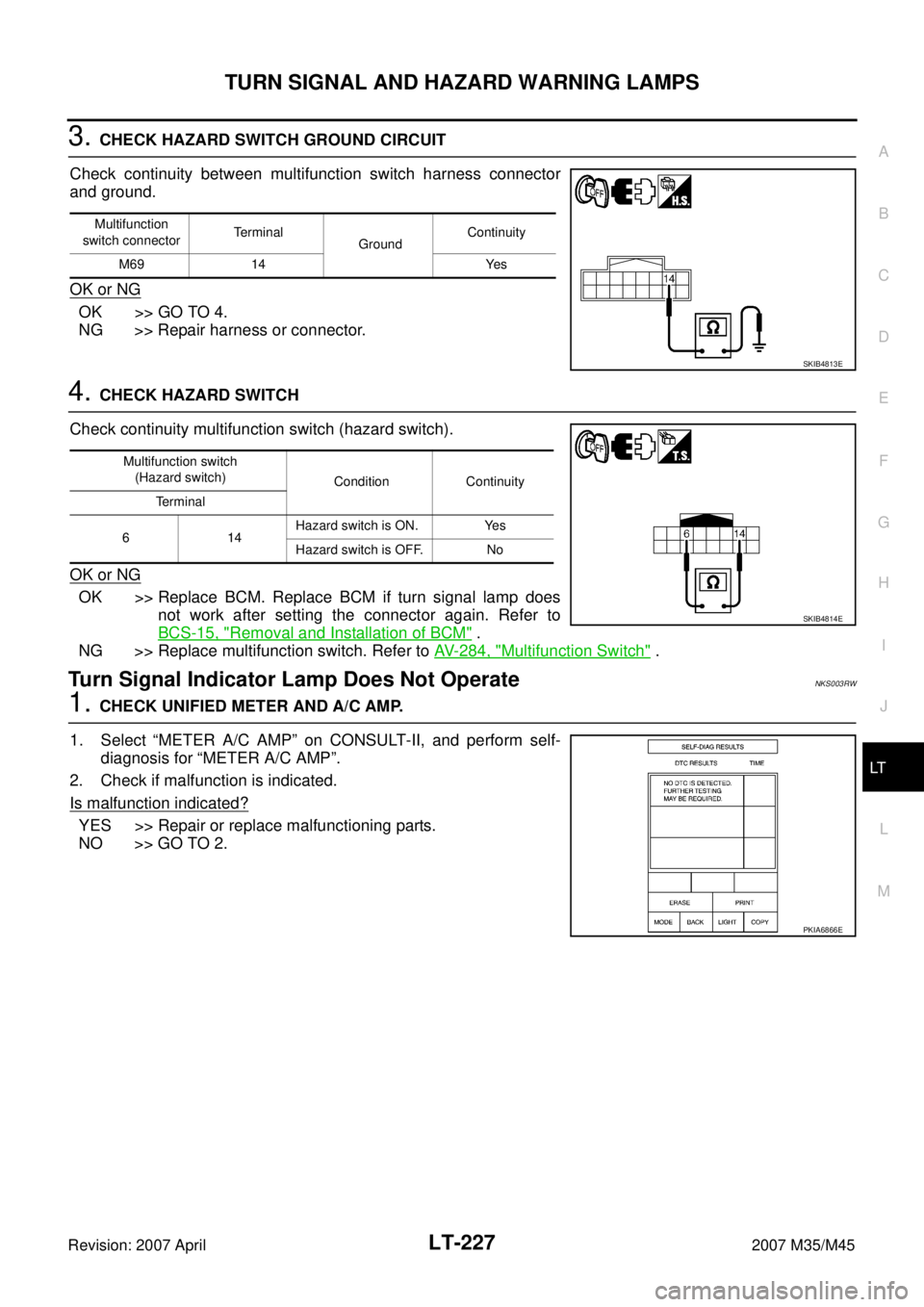

3. CHECK HAZARD SWITCH GROUND CIRCUIT
Check continuity between multifunction switch harness connector
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK HAZARD SWITCH
Check continuity multifunction switch (hazard switch).
OK or NG
OK >> Replace BCM. Replace BCM if turn signal lamp does
not work after setting the connector again. Refer to
BCS-15, "
Removal and Installation of BCM" .
NG >> Replace multifunction switch. Refer to AV- 2 8 4 , "
Multifunction Switch" .
Turn Signal Indicator Lamp Does Not OperateNKS003RW
1. CHECK UNIFIED METER AND A/C AMP.
1. Select “METER A/C AMP” on CONSULT-II, and perform self-
diagnosis for “METER A/C AMP”.
2. Check if malfunction is indicated.
Is malfunction indicated?
YES >> Repair or replace malfunctioning parts.
NO >> GO TO 2.
Multifunction
switch connectorTerminal
GroundContinuity
M69 14 Yes
SKIB4813E
Multifunction switch
(Hazard switch)
Condition Continuity
Te r m i n a l
614Hazard switch is ON. Yes
Hazard switch is OFF. No
SKIB4814E
PKIA6866E

LT-228
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45
2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
1. Select “METER A/C AMP” on CONSULT-II.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “TURN IND” turns ON-OFF according to turn sig-
nal switch operation.
OK or NG
OK >> Replace combination meter. Refer to DI-27, "Removal
and Installation of Combination Meter" .
NG >> Replace unified meter and A/C amp. Refer to DI-38,
"Removal and Installation of Unified Meter and A/C
Amp." . When turn signal switch is in
the RH or LH position: TURN IND ON
PKID0104E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-229
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Bulb Replacement/Removal and Installation of Side Turn Signal LampNKS003RX
: Vehicle front
REMOVAL
1. While pressing the side turn signal lamp (1) to direction A (Vehi-
cle front), pull direction B of it and remove.
2. Disconnect side turn signal lamp connector.
CAUTION:

Support side turn signal lamp harness with tape so that it
won't fall into the front fender.

Fix the pawl side of side turn signal lamp housing back at
first. Then install side turn signal lamp while pushing
resin clip side.
3. Turn bulb socket (1) counterclockwise and unlock it.
4. Remove bulb (2).
INSTALLATION
Installation is the reverse order of removal.
Bulb Replacement (Front Turn Signal Lamp)NKS003RY
Refer to LT- 3 8 , "Bulb Replacement" in “HEADLAMP -CONVENTIONAL TYPE-”.
Refer to LT- 7 3 , "
Bulb Replacement" in “HEADLAMP -XENON TYPE-”.
Bulb Replacement (Rear Turn Signal Lamp)NKS003RZ
Refer to LT- 2 6 5 , "Bulb Replacement" .
Removal and Installation of Front Turn Signal LampNKS003S0
Refer to LT- 4 0 , "Removal and Installation" in “HEADLAMP -CONVENTIONAL TYPE-”.
Refer to LT- 7 5 , "
Removal and Installation" in “HEADLAMP -XENON TYPE-”
Removal and Installation of Rear Turn Signal Lamp NKS003S1
Refer to LT- 2 6 5 , "Removal and Installation" .
SKIB4184E
Side turn signal lamp : 12V - 5W
SKIB4185E

LT-294
ILLUMINATION
Revision: 2007 April2007 M35/M45
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU located in the IPDM E/R controls the tail lamp relay coil,
which, when energized, directs power

through IPDM E/R terminal 21

to combination meter terminal 13

to LDW switch (illumination) terminal 5 (with lane departure warning)

to VDC off switch (illumination) terminal 3

to trunk lid opener switch (illumination) terminal 3

to combination switch (spiral cable) terminal 24

to door mirror remote control switch (illumination) terminal 16

to AFS switch (illumination) terminal 5 (with AFS)

to rear sunshade front switch (illumination) terminal 5 (with rear control switch)

to A/T illumination terminal 1

to snow mode switch (illumination) terminal 5 (AWD models)

to rear control cancel switch (illumination) terminal 4 (with rear control switch)

to clock terminal 3

to multifunction switch terminal 3

to audio unit terminal 9

to DVD player terminal 18 (with DVD player)

to NAVI control unit terminal 61 (with navigation system)

to AV control unit terminal 61 (without navigation system)

to climate controlled seat switch driver side (illumination) terminal 7 (with climate controlled seat)

to climate controlled seat switch passenger side (illumination) terminal 7 (with climate controlled seat)

to ashtray illumination (rear LH) terminal 1

to ashtray illumination (rear RH) terminal 1

to illumination control switch terminal 1

to cigarette lighter socket (illumination) terminal 2

to map lamp (illumination) terminal 8

to power window main switch illumination terminal 1

to glove box lamp terminal 1

to rear control switch terminal 2

to rear power seat switch RH (illumination) terminal 4 (with rear control switch)

to rear heated seat switch RH (illumination) terminal 7 (with rear control switch)

to rear sunshade cancel relay terminal 6 (with rear control switch)

to automatic return cancel switch (illumination) terminal 4 (with rear control switch)

to rear power seat switch LH (illumination) terminal 4 (with rear control switch) and

to rear heated seat switch LH (illumination) terminal 7 (with rear control switch),

through Intelligent Key unit terminal 12

to push button ignition switch (illumination) terminal 3.
Ground is supplied

to combination meter terminal 14

to combination meter terminal 9, 10 and 11

to push button ignition switch (illumination) terminal 2

to LDW switch (illumination) terminal 4 (with lane departure warning)

to VDC off switch (illumination) terminal 4

to trunk lid opener switch (illumination) terminal 4

to combination switch (spiral cable) terminal 25

LU-8
[VQ35DE]
ENGINE OIL
Revision: 2007 April2007 M35/M45

Crankshaft oil seals (front and rear)

Camshaft position sensor (PHASE)
OIL PRESSURE CHECK
WARNING:

Be careful not to get burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.
1. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
2. Remove front engine undercover with power tool.
3. Disconnect harness connector at oil pressure switch, and
remove oil pressure switch using deep socket (commercial ser-
vice tool).
CAUTION:
Do not drop or shock oil pressure switch.

Remove the oil pressure switch using a 26 mm (1.02 in) box
wrench. (AWD models)
4. Install the oil pressure gauge (SST) and hose (SST).
5. Start the engine and warm it up to normal operating temperature.
6. Check the engine oil pressure with engine running under no-load.
NOTE:
When the engine oil temperature is low, the engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80 °C (176 °F)]
Unit: [kPa (kg/cm2 , psi)]
If difference is extreme, check engine oil passage and oil pump for engine oil leaks.
SBIA0452E
SBIA0453E
SLC926
Engine speed Approximate discharge pressure
Idle speed More than 98 (1.0, 14)
2,000 rpm More than 294 (3.0, 43)

ENGINE OIL
LU-9
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-47, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS004PX
WARNING:

Be careful not to get burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up the engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE
OIL LEAKAGE" .
2. Stop the engine and wait for 10 minutes.
3. Loosen oil filler cap.
4. Remove mounting bolts, and then pull down the rear of front
engine undercover (1) and secure it using clip.
5. Remove drain plug (2) and then drain engine oil.
6. Install drain plug with new washer. Refer to EM-31, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:

When filling engine oil, do not pull out oil level gauge.

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop the engine and wait for 10 minutes.Oil pressure switch:
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
KBIA3593J
Oil pan drain plug:
: 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)

OIL FILTER BRACKET (AWD)
LU-13
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
OIL FILTER BRACKET (AWD)PFP:15238
ComponentsNBS004PZ

Refer to GI-11, "Components" for symbols in the figure.
Removal and InstallationNBS004Q0
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
1. Remove front engine undercover with power tool.
2. Using the oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-11, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belt.
3. Remove connector bolt, and then oil cooler with water hoses connected.
4. Disconnect oil pressure switch harness connectors.
5. Remove oil filter bracket from oil pan (upper).
6. Remove oil pressure switch from oil filter bracket.
INSTALLATION
Note the following, and install in the reverse order of removal.

Install oil pressure switch as follows:
–Remove old liquid gasket adhering to oil filter bracket.
–Apply liquid gasket and install oil pressure switch.
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Gasket 8. Oil pressure switch
A. Refer to LU-11

: Engine front
PBIC3393E

LU-16
[VQ35DE]
OIL COOLER
Revision: 2007 April2007 M35/M45
AWD models
Removal and InstallationNBS004Q2
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
NOTE:
When removing oil cooler only, step 2 is unnecessary.
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator and cylinder block. Refer to CO-11, "
Changing Engine Coolant" and
EM-125, "
DISASSEMBLY" .
NOTE:
Perform this step when removing water pipes.
3. Disconnect water hoses from oil cooler.

When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from
spilling out.

Remaining engine coolant in piping will come out. Use a tray to collect it.
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
4. Using oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-11, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belts.
5. Remove connector bolt, and remove oil cooler.
PBIC3392E
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Water hose 8. Water hose 9. Water pipe
10. Water hose

ENGINE OIL
LU-27
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
ENGINE OILPFP:KLA92
InspectionNBS004QC
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 15 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within
the range shown in the figure.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for oil leakage around the following area.

Oil pan

Oil pan drain plug

Oil pressure switch

Oil filter

Intake valve timing control cover

Intake valve timing control solenoid valve

Front cover

Chain tensioner cover

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seals (front and rear)
OIL PRESSURE CHECK
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.
1. Check the engine oil level. Refer to LU-27, "
ENGINE OIL LEVEL" .
2. Remove front engine undercover with power tool.
3. Disconnect harness connector at oil pressure switch, and
remove oil pressure switch using deep socket (commercial ser-
vice tool).
CAUTION:
Do not drop or shock oil pressure switch.
PBIC0801E
PBIC1524E

LU-28
[VK45DE]
ENGINE OIL
Revision: 2007 April2007 M35/M45
4. Install oil pressure gauge and hose (SST).
5. Start engine and warm it up to normal operating temperature.
6. Check the engine oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80°C (176°F)]
Unit: kPa (kg/cm2 , psi)
If difference is extreme, check oil passage and oil pump for oil leaks.
7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-47, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS004QD
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components. Refer
to LU-27, "
ENGINE OIL LEAKAGE" .
2. Stop engine and wait for 15 minutes.
3. Loosen oil filler cap.
4. Remove mounting bolts, and then pull down the rear of front engine undercover and secure it using clip.
5. Remove drain plug and then drain engine oil.
SLC926
Engine speed Approximate discharge pressure
Idle speed More than 98 (1.0, 14)
2,000 rpm More than 294 (3.0, 43)
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
PBIC0993E
