INFINITI M35 2007 Factory Service Manual

WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: 2007 April2007 M35/M45
6. CHECK FRONT WIPER CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector (B).
3. Check continuity between IPDM E/R harness connector (A) and
front wiper reverse relay harness connector (B).
4. Check continuity between IPDM E/R harness connector and
ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
AB
Continuity
Connector Terminal Connector Terminal
E723
E273
Ye s
31 2
SKIB4662E
AB
Continuity
Connector Terminal Connector Terminal
E7 19 E33 5 Yes
SKIB4676E
IPDM E/R
connectorTe r m i n a l
GroundContinuity
E719
No
23
SKIB4677E

FRONT WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2007 April2007 M35/M45
7. CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “LO” or “HI” screen.
6. Check voltage between IPDM E/R harness connector and
ground while front wiper (HI, LO) is operating.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Start up auto active test. Refer to PG-23, "
Auto Active Test" .
4. Check voltage between IPDM E/R harness connector and ground while front wiper (HI, LO) is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-44, "Disassembly and Assembly of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-31, "
Removal and Installation of IPDM E/R" .
Front Wiper Does Not Return to Stop Position (After Front Wiper Operate for 10
Seconds, They Stop for 20 Seconds, and After Repeating the Operations Five
Times, They Become Inoperative)
NKS003WO
CAUTION:

When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.

This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
Terminal
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTerminal
E719
GroundStopped
Battery voltage
HI operation
23Stopped 0 V
LO operation Battery voltage
Terminal
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTerminal
E719
GroundStopped
Battery voltage
HI operation
23Stopped 0 V
LO operation Battery voltage
SKIB4663E

WW-32
FRONT WIPER AND WASHER SYSTEM
Revision: 2007 April2007 M35/M45

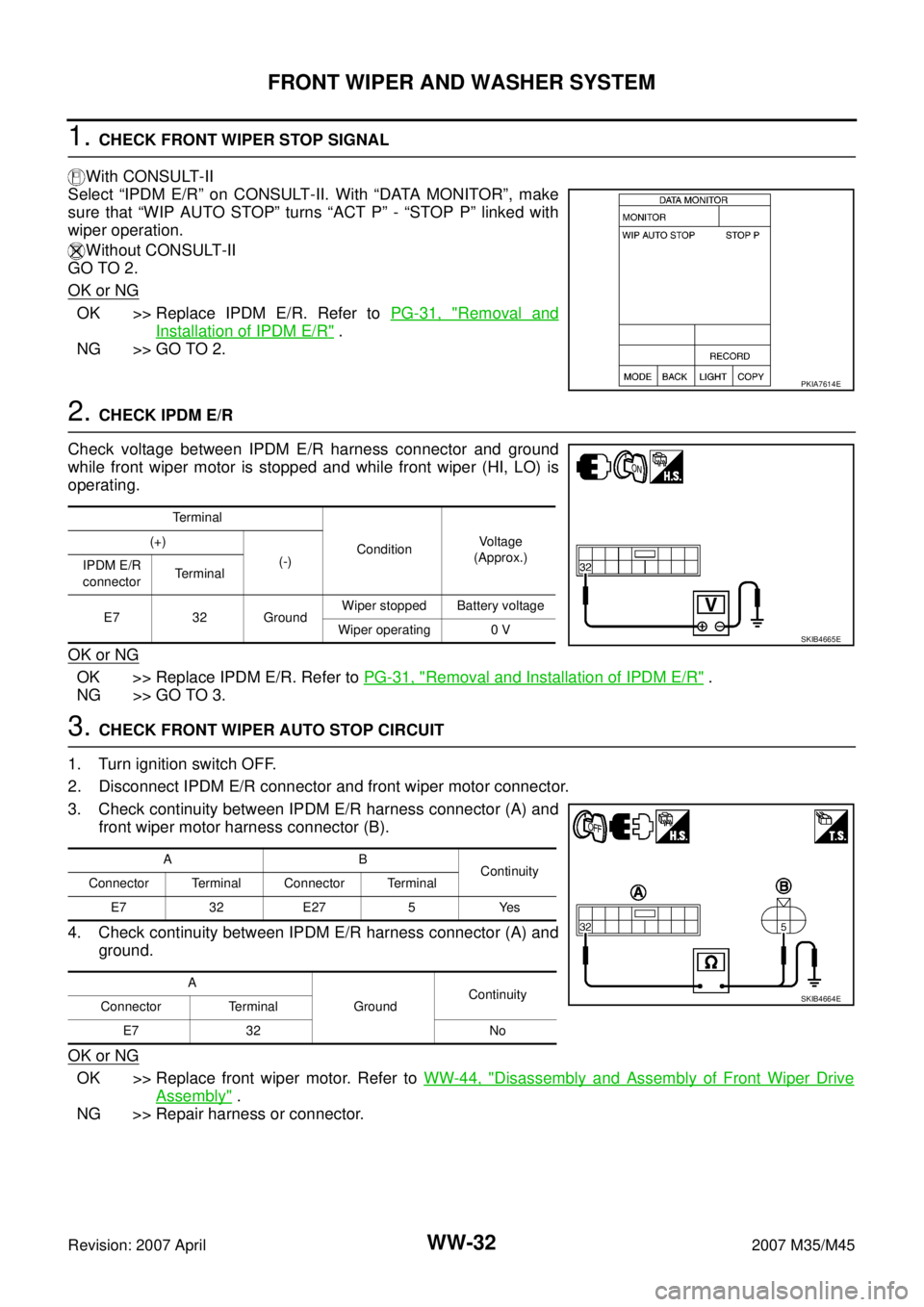

1. CHECK FRONT WIPER STOP SIGNAL
With CONSULT-II
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
2. CHECK IPDM E/R
Check voltage between IPDM E/R harness connector and ground
while front wiper motor is stopped and while front wiper (HI, LO) is
operating.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> GO TO 3.
3. CHECK FRONT WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-44, "Disassembly and Assembly of Front Wiper Drive
Assembly" .
NG >> Repair harness or connector.
PKIA7614E
Terminal
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTerminal
E7 32 GroundWiper stopped Battery voltage
Wiper operating 0 V
SKIB4665E
AB
Continuity
Connector Terminal Connector Terminal
E7 32 E27 5 Yes
A
GroundContinuity
Connector Terminal
E7 32 No
SKIB4664E

FRONT WIPER AND WASHER SYSTEM
WW-33
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2007 April2007 M35/M45
Front Wiper Does Not Return to Stop Position When Front Wiper Motor Oper-
ates at Low Speed (After Front Wiper Operate for 10 Seconds, They Stop for 20
Seconds, and After Repeating the Operations Five Times, They Become Inoper-
ative)
NKS003WP
CAUTION:

When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.

This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
1. CHECK FRONT WIPER STOP SIGNAL
With CONSULT-II
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper LO operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
2. CHECK IPDM E/R
Check voltage between IPDM E/R harness connector and ground
while front wiper motor is stopped and while front wiper LO is operat-
ing.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> GO TO 3.
3. CHECK CIRCUIT BETWEEN FRONT WIPER MOTOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect front wiper motor connector.
3. Check continuity between front wiper motor harness connector
and ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-44, "Disassem-
bly and Assembly of Front Wiper Drive Assembly" .
NG >> Repair harness or connector.
PKIA7614E
Terminal
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E7 32 GroundWiper stopped Battery voltage
Wiper operating 0 V
SKIB4665E
Front wiper motor
connectorTerminal
GroundContinuity
E27 6 Yes
SKIB4667E

WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2007 April2007 M35/M45
Front Wiper Does Not Return to Stop Position When Front Wiper Motor Oper-
ates at HIGH Speed (After Front Wiper Operate for 10 Seconds, They Stop for 20
Seconds, and After Repeating the Operations Five Times, They Become Inoper-
ative)
NKS003WQ
CAUTION:

When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.

This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
1. CHECK FRONT WIPER STOP SIGNAL
With CONSULT-ll
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper HI operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
2. CHECK IPDM E/R
1. Turn ignition switch OFF.
2. Connect IPDM E/R connector and front wiper motor connector.
3. Turn ignition switch ON.
4. Check voltage between IPDM E/R harness connector and
ground while front wiper motor is stopped and while front wiper
HI is operating.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> GO TO 3.
PKIA7614E
Te r m i n a l
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTerminal
E7 32 GroundWiper stopped Battery voltage
Wiper operating 0 V
SKIB4665E

FRONT WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2007 April2007 M35/M45
3. CHECK IPDM E/R
1. Disconnect front wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between front wiper motor harness connector
and ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-44, "Disassem-
bly and Assembly of Front Wiper Drive Assembly" .
NG >> GO TO 4.
4. CHECK FRONT WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
Ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> Repair harness or connector.
Terminal
Voltage
(Approx.) (+)
(-)
Front wiper motor
connectorTerminal
E27 4 Ground Battery voltage
SKIB4669E
AB
Continuity
Connector Terminal Connector Terminal
E8 44 E27 4 Yes
A
GroundContinuity
Connector Terminal
E8 44 No
SKIB4670E

WW-36
FRONT WIPER AND WASHER SYSTEM
Revision: 2007 April2007 M35/M45
Only Front Wiper LO Does Not OperateNKS003WR
1. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
Without CONSULT-II
Start up auto active test. Refer to PG-23, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT- 2 3 9 , "Combination Switch Inspection" .
NO >> GO TO 2.
2. CHECK IPDM E/R
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
4. Check voltage between IPDM E/R harness connector and
ground while front wiper LO is operating.
Without CONSULT-ll
1. Start up auto active test. Refer to PG-23, "
Auto Active Test" .
2. Check voltage between IPDM E/R harness connector and
ground while front wiper LO is operating.
OK or NG
OK >> GO TO 3.
NG >> Replace IPDM E/R. Refer to PG-31, "
Removal and Installation of IPDM E/R" .
SKIA3486E
Te r m i n a l
Voltage
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E7 23 Ground Battery voltage
Te r m i n a l
Voltage
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E7 23 Ground Battery voltage
SKIB4673E

FRONT WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2007 April2007 M35/M45
3. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER MOTOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK FRONT WIPER REVERSE RELAY
1. Remove front wiper reverse relay.
2. Check continuity between front wiper reverse relay terminals.
OK or NG
OK >> GO TO 5.
NG >> Replace front wiper reverse relay.
5. CHECK CIRCUIT BETWEEN FRONT WIPER REVERSE RELAY AND GROUND
Check continuity between front wiper reverse relay harness connec-
tor and ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-44, "Disassem-
bly and Assembly of Front Wiper Drive Assembly" .
NG >> Repair harness or connector.
AB
Continuity
Connector Terminal Connector Terminal
E7 23 E27 3 Yes
A
GroundContinuity
Connector Terminal
E7 23 No
SKIB4682E
Front wiper reverse relay terminals Continuity
34Yes
SKIB4660E
Front wiper reverse relay
connectorTerminal
GroundContinuity
E33 4 Yes
SKIB4674E

WW-38
FRONT WIPER AND WASHER SYSTEM
Revision: 2007 April2007 M35/M45
Only Front Wiper HI Does Not OperateNKS003WS
1. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
Without CONSULT-II
Start up auto active test. Refer to PG-23, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT- 2 3 9 , "Combination Switch Inspection" .
NO >> GO TO 2.
2. CHECK IPDM E/R OUTPUT SIGNAL
1. Remove front wiper reverse relay.
2. Check voltage between front wiper reverse relay harness con-
nector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER REVERSE RELAY
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector (A) and
front wiper reverse relay harness connector (B).
3. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> Repair harness or connector.
SKIA3486E
Te r m i n a l
Voltage
(Approx.) (+)
(-) Front wiper
reverse relay
connectorTe r m i n a l
E33 5 Ground Battery voltage
SKIB4958E
AB
Continuity
Connector Terminal Connector Terminal
E7 19 E33 5 Yes
A
GroundContinuity
Connector Terminal
E7 19 No
SKIB4959E

FRONT WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2007 April2007 M35/M45
4. CHECK FRONT WIPER REVERSE RELAY
Check continuity between front wiper reverse relay terminals.
OK or NG
OK >> GO TO 5.
NG >> Replace front wiper reverse relay.
5. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER MOTOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector (B).
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
Front wiper reverse
relay terminalsCondition Continuity
35Applying battery voltage to between
terminals 1 and 2Ye s
No battery voltage No
SKIB4671E
AB
Continuity
Connector Terminal Connector Terminal
E7 31 E27 2 Yes
SKIB4679E
