4WD INFINITI M35 2007 Factory Service Manual

TROUBLE DIAGNOSIS
BRC-21
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
Control Unit Input/Output Signal StandardNFS000RH
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.
Monitor item Display contentData monitor
ConditionReference value in nor-
mal operation
FR LH SENSOR
FR RH SENSOR
RR LH SENSOR
RR RH SENSORWheel speedVehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1)Nearly matches the
speedometer display
(± 10 % or less)
STOP LAMP SW Brake pedal operationWhen brake pedal is depressed ON
When brake pedal is not depressed OFF
BATTERY VOLTBattery voltage supplied to the ABS
actuator and electric unit (control unit)Ignition switch ON 10 – 16 V
GEAR Gear position determined by TCM1st gear
2nd gear
3rd gear
4th gear
5th gear1
2
3
4
5
SLCT LVR POSI A/T select lever positionP position
R position
N position
D positionP
R
N
D
OFF SW VDC OFF switchVDC OFF switch :ON
(When VDC OFF indicator lamp is ON)ON
VDC OFF switch :OFF
(When VDC OFF indicator lamp is OFF)OFF
YAW RATE SENYaw rate detected by yaw rate/side G
sensorWhen vehicle stop Approx. 0 d/s
When vehicle turning (–75 to 75 d/s)
4WD MODE MON
(Note 2)AWD activated Engine running AUTO
ACCEL POS SIG Throttle actuator opening/closing is dis-
played (linked with accelerator pedal)Accelerator pedal not depressed
(Engine stopped)0 %
Depress accelerator pedal
(Engine stopped)0 - 100 %
SIDE G-SENSOR Transverse G detected by side G sensorVehicle stopped
Approx. 0 m/s
2
Vehicle turning rightNegative value
(m/s2 )
Vehicle turning leftPositive value
(m/s
2 )
STR ANGLE SIGSteering angle detected by steering
angle sensorStraight-ahead Approx. 0°
Steering wheel turned –720 to 720°
PRESS SENSORBrake fluid pressure detected by pres-
sure sensorWith ignition switch turned ON and brake
pedal releasedApprox. 0 bar
With ignition switch turned ON and brake
pedal depressed–40 to 300 bar
ENGINE RPM Engine speedWith engine stopped 0 rpm
Engine runningAlmost in accordance
with tachometer display

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
FLUID LEV SW Brake fluid level switchBrake fluid level switch ON ON
Brake fluid level switch OFF OFF
PARK BRAKE SW Parking brake switchParking brake switch is active ON
Parking brake switch is inactive OFF
FR RH IN SOL
FR RH OUT SOL
FR LH IN SOL
FR LH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOLOperation status of all solenoid valve Actuator (solenoid valve) is active
(“ACTIVE TEST” with CONSULT-II) or
actuator relay is inactive (in fail-safe
mode)ON
When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)OFF
MOTOR RELAY Motor and motor relay operationWhen the motor relay and motor are
operatingON
When the motor relay and motor are not
operatingOFF
ACTUATOR RLY
(Note 3)Actuator relay operationWhen the actuator relay is operating ON
When the actuator relay is not operating OFF
ABS WARN LAMPABS warning lamp
(Note 4)When ABS warning lamp is ON ON
When ABS warning lamp is OFF OFF
OFF LAMPVDC OFF indicator lamp
(Note 4)When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
SLIP LAMPSLIP indicator lamp
(Note 4)When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
4WD FAIL REQ
(Note 2)AWD control unit fail-safe signal When AWD control unit is fail-safe mode ON
When AWD control unit is normal OFF
SNOW MODE SW Snow mode switchWhen snow mode switch is ON ON
When snow mode switch is OFF OFF
BST OPER SIG Not applied but displayed — OFF
M-MODE SIG Manual mode operationWhen the manual mode is active ON
When the manual mode is inactive OFF
EBD SIGNAL EBD operationEBD is active ON
EBD is inactive OFF
ABS SIGNAL ABS operationABS is active ON
ABS is inactive OFF
TCS SIGNAL TCS operationTCS is active ON
TCS is inactive OFF
VDC SIGNAL VDC operationVDC is active ON
VDC is inactive OFF
EBD FAIL SIG EBD fail-safe signalIn EBD fail-safe ON
EBD is normal OFF
ABS FAIL SIG ABS fail-safe signalIn ABS fail-safe ON
ABS is normal OFF
TCS FAIL SIG TCS fail-safe signalIn TCS fail-safe ON
TCS is normal OFF Monitor item Display contentData monitor
ConditionReference value in nor-
mal operation

BRC-28
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
Data MonitorNFS000QH
OPERATION PROCEDURE
1. After ignition switch OFF, perform “CONSULT-II Starting Procedure”. Refer to GI-38, "CONSULT-II Start
Procedure" .
2. Touch “ABS”, “DATA MONITOR” in order on CONSULT-II screen.
CAUTION:
When “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on
the ignition switch, “ABS” might not be displayed in the “SYSTEM SELECTION” screen. In this
case, repeat the operation from step 1.
3. At the monitor item selection screen, touch one of the items “ECU INPUT SIGNALS”, “MAIN SIGNALS” or
“SELECTION FROM MENU”.
4. Touch “START” to proceed to the data monitor screen.
DISPLAY ITEM LIST
Item
(Unit)Data monitor item selection
Display content
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
FR LH SENSOR
[km/h (MPH)]×××
Wheel speed FR RH SENSOR
[km/h (MPH)]×××
RR LH SENSOR
[km/h (MPH)]×××
RR RH SENSOR
[km/h (MPH)]×××
STOP LAMP SW
(ON/OFF)×××Brake pedal operation
BATTERY VOLT
(V)×××Battery voltage supplied to the ABS actuator and elec-
tric unit (control unit)
GEAR×××Gear position determined by TCM
SLCT LVR POSI×××A/T select lever position
OFF SW
(ON/OFF)×××VDC OFF switch
ACCEL POS SIG
(%)×—×Throttle actuator opening/closing is displayed
(Linked with accelerator pedal)
SIDE G-SENSOR
(m/s
2 )×—×Transverse G detected by side G sensor
STR ANGLE SIG
(°)×—×Steering angle detected by steering angle sensor
PRESS SENSOR
(bar)×—×Brake fluid pressure detected by pressure sensor
ENGINE RPM
(rpm)×—×With engine running
YAW RATE SEN
(d/s)×××Yaw rate detected by yaw rate/side G sensor
FLUID LEV SW
(ON/OFF)×—×Brake fluid level switch
PARK BRAKE SW
(ON/OFF)×—×Parking brake switch
4WD MODE MON
(Note)×××AW D a ctiv ate d

TROUBLE DIAGNOSIS
BRC-29
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2007 April2007 M35/M45
FR RH IN SOL
(ON/OFF)—××
Operation status of all solenoid valve FR RH OUT SOL
(ON/OFF)—××
FR LH IN SOL
(ON/OFF)—××
FR LH OUT SOL
(ON/OFF)—××
RR RH IN SOL
(ON/OFF)—××
RR RH OUT SOL
(ON/OFF)—××
RR LH IN SOL
(ON/OFF)—××
RR LH OUT SOL
(ON/OFF)—××
MOTOR RELAY
(ON/OFF)—××Motor and motor relay operation
ACTUATOR RLY
(ON/OFF)—××Actuator relay operation
ABS WARN LAMP
(ON/OFF)—××ABS warning lamp
OFF LAMP
(ON/OFF)—××VDC OFF indicator lamp
SLIP LAMP
(ON/OFF)—××SLIP indicator lamp
4WD FAIL REQ
(ON/OFF) (Note)——×AWD control unit fail-safe signal
SNOW MODE SW
(ON/OFF)——×Snow mode switch
BST OPER SIG — —×Not applied but displayed.
M-MODE SIG
(ON/OFF)——×Manual mode activated
EBD SIGNAL
(ON/OFF)——×EBD operation
ABS SIGNAL
(ON/OFF)——×ABS operation
TCS SIGNAL
(ON/OFF)——×TCS operation
VDC SIGNAL
(ON/OFF)——×VDC operation
EBD FAIL SIG
(ON/OFF)——×EBD fail-safe signal
ABS FAIL SIG
(ON/OFF)——×ABS fail-safe signal
TCS FAIL SIG
(ON/OFF)——×TCS fail-safe signal
VDC FAIL SIG
(ON/OFF)——×VDC fail-safe signal
CRANKING SIG
(ON/OFF)——×Crank operation Item
(Unit)Data monitor item selection
Display content
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU

UNIFIED METER AND A/C AMP
DI-33
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
NOTE:
Monitored item that does not match the vehicle is deleted from the display automatically.
*: Monitor keeps indicating “OFF” when brake warning lamp is on by the parking brake operation or low brake fluid level. KEY Y/G W/L [ON/OFF] X Displays [ON/OFF] condition of key warning lamp.
PNP P SW [ON/OFF] X X Displays [ON/OFF] condition of inhibitor switch P range.
M RANGE SW [ON/OFF] X X Displays [ON/OFF] condition of manual mode range switch.
NM RANGE SW [ON/OFF] X XDisplays [ON/OFF] condition of except for manual mode range
switch.
AT SFT UP SW [ON/OFF] X X Displays [ON/OFF] condition of A/T shift-up switch.
AT SFT DWN SW [ON/OFF] X X Displays [ON/OFF] condition of A/T shift-down switch.
AT P MODE SW X Displays [ON/OFF] condition of A/T POWER mode switch.
AT S MODE SW X Displays [ON/OFF] condition of A/T SNOW mode switch.
BRAKE SW [ON/OFF] * X Displays [ON/OFF] condition of brake switch (stop lamp switch).
AT-M IND [ON/OFF] X X Displays [ON/OFF] condition of A/T manual mode indicator.
AT-M GEAR [5-1] X X Displays [5-1] condition of A/T manual mode gear position.
P RANGE IND [ON/OFF] X X Displays [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] X X Displays [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] X X Displays [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] X X Displays [ON/OFF] condition of A/T shift D range indicator.
AT CHECK W/L [ON/OFF] X Displays [ON/OFF] condition of A/T indicator.
CRUISE IND [ON/OFF] X Displays [ON/OFF] condition of CRUISE indicator.
SET IND [ON/OFF] X Displays [ON/OFF] condition of SET indicator.
CRUISE W/L [ON/OFF] X Displays [ON/OFF] condition of CRUISE warning lamp.
4WD W/L [ON/OFF] X Displays [ON/OFF] condition of AWD warning lamp.
AFS OFF IND [ON/OFF] X Displays [ON/OFF] condition of AFS OFF indicator.Display item [Unit]MAIN
SIGNALSSELECTION
FROM MENUDescription

DTC P0130, P0150 A/F SENSOR 1
EC-237
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

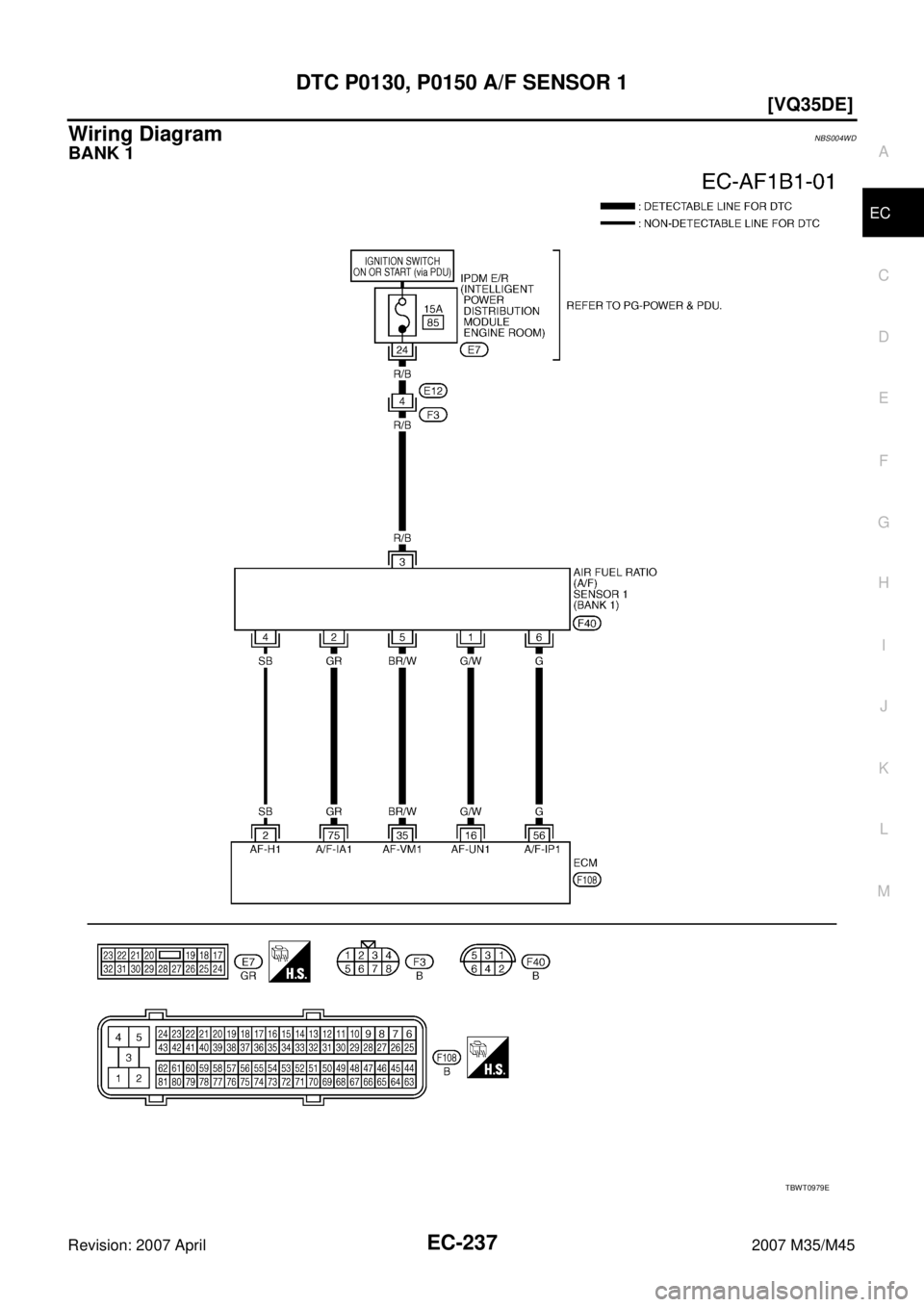

Wiring DiagramNBS004WD
BANK 1
TBWT0979E

CONSULT-II CHECKING SYSTEM
GI-37
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2007 April2007 M35/M45
CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionNAS0007S

CONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to “CONSULT-II Software Operation Manual” for more information.
Function and System Application NAS0007T
x: Applicable
*: NISSAN Anti-Theft System (INFINITI/NISSAN Vehicle Immobilizer System)Diagnostic test
modeFunction
ENGINE
A/T
AIR BAG
METER A/C AMP
BCM
AUTO DRIVE POS.
ABS (Including VDC)
NATS (IVIS/NATS) *
IPDM E/R
ICC
ALL MODE AWD/4WD
INTELLIGENT KEY
LDW
AIR PRESSURE MONITOR
RAS/HICAS
ADAPTIVE LIGHT
PRECRASH SEATBELT
MULTI AV
Work supportThis mode enables a technician to adjust
some devices faster and more accurately by
following the indications on CONSULT-II.x---xxx--x-xxx-x--
Self-diagnostic
resultsSelf-diagnostic results can be read and
erased quickly.xxxxxxxxxxxxxxxxxx
Trouble diagnos-
tic recordCurrent self-diagnostic results and all trouble
diagnostic records previously stored can be
read.--x---------------
Data monitor Input/Output data in the ECU can be read. x x - x x x x - x x x x x x x x x x
CAN diagnosis
support monitorThe condition of CAN communication line
can be read.xx- xxxx- xxxxxxxxxx
Active testDiagnostic Test Mode in which CONSULT-II
drives some actuators apart from the ECUs
and also shifts some parameters in a speci-
fied range.x- - - xxx -xxxxxxxx- -
DTC & SRT con-
firmationThe results of SRT (System Readiness Test)
and the self-diagnosis status/result can be
confirmed.x- ----------------
DTC work sup-
portThe operating condition to confirm Diagnosis
Trouble Codes can be selected.xx----------------
ECU (ECM/TCM)
part numberECU (ECM/TCM) part number can be read. x x - - x x x - - x x x x x x x x x
ECU discrimi-
nated No.Classification number of a replacement ECU
can be read to prevent an incorrect ECU from
being installed.-- x---------------
Function testThis mode can show results of self-diagnosis
of ECU with either 'OK' or 'NG'. For engines,
more practical tests regarding sensors/
switches and/or actuators are available.xxx---x-----------
Control unit ini-
tializationAll registered ignition key IDs in NATS com-
ponents can be initialized and new IDs can
be registered.-- -----x----------
AV COMM moni-
torThe condition of AV communication can be
Indicated.------------ ---- -x

HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004FN

This section describes information specific to a vehicle, sheets for trouble diagnosis, and inspection pro-
cedures.

For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure" .
Abbreviation ListNKS004FO
Abbreviations in CAN communication signal chart and the diagnosis sheet are as per the following list.
Abbreviation Unit nameSELECT SYSTEM
(CONSULT-II)CAN DIAG SUPPORT MNTR
(CONSULT-II)
4WD AWD control unit ALL MODE AWD/4WD AWD/4WD
ABS ABS actuator and electric unit (control unit) ABS VDC/TCS/ABS
ADP Driver seat control unit AUTO DRIVE POS. –
AFS AFS control unit ADAPTIVE LIGHT AFS
AVNAVI control unit
MULTI AVMULTI AV
DISPLAY
AV control unitMULTI AV
DISPLAY
BCM BCM BCM BCM/SEC
DLC Data link connector – –
ECM ECM ENGINE ECM
ICC ICC sensor integrated unit ICCICC
ICC/e4WD
I-KEY Intelligent Key unit INTELLIGENT KEY I-KEY
IPDM-E IPDM E/R IPDM E/R IPDM E/R
M&A Unified meter and A/C amp. METER A/C AMP METER/M&A
PSB Pre-crash seat belt control unit PRECRASH SEATBELT –
RAS RAS control unit RAS/HICAS RAS C/U
STRG Steering angle sensor – STRG
TCM TCM A/T TCM
TPMS Low tire pressure warning control unit AIR PRESSURE MONITOR TIRE-P
LANE LDW camera unit LDW –

LAN-44
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSISPFP:00004
CAN Diagnostic Support MonitorNKS004FT
Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.
MONITOR ITEM LIST (CONSULT-II)
ECM
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
AWD control unit
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
ENGINETRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
METER/M&ASignal receiving status from the unified
meter and A/C amp.
BCM/SEC Signal receiving status from the BCM
ICCSignal receiving status from the ICC sen-
sor integrated unit
HVAC Not used even though indicated
TCM Signal receiving status from the TCM OKOK
or
1 – 39
*UNKWN 0
EPS Not used even though indicated
IPDM E/R Signal receiving status from the IPDM E/R OKOK
or
1 – 39
*UNKWN 0
e4WD Not used even though indicated
AW D/4 WDSignal receiving status from the AWD con-
trol unitOKOK
or
1 – 39
*UNKWN 0
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT
ALL MODE AWD/
4WDINITIAL DIAG Status of CAN controller
OKNG
TRANSMIT DIAG Signal transmission status
UNKWN VDC/TCS/ABSSignal receiving status from the ABS actuator and electric unit
(control unit)
ECM Signal receiving status from the ECM
TCM Not used even though indicated
METER/M&A Signal receiving status from the unified meter and A/C amp. OK UNKWN

LAN-46
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TCM
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
NAVI control unit, AV control unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Intelligent Key unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT
A/TINITIAL DIAG Status of CAN controller
OKNG
TRANSMIT DIAG Signal transmission status
UNKWN ECM Signal receiving status from the ECM
VDC/TCS/ABSSignal receiving status from the ABS actuator and electric unit
(control unit)
METER/M&A Signal receiving status from the unified meter and A/C amp.
ICC/e4WD Signal receiving status from the ICC sensor integrated unit
AWD/4WD Signal receiving status from the AWD control unit
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
MULTI AVTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
METER/M&ASignal receiving status from the unified
meter and A/C amp.
BCM/SEC Signal receiving status from the BCM
HVAC Not used even though indicated
IPDM E/R Signal receiving status from the IPDM E/R
OKOK
or
1 – 39
*UNKWN 0
TIRE-PSignal receiving status from the low tire
pressure warning control unit
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
INTELLIGENT
KEYTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
METER/M&ASignal receiving status from the unified
meter and A/C amp.
BCM/SEC Signal receiving status from the BCM
TCM Signal receiving status from the TCM
IPDM E/R Signal receiving status from the IPDM E/R
