Hybrid System-4Hybrid System Overview
The emergency shut-off system is activated
and the high-voltage system automatically
turns off in the following conditions:
.Front and side collisions in which the
air bags are deployed.
. Certain rear collisions.
. Certain INFINITI Direct Response Hy-
brid
®System malfunctions
For the above collisions and the certain
hybrid system malfunctions, the READY to
drive indicator light will turn off. See
“Warning/indicator lights and audible re-
minders” (P.2-12).
The emergency shut-off activates for the
above collisions to minimize risk of an
event that could cause injury or an
accident. If the emergency shut-off system
activates, the hybrid system may not
switch to READY to drive position, contact
an INFINITI retailer. Even if the ignition
switch is switched to READY to drive
position, the system may shut-off sud-
denly. Therefore, drive cautiously to the
nearest INFINITI retailer or contact an
INFINITI retailer as soon as possible. To start the INFINITI Direct Response
Hybrid
®System:
1. Depress the brake pedal and place the ignition switch in the ON position when
the transmission is in the P (Park) or N
(Neutral) position (P is recommended).
(For more details, see “Push-button
ignition switch” (P.5-10).)
2. The READY to drive indicator light
flashes, then turns illuminated. (The
hybrid system switched to the READY to
drive mode when the indicator light
illuminates.)
When the READY to drive indicator light
illuminates, the vehicle can be
driven, even if the gasoline engine is not
running.
NOTE:
The gasoline engine starts and stops
automatically. It may stop during low
speed driving, deceleration or when the
vehicle is stopped.
The gasoline engine may automatically
run in the following conditions:
. The level of remaining charge in the
Lithium ion (Li-ion) battery is low. The
engine runs to charge the Li-ion
battery and to provide power to the drive the vehicle.
. The temperature of the engine coolant
is low.
. Based on driving conditions.
. The shift lever is shifted to the P (Park)
position, the driver’ s seat belt is
released and the driver’s side door is
then opened.
The hybrid system operates as follows
based on driving conditions and the Li-ion
battery charge.
STARTING AND SLOW SPEED DRIV-
ING
The vehicle is driven by the electric motor
depending on the available Li-ion battery
charge.
MEDIUM OR HIGH SPEED DRIVING
The system automatically controls the
gasoline engine and electric motor in order
to obtain the optimum fuel mileage and
performance, depending on the driving
situation and available Li-ion battery
charge.
When the remaining battery level is low,
the Li-ion battery is charged by the electric
motor that is driven to generate electric
power while the vehicle is driving.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE INFINITI DIRECT
RESPONSE HYBRID®SYSTEM

RAPID ACCELERATION
The vehicle is accelerated using both the
gasoline engine and the electric motor
depending on the available Li-ion battery
charge.
DECELERATION AND BRAKING
The Li-ion battery is charged by the electric
motor that changes the energy of the
rotating wheels into electric power. See
“Regenerative brake”(P.Hybrid System-8).
STOPPING
The gasoline engine may stop running to
save fuel depending on the available Li-ion
battery charge. The INFINITI Direct Response Hybrid
®
System monitors the status of power being
sent to the electric motor and the Lithium
ion (Li-ion) battery state of charge. The
status is shown on the assist charge gauge
in the meter and the energy flow/remain-
ing Li-ion battery charge in the vehicle
information display. System status can
also be shown when the screen is in the
energy flow mode or energy/fuel history
mode.
JVO0109X
ASSIST CHARGE GAUGE
This gauge indicates the actual electric
motor power consumption and the char-
ging power to the Li-ion battery.
For additional information, see
“Assist
charge gauge” (P.2-8).
ENERGY FLOW
When you use this system, make sure the
hybrid system is in the READY to drive
mode. See“Operation of the INFINITI Direct
Response Hybrid
®System” (P.Hybrid Sys-
tem-4).
Hybrid System OverviewHybrid System-5
ENERGY MONITORS

Hybrid System-6Hybrid System Overview
JVO0111X
All-Wheel Drive (AWD) models
If you use the system with the hybrid
system off (ignition switch placed in the
ACC position) for a long time, it will
discharge the 12-volt battery power, and
the hybrid system will not start.
Energy monitor for various operating
modes can be displayed on the vehicle
information display. (See “1. Energy moni-
tor” (P.2-31).)
This is an example of the Energy Flow
display. The Energy Flow display changes,
depending on the following operating
conditions. The graphic indicates the
amount of power in the Li-ion battery. The following are displayed on the Energy
Flow screen.
.
When the vehicle is powered only by
the electric motor.
. When the vehicle is powered only by
the gasoline engine.
. When the vehicle is powered by both
the electric motor and the gasoline
engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake and
gasoline engine.
. When the vehicle is charging the Li-ion
battery with the regenerative brake.
. When the vehicle is charging the Li-ion
battery with the gasoline engine.
. When the vehicle is powered by the
gasoline engine and is charging the Li-
ion battery.
. When there is no Energy Flow in the
vehicle
. When the vehicle is driving by the All-
Wheel Drive (AWD) (AWD models).
FUEL ECONOMY HISTORY
The Fuel Economy History screen appears
in the lower display when the screen is in
the Fuel Economy History mode.

JVS0246X

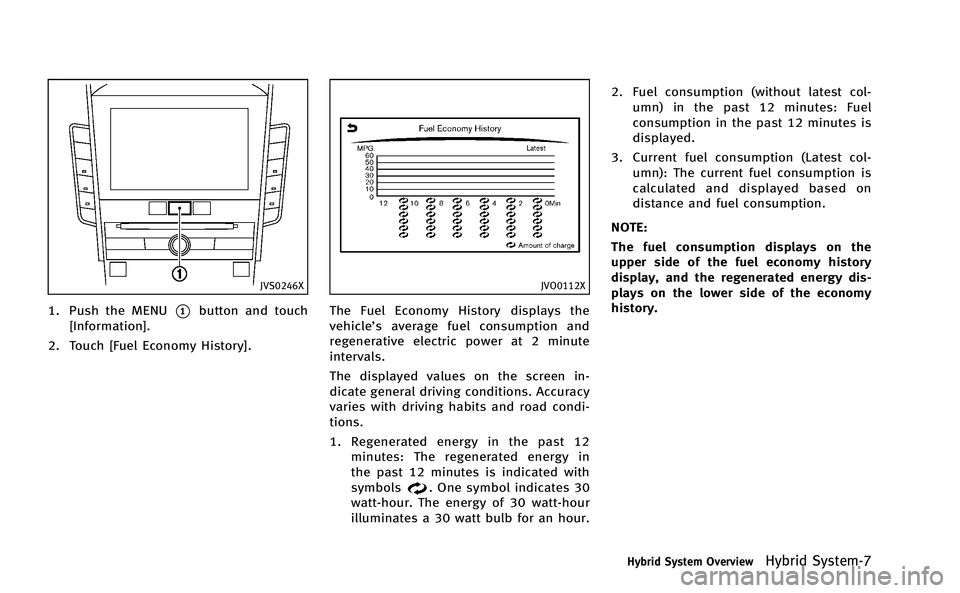

1. Push the MENU*1button and touch
[Information].
2. Touch [Fuel Economy History].
JVO0112X
The Fuel Economy History displays the
vehicle’s average fuel consumption and
regenerative electric power at 2 minute
intervals.
The displayed values on the screen in-
dicate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
1. Regenerated energy in the past 12 minutes: The regenerated energy in
the past 12 minutes is indicated with
symbols
. One symbol indicates 30
watt-hour. The energy of 30 watt-hour
illuminates a 30 watt bulb for an hour. 2. Fuel consumption (without latest col-
umn) in the past 12 minutes: Fuel
consumption in the past 12 minutes is
displayed.
3. Current fuel consumption (Latest col- umn): The current fuel consumption is
calculated and displayed based on
distance and fuel consumption.
NOTE:
The fuel consumption displays on the
upper side of the fuel economy history
display, and the regenerated energy dis-
plays on the lower side of the economy
history.
Hybrid System OverviewHybrid System-7

Hybrid System-8Hybrid System Overview
When the vehicle decelerates while the
vehicle is driven with the shift lever in the
D (Drive) position or in the manual shift
mode, the Lithium ion (Li-ion) battery can
be charged by the electric motor. The
electric motor converts the energy of the
rotating wheels into electric power under
the following circumstances:
.When the accelerator pedal is released.
. When the brake pedal is depressed.
. When there is no malfunction in the
brake system or the INFINITI Direct
Response Hybrid
®System.
The regenerative brake may not work
properly if the vehicle has tires and road
wheels other than the ones specified in
this manual. Drive your vehicle with smooth accelera-
tion and deceleration.
.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for most
efficient use, do not accelerate or
decelerate your vehicle more than
necessary.
. Avoid abrupt acceleration and decelera-
tion.
. The power of the Lithium ion (Li-ion)
battery can be checked on the Energy
Flow or Energy monitor. See “Energy
Flow” (P.Hybrid System-5) or “Trip
computer” (P.2-31). Gradual or non-
abrupt acceleration and deceleration
will make more effective use of the
electric using gasoline engine power.
. When parking, be sure to place the shift
lever in the P (Park) position. While
driving, place the shift lever in the D
(Drive) position. The Approaching Vehicle Sound for Pedes-
trians (VSP) system is a function that uses
sound to help alert pedestrians of the
presence of the vehicle when it is being
driven at a low speed in the electric drive
mode under the following conditions:
.
The sound starts when the vehicle
starts accelerating.
. The sound stops when the vehicle
speed is more than 19 MPH (30 km/h)
while accelerating.
. The sound starts when the vehicle
speed is less than 16 MPH (25 km/h)
while decelerating.
. The sound stops when the vehicle
stops.
. The sound does not stop with the
vehicle in the R (Reverse) position even
if the vehicle stops.
The VSP system is automatically turned on
when the vehicle is in the READY to drive
mode.
If there is a malfunction in the VSP system,
the VSP OFF indicator light in the meter
illuminates. See “Approaching Vehicle
Sound for Pedestrians (VSP) OFF indicator
light” (P.2-18).
REGENERATIVE BRAKE EFFICIENT USE OF YOUR VEHICLE APPROACHING VEHICLE SOUND FOR
PEDESTRIANS (VSP) SYSTEM

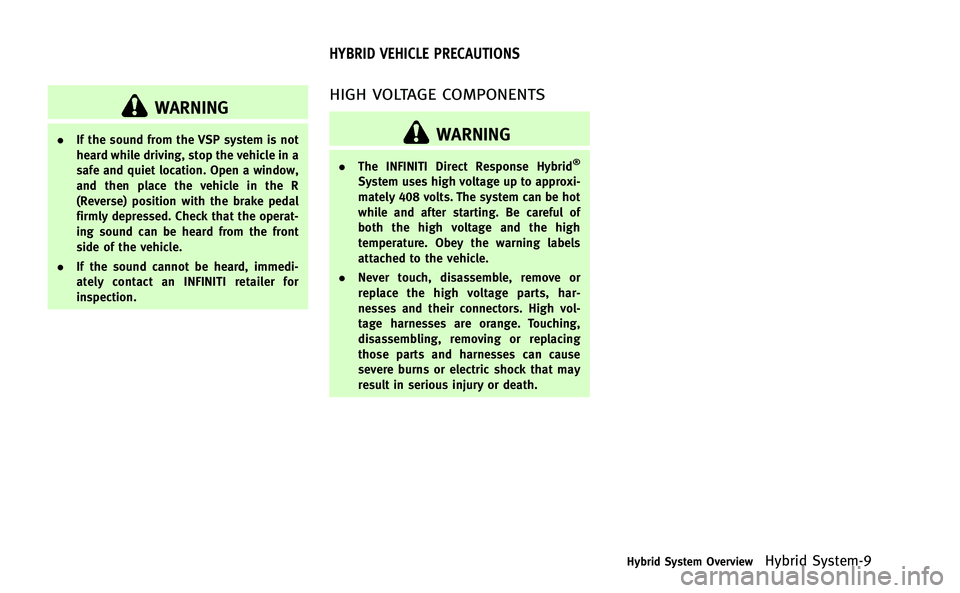

WARNING
.If the sound from the VSP system is not
heard while driving, stop the vehicle in a
safe and quiet location. Open a window,
and then place the vehicle in the R
(Reverse) position with the brake pedal
firmly depressed. Check that the operat-
ing sound can be heard from the front
side of the vehicle.
. If the sound cannot be heard, immedi-
ately contact an INFINITI retailer for
inspection.
HIGH VOLTAGE COMPONENTS
WARNING
.The INFINITI Direct Response Hybrid®
System uses high voltage up to approxi-
mately 408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the warning labels
attached to the vehicle.
. Never touch, disassemble, remove or
replace the high voltage parts, har-
nesses and their connectors. High vol-
tage harnesses are orange. Touching,
disassembling, removing or replacing
those parts and harnesses can cause
severe burns or electric shock that may
result in serious injury or death.
Hybrid System OverviewHybrid System-9
HYBRID VEHICLE PRECAUTIONS

Hybrid System-10Hybrid System Overview
JVO0096X
1. Electric motor inverter
2. High voltage harnesses (orange)
3. Lithium ion (Li-ion) battery
4. Electric compressor
5. Electric motor6. 12-volt battery
The hybrid system uses high voltage up to
approximately 408 volts. High voltage
components are indicated in the illustra-
tion. High voltage harnesses are orange.
The system can be hot while and after
starting. Be careful of both the high voltageand the high temperature.
HYBRID VEHICLE CHARACTERISTICS
WARNING
.
When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
. Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indicator
light is on even if the gasoline engine is
not running. When the READY to drive
indicator light is on, do not leave your
vehicle in a shift position other than the
P (Park) position. The vehicle will creep
and start abruptly if the accelerator
pedal is depressed by mistake. This
may cause serious injury or death.
CAUTION
If the vehicle is parked for a long period of
time, the battery discharges gradually. To
avoid this occurrence, drive the vehicle for
approximately 30 minutes at least once
every two to three months. Otherwise, the

Lithium ion (Li-ion) battery may be da-
maged. If the Li-ion battery is completely
discharged and the hybrid system cannot be
activated, contact an INFINITI retailer.
High voltage parts and harnesses on the
hybrid vehicles emit approximately the
same amount of electromagnetic waves
as the conventional gasoline-powered ve-
hicles or home electronic appliances de-
spite of their electromagnetic shieldings.
Unwanted noise may occur in the reception
of a mobile two-way radio.
Charging the Li-ion battery while driving is
important. The vehicle cannot run if the Li-
ion battery is discharged. In the N (Neutral)
position, the Li-ion battery does not
recharge. Leaving the transmission in the
N (Neutral) position for an extended period
of time may discharge the Li-ion battery.
The Li-ion battery recharges when the shift
lever is in any position other than N
(Neutral).
JVO0100X
Left side
An air vent
*Ais located on the right and
left sides between the rear seat and rear
door to cool the Li-ion battery and DC/DC
converter. If the vent is covered, the Li-ion
battery or DC/DC converter will overheat
resulting in reduced output performance of
the hybrid system. See “Lithium-ion (Li-
ion) battery and DC/DC converter air vent”
(P.7-6).
JVO0101X
CAUTION
. Do not allow any liquid to get on or in
the air vent. It may cause a short circuit
and damage the Li-ion battery or DC/DC
converter.
. Do not place objects over or into the air
vent. The Li-ion battery or DC/DC con-
verter may overheat and be damaged.
Hybrid System OverviewHybrid System-11

Hybrid System-12Hybrid System Overview
JVO0006X
CAUTION
Do not load large amounts of water in open
containers (aquariums or buckets) into the
vehicle. If the water spills onto the Li-ion
battery, it may cause a short circuit and
damage the battery.
Noise and vibration
After the hybrid system is activated, the
following noises and vibrations that are
unique to the hybrid system may occur.
This does not indicate a malfunction..
Electric motor noise from the engine
compartment
. Noise from the rear of the vehicle when
the hybrid system activates or deacti-
vates
. Noise and vibration when the gasoline
engine starts running or stops
. Operating noise or electric motor noise
when releasing the accelerator pedal or
depressing the brake pedal
. Engine noise due to rapid acceleration
. Fan noise from the air inlet located
between the rear seat and rear door
. Noise from the climate control system
. Noise from the vehicle in order to alert
pedestrians to the presence of an
approaching vehicle. See “Approaching
Vehicle Sound for Pedestrians (VSP)
system” (P.Hybrid System-8).

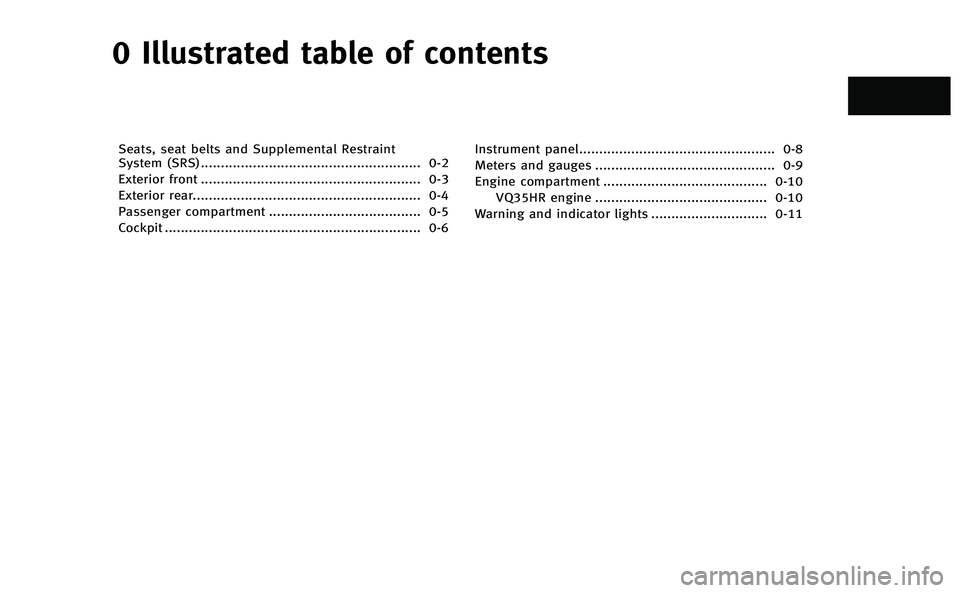

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)....................................................... 0-2
Exterior front ....................................................... 0-3
Exterior rear......................................................... 0-4
Passenger compartment ...................................... 0-5
Cockpit ................................................................ 0-6 Instrument panel................................................. 0-8
Meters and gauges ............................................. 0-9
Engine compartment ......................................... 0-10
VQ35HR engine ........................................... 0-10
Warning and indicator lights ............................. 0-11
