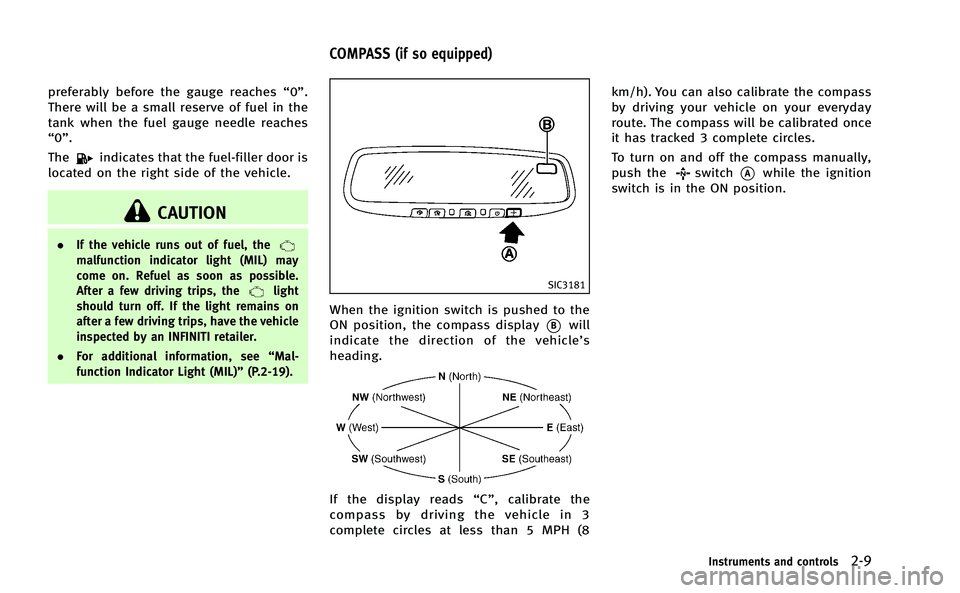

preferably before the gauge reaches“0”.
There will be a small reserve of fuel in the
tank when the fuel gauge needle reaches
“0”.
The
indicates that the fuel-filler door is
located on the right side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, themalfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-19).SIC3181
When the ignition switch is pushed to the
ON position, the compass display
*Bwill
indicate the direction of the vehicle’ s
heading.
If the display reads “C ”, calibrate the
compass by driving the vehicle in 3
complete circles at less than 5 MPH (8 km/h). You can also calibrate the compass
by driving your vehicle on your everyday
route. The compass will be calibrated once
it has tracked 3 complete circles.
To turn on and off the compass manually,
push the
switch*Awhile the ignition
switch is in the ON position.
Instruments and controls2-9
COMPASS (if so equipped)

2-10Instruments and controls
SIC0611B

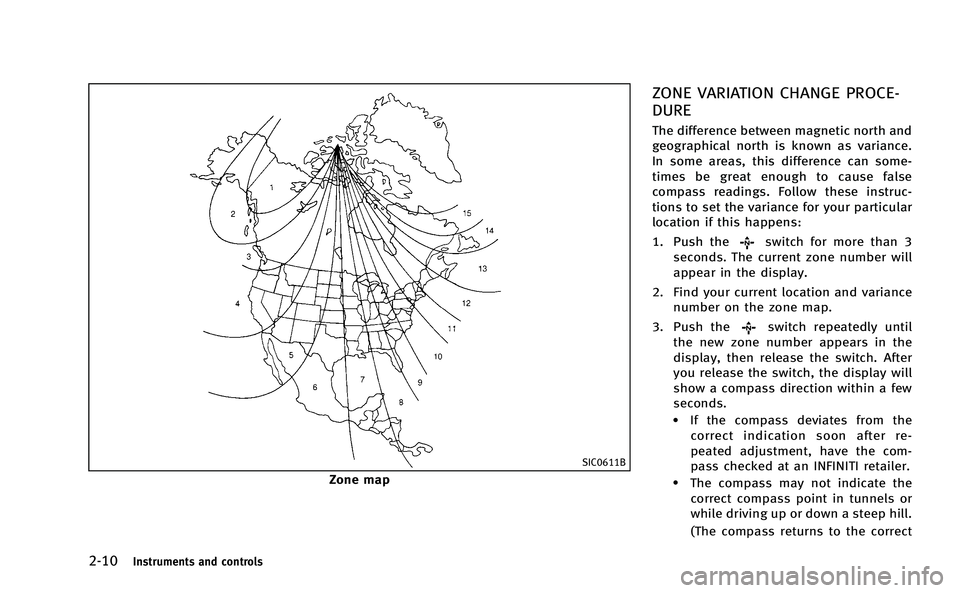

Zone map
ZONE VARIATION CHANGE PROCE-
DURE
The difference between magnetic north and
geographical north is known as variance.
In some areas, this difference can some-
times be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:
1. Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance number on the zone map.
3. Push the
switch repeatedly until
the new zone number appears in the
display, then release the switch. After
you release the switch, the display will
show a compass direction within a few
seconds.
.If the compass deviates from the correct indication soon after re-
peated adjustment, have the com-
pass checked at an INFINITI retailer.
.The compass may not indicate thecorrect compass point in tunnels or
while driving up or down a steep hill.
(The compass returns to the correct

2-12Instruments and controls
12-volt battery charge warning lightPower steering warning lightHigh beam assist indicator light*
Anti-lock Braking System (ABS) warning
lightSeat belt warning light and chimeHigh beam indicator light
Supplemental air bag warning lightMalfunction Indicator Light (MIL)
Brake system warning light (yellow)Vehicle Dynamic Control (VDC) warning lightREADY to drive indicator light
Brake warning light (red)Approaching Vehicle Sound for Pedestrians
(VSP) OFF indicator lightSecurity indicator light
Direct Response Hybrid®System warning
lightECO drive indicator lightTurn signal/hazard indicator lights
Forward emergency braking system warning
light*EV indicator lightVehicle Dynamic Control (VDC) off indicator
light
Low fuel warning lightExterior light indicator
Low tire pressure warning lightFront fog light indicator light *: if so equipped
Master warning lightFront passenger air bag status light
CHECKING BULBS
With all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the INFINITI
Direct Response Hybrid
®System. The
following lights will come on (if so
equipped):
,or,,,,,
The following lights come on briefly and
then go off (if so equipped):
,or,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open
circuit in the electrical system. Have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed in the vehicle information dis-
play between the speedometer and tach-
ometer. (See “Vehicle information display”
(P.2-21).)
WARNING LIGHTS
12-volt battery charge warning
light
When the ignition switch is in the ON
position, the 12-volt battery charge warn-
ing light illuminates. After starting the
hybrid system, the light turns off.
If the light continues to illuminate after
starting the hybrid system, it may indicate
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

Forward emergency braking
system warning light (if so
equipped)
This light illuminates when the forward
emergency braking system is set to OFF on
the lower display.
If the light illuminates when the forward
emergency braking system is ON, it may
indicate that the system is unavailable.
See “Forward emergency braking system”
(P.5-89) for more details.
Low fuel warning light
This light illuminates when the fuel in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel
gauge reaches the 0 (empty) position.
There will be a small reserve of fuel
remaining in the tank when the fuel gauge
reaches the 0 position.
Low tire pressure warning
light
Your vehicle is equipped with a Tire
Pressure Monitoring System (TPMS) that
monitors the tire pressure of all tires.
The low tire pressure warning light warns
of low tire pressure and flat tire, or indicates that the TPMS is not functioning
properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1
second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
The
“Tire Pressure Low - Add Air” warning
also appears in the vehicle information
display.
When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is
adjusted. After the tire is inflated to the
recommended pressure, the vehicle must
be driven at speeds above 16 MPH (25
km/h) to activate the TPMS and turn off the
low tire pressure warning light. Use a tire
pressure gauge to check the tire pressure.
The “Tire Pressure Low - Add Air” warning
is active as long as the low tire pressure
warning light remains illuminated.
For additional information, see “Vehicleinformation display”
(P.2-21),“Tire Pres-
sure Monitoring System (TPMS)” (P.5-4)
and “Tire Pressure Monitoring System
(TPMS)” (P.6-3).
Flat tire warning: The flat tire warning warns of a flat tire.
If the vehicle is being driven with one or
more flat tires, the low tire pressure
warning light will illuminate continuously
and a chime will sound for 10 seconds. A
“ Flat Tire - Visit dealer” warning also
appears in the vehicle information display.
The chime will only sound at the first
indication of a flat tire and the warning
light will illuminate continuously. When the
flat tire warning is activated, have the
system reset and the tire checked, and
replaced if necessary, by an INFINITI
retailer. Even if the tire is inflated to the
specified COLD tire pressure, the warning
light will continue to illuminate until the
system is reset by an INFINITI retailer.
Your vehicle can be driven for a limited
time on a flat tire. See “Run-flat tires”(P.6-
4) and “Run-flat tires” (P.8-36).
TPMS malfunction:
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
Instruments and controls2-15

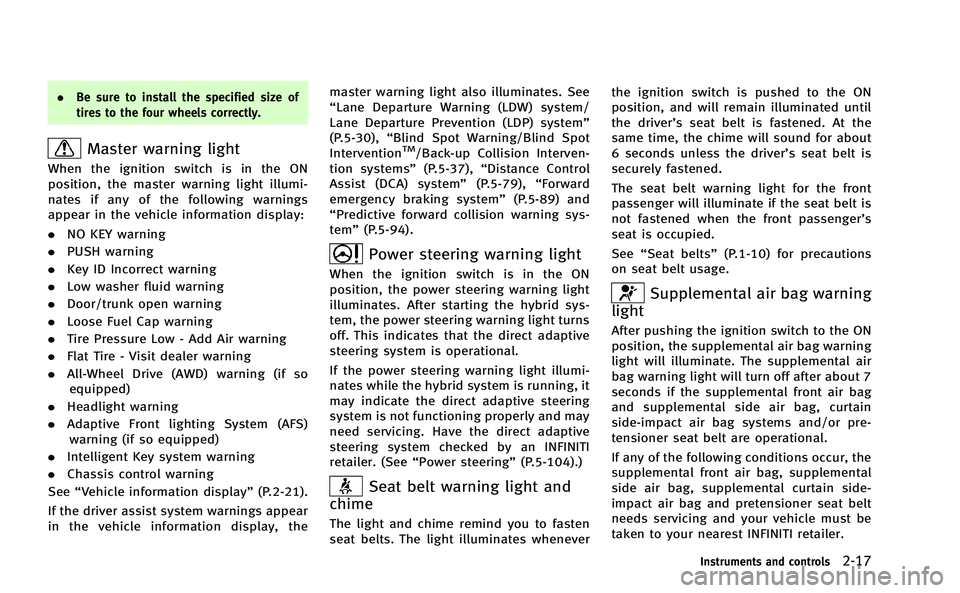

.Be sure to install the specified size of
tires to the four wheels correctly.
Master warning light
When the ignition switch is in the ON
position, the master warning light illumi-
nates if any of the following warnings
appear in the vehicle information display:
.NO KEY warning
. PUSH warning
. Key ID Incorrect warning
. Low washer fluid warning
. Door/trunk open warning
. Loose Fuel Cap warning
. Tire Pressure Low - Add Air warning
. Flat Tire - Visit dealer warning
. All-Wheel Drive (AWD) warning (if so
equipped)
. Headlight warning
. Adaptive Front lighting System (AFS)
warning (if so equipped)
. Intelligent Key system warning
. Chassis control warning
See “Vehicle information display” (P.2-21).
If the driver assist system warnings appear
in the vehicle information display, the master warning light also illuminates. See
“Lane Departure Warning (LDW) system/
Lane Departure Prevention (LDP) system”
(P.5-30),
“Blind Spot Warning/Blind Spot
Intervention
TM/Back-up Collision Interven-
tion systems” (P.5-37),“Distance Control
Assist (DCA) system” (P.5-79),“Forward
emergency braking system” (P.5-89) and
“Predictive forward collision warning sys-
tem” (P.5-94).
Power steering warning light
When the ignition switch is in the ON
position, the power steering warning light
illuminates. After starting the hybrid sys-
tem, the power steering warning light turns
off. This indicates that the direct adaptive
steering system is operational.
If the power steering warning light illumi-
nates while the hybrid system is running, it
may indicate the direct adaptive steering
system is not functioning properly and may
need servicing. Have the direct adaptive
steering system checked by an INFINITI
retailer. (See “Power steering” (P.5-104).)
Seat belt warning light and
chime
The light and chime remind you to fasten
seat belts. The light illuminates whenever the ignition switch is pushed to the ON
position, and will remain illuminated until
the driver’s seat belt is fastened. At the
same time, the chime will sound for about
6 seconds unless the driver’s seat belt is
securely fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is
not fastened when the front passenger’s
seat is occupied.
See
“Seat belts” (P.1-10) for precautions
on seat belt usage.
Supplemental air bag warning
light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air
bag warning light will turn off after about 7
seconds if the supplemental front air bag
and supplemental side air bag, curtain
side-impact air bag systems and/or pre-
tensioner seat belt are operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental
side air bag, supplemental curtain side-
impact air bag and pretensioner seat belt
needs servicing and your vehicle must be
taken to your nearest INFINITI retailer.
Instruments and controls2-17

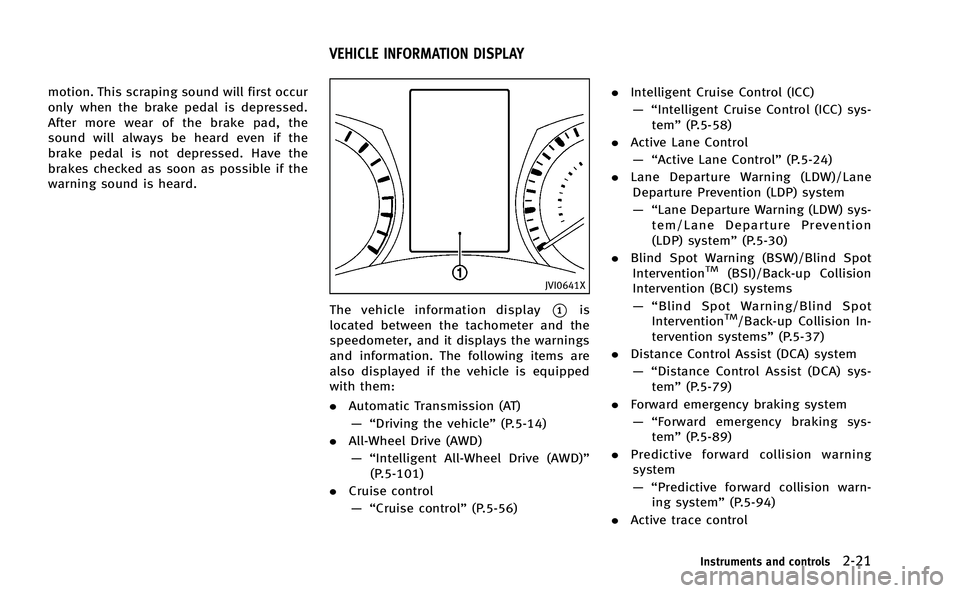

motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
warning sound is heard.
JVI0641X
The vehicle information display*1is
located between the tachometer and the
speedometer, and it displays the warnings
and information. The following items are
also displayed if the vehicle is equipped
with them:
. Automatic Transmission (AT)
—“ Driving the vehicle” (P.5-14)
. All-Wheel Drive (AWD)
—“ Intelligent All-Wheel Drive (AWD)”
(P.5-101)
. Cruise control
—“ Cruise control” (P.5-56) .
Intelligent Cruise Control (ICC)
—“ Intelligent Cruise Control (ICC) sys-
tem” (P.5-58)
. Active Lane Control
—“ Active Lane Control” (P.5-24)
. Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP) system
—“ Lane Departure Warning (LDW) sys-
tem/Lane Departure Prevention
(LDP) system” (P.5-30)
. Blind Spot Warning (BSW)/Blind Spot
Intervention
TM(BSI)/Back-up Collision
Intervention (BCI) systems
—“ Blind Spot Warning/Blind Spot
Intervention
TM/Back-up Collision In-
tervention systems” (P.5-37)
. Distance Control Assist (DCA) system
—“ Distance Control Assist (DCA) sys-
tem” (P.5-79)
. Forward emergency braking system
—“ Forward emergency braking sys-
tem” (P.5-89)
. Predictive forward collision warning
system
—“ Predictive forward collision warn-
ing system” (P.5-94)
. Active trace control
Instruments and controls2-21
VEHICLE INFORMATION DISPLAY

position is turned to ON)?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to
OFF)
7. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the
battery with a new one. (See “Intelligent
Key battery replacement” (P.8-25).)
8. Hybrid system start operation for
Intelligent Key system indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and
vehicle are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while
depressing the brake pedal. (See “Intelli-
gent Key battery discharge” (P.5-13).)
9. Key ID Incorrect warning
The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recog-
nized by the system. You cannot start the hybrid system with an unregistered key.
Use the registered Intelligent Key.
See
“Intelligent Key” (P.3-2).
10. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
11. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
12. Low washer fluid warning
This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See “Window washer fluid”
(P.8-16).)
13. Door/trunk open warning
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
14. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the Intelligent Key system.
If this warning appears while the hybrid
system is stopped, the hybrid system
cannot be started. If this warning appears
while the hybrid system is running, the
vehicle can be driven. However, contact an
INFINITI retailer for repair as soon as
possible.
15. Loose Fuel Cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap ”(P.3-22).)
16. Tire Pressure Low - Add Air
warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected.
The warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light
remains illuminated. If this warning ap-
pears, stop the vehicle and adjust the
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Instruments and controls2-25

2-26Instruments and controls
Information label. (See“Low tire pressure
warning light” (P.2-15) and“Tire Pressure
Monitoring System (TPMS)” (P.5-4).)
17. Flat Tire - Visit dealer warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and one or more flat tires are
detected while driving. A chime also
sounds for approximately 10 seconds.
(See“Low tire pressure warning light”
(P.2-15) and “Tire Pressure Monitoring
System (TPMS)” (P.5-4).)
18. Low oil pressure warning
This warning appears if low engine oil
pressure is detected. If the warning
appears during normal driving, pull off
the road in a safe area, stop the engine
immediately and call an INFINITI retailer or
other authorized repair shop.
The low oil pressure warning is not
designed to indicate a low oil level. Use
the dipstick to check the oil level. (See
“Engine oil”(P.8-12).)
19. High temperature warning
This warning appears when the engine
coolant temperature is extremely high.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON
position, stop the vehicle safely as soon
as possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine. (See “If your vehicle overheats”
(P.6-7) for the immediate action required.)
20. Hybrid system overheat warn-
ing
This warning appears when the tempera-
ture of the hybrid system is extremely high.
Stop the vehicle in a safe location as soon
as possible. Avoid quick starting or abrupt
acceleration. When the warning turns off,
the vehicle can be driven.
If the warning appears again soon after it
turns off, have the vehicle checked by an
INFINITI retailer.
WARNING
Do not hold the vehicle in a stopped
position on an uphill grade by depressing
the accelerator or by slowly creeping for-
ward. This may cause damage to the
transmission or the vehicle may enter traffic
causing serious injury or death. Always use
the brake pedal when stopping on an uphill
grade.
CAUTION
. If you continue to drive the vehicle while
the warning is displayed, the vehicle
may become undriveable. If this occurs,
place the shift lever in the “P”position
and wait for a short period of time with
the vehicle stopped until the display
goes out. In this case, the warning will
be displayed alternately with the SHIFT
“P” warning. (See “3. SHIFT“P”warn-
ing” (P.2-24).)
. Do not drive the vehicle with the warning
on. Doing so could cause a hybrid
system malfunction.

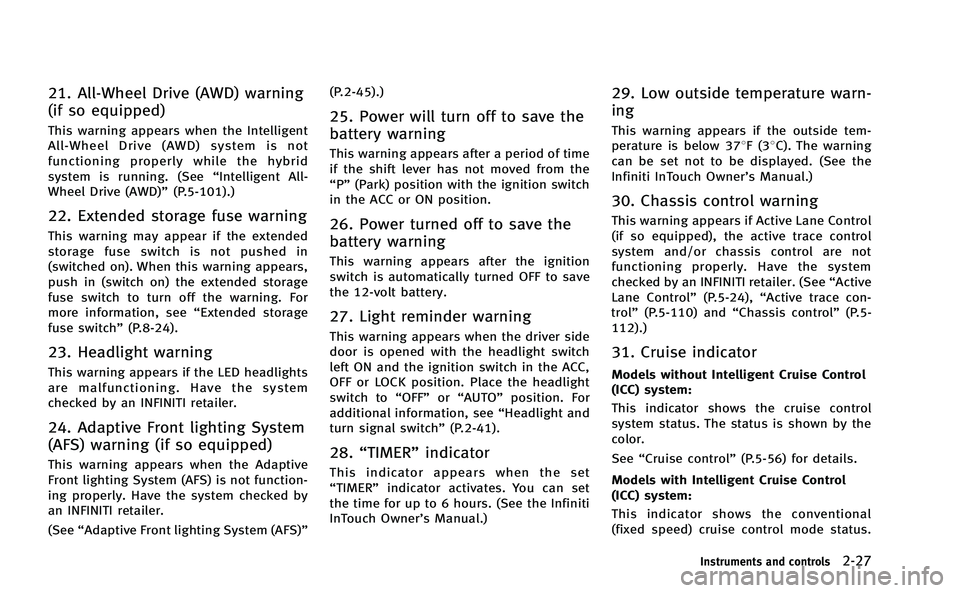

21. All-Wheel Drive (AWD) warning
(if so equipped)
This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not
functioning properly while the hybrid
system is running. (See“Intelligent All-
Wheel Drive (AWD)” (P.5-101).)
22. Extended storage fuse warning
This warning may appear if the extended
storage fuse switch is not pushed in
(switched on). When this warning appears,
push in (switch on) the extended storage
fuse switch to turn off the warning. For
more information, see “Extended storage
fuse switch” (P.8-24).
23. Headlight warning
This warning appears if the LED headlights
are malfunctioning. Have the system
checked by an INFINITI retailer.
24. Adaptive Front lighting System
(AFS) warning (if so equipped)
This warning appears when the Adaptive
Front lighting System (AFS) is not function-
ing properly. Have the system checked by
an INFINITI retailer.
(See“Adaptive Front lighting System (AFS)” (P.2-45).)
25. Power will turn off to save the
battery warning
This warning appears after a period of time
if the shift lever has not moved from the
“P”
(Park) position with the ignition switch
in the ACC or ON position.
26. Power turned off to save the
battery warning
This warning appears after the ignition
switch is automatically turned OFF to save
the 12-volt battery.
27. Light reminder warning
This warning appears when the driver side
door is opened with the headlight switch
left ON and the ignition switch in the ACC,
OFF or LOCK position. Place the headlight
switch to “OFF”or“AUTO” position. For
additional information, see “Headlight and
turn signal switch” (P.2-41).
28.“TIMER” indicator
This indicator appears when the set
“TIMER” indicator activates. You can set
the time for up to 6 hours. (See the Infiniti
InTouch Owner’s Manual.)
29. Low outside temperature warn-
ing
This warning appears if the outside tem-
perature is below 378F(3 8C). The warning
can be set not to be displayed. (See the
Infiniti InTouch Owner’s Manual.)
30. Chassis control warning
This warning appears if Active Lane Control
(if so equipped), the active trace control
system and/or chassis control are not
functioning properly. Have the system
checked by an INFINITI retailer. (See “Active
Lane Control” (P.5-24),“Active trace con-
trol” (P.5-110) and “Chassis control” (P.5-
112).)
31. Cruise indicator
Models without Intelligent Cruise Control
(ICC) system:
This indicator shows the cruise control
system status. The status is shown by the
color.
See “Cruise control” (P.5-56) for details.
Models with Intelligent Cruise Control
(ICC) system:
This indicator shows the conventional
(fixed speed) cruise control mode status.
Instruments and controls2-27

2-28Instruments and controls

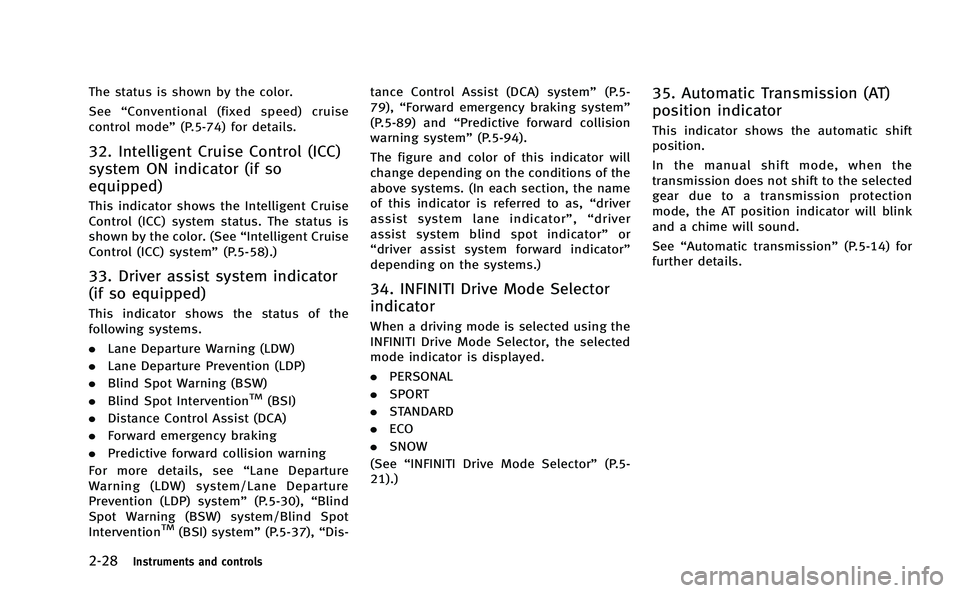

The status is shown by the color.
See“Conventional (fixed speed) cruise
control mode” (P.5-74) for details.
32. Intelligent Cruise Control (ICC)
system ON indicator (if so
equipped)
This indicator shows the Intelligent Cruise
Control (ICC) system status. The status is
shown by the color. (See “Intelligent Cruise
Control (ICC) system” (P.5-58).)
33. Driver assist system indicator
(if so equipped)
This indicator shows the status of the
following systems.
.Lane Departure Warning (LDW)
. Lane Departure Prevention (LDP)
. Blind Spot Warning (BSW)
. Blind Spot Intervention
TM(BSI)
. Distance Control Assist (DCA)
. Forward emergency braking
. Predictive forward collision warning
For more details, see “Lane Departure
Warning (LDW) system/Lane Departure
Prevention (LDP) system” (P.5-30),“Blind
Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system” (P.5-37),“Dis-tance Control Assist (DCA) system”
(P.5-
79), “Forward emergency braking system”
(P.5-89) and “Predictive forward collision
warning system” (P.5-94).
The figure and color of this indicator will
change depending on the conditions of the
above systems. (In each section, the name
of this indicator is referred to as, “driver
assist system lane indicator” ,“driver
assist system blind spot indicator” or
“driver assist system forward indicator”
depending on the systems.)
34. INFINITI Drive Mode Selector
indicator
When a driving mode is selected using the
INFINITI Drive Mode Selector, the selected
mode indicator is displayed.
. PERSONAL
. SPORT
. STANDARD
. ECO
. SNOW
(See “INFINITI Drive Mode Selector” (P.5-
21).)
35. Automatic Transmission (AT)
position indicator
This indicator shows the automatic shift
position.
In the manual shift mode, when the
transmission does not shift to the selected
gear due to a transmission protection
mode, the AT position indicator will blink
and a chime will sound.
See “Automatic transmission” (P.5-14) for
further details.
