INFINITI Q50 HYBRID 2016 First responder´s Guide

2-2 High-voltage-Related and 12-Volt-Related Component Locations and
Descriptions
NO
TE:
Components with white number in black background are high-voltage components. No. Component
Location Description
T

raction Motor
Inverter Engine compart-
ment (right rear
side) Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
Traction Motor Built-into the trans-
mission Converts three-phase alternating current (AC)
power to drive power (torque) which propels the
vehicle. 51 3 4
6
7 2
AAYIA0181ZZ
FRG–11

No. Component
Location Description
High-voltage
Battery
T
runk area (behind
rear seat back) The high-voltage battery stores and outputs DC
power (Maximum voltage 400V) needed to pro-
pel the vehicle.
DC/DC Converter Trunk area (mounted to top
of high-voltage
battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to the
12-volt battery in order to operate the vehicle’s
electric components (headlights, audio system,
etc.) .
Service Plug Trunk area (below
parcel shelf;
behind access
door in trim panel) This is used to disable the high-voltage system.
12-volt Battery Trunk area (left
side behind trim
panel) A lead-acid battery that supplies power to the
low voltage devices.
High-voltage
Harnesses Trunk area (on
high-voltage
battery) , under
floor pan, engine
compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage com-
ponents.
Electric Air Condi-
tioner Compressor Engine compart-
ment (front driver
side) Air conditioner compressor
2-3 High-voltage Battery Pack Specifications High-voltage Battery Specifications
High-voltage

battery voltage 346V (400V max.)
Number of high-voltage battery modules in the pack 12 modules (96 cells)
High-voltage battery module voltage 28.8V each
High-voltage battery dimensions
29.63 x 17.81 x 14.85 in. (752.5 x 452.4 x 377.1 mm)
High-voltage battery weight 108.05 lbs (49 kg)
FRG–12

2-4 High-voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to the
label shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Labels WARNING/AVERTISSEMENT
To avoid serious injury, keep clear engine parts at all times. Engine ma\
y start at any time if the start switch and the the READY lamps
on the instrument panel are "ON". Make sure both lamps are "OFF" before \
working in the engine compartment. See Owners Manual.
P

our éviter des blessures graves, assurez-vous que les témoins START SWITCH et READY dans le tableau de bord sont éteints
(OFF) avant d'entreprendre tout travail à I'intérieur du compart\
iment moteur. Le moteur peut démarrer à tout moment si le contacte\
ur
d'allumage est à la position ON et que les témoins READY du tablea\
u de bord sont allumés. Assurez-vous que les deux
témoins sont éteints avant de travailler dans le compartiment mote\
ur. Reportez-vous au manuel du conducteur.
BW A R N I N G / A V E R T I S S E M E N T / A C H T U N G
Make sure READY lamp is "OFF" before working in the

engine compartment.
Assurez-vous que les témoin READY est "OFF" avant de travailler dans le compartiment du moteur.
Bitte gehen Sie sicher, dass die READY-Kontrolleuchte "AUS" ist, bevor Sie jegliche Arbeit
im Motorraum beginnen. D AAYIA0419ZZ
AAYIA0010ZZ
FRG–13

2-5 High-voltage Safety System
The
high-voltage safety system is intended to help keep vehicle occupants and emergency responders safe
from high-voltage electricity. • A high-voltage fuse provides short circuit protection inside the high-voltage battery.
• The high-voltage safety system is insulated from the metal chassis.
• Positive and negative high-voltage power cables are connected to the high-voltage battery and arecontrolled by normally open system main relays (SMR1 and SMR2) . When the vehicle is shut off,
the relays stop electrical flow from leaving the high-voltage battery. However, it can take
approximately ten (10) minutes for the high-voltage capacitor to fully discharge. • The high-voltage system and high-voltage capacitor may remain powered for up to
approximately
10 minutes after the vehicle is shut off. Personal Protective Equipment
(PPE) must always be worn when touching or working on high-voltage components
to avoid risk of electrical shock and severe personal injury or death.
• The high-voltage battery retains high-voltage at all times. PPE must always be worn when touching or working on high-voltage components to avoid risk of electrical shock and
severe personal injury or death.
• A ground fault monitor continuously monitors for high-voltage leakage to the metal chassis while the vehicle is running. If a malfunction is detected, the HPCM (hybrid powertrain control module) will
illuminate the hybrid system warning lamp in the instrument cluster.
•

The high-voltage battery relays (SMR1 and SMR2) will automatically open to stop the electrical flow
in front, side or certain rear collisions that are sufficient enough to activate the supplemental
restraint system (SRS) . Trunk
J

unction Box High-Voltage Battery
System main relay 1
Service Plug (With Fuse)
System main relay 2
Transmission
Traction Motor Traction Motor
Inverter
(With built in high- voltage capacitor) Electric
Compressor DC/DC
Converter
Engine Compartment DANGER
HPCM
(Hybr

id Powertrain
Control Module) AAYIA0156GB
FRG–14

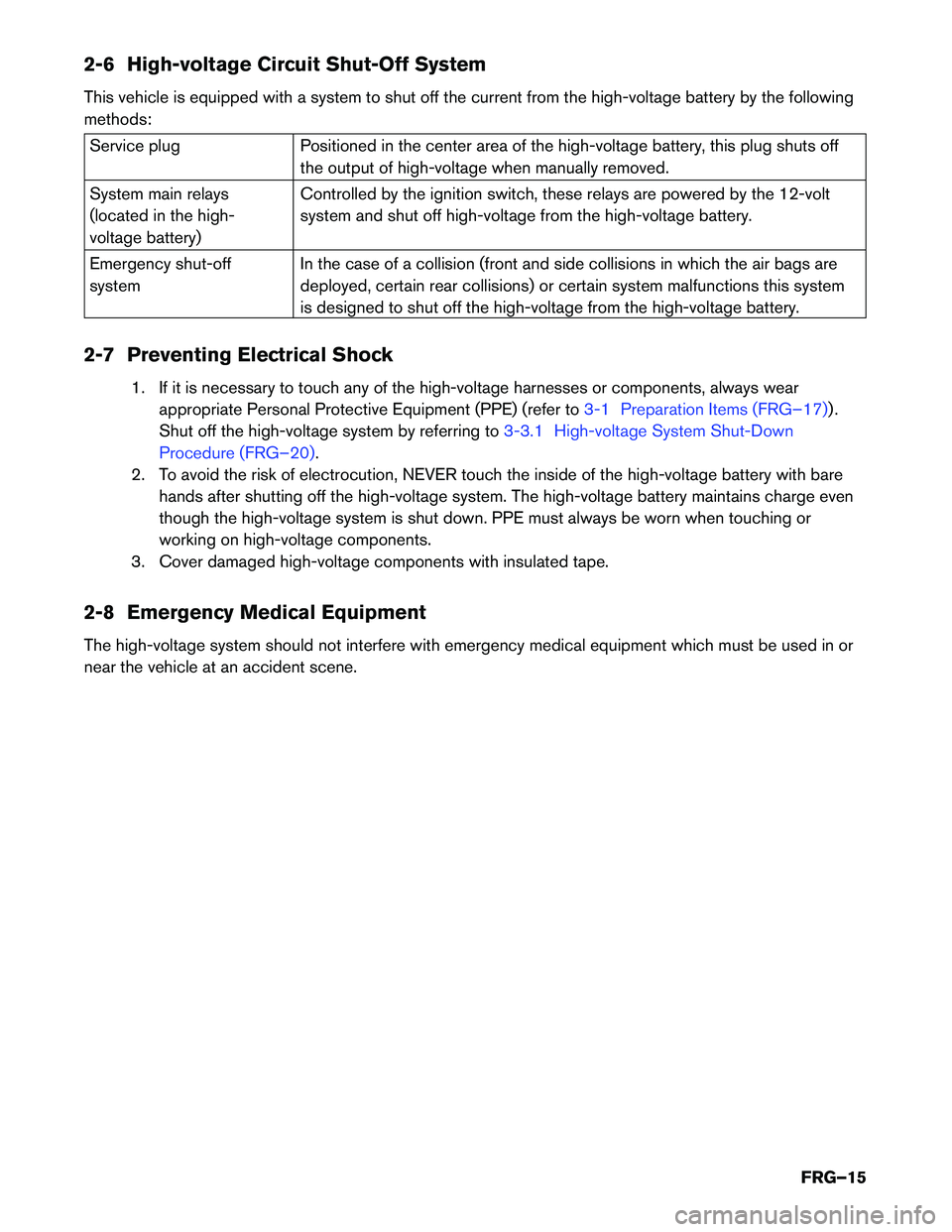

2-6 High-voltage Circuit Shut-Off System
This
vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned in the center area of the high-voltage battery, this plug shuts off
the
output of high-voltage when manually removed.
System main relays
(located in the high-
voltage battery) Controlled by the ignition switch, these relays are powered by the 12-volt
system and shut off high-voltage from the high-voltage battery.
Emergency shut-off
system In the case of a collision (front and side collisions in which the air bags are
deployed, certain rear collisions) or certain system malfunctions this system
is designed to shut off the high-voltage from the high-voltage battery.
2-7 Preventing Electrical Shock 1. If it is necessary to touch any of the high-voltage harnesses or components, always wearappropriate Personal Protective Equipment (PPE) (refer to 3-1 Preparation Items (FRG–17)) .
Shut

off the high-voltage system by referring to 3-3.1 High-voltage System Shut-Down
Procedure

(FRG–20) .
2.

To avoid the risk of electrocution, NEVER touch the inside of the high-voltage battery with bare
hands after shutting off the high-voltage system. The high-voltage battery maintains charge even
though the high-voltage system is shut down. PPE must always be worn when touching or
working on high-voltage components.
3. Cover damaged high-voltage components with insulated tape.
2-8 Emergency Medical Equipment
The high-voltage system should not interfere with emergency medical equipment which must be used in or
near the vehicle at an accident scene.
FRG–15

3. Emergency Response Steps
DANGER
• Failure to properly shut down the high-voltage electrical system before the
Emergency Response Procedures are performed will result in serious injury or death
from electrical shock. To prevent serious injury or death, NEVER touch high-voltage
harnesses or components without always wearing appropriate Personal Protective
Equipment (PPE) . PPE must always be worn when touching or working on high-
voltage components.
• If it is necessary to touch any of the high-voltage harnesses or components you
must
always wear appropriate PPE to avoid electrical shock. PPE must always be worn
when touching or working on high-voltage components. Shut down the high-voltage
system by following the steps outlined in 3-3.1 High-voltage System Shut-Down
Procedure

(FRG–20) Wait approximately ten (10) minutes for complete discharge of
the

high-voltage capacitor after the high-voltage system has been shut down. • NEVER assume the Q50 HYBRID is shut OFF simply because it is quiet.
•

If the READY indicator is ON the high-voltage system is active.
•

If possible, be sure to check the READY indicator on the instrument cluster and
verify

that the READY indicator is OFF and the high-voltage system is stopped.
FRG–16

3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
–
Safety

shield –
T
o protect eyes when around
high-voltage components and
wiring.
Safety Glasses Leather gloves Must be able to fasten tight
around

the wrist. (Worn over
insulated gloves) To protect insulated gloves.
Wrenches Size:10mm
T
o remove the 12-volt battery
terminal bolt.
Solvent resistant protection gloves
Solvent resistant protection shoes –To utilize in the event of a
high-voltage battery
electrolytic solution leak.
Absorbent pad The same pad used for
internal combustion engine
fluids can be used. To absorb any high-voltage
battery electrolytic solution
leakage.
Standard fire fighting equipment Standard fire fighting
equipment.
Depending on type of fire
(vehicle or battery) use
standard fire fighting
equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape InsulatingTo cover any damaged
harnesses to protect from and
prevent electrical shock. Tape
should cover all bare or
damaged wire.
3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
FRG–17

3-1.2 Daily Inspection
This
inspection is performed before and after use. The responder who will be using the items should
perform the inspection and check for deterioration and damage. • Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and airleakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-1.3 Insulated Tools
When performing work at locations where high-voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.
3-2 Vehicle Immobilization and Stabilization
If possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by removing air from the tires, or utilize the Lift Airbag Equipment for rescue. To avoid electrical shock, do not put the Lift Airbag Equipment for rescue and wheel
chock(s)
under the high-voltage components and harnesses. AAYIA0185ZZ
FRG–18

3-3 How to Handle a Damaged Vehicle at an Accident Scene
NO
TE:
If any air bags have deployed in the following 3 situations, the high-voltage (HV) system has
been designed to automatically shut off at the time of deployment.
The Infiniti Q50 HYBRID high-voltage system incorporates capacitors which are energized whenever the
high-voltage system is on. If the high-voltage system is shut down (either through one of the built-in
automatic mechanisms or manually through one of the procedures explained in this FRG) , the capacitors
will begin to gradually discharge. Complete discharge requires approximately 10 minutes after
high-voltage system shut down. It is within this period of time that responders must be most cautious.
When arriving to an incident involving an Infiniti Q50 HYBRID, the vehicle should be approached with
caution and inspected for the level of damage. In addition to overall vehicle condition (location and severity
of body damage, air bag deployment, etc.) , the high-voltage system should be assessed specifically.
The locations of the high-voltage component parts are illustrated in this FRG. Refer to 2-2 High-voltage-
Related

and 12-Volt-Related Component Locations and Descriptions (FRG–11) . Appropriate personal pro-
tective

equipment (PPE) must always be worn when approaching a vehicle of unknown condition, as
described in this FRG.
Situation 1) High-voltage system intact, occupants can be accessed without extrication tools
The HV system can be shut down by following the procedure in this guide, while wearing appropriate PPE.
After HV system shut down, occupant assistance can begin immediately, and no wait period is necessary.
Situation 2) High-voltage system intact, occupants cannot be accessed without extrication tools
The HV system can be shut down by following the procedure in this guide, while wearing appropriate PPE.
After HV system shut down, absolute care must be taken never to cut through or damage any HV system
wiring, battery or components within approximately ten (10) minutes of HV system shut down,
but occupant assistance operations using extrication equipment can begin immediately. The locations of the
HV components are illustrated in this guide.
Situation 3) High-voltage (HV) system damaged
If there is any evidence that the HV system has been compromised (such as arcing/sparking, orange wiring
harnesses cut or damaged, HV component casings damaged, etc.) , the responder may still be at risk of
high-voltage exposure. The vehicle must be approached with extreme caution prior to initiating any system
shut down procedures or rendering assistance to occupants. Appropriate PPE must always be worn as
described in this guide, and the approximate ten (10) minute wait time must be observed after HV
system shut down in order to ensure the system is de-energized.
In rare situations where vehicle damage is very severe, HV system shut down procedures as described in
this guide may not work. In these instances extreme caution and appropriate risk management must be
followed to prevent shock or electrocution to the responder or occupant.
FRG–19

3-3.1 High-voltage System Shut-Down Procedure
Any
of the following procedures can shut down the high-voltage system. The first response operation
should only begin after shutting down the high-voltage system. If the vehicle is heavily damaged, for example
the high-voltage battery is deformed, broken or cracked, appropriate PPE must always be used and the
high-voltage battery and high-voltage components must not be touched. PPE must always be worn when
touching or working on high-voltage components. DANGER
• Failure to properly shut down the high-voltage system before the Emergency
Response
Procedures are performed will result in serious injury or death from
electrical shock. To prevent serious injury or death, NEVER touch high-voltage
harnesses or components without always wearing appropriate Personal Protective
Equipment (PPE) . PPE must always be worn when touching or working on high-
voltage components.
• When contact with high-voltage components or high-voltage harnesses is
unavoidable,
or when there is risk of such contact, you must always wear appropriate
PPE. PPE must always be worn when touching or working on high-voltage
components.
FRG–20
