WARNING
.After adjustment, release the adjust-
ment button and try to move the
shoulder belt anchor up and down to
make sure it is securely fixed in
position.
. The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it
is not possible to properly fit the lap-
shoulder belt and fasten it, an extender that
is compatible with the installed seat belts is
available that can be purchased. The ex-
tender adds approximately 8 in (200 mm) of
length and may be used for either the driver
or front passenger seating position. It is
recommended you visit an INFINITI retailer
for assistance with purchasing an extender if
an extender is required.
WARNING
.It is recommended only INFINITI seat
belt extenders, made by the same
company which made the original
equipment seat belts, be used with
the INFINITI seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.
. Never use seat belt extenders to
install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured or
killed in a collision or a sudden stop.
SEAT BELT MAINTENANCE
.To clean the seat belt webbing, apply a
mild soap solution or any solution re-
commended for cleaning upholstery or
carpets. Then, wipe with a cloth and
allow the seat belts to dry in the shade.
Do not allow the seat belts to retract
until they are completely dry.
. If dirt builds up in the shoulder belt guide
of the seat belt anchors, the seat belts
may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.
. Periodically check to see that the seat
belt and the metal components such as
buckles, tongues, retractors, flexible
wires and anchors work properly. If loose
parts, deterioration, cuts or other da-
mage on the webbing is found, the entire
seat belt assembly should be replaced.
Safety — Seats, seat belts and supplemental restraint system1-15

3-4Pre-driving checks and adjustments
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.
. Before opening any door, always look
for and avoid oncoming traffic.
. To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not
leave children, people who require
the assistance of others or pets
unattended in your vehicle. Addition-
ally, the temperature inside a closed
vehicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.
JVP0231X
LOCKING WITH MECHANICAL
KEY
The power door lock system allows you to
lock or unlock all doors and trunk lid
simultaneously using the mechanical key.
.Turning the driver’s door key cylinder to
the front of the vehicle
will lock all
doors and trunk lid.
. Turning the driver’s door key cylinder
once to the rear of the vehicle
will
unlock the driver’s door. After returning
the key to the neutral position
, turning
it to the rear again within 60 seconds will
unlock all doors. .
You can switch the lock system to the
mode that allows you to open all the
doors and trunk lid when the key is
turned once. (See the Infiniti InTouch
Owner’s Manual for details.)
OPENING AND CLOSING WIN-
DOWS WITH MECHANICAL KEY
The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-52).)
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while turning
the key.
This function can also be performed by
pushing and holding the UNLOCK button
on the Intelligent Key. (See “Remote keyless
entry system” (P.3-15).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked and
the window keeps closing while turning the
key.
DOORS

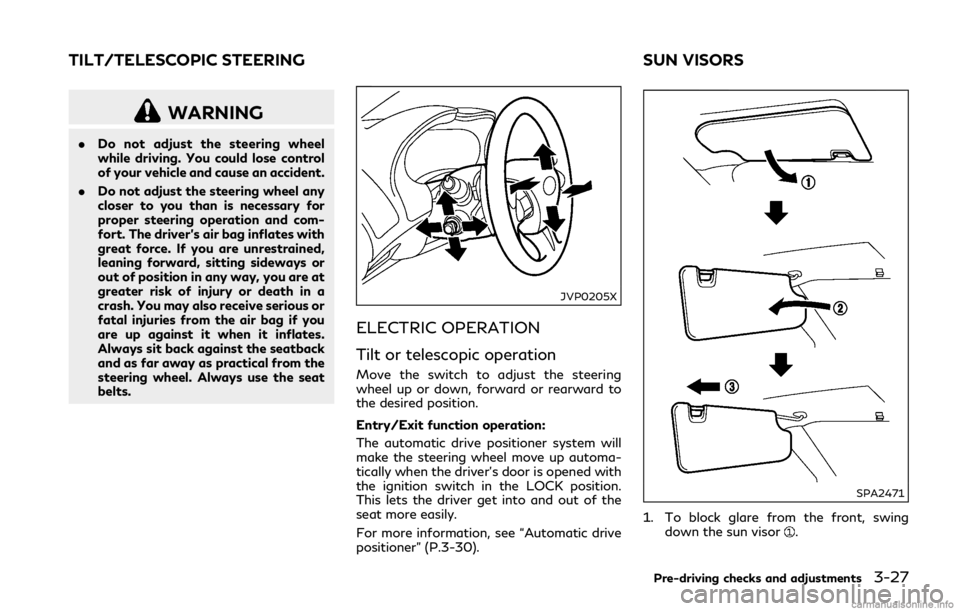

WARNING
.Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an accident.
. Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates.
Always sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.
JVP0205X
ELECTRIC OPERATION
Tilt or telescopic operation
Move the switch to adjust the steering
wheel up or down, forward or rearward to
the desired position.
Entry/Exit function operation:
The automatic drive positioner system will
make the steering wheel move up automa-
tically when the driver’s door is opened with
the ignition switch in the LOCK position.
This lets the driver get into and out of the
seat more easily.
For more information, see “Automatic drive
positioner” (P.3-30).
SPA2471
1. To block glare from the front, swing
down the sun visor.
Pre-driving checks and adjustments3-27
TILT/TELESCOPIC STEERING SUN VISORS

3-30Pre-driving checks and adjustments
4. The outside mirror surface moves down-ward.
When one of the following conditions has
occurred, the outside mirror surface will
return to its original position.
. The shift lever is moved to any position
other than R (Reverse).
. The outside mirror control switch is set to
the center position.
. The ignition switch is pushed to the OFF
position.
Automatic anti-glare (if so
equipped)
The outside mirrors are designed so that
they automatically change reflection ac-
cording to the intensity of the headlights of
the vehicle following you.
The anti-glare system will be automatically
turned on when the ignition switch is placed
in the ON position.
SIC3869
VANITY MIRROR
To use the front vanity mirror, pull down the
sun visor and pull up the cover. The automatic drive positioner system has
two features:
.
Entry/exit function
. Memory storage
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and steering column will automatically
move when the shift lever is in the P (Park)
position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering wheel will move up when the
driver’s door is opened with the ignition
switch in the LOCK position.
The driver’s seat and steering wheel will
return to the previous positions when the
ignition switch is pushed to the ACC posi-
tion.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the seat is
at the exit position.
Cancel or activate entry/exit func-
tion
All the following conditions must be met
before cancelling or activating the entry/exit
function.
.The ignition switch is placed in the LOCK
position.
AUTOMATIC DRIVE POSITIONER

.The entry/exit function is not in opera-
tion.
. The following switches are not operated.
— Seat memory switches
— Power seat switches
— Electric tilting/telescopic steering wheel switch
The entry/exit function can be activated or
canceled by pushing and holding the SET
switch for more than 10 seconds.
The entry/exit function can also be acti-
vated or canceled if the [Lift Steering Wheel
on Exit] or [Slide Driver Seat Back on Exit]
key is switched to ON or OFF in the
[Settings] menu on the lower display. (See
the Infiniti InTouch Owner’s Manual.)
Initialize entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not
work though this function was set on before.
In such a case, after connecting the battery
or replacing with a new fuse, open and close
the driver’s door more than two times after
the ignition switch is switched from the ON
position to the LOCK position. The entry/
exit function will be activated.
JVP0240X
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in
the automatic drive positioner memory.
Follow these procedures to use the memory
system.
1. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
see “Seats” (P.1-2), “Tilt/telescopic
steering” (P.3-27) and “Outside mirrors”
(P.3-29).
2. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) fully for at least 1 second.
The indicator light for the pushed mem-
ory switch will stay on for approximately
5 seconds after pushing the switch.
When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.
If memory is stored in the same memory
switch, the previous memory will be
deleted.
Confirming memory storage
Push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored in position,
the indicator light will stay on for approxi-
mately 5 seconds.
Selecting the memorized position
1. Move the shift lever to the P (Park)
position.
2. Push the memory switch (1 or 2) fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memor-
ized position with the indicator light
flashing, and then the light will stay on
for approximately 5 seconds.
Pre-driving checks and adjustments3-31

3-32Pre-driving checks and adjustments
Linking log-in function to a stored
memory position
The log-in function can be linked to a stored
memory position with the following proce-
dure.
1. Place the ignition switch in the ONposition while carrying an Intelligent
Key that was registered to the vehicle
with the log-in function. For more de-
tails, see “Log-in function” (P.3-15).
2. Adjust the position of the driver’s seat, steering column and outside mirrors
manually. See “Seats” (P.1-2), “Tilt/tele-
scopic steering” (P.3-27) and “Outside
mirrors” (P.3-29).
3. Place the ignition switch in the OFF position.
The next time you log in (selecting the user
on the display) after placing the ignition
switch in the ON position while carrying the
Intelligent Key, the system will automatically
adjust to the memorized driving position.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle speed is above 0 MPH
(0 km/h) or 4 MPH (7 km/h) for some
limited functions such linking an Intelli- gent Key to the vehicle when the power
source is turned on from off or during the
Exit function.
. When any of the memory switches are
pushed while the automatic drive posi-
tioner is operating.
. When the adjusting switch for the dri-
ver’s seat and steering column is turned
on while the automatic drive positioner is
operating.
. When the seat has already been moved
to the memorized position.
. When no seat position is stored in the
memory switch.
. When the shift lever is moved from the P
(Park) position to any other position.

11-6
Cruise control ................................................. 5-70
Maintenance ..................................................... 8-2
Seat belt usage ................................................. 1-9
Supplemental restraint system .................. 1-37
When starting and driving ............................ 5-4
Pre-crash seat belts with
comfort function ................................................... 1-11
Predictive Forward Collision
Warning (PFCW) ............................................... 5-112
Push starting ............................................................ 6-7
Push-button ignition switch .................. 5-11, 5-12
R
Radio Car phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ..................... 2-35
Rapid air pressure loss .......................................... 5-9
Readiness for inspection/maintenance
(I/M) test (US only) ........................................... 10-21
Rear door lock Child safety rear door lock ........................... 3-6
Rear window and outside mirror
defroster switch ................................................... 2-36
Recorders Event data .................................................... 10-21
Regenerative brake ...................... Hybrid System-8
Registering in another country ..................... 10-10
Remote engine start ........................................... 3-19
Remote keyless entry system .......................... 3-15
Reporting safety defects ................................ 10-20 Request switch (See Intelligent
Key system) .............................................................. 3-9
Road accident cautions .............. Hybrid System-3
Roadside assistance program ............................. 6-2
Rollover ..................................................................... 5-9
Roof
Moonroof ......................................................... 2-55
Run-flat tires .......................................................... 6-4
S
Safety Child seat belts ............................................... 1-16
Reporting safety defects .......................... 10-20
Seat adjustment Front power seat adjustment ....................... 1-3
Front seats ......................................................... 1-3
Seat belt(s) Child safety ..................................................... 1-16
Infants ............................................................... 1-16
Injured persons ................................................ 1-11
Larger children ............................................... 1-17
Precautions on seat belt usage .................... 1-9
Pre-crash seat belts with
comfort function ............................................. 1-11
Pregnant women ............................................ 1-11
Seat belt cleaning ............................................. 7-7
Seat belt extenders ....................................... 1-15
Seat belt maintenance ................................. 1-15
Seat belt warning light and chime ............ 2-14
Seat belts ............................................................ 1-9
Seat belts with pretensioners .................... 1-53 Shoulder belt height adjustment ............... 1-14
Small children .................................................. 1-17
Three-point type ............................................ 1-12
Seat(s)
Driver-side memory ..................................... 3-30
Heated seats .................................................. 2-44
Seats .................................................................... 1-2
Security system Vehicle security system ................................ 2-31
Security system (INFINITI Vehicle
Immobilizer System) Engine start ..................................................... 2-32
Shift lever
Shift lock release ........................................... 5-18
Shift lock release, Transmission ...................... 5-18
SHIFT “P” warning .............................................. 2-20
Shifting Automatic transmission ............................... 5-15
Shoulder belt height adjustment ..................... 1-14
SNOW mode ......................................................... 5-21
Spark plugs ............................................................ 8-15
Speedometer ............................................................ 2-6
SPORT mode ........................................................ 5-21
Standard maintenance .......................................... 9-7
STANDARD mode ............................................... 5-21
Starting
Before starting the INFINITI Direct
Response Hybrid
®System .......................... 5-14
Jump starting .................................................. 8-15
Precautions when starting and driving ..... 5-4
Push starting ...................................................... 6-7
