INFINITI Q50-HYBRID 2018 Owner's Manual

0-2Illustrated table of contents
JVC1100X
1. Supplemental front-impact air bags(P.1-37)
2. Front seat-mounted side-impact sup- plemental air bags (P.1-37)
3. Front seat belt with pretensioner and shoulder height adjuster (P.1-9) 4. Head restraints (P.1-5)
5. Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-37)
6. Rear seat belts (P.1-9)
7. Child restraint anchor points (for top tether strap child restraint) (P.1-22, P.1-29, P.1-33)
8. Occupant classification sensors (weight sensors) (P.1-43)
9. Front seats (P.1-3)
10. Seat belts with pretensioners (P.1-53)
11. Rear seats — Child restraints (P.1-18)
12. LATCH (Lower Anchors and Tethers for CHildren) system (P.1-20)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

JVC1103X
1. Hood (P.3-21)
2. Windshield wiper and washer— Operation (P.2-34)
— Maintenance (P.8-17)
3. Headlight
— Operation (P.2-36) — Maintenance (P.8-25)
— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-41)
4. Moonroof (P.2-54)
5. Power windows (P.2-52)
6. Outside mirrors (P.3-29) — Side turn signal lights (P.2-42)
— Side view camera*
7. Sonar system*
8. Front view camera*
9. Turn signal (P.2-42, P.8-25)
10. Fog light (P.2-43, P.8-25)
11. Tires — Wheels and tires (P.8-28, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-12, P.5-5)
12. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Courtesy light (P.2-59)
— Remote engine start (P.3-19)
*: Refer to the Infiniti InTouch Owner’s Manual.
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
JVC1104X

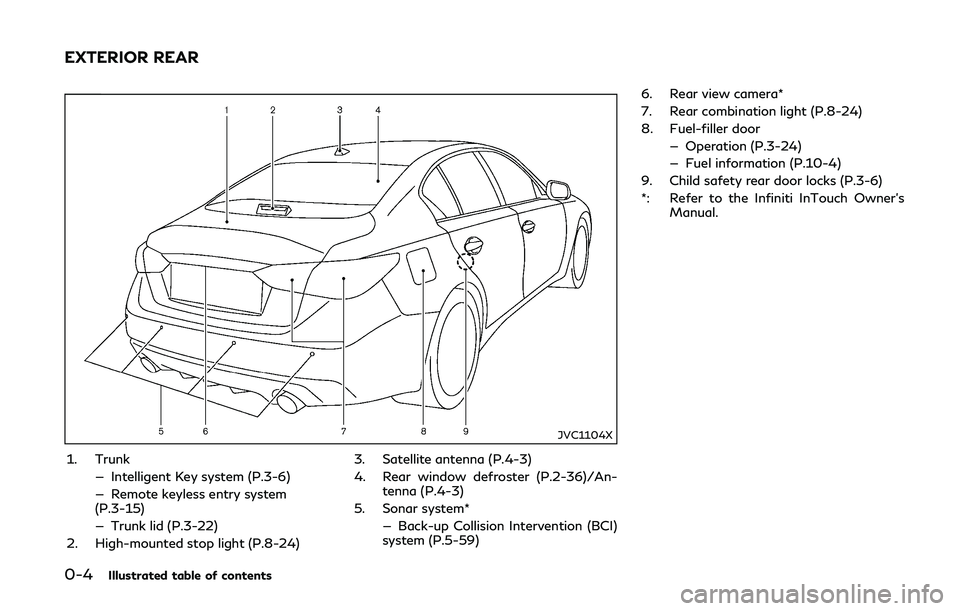

1. Trunk— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Trunk lid (P.3-22)
2. High-mounted stop light (P.8-24) 3. Satellite antenna (P.4-3)
4. Rear window defroster (P.2-36)/An-
tenna (P.4-3)
5. Sonar system* — Back-up Collision Intervention (BCI)
system (P.5-59) 6. Rear view camera*
7. Rear combination light (P.8-24)
8. Fuel-filler door
— Operation (P.3-24)
— Fuel information (P.10-4)
9. Child safety rear door locks (P.3-6)
*: Refer to the Infiniti InTouch Owner’s Manual.
EXTERIOR REAR

JVC0518X
1. Coat hooks (P.2-51)
2. Rear personal light (P.2-57)
3. Sun visors (P.3-27)
4. Map light (P.2-56)— SOS call switch*
5. Moonroof switch (P.2-54) 6. Sunglasses holder (P.2-49)
7. Power window switch (P.2-52)/Out-
side mirror remote control switch
(P.3-29)
8. Automatic drive positioner switch (P.3-30) 9. Inside mirror
— Operation (P.3-28)
— HomeLink
®universal transceiver
(P.2-59)
10. Rear armrest (P.1-4)
11. Rear cup holders (P.2-47)
12. Rear ashtray (P.2-47)
13. Console box (P.2-50) — Power outlet (P.2-46)
— Media hub*
14. Front cup holders (P.2-47)
15. Front passenger air bag status light (P.1-45)
*: Refer to the Infiniti InTouch Owner’s Manual.
Illustrated table of contents0-5
PASSENGER COMPARTMENT

0-6Illustrated table of contents
JVC1106X
1. Side ventilator (P.4-2)
2. Headlight, fog light and turn signalswitch (P.2-36)
3. Steering wheel — Horn (P.2-43)
— Driver supplemental air bag (P.1-37) — Heated steering wheel (P.2-45)
— Power steering (P.5-126)
4. Windshield wiper and washer switch (P.2-34)
5. Hazard warning flasher switch (P.6-2)
6. Shift lever (P.5-15) 7. INFINITI controller*
8. Vehicle Dynamic Control (VDC) OFF
switch (P.2-43, P.5-130)
9. Trunk lid release switch (P.3-22)
10. Instrument brightness control switch (P.2-42)
11. TRIP/RESET switch for twin trip od- ometer (P.2-6)
12. Electric tilting/telescopic steering wheel switch (P.3-27)
13. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*
14. Steering-wheel-mounted controls (right side)
— Trip computer switches (P.2-27)
— Cruise control switches (if so
equipped) (P.5-70)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-72)
— Dynamic driver assistance switch (if
so equipped) (P.5-24, P.5-32, P.5-47,
P.5-93)
15. INFINITI Drive Mode Selector (P.5-21)
*: Refer to the Infiniti InTouch Owner’s Manual.
COCKPIT

JVC1101X
1. Meters and gauges (P.2-5)— Clock (P.2-30)
2. Push-button ignition switch (P.5-11)
3. Center ventilator (P.4-2)
4. Automatic climate control system*
5. Upper touch screen display* (upper display) and Navigation system* (if so
equipped)
6. Lower touch screen display* (lower display)
7. Rear window and outside mirror defroster switch (P.2-36) 8. Front passenger supplemental air bag
(P.1-37)
9. Hood release handle (P.3-21)
10. Fuse box cover (P.8-20)
11. Parking brake (P.5-20)
12 Storage box (P.2-50) and power outlet (P.2-46)
13. Seat heater switch (P.2-44)
14. Audio system*
15. Trunk release power cancel switch (P.3-23)
16. Glove box (P.2-49)
*: Refer to the Infiniti InTouch Owner’s Manual.
Illustrated table of contents0-7
INSTRUMENT PANEL

0-8Illustrated table of contents
JVC0473X

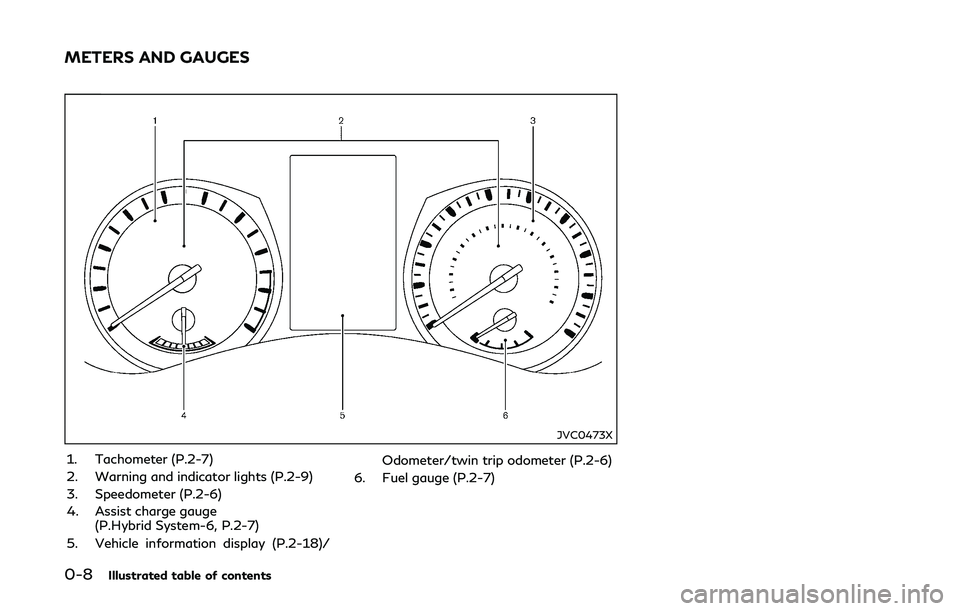

1. Tachometer (P.2-7)
2. Warning and indicator lights (P.2-9)
3. Speedometer (P.2-6)
4. Assist charge gauge(P.Hybrid System-6, P.2-7)
5. Vehicle information display (P.2-18)/ Odometer/twin trip odometer (P.2-6)
6. Fuel gauge (P.2-7)
METERS AND GAUGES

JVM0294X
VQ35HR ENGINE
1. Engine oil filler cap (P.8-9)
2. Brake fluid reservoir (P.8-12)
3. Fuse/fusible link holder (P.8-19)
4. Air cleaner (P.8-16)
5. Inverter coolant reservoir (P.8-7)
6. Radiator filler cap (P.8-5)
7. Engine coolant reservoir (P.8-5)
8. Engine oil dipstick (P.8-9)
9. Window washer fluid reservoir (P.8-13)The 12-volt battery is located inside the
trunk.
Illustrated table of contents0-9
ENGINE COMPARTMENT

0-10Illustrated table of contents
Warninglight Name
Page
12-volt battery charge
warning light 2-9
Anti-lock Braking System
(ABS) warning light2-10
Brake system warning light
(yellow)
2-10
Brake warning light (red) 2-10
Direct Response Hybrid®
System warning light 2-11
Forward Emergency Braking
(FEB) system warning light2-11
Low fuel warning light 2-12
Low tire pressure warning
light
2-12
Master warning light 2-13
Power steering warning light 2-14
Seat belt warning light 2-14
Supplemental air bag warn-
ing light2-14
Vehicle Dynamic Control
(VDC) warning light 2-15Indicator
light Name
Page
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
indicator light 2-15
ECO drive indicator light 2-15
EV indicator light
2-15
Exterior light indicator 2-16
Front fog light indicator light 2-16
Front passenger air bag sta-
tus light2-16
High beam assist indicator
light (if so equipped)
2-16
High beam indicator light 2-16
Malfunction Indicator Light
(MIL)2-16
READY to drive indicator
light 2-17
Security indicator light 2-17
Turn signal/hazard indicator
lights2-17
Vehicle Dynamic Control
(VDC) off indicator light
2-17
WARNING AND INDICATOR LIGHTS

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ........................................................................\
.............. 1-2
Front seats ...................................................................... 1-3
Armrest ........................................................................\
... 1-4
Head restraints/headrests .............................................. 1-5 Adjustable head
restraint/headrest components ................................ 1-6
Non-adjustable head
restraint/headrest components ................................ 1-6
Remove ........................................................................\
.... 1-6
Install ........................................................................\
........ 1-7
Adjust ........................................................................\
....... 1-7
Seat belts ........................................................................\
...... 1-9 Precautions on seat belt usage ................................ 1-9
Pregnant women ........................................................ 1-11
Injured persons ............................................................ 1-11
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ................................... 1-11
Three-point type seat belt ...................................... 1-12
Seat belt extenders ................................................... 1-15
Seat belt maintenance .............................................. 1-15
Child safety ....................................................................... 1-16 Infants ........................................................................\
... 1-16
Small children .............................................................. 1-17
Larger children ............................................................ 1-17 Child restraints ................................................................ 1-18
Precautions on child restraints ............................ 1-18
Lower Anchors and Tethers for CHildren
System (LATCH) ...................................................... 1-20
Rear-facing child restraint installation
using LATCH ............................................................. 1-22
Rear-facing child restraint installation using
the seat belts ............................................................ 1-24
Forward-facing child restraint installation
using LATCH ............................................................. 1-27
Forward-facing child restraint installation
using the seat belts ................................................. 1-29
Booster seats ............................................................ 1-33
Supplemental restraint system ................................... 1-37 Precautions on supplemental
restraint system ........................................................ 1-37
INFINITI Advanced Air Bag System
(front seats) ............................................................... 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ...... 1-51
Seat belts with pretensioners (front seats) ...... 1-53
Supplemental air bag warning labels ................. 1-54
Supplemental air bag warning light ................... 1-54
Repair and replacement procedure .................... 1-55
