odometer INFINITI Q50-HYBRID 2018 Owners Manual

INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792
The Consumer Affairs Department will ask
for the following information:
. Your name, address, and telephone num-
ber
. Vehicle identification number (on dash
panel)
. Date of purchase
. Current odometer reading
. Your INFINITI retailer’s name
. Your comments or questions
OR You can write to INFINITI with the informa-
tion on the left at:
For U.S. customersINFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada.
com If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customer) or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and
thank you for buying a quality INFINITI
vehicle.

0-8Illustrated table of contents
JVC0473X
1. Tachometer (P.2-7)
2. Warning and indicator lights (P.2-9)
3. Speedometer (P.2-6)
4. Assist charge gauge(P.Hybrid System-6, P.2-7)
5. Vehicle information display (P.2-18)/ Odometer/twin trip odometer (P.2-6)
6. Fuel gauge (P.2-7)
METERS AND GAUGES

2 Instruments and controls
Cockpit ........................................................................\
......... 2-3
Instrument panel ................................................................ 2-4
Meters and gauges ........................................................... 2-5Speedometer and odometer ..................................... 2-6
Tachometer ..................................................................... 2-7
Assist charge gauge ..................................................... 2-7
Fuel gauge ...................................................................... 2-7
Warning lights, indicator lights and
audible reminders .............................................................. 2-9 Checking lights ............................................................. 2-9
Warning lights ............................................................... 2-9
Indicator lights ............................................................ 2-15
Audible reminders ...................................................... 2-17
Vehicle information display .......................................... 2-18 Indicators for operation ........................................... 2-20
Indicators for maintenance ..................................... 2-25
Trip computer ............................................................. 2-27
Clock and outside air temperature ...................... 2-30
Security systems .............................................................. 2-31 Vehicle Security System ........................................... 2-31
INFINITI Vehicle Immobilizer System .................. 2-32
Wiper and washer switch ............................................. 2-34 Rain-sensing auto wiper system ........................... 2-35
Rear window and outside mirror
defroster switch ............................................................... 2-36 Headlight and turn signal switch ............................... 2-36
Headlight switch ...................................................... 2-36
Turn signal switch .................................................... 2-42
Fog light switch ........................................................ 2-43
Horn ........................................................................\
............ 2-43
Vehicle Dynamic Control (VDC) OFF switch .......... 2-43
Heated seats ................................................................... 2-44 Operation with switch ............................................ 2-45
Operation with touch screen ................................ 2-45
AUTO mode setting ................................................ 2-45
Heated steering wheel .................................................. 2-45
Power outlet .................................................................... 2-46
Ashtray ........................................................................\
...... 2-47 Rear ........................................................................\
..... 2-47
Storage ........................................................................\
...... 2-47 Cup holders ................................................................ 2-47
Soft bottle holder ................................................... 2-48
Sunglasses holder .................................................... 2-49
Glove box ................................................................... 2-49
Console box .............................................................. 2-50
Card holder ............................................................... 2-50
Storage box .............................................................. 2-50
Coat hooks ................................................................ 2-51
Trunk hooks ............................................................... 2-51

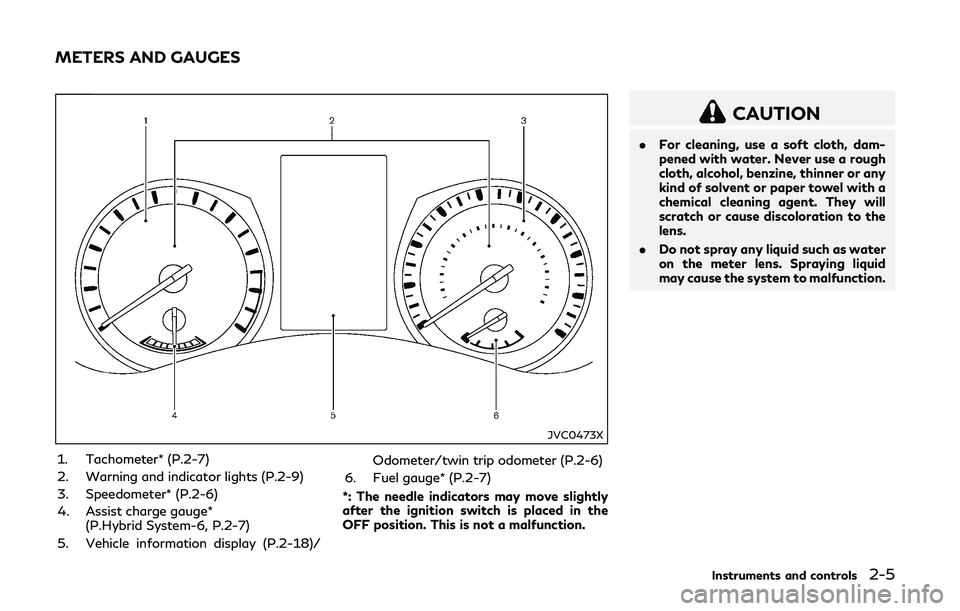

JVC0473X
1. Tachometer* (P.2-7)
2. Warning and indicator lights (P.2-9)
3. Speedometer* (P.2-6)
4. Assist charge gauge*(P.Hybrid System-6, P.2-7)
5. Vehicle information display (P.2-18)/ Odometer/twin trip odometer (P.2-6)
6. Fuel gauge* (P.2-7)
*: The needle indicators may move slightly
after the ignition switch is placed in the
OFF position. This is not a malfunction.
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
. Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the system to malfunction.
Instruments and controls2-5
METERS AND GAUGES

2-6Instruments and controls
JVI0636X
Speedometer
SPEEDOMETER AND OD-
OMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).
JVI0637X
Odometer/twin trip odometer
Odometer/twin trip odometer
The odometerand twin trip odometerare displayed in the vehicle information
display when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.Changing the display:
Pushing the TRIP RESET switch
under the
combination meter panel changes the dis-
play as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
Pushing the TRIP RESET switch
for more
than 1 second resets the trip odometer to
zero.

JVI1484X
TRIP COMPUTER
Switches for the trip computer are located
on the right side of the steering wheel. To
operate the trip computer, push the
switches.
Each time the
orswitch is pushed,
the display will change.
The display items for trip computer are
changed on the lower display. For details,
see the Infiniti InTouch Owner’s Manual.
JVO0108X
1. Energy monitor
The energy monitor related to the hybrid
system is shown by the graphic.
: Engine
: Li-ion battery
shows the charge level of the Li-ion
battery.
The charge level display will continuously
change as the Li-ion battery charge level
increase or decreases during normal vehicle
operation. Movement of the display from
the far right to the far left of the bar is
normal.
The energy flow is also displayed in the
lower display. (See “Energy Flow” (P.Hybrid System-6).)
2. EV mode odometer and twin trip
odometer (mile or km)
EV mode odometer:
This indicates the total distance traveled
using the electric motor only.
EV mode twin trip odometer:
This indicates the distance traveled in an
individual trip using the electric motor only.
Two types of individual trip can be recorded,
TRIP A and TRIP B.
Pushing the TRIP RESET switch will toggle
between TRIP A and TRIP B.
To reset the display to 0, hold down the
TRIP RESET switch for more than approxi-
mately 1 second.
3. Acceleration guide
This display provides the driver a visual
display of how efficiently the vehicle is being
driven based on accelerator pedal position.
When the drive mode is set to ECO using the
lower display, the acceleration guide oper-
ates with the ECO drive indicator (see “ECO
drive indicator light” (P.2-15)) and ECO
pedal (if so equipped) to help you improve
fuel economy. (See “INFINITI Drive Mode
Selector” (P.5-21) and “ECO pedal system”
(P.5-22).)
Instruments and controls2-27

6. Elapsed time and trip odometer
(mile or km)
Elapsed time:
The elapsed time mode shows the time since
the last reset. Resetting is done by pushing
the
orswitch for longer than 1
second. (The trip odometer is also reset at
the same time.)
Trip odometer:
The trip odometer mode shows the total
distance the vehicle has been driven since
the last reset. Resetting is done by pushing
the
orswitch for longer than 1
second. (The elapsed time is also reset at the
same time.)
7. Distance to empty (dte — mile or
km)
The distance to empty (dte) mode provides
you with an estimation of the distance that
can be driven before refueling. The dte is
constantly being calculated, based on the
amount of fuel in the fuel tank and the actual
fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen. When the fuel level drops even lower, the
dte display will change to “——”.
.
If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may con-
tinue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
8. Engine coolant temperature
gauge
This gauge indicates the temperature of the
engine coolant. If the engine is overheated,
the high temperature warning will appear.
The engine coolant temperature varies with
the outside air temperature and driving
conditions.
CAUTION
If the engine is overheated, continued
operation of the vehicle may seriously
damage the engine. See “If your vehicle
overheats” (P.6-8) for immediate action
required.
9. Navigation (if so equipped)
When the route guidance is set in the
navigation system, this item shows the
navigation route information.
For more details, see the Infiniti InTouch
Owner’s Manual.
10. Audio
The audio mode shows the status of audio
information.
For more details, see the Infiniti InTouch
Owner’s Manual.
11. Driving aids
The driving aids mode shows the operating
condition for the following systems.
. Lane Departure Warning (LDW)
. Lane Departure Prevention (LDP)
. Blind Spot Warning (BSW)
. Blind Spot Intervention
®(BSI)
. Distance Control Assist (DCA)
. Forward Emergency Braking (FEB)
. Predictive Forward Collision Warning
(PFCW)
For more details, see “Lane Departure
Warning (LDW)/Lane Departure Prevention
(LDP)” (P.5-32), “Blind Spot Warning
(BSW)” (P.5-39), “Blind Spot Intervention
®
(BSI)” (P.5-47), “Distance Control Assist
(DCA)” (P.5-93), “Forward Emergency Brak-
Instruments and controls2-29

9-6Maintenance and schedules
CHASSIS AND BODY MAINTE-
NANCE
Brake lines and cables:
Visually inspect for proper installation.
Check for chafing, cracks, deterioration,
and signs of leaking. Replace any deterio-
rated or damaged parts immediately.
Brake pads, rotors, drums and linings:
Check for wear, deterioration and fluid
leaks. Replace any deteriorated or damaged
parts immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler
and hangers for leaks, cracks, deterioration,
and damage. Tighten connections or replace
parts as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
replace the filter more frequently.
Propeller shaft(s):
Check for damage, looseness, and grease
leakage. (4WD/AWD/RWD)
Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:
Check for damage, looseness, and leakage
of oil or grease. Under severe driving condi-
tions, inspect more frequently.Tire rotation:
Tires should be rotated every 5,000 miles
(8,000 km) according to the instructions
under “Explanation of general maintenance
items” (P.9-2). When rotating tires, check for
damage and uneven wear. Replace if neces-
sary.
Transmission fluid/oil, differential oil and
transfer case oil:
Visually inspect for signs of leakage at
specified intervals.
To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles
(192,000 km)/144 months. For most peo-
ple, the odometer reading will indicate when
service is needed. However, if you drive very
little, your vehicle should be serviced at the
regular time intervals shown in the schedule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe
operating conditions
should be performed
on vehicles that are driven under especially
demanding conditions. Additional mainte-
nance items should be performed if you
primarily operate your vehicle under the
following conditions:
. Repeated short trips of less than 5 miles
(8 km).
. Repeated short trips of less than 10 miles
(16 km) with outside temperatures re-
maining below freezing.
MAINTENANCE SCHEDULES

11-2
Precautions on child restraints .................. 1-18
Child safety ............................................................ 1-16
Child safety rear door lock .................................. 3-6
Chimes Audible reminders .......................................... 2-17
Seat belt warning light and chime ............ 2-14
Circuit breaker
Fusible link ...................................................... 8-20
Cleaning exterior and interior .................... 7-2, 7-5
Clock ........................................................................\
2-30
Coat hooks ............................................................ 2-51
Cockpit ...................................................................... 2-3
Cold weather driving ........................................ 5-135
Console box ........................................................... 2-50
Coolant Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................... 8-7
Checking engine coolant level ...................... 8-6
Corrosion protection ............................................. 7-8
Courtesy light ....................................................... 2-59
Cruise control ....................................................... 5-70 Fixed speed cruise control (on
ICC system) ..................................................... 5-89
Intelligent Cruise Control (ICC) ................. 5-72
Cruise indicator .................................................... 2-23
Cup holders ........................................................... 2-47
Current fuel consumption ................................. 2-28D
Daytime running light system .......................... 2-40
Defroster switch Rear window and outside mirror
defroster switch ............................................. 2-36
Dimensions ............................................................ 10-9
Direct Adaptive Steering ................................. 5-126
Direct Response Hybrid
®System warning
light (hybrid system warning light) .................. 2-11
Distance Control Assist (DCA) ........................ 5-93
Distance to empty ............................................... 2-29
Drive positioner .................................................... 3-30
Driver assist system indicator .......................... 2-24
Driving Cold weather driving .................................. 5-135
Driving with automatic transmission ....... 5-15
Precautions when starting and driving ..... 5-4
Driving aids ............................................................ 2-29
E
ECO drive indicator light ................................... 2-15
ECO mode ............................................................. 5-21
ECO pedal system ............................................... 5-22
Economy Fuel .................................................................. 5-122
Efficient use of your vehicle ...... Hybrid System-8
Elapsed time ......................................................... 2-29
Elapsed time and trip odometer ..................... 2-29
Emergency shut-off system ...... Hybrid System-4
Emission control information label ............... 10-11 Emission control system maintenance ............ 9-8
Emission control system warranty ............... 10-19
Energy flow .................................... Hybrid System-6
Energy monitor .................................................... 2-27
Energy monitors ........................... Hybrid System-5
engine
Break-in schedule ........................................ 5-121
Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................... 8-7
Changing engine oil and oil filter ............. 8-10
Checking engine coolant level ...................... 8-6
Checking engine oil level ............................... 8-9
Emergency hybrid system shut off .......... 5-13
Engine block heater ................................... 5-136
Engine compartment check locations ........ 8-3
Engine cooling system ................................... 8-5
Engine oil ........................................................... 8-9
Engine oil and filter
replacement indicator ................................... 2-25
Engine oil and oil
filter recommendation .................................. 10-6
Engine oil viscosity ........................................ 10-7
Engine serial number .................................. 10-11
Engine specifications ................................... 10-8
If your vehicle overheats ............................... 6-8
Remote engine start indicator ................... 2-21
Engine coolant temperature gauge ................ 2-29
Entry/exit function Automatic drive positioner ........................ 3-30

EV mode odometer and twin
trip odometer ........................................................ 2-27
Event Data Recorders (EDR) ......................... 10-21
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5
F
F.M.V.S.S./C.M.V.S.S. certification label .... 10-11
FilterAir cleaner housing filter ............................. 8-16
Changing engine oil and oil filter ............. 8-10
Flashers (See hazard warning
flasher switch) ......................................................... 6-2
Flat tire ...................................................................... 6-3
Flat Tire - Visit dealer warning ....................... 2-22
Flat towing ......................................................... 10-18
Floor mat cleaning ................................................. 7-6
Floor mat installation ............................................ 7-7
Fluid Automatic Transmission Fluid (ATF) ....... 8-12
Brake fluid ....................................................... 8-12
Capacities and
recommended fluids/lubricants ................. 10-2
Engine coolant .................................................. 8-5
Engine oil ........................................................... 8-9
Window washer fluid ................................... 8-13
Fog light switch ................................................... 2-43
Forward Emergency Braking (FEB) ............ 5-104
Forward Emergency Braking (FEB) system
warning light .......................................................... 2-11 Front passenger air bag and status light ..... 1-45
Front power seat adjustment ............................. 1-3
Front seat
Front seat adjustment .................................... 1-3
Fuel Capacities and
recommended fluids/lubricants ................. 10-2
Fuel economy ............................................... 5-122
Fuel octane rating ........................................ 10-4
Fuel recommendation .................................. 10-4
Fuel-filler cap .................................................. 3-24
Fuel-filler door ............................................... 3-24
Gauge ................................................................... 2-7
Fuel economy history .................. Hybrid System-7
Fuel Efficient Driving Tips .............................. 5-121
Fuses ....................................................................... 8-19
Fusible links ........................................................... 8-20
G
Garage door opener HomeLink®Universal Transceiver ............ 2-59
Gas cap ................................................................... 3-24
Gauge ........................................................................\
. 2-5 Engine coolant temperature gauge .......... 2-29
Fuel gauge .......................................................... 2-7
Odometer ........................................................... 2-6
Speedometer ..................................................... 2-6
Tachometer ........................................................ 2-7
Trip computer ................................................. 2-27
General maintenance ............................................. 9-2
Glove box ............................................................... 2-49
H
Hazard warning flasher switch ........................... 6-2
Head restraints/headrests .................................. 1-5
Headlights
Aiming control (See Adaptive Front
lighting System (AFS)) ................................. 2-41
Headlight switch ............................................ 2-36
Heated seats ......................................................... 2-44
Heated steering wheel ....................................... 2-45
Heater Engine block heater ................................... 5-136
High beam assist ................................................. 2-38
High temperature warning ............................... 2-22
High voltage cautions ................. Hybrid System-2
High voltage components ....... Hybrid System-10
Hill start assist system ..................................... 5-134
HomeLink
®Universal Transceiver .................. 2-59
Hood release ......................................................... 3-21
Hook Coat hooks ...................................................... 2-51
Trunk hooks .................................................... 2-51
Horn ........................................................................\
. 2-43
Hybrid system over heat warning .................. 2-22
Hybrid system start operation indicator ....... 2-20
Hybrid
vehicle characteristics ............... Hybrid System-11
Hybrid vehicle precautions ...... Hybrid System-10
11-3
