0-8Illustrated table of contents
JVC0969X
1. Paddle shifter (if so equipped) (P.5-18)
2. Meters and gauges (P.2-6)
— Clock (P.2-31)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-2)
5. Automatic climate control system*6. Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
7. Lower touch screen display* (lower
display)
8. Rear window and outside mirror
defroster switch (P.2-37)9. Front passenger supplemental air bag
(P.1-38)
10. Hood release handle (P.3-22)
11. Fuse box cover (P.8-23)
12. Parking brake (P.5-21)
13. Storage box (P.2-51) and power outlet
(P.2-47)
14. Seat heater switch (if so equipped)
(P.2-45)
15. Audio system*
16. Trunk release power cancel switch
(P.3-24)
17. Glove box (P.2-50)
*: Refer to the Infiniti InTouch Owner’s
Manual.
INSTRUMENT PANEL

JVC0428X
1. Tachometer (P.2-8)
2. Warning and indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge
(P.2-8)5. Vehicle information display (P.2-21)/
Odometer/twin trip odometer (P.2-7)
6. Fuel gauge (P.2-9)
Illustrated table of contents0-9
METERS AND GAUGES

SSS1016

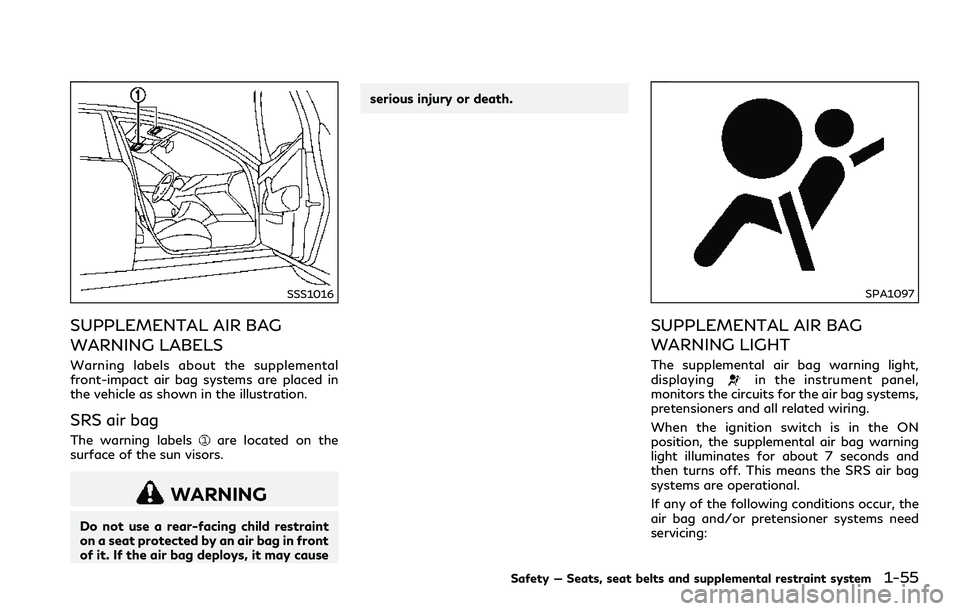

SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bag
The warning labelsare located on the
surface of the sun visors.
WARNING
Do not use a rear-facing child restraint
on a seat protected by an air bag in front
of it. If the air bag deploys, it may causeserious injury or death.
SPA1097
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displayingin the instrument panel,
monitors the circuits for the air bag systems,
pretensioners and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.
If any of the following conditions occur, the
air bag and/or pretensioner systems need
servicing:
Safety — Seats, seat belts and supplemental restraint system1-55

2 Instruments and controls
Cockpit.................................................................................. 2-3
Instrument panel ................................................................ 2-5
Meters and gauges............................................................ 2-6
Speedometer and odometer....................................... 2-7
Tachometer .................................................................... 2-8
Engine coolant temperature gauge......................... 2-8
Fuel gauge...................................................................... 2-9
Compass (if so equipped)................................................. 2-9
Zone variation change procedure.......................... 2-11
Warning lights, indicator lights and
audible reminders............................................................. 2-12
Checking lights............................................................ 2-12
Warning lights ............................................................. 2-12
Indicator lights............................................................. 2-18
Audible reminders....................................................... 2-20
Vehicle information display........................................... 2-21
Indicators for operation............................................ 2-23
Indicators for maintenance...................................... 2-27
Trip computer.............................................................. 2-29
Clock and outside air temperature........................ 2-31
Security systems............................................................... 2-32
Vehicle Security System ........................................... 2-32
INFINITI Vehicle Immobilizer System................... 2-33Wiper and washer switch ............................................. 2-35
Rain-sensing auto wiper system (if
so equipped)............................................................... 2-36
Rear window and outside mirror
defroster switch............................................................... 2-37
Headlight and turn signal switch................................ 2-38
Headlight switch....................................................... 2-38
Turn signal switch .................................................... 2-43
Fog light switch ....................................................... 2-44
Horn ................................................................................... 2-44
Vehicle Dynamic Control (VDC) OFF switch .......... 2-45
Heated seats (if so equipped)...................................... 2-45
Operation with switch ............................................ 2-46
Operation with touch screen ................................ 2-46
AUTO mode setting................................................. 2-46
Heated steering wheel (if so equipped) .................... 2-47
Power outlets................................................................... 2-47
Storage.............................................................................. 2-48
Cup holders ............................................................... 2-48
Soft bottle holder..................................................... 2-49
Sunglasses holder..................................................... 2-49
Glove box................................................................... 2-50
Console box............................................................... 2-50

JVC0969X
1. Paddle shifter (if so equipped) (P.5-18)
2. Meters and gauges (P.2-6)
— Clock (P.2-31)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-2)
5. Automatic climate control system*6. Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
7. Lower touch screen display* (lower
display)
8. Rear window and outside mirror
defroster switch (P.2-37)9. Front passenger supplemental air bag
(P.1-38)
10. Hood release handle (P.3-22)
11. Fuse box cover (P.8-23)
12. Parking brake (P.5-21)
13. Storage box (P.2-51) and power outlet
(P.2-47)
14. Seat heater switch (if so equipped)
(P.2-45)
15. Audio system*
16. Trunk release power cancel switch
(P.3-24)
17. Glove box (P.2-50)
*: Refer to the Infiniti InTouch Owner’s
Manual.
Instruments and controls2-5
INSTRUMENT PANEL

2-6Instruments and controls
JVC0428X
1. Tachometer* (P.2-8)
2. Warning and indicator lights (P.2-12)
3. Speedometer* (P.2-7)
4. Engine coolant temperature gauge*
(P.2-8)
5. Vehicle information display (P.2-21)/Odometer/twin trip odometer (P.2-7)
6. Fuel gauge* (P.2-9)
*: The needle indicators may move slightly
after the ignition switch is placed in the
OFF position. This is not a malfunction.
CAUTION
.For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
.Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the system to malfunction.
METERS AND GAUGES

JVI0636X
Speedometer
SPEEDOMETER AND OD-
OMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).
JVI0637X
Odometer/twin trip odometer
Odometer/twin trip odometer
The odometerand twin trip odometerare displayed in the vehicle information
display when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.Changing the display:
Pushing the TRIP RESET switch
under the
combination meter panel changes the dis-
play as follows:
TRIP A?TRIP B?TRIP A
Resetting the trip odometer:
Pushing the TRIP RESET switch
for more
than 1 second resets the trip odometer to
zero.
Instruments and controls2-7

JVI0640X
FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.
The gauge needle returns to “0” (Empty)
after the ignition switch is placed in the OFF
position.
Refill the fuel tank before the gauge
registers “0” (Empty).
The low fuel warning light
illuminates on
the meter when the fuel level is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches “0”. There will be asmall reserve of fuel in the tank when the
fuel gauge needle reaches “0”.
The
indicates that the fuel-filler door is
located on the right side of the vehicle.
CAUTION
.If the vehicle runs out of fuel, themalfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light should turn off. If the light
remains on after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.
.For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-
19).
SIC3181
When the ignition switch is pushed to the
ON position, the compass displaywill
indicate the direction of the vehicle’s head-
ing.
If the display reads “C”, calibrate the com-
pass by driving the vehicle in 3 complete
circles at less than 5 MPH (8 km/h). You can
also calibrate the compass by driving your
Instruments and controls2-9
COMPASS (if so equipped)

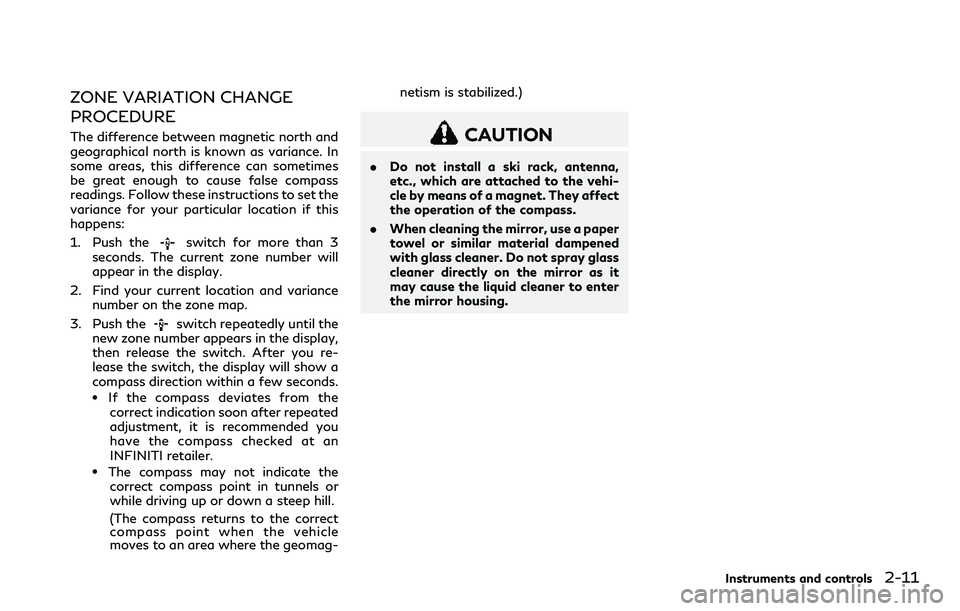

ZONE VARIATION CHANGE
PROCEDURE
The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes
be great enough to cause false compass
readings. Follow these instructions to set the
variance for your particular location if this
happens:
1. Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance
number on the zone map.
3. Push the
switch repeatedly until the
new zone number appears in the display,
then release the switch. After you re-
lease the switch, the display will show a
compass direction within a few seconds.
.If the compass deviates from the
correct indication soon after repeated
adjustment, it is recommended you
have the compass checked at an
INFINITI retailer.
.The compass may not indicate the
correct compass point in tunnels or
while driving up or down a steep hill.
(The compass returns to the correct
compass point when the vehicle
moves to an area where the geomag-netism is stabilized.)
CAUTION
.Do not install a ski rack, antenna,
etc., which are attached to the vehi-
cle by means of a magnet. They affect
the operation of the compass.
.When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it
may cause the liquid cleaner to enter
the mirror housing.
Instruments and controls2-11

2-12Instruments and controls
Anti-lock Braking System (ABS) warning
lightPower steering warning lightHigh beam assist indicator light (if so
equipped)
Brake warning lightSeat belt warning light and chimeHigh beam indicator light
Supplemental air bag warning lightIdling Stop System indicator light (if so
equipped)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightMalfunction Indicator Light (MIL)
Forward Emergency Braking (FEB) sys-
tem warning light (if so equipped)ECO drive indicator light (if so equipped)Security indicator light
Low fuel warning lightExterior light indicatorTurn signal/hazard indicator lights
Low tire pressure warning lightFront fog light indicator lightVehicle Dynamic Control (VDC) off in-
dicator light
Master warning lightFront passenger air bag status light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:
,or,,,
The following lights (if so equipped) will
come on briefly and then go off:
,or,,,,
If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-tion. It is recommended you have the system
checked by an INFINITI retailer.
Some indicators and warnings are also
displayed in the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” (P.2-21).)
WARNING LIGHTS
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
