Page 13 of 466
0-6Illustrated table of contents
JVC0942X
1. Side ventilator (P.4-2)
2. Headlight, fog light and turn signal
switch (P.2-38)
3. Steering wheel
— Horn (P.2-44)
— Driver supplemental air bag (P.1-38)— Heated steering wheel (if so
equipped) (P.2-47)
— Power steering (P.5-129)
4. Windshield wiper and washer switch
(P.2-35)
5. Hazard warning flasher switch (P.6-2)6. Shift lever (P.5-16)
7. INFINITI controller*
8. Vehicle Dynamic Control (VDC) OFF
switch (P.2-45, P.5-134)
9. Idling Stop OFF switch (if so equipped)
(P.5-139)
10. Trunk lid release switch (P.3-23)
11. Instrument brightness control switch
(P.2-43)
12. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
13. Electric tilting/telescopic steering
wheel switch (if so equipped) (P.3-27)
14. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-27)
15. Steering-wheel-mounted controls (left
side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*
16. Steering-wheel-mounted controls
(right side)
— Trip computer switches (P.2-29)
— Cruise control switches (if so
equipped) (P.5-71)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-73)
— Dynamic driver assistance switch (if
so equipped) (P. 5-26, P.5-34, P.5-49,
COCKPIT
Page 18 of 466
JVC0646X
2.0L TURBO GASOLINE ENGINE
1. Fuse and fusible link holder (P.8-23)
2. Main battery* (P.8-16)
3. Engine oil filler cap (P.8-11)
4. Brake fluid reservoir (P.8-14)
5. Engine coolant reservoir (P.8-8)6. Fuse and fusible link holder (P.8-23)
7. Engine oil dipstick (P.8-11)
8. Engine drive belt location (P.8-20)
9. Power steering fluid reservoir (if so
equipped) (P.5-129)
10. Window washer fluid reservoir (P.8-15)*: The auxiliary battery is located in the
trunk. (See “Auxiliary battery location
(for 2.0L turbo gasoline engine mod-
els)” (P.8-17).)
Illustrated table of contents0-11
Page 19 of 466
0-12Illustrated table of contents
Warning
lightName Page
Anti-lock Braking System
(ABS) warning light2-12
Brake warning light 2-13
Charge warning light 2-13
Forward Emergency Braking
(FEB) system warning light (if
so equipped)2-13
Low fuel warning light 2-14
Low tire pressure warning
light2-14
Master warning light 2-16
Power steering warning light 2-16
Seat belt warning light 2-17
Supplemental air bag warn-
ing light2-17
Vehicle Dynamic Control
(VDC) warning light2-17Indicator
lightName Page
ECO drive indicator light (if
so equipped)2-18
Exterior light indicator 2-18
Front fog light indicator light 2-18
Front passenger air bag sta-
tus light2-18
High beam assist indicator
light (if so equipped)2-18
High beam indicator light 2-18
Idling Stop System indicator
light (if so equipped)2-18
Malfunction Indicator Light
(MIL)2-19
Security indicator light 2-19
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control
(VDC) off indicator light2-20
WARNING AND INDICATOR LIGHTS
Page 32 of 466

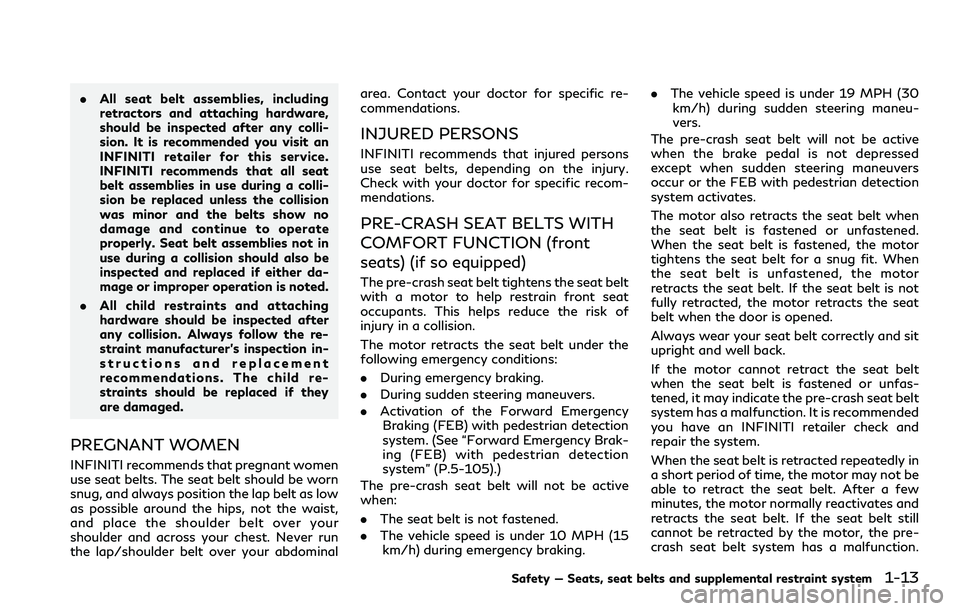

.All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion. It is recommended you visit an
INFINITI retailer for this service.
INFINITI recommends that all seat
belt assemblies in use during a colli-
sion be replaced unless the collision
was minor and the belts show no
damage and continue to operate
properly. Seat belt assemblies not in
use during a collision should also be
inspected and replaced if either da-
mage or improper operation is noted.
.All child restraints and attaching
hardware should be inspected after
any collision. Always follow the re-
straint manufacturer’s inspection in-
structions and replacement
recommendations. The child re-
straints should be replaced if they
are damaged.
PREGNANT WOMEN
INFINITI recommends that pregnant women
use seat belts. The seat belt should be worn
snug, and always position the lap belt as low
as possible around the hips, not the waist,
and place the shoulder belt over your
shoulder and across your chest. Never run
the lap/shoulder belt over your abdominalarea. Contact your doctor for specific re-
commendations.
INJURED PERSONS
INFINITI recommends that injured persons
use seat belts, depending on the injury.
Check with your doctor for specific recom-
mendations.
PRE-CRASH SEAT BELTS WITH
COMFORT FUNCTION (front
seats) (if so equipped)
The pre-crash seat belt tightens the seat belt
with a motor to help restrain front seat
occupants. This helps reduce the risk of
injury in a collision.
The motor retracts the seat belt under the
following emergency conditions:
.During emergency braking.
.During sudden steering maneuvers.
.Activation of the Forward Emergency
Braking (FEB) with pedestrian detection
system. (See “Forward Emergency Brak-
ing (FEB) with pedestrian detection
system” (P.5-105).)
The pre-crash seat belt will not be active
when:
.The seat belt is not fastened.
.The vehicle speed is under 10 MPH (15
km/h) during emergency braking..The vehicle speed is under 19 MPH (30
km/h) during sudden steering maneu-
vers.
The pre-crash seat belt will not be active
when the brake pedal is not depressed
except when sudden steering maneuvers
occur or the FEB with pedestrian detection
system activates.
The motor also retracts the seat belt when
the seat belt is fastened or unfastened.
When the seat belt is fastened, the motor
tightens the seat belt for a snug fit. When
the seat belt is unfastened, the motor
retracts the seat belt. If the seat belt is not
fully retracted, the motor retracts the seat
belt when the door is opened.
Always wear your seat belt correctly and sit
upright and well back.
If the motor cannot retract the seat belt
when the seat belt is fastened or unfas-
tened, it may indicate the pre-crash seat belt
system has a malfunction. It is recommended
you have an INFINITI retailer check and
repair the system.
When the seat belt is retracted repeatedly in
a short period of time, the motor may not be
able to retract the seat belt. After a few
minutes, the motor normally reactivates and
retracts the seat belt. If the seat belt still
cannot be retracted by the motor, the pre-
crash seat belt system has a malfunction.
Safety — Seats, seat belts and supplemental restraint system1-13
Page 57 of 466
1-38Safety — Seats, seat belts and supplemental restraint system
JVR0192X
7. If the booster seat is installed in the front
passenger seat, place the ignition switch
in the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
See “Front passenger air bag and status
light” (P.1-46).
PRECAUTIONS ON SUPPLE-
MENTAL RESTRAINT SYSTEM
This Supplemental Restraint System (SRS)
section contains important information con-
cerning the following systems:
.Driver and passenger front-impact sup-
plemental air bags (INFINITI Advanced
Air Bag System)
.Front seat-mounted side-impact supple-
mental air bag
.Roof-mounted curtain side-impact and
rollover supplemental air bag
.Seat belt with pretensioner
Supplemental front-impact air bag system:
The INFINITI Advanced Air Bag System can
help cushion the impact force to the head
and chest of the driver and front passenger
in certain frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system:This system can help
cushion the impact force to the chest and
pelvis area of the driver and front passenger
in certain side impact collisions. The side air
bag is designed to inflate on the side where
the vehicle is impacted.
Roof-mounted curtain side-impact and roll-
over supplemental air bag system:This
system can help cushion the impact force
to the head of occupants in front and rear
outboard seating positions in certain sideimpact or rollover collisions. In a side impact,
the curtain air bags are designed to inflate
on the side where the vehicle is impacted. In
a rollover, curtain air bags on both sides are
designed to inflate and remain inflated for a
short time.
Curtain air bags are also designed to inflate
in certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments may cause the curtain air bags to
inflate.
These supplemental restraint systems are
designed tosupplementthe crash protection
provided by the driver and passenger seat
belts and arenot a substitutefor them. Seat
belts should always be correctly worn and
the occupant seated a suitable distance
away from the steering wheel, instrument
panel and door finishers. (See “Seat belts”
(P.1-11) for instructions and precautions on
seat belt usage.)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
SUPPLEMENTAL RESTRAINT SYSTEM
Page 58 of 466
SSS0131B
SSS0132B
WARNING
.The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower sever-
ity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.
.The front passenger air bag will not
inflate if the passenger air bag status
light is lit. See “Front passenger air
bag and status light” (P.1-46).
.The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat with both feet on the floor. The
front air bags inflate with great
force. Even with the INFINITI Ad-
vanced Air Bag System, if you are
unrestrained, leaning forward, sitting
sideways or out of position in any
way, you are at greater risk of injury
or death in a crash. You may also
receive serious or fatal injuries from
the front air bag if you are up against
it when it inflates. Always sit back
against the seatback and as far-away
as practical from the steering wheel
or instrument panel. Always use the
seat belts.
Safety — Seats, seat belts and supplemental restraint system1-39
Page 59 of 466
1-40Safety — Seats, seat belts and supplemental restraint system
.The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags as needed. Fail-
ure to properly wear seat belts can
increase the risk or severity of injury
in an accident.
.The front passenger seat is equipped
with occupant classification sensors
(weight sensors) that turn the front
passenger air bag OFF under some
conditions. These sensors are only
used in this seat. Failure to be
properly seated and wearing the seat
belt can increase the risk or severity
of injury in an accident. See “Front
passenger air bag and status light”
(P.1-46).
.Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk of injury if the front air bag
inflates.
SSS0007
SSS0006
SSS0008
SSS0009
Page 64 of 466
.Make sure that there is no object
placed between the seat cushion and
center console or between the seat
cushion and the door.
.Confirm the operating condition with
the front passenger air bag status
light.
.Be sure that the front passenger seat
does not contact the rear seat, in-
strument panel, etc., or the head
restraint does not contact the roof.
.If you notice that the front passenger
air bag status light is not operating
as described in this section, it is
recommended you visit an INFINITI
retailer to check the passenger seat
Advanced Air Bag System.
.Until you have confirmed with a
retailer that your passenger seat
Advanced Air Bag System is working
properly, position the occupants in
the rear seating positions.
.Do not position the front passenger
seat so it contacts the rear seat. If the
front seat does contact the rear seat,
the air bag system may determine a
sensor malfunction has occurred and
the front passenger air bag status
light may illuminate and the supple-
mental air bag warning light mayflash.
This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements
under U.S. regulations. It is also permitted in
Canada.All of the information, cautions and
warnings in this manual apply and must be
followed.
The driver supplemental front-impact air
bag is located in the center of the steering
wheel. The front passenger supplemental
front-impact air bag is mounted in the
instrument panel above the glove box. The
front air bags are designed to inflate in
higher severity frontal collisions, although
they may inflate if the forces in another type
of collision are similar to those of a higher
severity frontal impact. They may not inflate
in certain frontal collisions. Vehicle damage
(or lack of it) is not always an indication of
proper front air bag operation.
The INFINITI Advanced Air Bag System has
dual stage air bag inflators. The system
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), seat
belt buckle switches and the occupant
classification sensors (weight sensors). In-
flator operation is based on the severity of a
collision and seat belt usage for the driver.For the front passenger, the occupant
classification sensors are also monitored.
Based on information from the sensors, only
one front air bag may inflate in a crash,
depending on the crash severity and whether
the front occupants are belted or unbelted.
Additionally, the front passenger air bag
may be automatically turned OFF under
some conditions, depending on the informa-
tion provided by the occupant classification
sensors. If the front passenger air bag is
OFF, the front passenger air bag status light
will be illuminated. (See “Front passenger air
bag and status light” (P.1-46) for further
details.) One front air bag inflating does not
indicate improper performance of the sys-
tem.
If you have any questions about your air bag
system, it is recommended you visit an
INFINITI retailer to obtain information
about the system. If you are considering
modification of your vehicle due to a dis-
ability, you may also contact an INFINITI
retailer. Contact information is contained in
the front of this Owner’s Manual.
When a front air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken not
to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Safety — Seats, seat belts and supplemental restraint system1-45
Page 65 of 466
1-46Safety — Seats, seat belts and supplemental restraint system
Front air bags, along with the use of seat
belts, help to cushion the impact force on the
head and chest of the front occupants. They
can help save lives and reduce serious
injuries. However, an inflating front air bag
may cause facial abrasions or other injuries.
Front air bags do not provide restraint to the
lower body.
Even with INFINITI advanced air bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as
practical away from the steering wheel or
instrument panel. The front air bags inflate
quickly in order to help protect the front
occupants. Because of this, the force of the
front air bag inflating can increase the risk of
injury if the occupant is too close to, or is
against, the air bag module during inflation.
The front air bags deflate quickly after a
collision.
The front air bags operate only when the
ignition switch is in the ON position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
JVR0192X
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed
to automatically turn OFF under some
conditions. Read this section carefully to
learn how it operates. Proper use of the
seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats, seat
belts and child restraints can increase
the risk or severity of injury in anaccident.
Page 70 of 466
possible.
Other supplemental front-impact
air bag precautions
WARNING
.Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the front air bags inflate.
.Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat.
Such objects can damage the seat or
occupant classification sensors
(weight sensors). This can affect the
operation of the air bag system and
result in serious personal injury.
.Do not use water or acidic cleaners
(hot steam cleaners) on the seat. This
can damage the seat or occupant
classification sensors. This can also
affect the operation of the air bag
system and result in serious personal
injury..Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.
.No unauthorized changes should be
made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supple-
mental air bag or damage to the
supplemental air bag system.
.Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end struc-
ture. This could affect proper opera-
tion of the front air bag system.
.Tampering with the air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and
above the instrument panel or by
installing additional trim material
around the air bag system.
.Removing or modifying the front
passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.
.Modifying or tampering with the
front passenger seat may result in
serious personal injury. For example,do not change the front seats by
placing material on the seat cushion
or by installing additional trim mate-
rial, such as seat covers, on the seat
that is not specifically designed to
assure proper air bag operation.
Additionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica-
tion sensors.
.No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result
in serious personal injury.
.It is recommended you visit an
INFINITI retailer for work on and
around the front air bag. It is also
recommended you visit an INFINITI
retailer for installation of electrical
equipment. The Supplemental Re-
straint System (SRS) wiring har-
nesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag
system.
Safety — Seats, seat belts and supplemental restraint system1-51
