3-32Pre-driving checks and adjustments
JVP0246X
Adjusting outside mirrors
The outside mirror control switch is located
on the driver’s armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Move the switch
right or left to select the
right or left side mirror, then adjust using the
control switch
.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.
If the engine is started using the remote start
function (if so equipped) when the outside air temperature, the interior temperature
and the engine coolant temperature are
low, the rear window glass and outside
mirror defroster may turn on automatically.
For additional information about the remote
engine start function, see “Remote engine
start” (P.3-20).
SPA1829
Foldable outside mirrors
Fold the outside mirror by pushing it toward
the rear of the vehicle.
Reverse tilt-down feature (if so
equipped)
When backing up the vehicle, the right and
left outside mirrors will turn downward
automatically to provide better rear visibility.
1. Push the ignition switch to the ON
position.
2. Move the shift lever to the R (Reverse) position.
3. Select the right or left side mirror by operating the outside mirror control

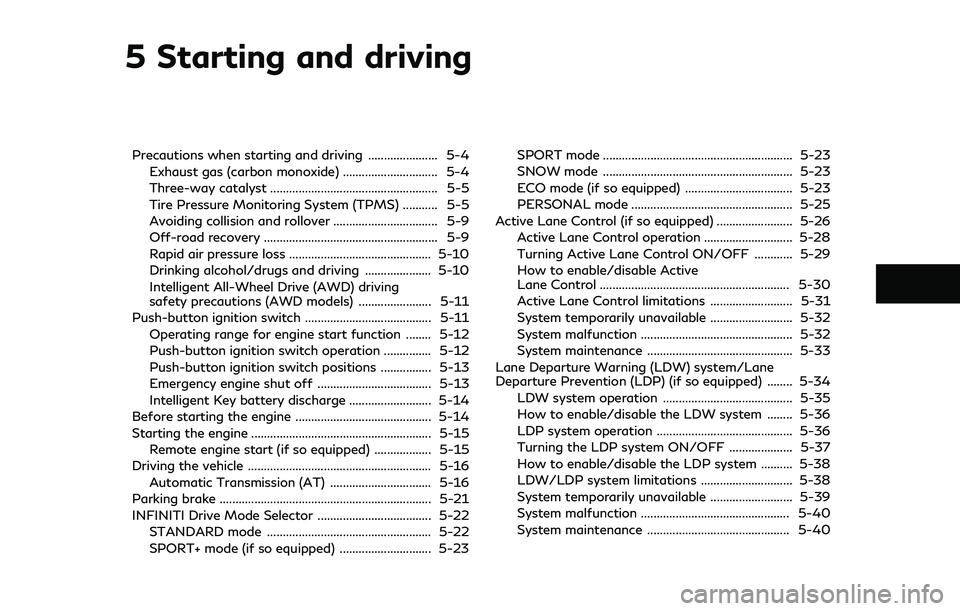

5 Starting and driving
Precautions when starting and driving ...................... 5-4Exhaust gas (carbon monoxide) .............................. 5-4
Three-way catalyst ..................................................... 5-5
Tire Pressure Monitoring System (TPMS) ........... 5-5
Avoiding collision and rollover ................................. 5-9
Off-road recovery ....................................................... 5-9
Rapid air pressure loss ............................................. 5-10
Drinking alcohol/drugs and driving ..................... 5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (AWD models) ....................... 5-11
Push-button ignition switch ........................................ 5-11 Operating range for engine start function ........ 5-12
Push-button ignition switch operation ............... 5-12
Push-button ignition switch positions ................ 5-13
Emergency engine shut off .................................... 5-13
Intelligent Key battery discharge .......................... 5-14
Before starting the engine ........................................... 5-14
Starting the engine ......................................................... 5-15 Remote engine start (if so equipped) .................. 5-15
Driving the vehicle .......................................................... 5-16
Automatic Transmission (AT) ................................ 5-16
Parking brake ................................................................... 5-21
INFINITI Drive Mode Selector .................................... 5-22
STANDARD mode .................................................... 5-22
SPORT+ mode (if so equipped) ............................. 5-23 SPORT mode ............................................................ 5-23
SNOW mode ............................................................ 5-23
ECO mode (if so equipped) .................................. 5-23
PERSONAL mode ................................................... 5-25
Active Lane Control (if so equipped) ........................ 5-26 Active Lane Control operation ............................ 5-28
Turning Active Lane Control ON/OFF ............ 5-29
How to enable/disable Active
Lane Control ............................................................ 5-30
Active Lane Control limitations .......................... 5-31
System temporarily unavailable .......................... 5-32
System malfunction ................................................ 5-32
System maintenance .............................................. 5-33
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) (if so equipped) ........ 5-34 LDW system operation ......................................... 5-35
How to enable/disable the LDW system ........ 5-36
LDP system operation ........................................... 5-36
Turning the LDP system ON/OFF .................... 5-37
How to enable/disable the LDP system .......... 5-38
LDW/LDP system limitations ............................. 5-38
System temporarily unavailable .......................... 5-39
System malfunction ............................................... 5-40
System maintenance ............................................. 5-40

1. Apply the parking brake.
2. Move the shift lever to the P (Park) or N(Neutral) position. (P is recommended.)
The starter is designed not to operate
unless the shift lever is in either of the
above positions.
3. Push the ignition switch to the ON position. Firmly depress the brake pedal
and push the ignition switch to start the
engine.
To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal with the
ignition switch in any position.
.If the engine is very hard to start inextremely cold weather or when re-
starting, depress the accelerator ped-
al a little (approximately 1/3 to the
floor) and while holding, crank the
engine. Release the accelerator pedal
when the engine starts.
.If the engine is very hard to start
because it is flooded, depress the
accelerator pedal all the way to the
floor and hold it. Push the ignition
switch to the ON position to start
cranking the engine. After 5 or 6
seconds, stop cranking by pushing
the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine withyour foot off the accelerator pedal
by
depressing the brake pedal and push-
ing the push-button ignition switch to
start the engine. If the engine starts,
but fails to run, repeat the above
procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, push the ignition switch to
OFF and wait 10 seconds before crank-
ing again, otherwise the starter could be
damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 - 3 minutes before shut-
ting it off. Starting and stopping the
engine over a short period of time may
make the vehicle more difficult to start.
When racing the engine up to 4,500 rpm
or more under no load condition, the
engine will enter the fuel cut mode. 5. To stop the engine, shift the shift lever to
the P (Park) position and push the
ignition switch to the OFF position.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
REMOTE ENGINE START (if so
equipped)
Vehicles started with the remote engine
start function require the ignition switch to
be placed in the ON position before the shift
lever can be moved from the P (Park)
position. To place the ignition switch in the
ON position, perform the following steps:
1. Make sure that the Intelligent Key is on you.
2. Depress the brake pedal.
3. Push the ignition switch once to the ON position.
Starting and driving5-15
STARTING THE ENGINE

5-16Starting and driving
For additional information about the remote
engine start function, see “Remote engine
start” (P.3-20).AUTOMATIC TRANSMISSION
(AT)
The Automatic Transmission (AT) in your
vehicle is electronically controlled by a
transmission control module to produce
maximum efficiency and smooth operation.
Shown on the following pages are the
recommended operating procedures for this
transmission. Follow these procedures for
maximum vehicle performance and driving
enjoyment.
Starting the vehicle
After starting the engine, fully depress the
foot brake pedal and push the shift lever
button before shifting the shift lever to the R
(Reverse), N (Neutral), D (Drive) or Manual
shift mode position. Be sure the vehicle is
fully stopped before attempting to shift the
shift lever.
This Automatic Transmission (AT) model is
designed so that the foot brake pedal must
be depressed before shifting from P (Park)
to any drive position while the ignition
switch is in the ON position.
The shift lever cannot be moved out of the P
(Park) position and into any of the other
gear positions if the ignition switch is placed
in the LOCK, OFF or ACC position.1. Keep the foot brake pedal depressed and
push the shift lever button to shift into a
driving gear.
2. Release the parking brake and foot brake, then gradually start the vehicle in
motion.
WARNING
.Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse), D (Drive) or
manual shift mode. Always depress
the brake pedal until shifting is
completed. Failure to do so could
cause you to lose control and have
an accident.
. Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.
. Never shift to either P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is
moving reversing. This could cause an
accident or damage the transmission.
. Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.
DRIVING THE VEHICLE

11-2
Circuit breakerFusible link ....................................................... 8-25
Cleaning exterior and interior .................... 7-2, 7-5
Clock ...................................................................... 2-31
Coat hooks ............................................................ 2-51
Cockpit ...................................................................... 2-3
Cold weather driving ........................................ 5-143
Compact spare tire ............................................ 8-44
Compass .................................................................... 2-9
Console box ........................................................... 2-50
Coolant Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ...................... 8-7, 8-9
Checking engine coolant level ............. 8-7, 8-8
Corrosion protection ............................................. 7-8
Courtesy light ....................................................... 2-59
Cruise control ........................................................ 5-71 Fixed speed cruise control (on
ICC system) .................................................... 5-90
Intelligent Cruise Control (ICC) ................. 5-73
Cruise indicator .................................................... 2-25
Cup holders ........................................................... 2-48
Current fuel consumption ................................. 2-30
D
Daytime running light system .......................... 2-42
Defroster switch
Rear window and outside mirror
defroster switch ............................................. 2-37
Dimensions .......................................................... 10-13 Direct Adaptive Steering ................................ 5-130
Distance Control Assist (DCA) ........................ 5-94
Distance to empty ............................................... 2-29
Drive belts .............................................................. 8-20
Drive positioner .................................................... 3-33
Driver assist system indicator .......................... 2-26
Driving
Cold weather driving ................................. 5-143
Driving with Automatic
Transmission (AT) .......................................... 5-16
Precautions when starting and driving ..... 5-4
E
ECO drive indicator light ................................... 2-18
ECO mode ............................................................. 5-23
ECO pedal system ............................................... 5-23
Economy Fuel .................................................................. 5-125
Elapsed time ......................................................... 2-29
Elapsed time and trip odometer ..................... 2-29
Emergency tire puncture repair kit .................... 6-9
Emission control information label ............... 10-16
Emission control system maintenance ............ 9-8
Emission control system warranty .............. 10-23
Engine Before starting the engine .......................... 5-14
Break-in schedule ....................................... 5-124
Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ...................... 8-7, 8-9
Changing engine oil and filter .................... 8-11 Checking engine coolant level ............. 8-7, 8-8
Checking engine oil level ............................. 8-11
Coolant temperature gauge ......................... 2-8
Emergency engine shut off ......................... 5-13
Engine block heater ................................... 5-144
Engine compartment check locations ........ 8-4
Engine cooling system (2.0L turbo
gasoline engine models) ................................. 8-8
Engine cooling system (VR30DDTT
engine models) ................................................. 8-6
Engine oil ........................................................ 8-10
Engine oil and filter
replacement indicator ................................... 2-27
Engine oil and oil
filter recommendation ................................. 10-8
Engine serial number ................................. 10-15
Engine specifications .................................. 10-11
Engine start operation indicator ............... 2-23
If your vehicle overheats ............................. 6-21
Intercooler cooling system ............................ 8-9
Remote engine start .................................... 3-20
Remote engine start
operation indicator ........................................ 2-23
Starting the engine ....................................... 5-15
Engine coolant temperature gauge .................. 2-8
Event Data Recorders (EDR) ........................ 10-25
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5

11-4
IndicatorLights ................................................................ 2-18
Vehicle information display ........................ 2-20
Indicator lights ...................................................... 2-18
Indicators for operation (vehicle
information display) ............................................ 2-23
INFINITI Drive Mode Selector ......................... 5-22
INFINITI InTouch Owner’s Manual .................. 4-2
INFINITI Vehicle Immobilizer System ............ 2-33 Engine start ..................................................... 2-33
Inside mirror .......................................................... 3-30
Inspection/maintenance (I/M) test ............. 10-24
Instrument brightness control ......................... 2-43
Instrument panel ..................................................... 2-5
Intelligent All-Wheel Drive (AWD) ............... 5-126
Intelligent Cruise Control (ICC) ....................... 5-73
Intelligent Cruise Control (ICC) system
ON indicator ......................................................... 2-26
Intelligent Key .......................................................... 3-2
Intelligent Key system ........................................... 3-6 Battery replacement ..................................... 8-27
Key operating range ....................................... 3-8
Key operation ................................................... 3-9
Warning signals .............................................. 3-13
Intercooler cooling system .................................. 8-9
Interior light control switch .............................. 2-57
Interior light replacement .................................. 8-30
Interior lights ......................................................... 2-57
Interior trunk lid release .................................... 3-25
ISOFIX child restraint .......................................... 1-21J
Jump starting ........................................................ 6-15
K
Keyless entry (See remote keyless
entry system) ........................................................ 3-15
Keys ........................................................................\
.... 3-2
For Intelligent Key system ............................ 3-6
L
LabelsAir bag warning labels ................................. 1-55
Air conditioner specification label ......... 10-16
Emission control information label ........ 10-16
Engine serial number ................................. 10-15
F.M.V.S.S./C.M.V.S.S.
certification label ........................................ 10-15
Tire and Loading
information label ............................. 8-34, 10-16
Vehicle identification number (VIN) ...... 10-14
Lane Departure Warning (LDW) /Lane
Departure Prevention (LDP) ............................ 5-34
LATCH system ...................................................... 1-21
License plate
Installing front license plate ..................... 10-17
Light
Air bag warning light .................................... 1-55
Bulb replacement ........................................... 8-29
Fog light switch ............................................ 2-44 Headlight switch ............................................ 2-38
Indicator lights ................................................ 2-18
Interior light control switch ........................ 2-57
Interior lights ................................................... 2-57
Map lights ........................................................ 2-57
Replacement ................................................... 8-29
Trunk light ....................................................... 2-59
Vanity mirror lights ....................................... 2-58
Warning/indicator lights and
audible reminders .......................................... 2-12
Lights Exterior and interior light replacement ... 8-30
Loading information (See vehicle
loading information) ........................................ 10-18
Lock Automatic door locks ..................................... 3-6
Door locks .......................................................... 3-4
Power door lock ............................................... 3-4
Trunk lid ........................................................... 3-23
Locking with mechanical key ............................. 3-4
Log-in function .................................................... 3-15
Loose Fuel Cap warning ....................... 2-24, 3-28
Low fuel warning light ....................................... 2-14
Low outside temperature warning ................. 2-25
Low tire pressure warning light ...................... 2-14
Low tire pressure warning system (See Tire
Pressure Monitoring
System (TPMS)) ................................ 5-5, 6-3, 8-32

11-6
R
RadioCar phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ..................... 2-36
Rapid air pressure loss ....................................... 5-10
Readiness for inspection/maintenance
(I/M) test (US only) .......................................... 10-24
Rear seats ................................................................. 1-6
Rear window and outside mirror
defroster switch ................................................... 2-37
Recorders Event data .................................................... 10-25
Registering your vehicle in
another country ................................................ 10-14
Remote engine start ........................................... 3-20
Remote keyless entry system .......................... 3-15
Repairing flat tire (with emergency tire
puncture repair kit) ................................................. 6-9
Reporting safety defects ................................ 10-23
Request switch (See Intelligent
Key system) .............................................................. 3-9
Roadside assistance program ............................. 6-2
Rollover ..................................................................... 5-9
Roof Moonroof ......................................................... 2-55
Run-flat tires .......................................................... 6-4
S
Safety
Child seat belts ............................................... 1-17 Reporting safety defects .......................... 10-23
Seat adjustment Front power seat adjustment ....................... 1-3
Front seats ......................................................... 1-3
Seat belt(s) Child safety ..................................................... 1-17
Infants ............................................................... 1-18
Injured persons ............................................... 1-13
Larger children ............................................... 1-18
Precautions on seat belt usage .................. 1-11
Pre-crash seat belts with
comfort function ............................................ 1-13
Pregnant women ........................................... 1-13
Seat belt cleaning ............................................. 7-7
Seat belt extenders ....................................... 1-16
Seat belt maintenance ................................. 1-17
Seat belt warning light and chime ............ 2-17
Seat belts .......................................................... 1-11
Seat belts with pretensioners .................... 1-54
Small children .................................................. 1-18
Three-point type ............................................ 1-14
Seat(s)
Driver-side memory ...................................... 3-33
Heated seats ................................................... 2-46
Seats .................................................................... 1-2
Security system Vehicle security system ................................ 2-32
Security system (INFINITI Vehicle
Immobilizer System)
Engine start ..................................................... 2-33 Shift lever
Shift lock release ........................................... 5-19
Shift lock release, Transmission ...................... 5-19
Shifting
Automatic Transmission (AT) ..................... 5-16
Side ventilators ...................................................... 4-2
SNOW mode ......................................................... 5-23
Spare tire ............................................................. 10-12
Spark plugs ............................................................ 8-21
Speedometer ............................................................ 2-7
SPORT mode ........................................................ 5-23
SPORT+ mode ...................................................... 5-23
Standard maintenance .......................................... 9-7
STANDARD mode ............................................... 5-22
Starting Before starting the engine .......................... 5-14
Jump starting .................................................. 8-19
Precautions when starting and driving ..... 5-4
Push starting ................................................... 6-21
Starting the engine ....................................... 5-15
Status light, Front passenger air bag ............ 1-46
Steering
Direct Adaptive Steering .......................... 5-130
Heated steering wheel ................................. 2-47
Power steering fluid ..................................... 8-14
Power steering system .............................. 5-129
Tilt/telescopic steering ................................ 3-28
Storage ................................................................... 2-48
Storage box ........................................................... 2-51
Sun visors ............................................................... 3-29
Sunglasses holder ................................................ 2-49

Supplemental air bag warning labels ............. 1-55
Supplemental air bag warning light .... 1-55, 2-17
Supplemental restraint system ........................ 1-38Precautions on supplemental
restraint system ............................................. 1-38
Switch Autolight switch ............................................. 2-38
Fog light switch ............................................ 2-44
Hazard warning flasher switch .................... 6-2
Headlight switch ............................................ 2-38
Power door lock switch ................................. 3-5
Push-button ignition switch ....................... 5-11
Rear window and outside mirror
defroster switch ............................................. 2-37
Turn signal switch ........................................ 2-44
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-45
T
Tachometer ............................................................. 2-8
Temperature gauge
Engine coolant temperature gauge ............ 2-8
Theft (INFINITI Vehicle Immobilizer System)
Engine start ..................................................... 2-33
Three-way catalyst ................................................ 5-5
Tilt/telescopic steering ...................................... 3-28
Tire Flat Tire - Visit dealer warning ................. 2-24
Run-flat tires .................................................... 6-4
Sealant ................................................................ 6-9
Tire replacement indicator .......................... 2-27 Tire rotation .................................................... 8-41
Tire pressure Low tire pressure warning light ................ 2-14
Tire Pressure Low - Add Air warning ........... 2-24
Tires Emergency tire puncture repair kit ............. 6-9
Flat tire ............................................................... 6-3
Low tire pressure
warning system ........................... 5-5, 6-3, 8-32
Run-flat tires .................................................. 8-39
Spare tire ........................................................ 8-44
Tire and Loading
information label ............................. 8-34, 10-16
Tire chains ....................................................... 8-40
Tire dressing ...................................................... 7-4
Tire pressure ................................................... 8-32
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-32
Types of tires ................................................. 8-38
Uniform tire quality grading .................... 10-22
Wheel/tire size ............................................ 10-12
Wheels and tires ............................................ 8-32
Towing Flat towing ................................................... 10-21
Tow truck towing .......................................... 6-22
Towing a trailer ........................................... 10-21
TPMS Tire Pressure
Monitoring System .................... 5-5, 6-3, 8-32
TPMS, Tire pressure monitoring system TPMS with Tire Inflation Indicator ............ 5-8 Trailer towing ..................................................... 10-21
Transceiver
HomeLink
®Universal Transceiver ............ 2-59
Transmission
Automatic Transmission Fluid (ATF) ....... 8-14
Driving with Automatic
Transmission (AT) .......................................... 5-16
Transmission shift lever lock release ....... 5-19
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering in
another country ................................................ 10-14
Trip computer ....................................................... 2-29
Trip odometer ....................................................... 2-29
Trunk
Interior trunk lid release .............................. 3-25
Light .................................................................. 2-59
Trunk hooks .................................................... 2-52
Trunk lid ........................................................... 3-23
Trunk lid release switch ............................... 3-24
Trunk open request switch ......................... 3-24
Trunk release power cancel switch .......... 3-25
Turn signal switch ............................................... 2-44
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading .......................... 10-22
11-7
