To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
.Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix crystal display, one or more of your
tires is significantly under-inflated. If the
vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“Warning/indicator lights and audible re-
minders” (P.2-10) and “Tire Pressure Mon-
itoring System (TPMS)” (P.5-4).
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors (for models not equipped with
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE

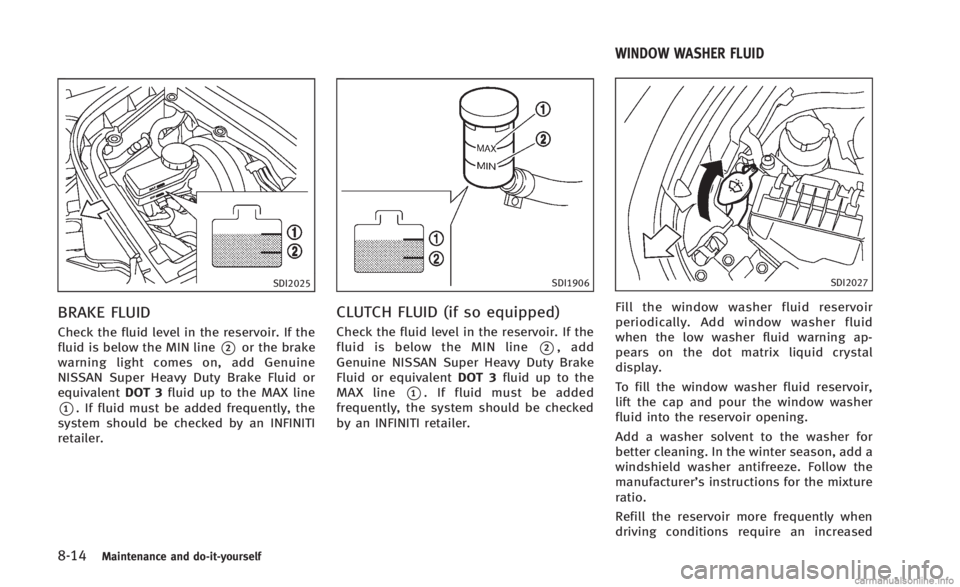

8-14Maintenance and do-it-yourself
SDI2025
BRAKE FLUID
Check the fluid level in the reservoir. If the
fluid is below the MIN line
*2or the brake
warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalent DOT 3fluid up to the MAX line
*1. If fluid must be added frequently, the
system should be checked by an INFINITI
retailer.
SDI1906
CLUTCH FLUID (if so equipped)
Check the fluid level in the reservoir. If the
fluid is below the MIN line
*2, add
Genuine NISSAN Super Heavy Duty Brake
Fluid or equivalent DOT 3fluid up to the
MAX line
*1. If fluid must be added
frequently, the system should be checked
by an INFINITI retailer.
SDI2027
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low washer fluid warning ap-
pears on the dot matrix liquid crystal
display.
To fill the window washer fluid reservoir,
lift the cap and pour the window washer
fluid into the reservoir opening.
Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
WINDOW WASHER FLUID

8-30Maintenance and do-it-yourself
If you have a flat tire, see“Flat tire”(P.6-
3).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-12),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).
Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al- ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure”
heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
. Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components.
. Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
WHEELS AND TIRES

10 Index
A
ABS (Anti-lock Braking System) ......................... 5-55
Advanced air bag system .................................. 1-40
Air bag systemAdvanced air bag system ............................. 1-40
Door-mounted curtain side-impact
supplemental air bag system ....................... 1-45
Front passenger air bag and status light ...... 1-42
Front-seat mounted side-impact
supplemental air bag system ....................... 1-45
Air bag warning labels ...................................... 1-48
Air bag warning light ............................... 1-48, 2-14
Air cleaner housing filter ................................... 8-19
Air conditioner
Air conditioner service ................................. 4-38
Air conditioner specification label ................ 9-13
Air conditioning system refrigerant and
lubricant recommendations ................... 4-38, 9-7
Automatic climate control ............................ 4-30
In-cabin microfilter ....................................... 4-38
Alarm, How to stop alarm (see vehicle
security system) ................................................ 2-29
Alcohol, drugs and driving .................................. 5-8
Antenna ............................................................ 4-75
Anti-lock Braking System (ABS) ......................... 5-55
Anti-lock braking system (ABS) warning light .... 2-10
Appearance care Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-4
Ashtrays (See cigarette lighter and ashtrays) .... 2-44 Audible reminders ............................................ 2-17
Audio operation precautions ............................. 4-39
Audio system .................................................... 4-39
Steering wheel audio controls ...................... 4-74
Auto closure ..................................................... 3-29
Autolight system ............................................... 2-35
Automatic Automatic adjusting function
(front windows) ............................................ 2-51
Automatic climate control .................. 4-32, 4-34
Automatic transmission fluid (ATF) ............... 8-12
Climate control ............................................ 4-30
Door locks ..................................................... 3-6
Drive positioner ........................................... 3-38
Driving with automatic transmission ............ 5-13
Seat positioner ............................................ 3-38
Average fuel consumption and speed ................ 2-26
Avoiding collision and rollover ............................ 5-7
B
Battery .............................................................. 8-15
Battery saver system ................................... 2-37
Intelligent Key .............................................. 8-25
Variable voltage control system ................... 8-17
Before starting the engine ................................ 5-12
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-77
Bluetooth
®hands-free phone system
(models without navigation system) .................. 4-87 Bluetooth
®streaming audio ............................. 4-66
Brake
Anti-lock Braking System (ABS) .................... 5-55
Brake and clutch fluid .................................. 8-13
Brake fluid ................................................... 8-14
Brake system ............................................... 5-52
Parking brake operation ............................... 5-20
Warning light ............................................... 2-11
Break-in schedule ............................................. 5-46
Brightness control Display ON/OFF button .................................. 4-9
Instrument panel ......................................... 2-38
Bulb check/instrument panel ............................ 2-10
Bulb replacement .............................................. 8-27
C
Cabin air filter ................................................... 4-38
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-76
Catalytic converter, Three way catalyst ................ 5-4
CD/CF/USB memory care and cleaning ............. 4-73
Center multi-function control panel ..................... 4-3
Child restraints ................................................. 1-19 Child Restraint Lower Anchors ...................... 1-21
Precautions on child restraints ..................... 1-20
Child safety ...................................................... 1-17
Chimes, Audible reminders ............................... 2-17
Cigarette lighter and ashtrays ........................... 2-44
Circuit breaker, Fusible link............................... 8-23

10-2
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control, Automatic climate control ........ 4-30
Clock ................................................................ 2-43
Closing the retractable hard top ....................... 3-24
Clutch fluid ....................................................... 8-13
Cockpit ............................................................... 2-3
Cold weather driving ......................................... 5-58
Compact Disc (CD) player (See audio system) ... 4-56
Compact spare tire ........................................... 8-39
Console box ...................................................... 2-47
Controller, Center multi-function control panel .... 4-5
ControlsControl panel button ...................................... 4-3
INFINITI Controller .......................................... 4-5
Coolant Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Checking engine coolant level ........................ 8-9
Corrosion protection ........................................... 7-7
Cruise control ................................................... 5-21 Fixed speed cruise control (on ICC system) ... 5-41
Intelligent cruise control (ICC) system .......... 5-23
Cup holders ...................................................... 2-45
Current fuel consumption .................................. 2-26
D
Daytime running light system ........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ................................................ 2-34
Dimensions ....................................................... 9-10 Distance to empty ............................................. 2-26
Door/trunk open warning .................................. 2-21
Dot matrix liquid crystal display ....................... 2-17
Drive belt .......................................................... 8-18
Drive positioner ................................................ 3-38
Driving
Cold weather driving .................................... 5-58
Driving with automatic transmission ............ 5-13
Driving with manual transmission ................ 5-18
Precautions when starting and driving ........... 5-3
DS (Drive Sport) mode ...................................... 5-15
DVD player operation ........................................ 4-57
E
Economy, Fuel ................................................... 5-47
Elapsed time ..................................................... 2-26
Elapsed time and trip odometer ........................ 2-26
Emergency tire puncture repair kit ...................... 6-8
Emission control information label .................... 9-12
Emission control system warranty ..................... 9-22
Engine Before starting the engine ........................... 5-12
Break-in schedule ........................................ 5-46
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Changing engine oil and filter ...................... 8-10
Checking engine coolant level ........................ 8-9
Checking engine oil level ............................. 8-10
Coolant temperature gauge ............................ 2-8
Emergency engine shut off ........................... 5-11 Engine block heater ..................................... 5-59
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-8
Engine oil .................................................... 8-10
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-24
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) .................................. 2-20
Engine start operation indicator (Manual
Transmission models) .................................. 2-21
If your vehicle overheats .............................. 6-16
Starting the engine ...................................... 5-12
Event Data Recorders (EDR) ............................... 9-24
Exhaust gas (carbon monoxide) .......................... 5-3
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-12
Filter
Air cleaner housing filter .............................. 8-19
Changing engine oil and filter ...................... 8-10
Flashers (See hazard warning flasher switch) ...... 6-2
Flat tire ............................................................... 6-3 Changing flat tire (with spare tire) ................. 6-4
Repairing flat tire (with emergency tire
puncture repair kit) ........................................ 6-8
Flat towing ........................................................ 9-20
Floor mat cleaning .............................................. 7-5

FluidAutomatic transmission fluid (ATF) ............... 8-12
Brake and clutch fluid .................................. 8-13
Brake fluid ................................................... 8-14
Capacities and
recommended fuel/lubricants ........................ 9-2
Engine coolant ............................................... 8-8
Engine oil .................................................... 8-10
Power steering fluid ..................................... 8-13
Window washer fluid ................................... 8-14
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................ 4-53
Fog light switch ................................................ 2-39
Front passenger air bag and status light ........... 1-42
Front power seat adjustment ............................... 1-3
Front seat, Front seat adjustment ........................ 1-3
Front-seat active head restraints ....................... 1-10
Fuel Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................... 5-47
Fuel economy information (display) .............. 4-11
Fuel octane rating .......................................... 9-4
Fuel recommendation ..................................... 9-4
Fuel-filler cap ............................................... 3-31
Fuel-filler door ............................................. 3-31
Gauge ............................................................ 2-9
LOOSE FUEL CAP warning ............................. 3-33
Fuel Efficient Driving Tips .................................. 5-46
Fuses ................................................................ 8-22
Fusible links ..................................................... 8-23G
Garage door opener HomeLink®Universal Transceiver ................. 2-54
Gas cap ............................................................ 3-31
Gauge ................................................................. 2-6
Engine coolant temperature gauge ................. 2-8
Fuel gauge ..................................................... 2-9
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-26
General maintenance .......................................... 8-2
Glove box ......................................................... 2-47
H
Hands-free phone system, Bluetooth®
(models with navigation system) ....................... 4-77
Hands-free phone system, Bluetooth®
(models without navigation system) .................. 4-87
Hard top If the top does not open or close ................. 3-24
Indicators for retractable hard top
(dot matrix) ......................................... 2-23, 3-22
Initializing .................................................... 3-25
Operating using the Intelligent Key .............. 3-25
Retractable hard top operation .................... 3-18
Hazard warning flasher switch ............................ 6-2
Head restraints ................................................... 1-7 Headlights
Bulb replacement ......................................... 8-27
Headlight switch .......................................... 2-35
Xenon headlights ......................................... 2-34
Heated seats .................................................... 2-39
Heater Automatic climate control ............................ 4-30
Engine block heater ..................................... 5-59
HomeLink
®Universal Transceiver ...................... 2-54
Hood release .................................................... 3-17
Horn ................................................................. 2-39
I
Ignition switch (Push-button) ................................................. 5-9
Manual transmission models ....................... 5-18
Immobilizer system ........................................... 2-30
In-cabin microfilter ............................................ 4-38
Indicator Dot matrix display ....................................... 2-17
Lights .......................................................... 2-15
INFINITI Vehicle Immobilizer System .................. 2-30
INFINITI voice recognition system .................... 4-101
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-35
Inspection/maintenance (I/M) test .................... 9-23
Instrument brightness control ........................... 2-38
Instrument panel ................................................ 2-4
Intelligent cruise control (ICC) system ............... 5-23 Preview function .......................................... 5-45
10-3

T
Tachometer ......................................................... 2-8
Temperature gauge, Engine coolant
temperature gauge .............................................. 2-8
Theft (INFINITI Vehicle Immobilizer System),
Engine start ...................................................... 2-30
Thigh extension .................................................. 1-5
Three-way catalyst .............................................. 5-4
Tilt/telescopic steering ...................................... 3-34
TirePressure, Low tire pressure warning light .... 2-12
Sealant .......................................................... 6-8
Tire replacement indicator ............................ 2-24
Tires
Emergency tire puncture repair kit ................. 6-8
Flat tire .......................................................... 6-3
Low tire pressure warning system .................. 5-4
Spare tire .................................................... 8-39
Tire and Loading Information label ...... 8-32, 9-13
Tire chains ................................................... 8-37
Tire dressing .................................................. 7-4
Tire pressure................................................ 8-30
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-3
Tire rotation ................................................. 8-37
Types of tires ............................................... 8-36
Uniform tire quality grading ......................... 9-21
Wheel/tire size .............................................. 9-9
Wheels and tires .......................................... 8-30
Top, Retractable hard top .................................. 3-18 Touch screen system ........................................... 4-5
Towing
Flat towing ................................................... 9-20
Tow truck towing .......................................... 6-17
Towing a trailer ............................................ 9-20
TPMS, Tire pressure monitoring system .............. 5-4
TPMS, Tire pressure warning system ................... 6-3
Trailer towing .................................................... 9-20
Transceiver HomeLink
®Universal Transceiver ................. 2-54
Transmission Automatic transmission fluid (ATF) ............... 8-12
Driving with automatic transmission ............ 5-13
Driving with manual transmission ................ 5-18
Transmission shift lever lock release ............ 5-17
Transmitter (See remote keyless entry system) ... 3-14
Traveling or registering your vehicle in
another country ................................................ 9-11
Trip computer ................................................... 2-26
Trip odometer ................................................... 2-26
Trunk Interior trunk lid release .............................. 3-30
Light ............................................................ 2-53
Trunk lid ...................................................... 3-28
Trunk lid release switch ............................... 3-28
Trunk open request switch ........................... 3-28
Trunk release power cancel switch ............... 3-29
Turn signal switch ............................................. 2-38
U
Underbody cleaning ............................................ 7-3
Uniform tire quality grading .............................. 9-21
USB memory operation ..................................... 4-61
V
Vanity mirror ..................................................... 3-37
Vanity mirror lights ........................................... 2-53
Variable voltage control system ........................ 8-17
Vehicle
Dimensions .................................................. 9-10
Identification number (VIN) .......................... 9-11
Loading information ..................................... 9-17
Recovery (freeing a stuck vehicle) ................ 6-19
Security system ........................................... 2-28
Vehicle dynamic control (VDC) off switch ...... 2-42
Vehicle dynamic control (VDC) system .......... 5-56
Vehicle dynamic control (VDC)
warning light ............................................... 2-15
Vehicle information and settings (display) ...... 4-9
Ventilators ........................................................ 4-30
Voice command (Bluetooth
®Hands-Free
Phone System) .................................................. 4-93
Voice command (INFINITI voice
recognition system) ............................. 4-108, 4-117
Voice recognition system ................................ 4-101
Voice recognition, Alternate command mode ... 4-114
Voice recognition, Standard mode ................... 4-101
10-7

10-8
W
Walk-in mechanism ............................................. 1-6
WarningDot matrix display ....................................... 2-17
Hazard warning flasher switch ....................... 6-2
Lights .......................................................... 2-10
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-3
Warning/indicator lights and
audible reminders ........................................ 2-10
Warning labels, Air bag warning labels ............. 1-48
Warning light
Air bag warning light ......................... 1-48, 2-14
Anti-lock braking system (ABS)
warning light ............................................... 2-10
Brake warning light ...................................... 2-11
Intelligent Key warning light ........................ 2-12
Low tire pressure warning light .................... 2-12
Seat belt warning light ................................ 2-14
Warranty, Emission control system warranty ..... 9-22
Washer switch, Windshield wiper and
washer switch ................................................... 2-31
Washing ............................................................. 7-2
Waxing ............................................................... 7-3
Wheel/tire size ................................................... 9-9
Wheels and tires ............................................... 8-30 Cleaning aluminum alloy wheels .................... 7-3
Window washer fluid ........................................ 8-14
Window(s) Automatic adjusting function ....................... 2-51 Cleaning ........................................................ 7-3
Power windows ............................................ 2-49
Windshield wiper and washer switch ................ 2-31
Wiper
Rain-sensing auto wiper system ................... 2-33
Windshield wiper and washer switch ........... 2-31
Wiper blades ............................................... 8-20
X
Xenon headlights .............................................. 2-34
