Page 384 of 458

is released.
When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and
other lights are all operating properly and
installed securely. Also check headlight
aim.
Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*: Tires should be rotated
every 5,000 miles (8,000 km). If your
vehicle is equipped with different sized
tires in the front and rear, tires cannot be
rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the
pressure specified. Check carefully for
damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap when the tires are replaced due to
wear or age.
Tire, wheel alignment and balance:
If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Windshield: Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield
repaired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should
be checked on a regular basis, such as
when performing periodic maintenance,
cleaning the vehicle, etc. Accelerator pedal:
Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the shift lever
in the P (Park) position without applying
any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, see an INFINITI retailer
immediately. Keep the floor mat away from
the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, see an INFINITI
retailer.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed
Maintenance and do-it-yourself8-3

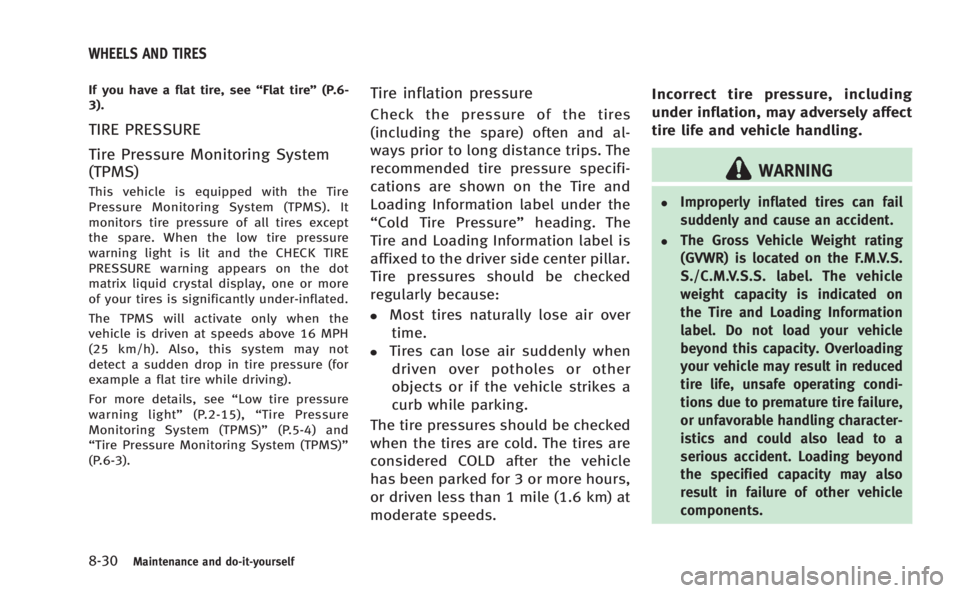

Page 411 of 458

8-30Maintenance and do-it-yourself
If you have a flat tire, see“Flat tire”(P.6-
3).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-15),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).
Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al-
ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds. Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components.
WHEELS AND TIRES
Page 417 of 458

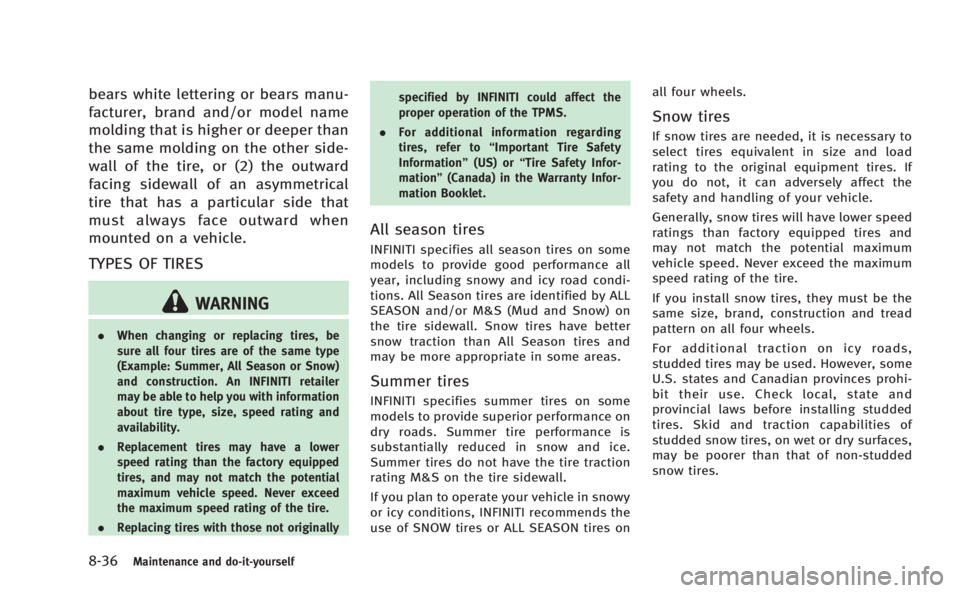

8-36Maintenance and do-it-yourself
bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
. Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.

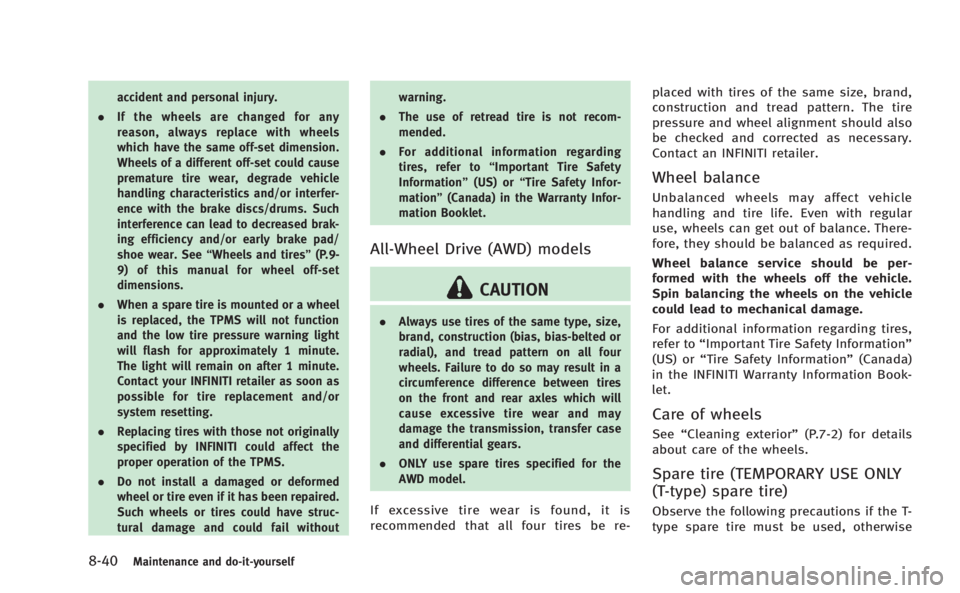

Page 421 of 458

8-40Maintenance and do-it-yourself
accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer-
ence with the brake discs/drums. Such
interference can lead to decreased brak-
ing efficiency and/or early brake pad/
shoe wear. See “Wheels and tires” (P.9-
9) of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
All-Wheel Drive (AWD) models
CAUTION
. Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.
. ONLY use spare tires specified for the
AWD model.
If excessive tire wear is found, it is
recommended that all four tires be re- placed with tires of the same size, brand,
construction and tread pattern. The tire
pressure and wheel alignment should also
be checked and corrected as necessary.
Contact an INFINITI retailer.
Wheel balance
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to
“Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheels
See “Cleaning exterior” (P.7-2) for details
about care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
Observe the following precautions if the T-
type spare tire must be used, otherwise
Page 451 of 458

10-4
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-14
Intelligent Key ..................................................... 3-2
Intelligent Key battery discharge indicator ........ 2-22
Intelligent Key insertion indicator ...................... 2-22
Intelligent Key removal indicator ....................... 2-22
Intelligent Key system ......................................... 3-6
Battery replacement ..................................... 8-25
Key operating range ....................................... 3-8
Key operation ................................................ 3-9
Warning light ............................................... 2-15
Warning signals ........................................... 3-12
Intelligent Key warning light ............................. 2-15
Interior light control switch ............................... 2-54
Interior light replacement .................................. 8-28
Interior lights .................................................... 2-54
Interior trunk lid release ................................... 3-19
iPod
®player operation ..................................... 4-71
ISOFIX child restraint ........................................ 1-23
J
Jump starting ...................................................... 6-8
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-6
L
Labels
Air bag warning labels ................................. 1-51
Air conditioner specification label ................ 9-12
Emission control information label ............... 9-11
Engine serial number ................................... 9-11
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-11
Tire and Loading Information label ...... 8-32, 9-12
Vehicle identification number (VIN) .............. 9-10
LATCH system ................................................... 1-23
License plate, Installing front license plate ....... 9-13
Light
Air bag warning light ................................... 1-51
Bulb replacement ......................................... 8-27
Fog light switch ........................................... 2-39
Headlight switch .......................................... 2-35
Headlights bulb replacement ....................... 8-28
Indicator lights ............................................ 2-17
Interior light control switch .......................... 2-54
Interior lights ............................................... 2-54
Map lights ................................................... 2-54
Replacement ................................................ 8-27
Trunk light ................................................... 2-56
Vanity mirror lights ...................................... 2-55
Warning/indicator lights and
audible reminders ........................................ 2-12
Xenon headlights ......................................... 2-34
Lights, Exterior and interior light replacement ... 8-28
Loading information (See vehicle
loading information) ......................................... 9-16 Lock
Automatic door locks ..................................... 3-5
Door locks ..................................................... 3-4
Power door lock ............................................. 3-4
Trunk lid ...................................................... 3-18
Locking with mechanical key ............................... 3-4
Low fuel warning .............................................. 2-23
Low tire pressure warning light ......................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ..... 5-4
Low washer fluid warning ................................. 2-23
M
Maintenance Battery ......................................................... 8-15
General maintenance ..................................... 8-2
Indicators for maintenance ........................... 2-24
Inside the vehicle .......................................... 8-3
Maintenance precautions ............................... 8-5
Maintenance requirements ............................. 8-2
Outside the vehicle ........................................ 8-2
Seat belt maintenance ................................. 1-19
Malfunction indicator light (MIL) ....................... 2-18
Map lights ........................................................ 2-54
Master warning light ......................................... 2-16
Mechanical key (Intelligent Key system) .............. 3-3
Memory storage, Automatic drive positioner ..... 3-29
Meter, Trip computer ......................................... 2-26
Meters and gauges ............................................. 2-6
Instrument brightness control ...................... 2-38
Page 454 of 458

Thigh extension .................................................. 1-5
Three-way catalyst .............................................. 5-4
Tilt/telescopic steering ...................................... 3-23
TirePressure, Low tire pressure warning light .... 2-15
Tire replacement indicator ............................ 2-24
Tire rotation ................................................. 8-37
Tires Flat tire .......................................................... 6-3
Low tire pressure warning system .................. 5-4
Spare tire .................................................... 8-40
Tire and Loading Information label ...... 8-32, 9-12
Tire chains ................................................... 8-37
Tire dressing .................................................. 7-4
Tire pressure................................................ 8-30
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-3
Types of tires ............................................... 8-36
Uniform tire quality grading ......................... 9-20
Wheel/tire size .............................................. 9-9
Wheels and tires .......................................... 8-30
Touch screen system ........................................... 4-5
Towing Flat towing ................................................... 9-19
Tow truck towing .......................................... 6-12
Towing a trailer ............................................ 9-19
TPMS, Tire pressure monitoring system .............. 5-4
TPMS, Tire pressure warning system ................... 6-3
Trailer towing .................................................... 9-19
Transceiver HomeLink
®Universal Transceiver ................. 2-56 Transmission
Automatic transmission fluid (ATF) ............... 8-12
Driving with automatic transmission ............ 5-14
Driving with manual transmission ................ 5-19
Transmission shift lever lock release ............ 5-18
Transmitter (See remote keyless entry system) ... 3-14
Traveling or registering your vehicle in
another country ................................................ 9-10
Trip computer ................................................... 2-26
Trip odometer ................................................... 2-26
Trunk Interior trunk lid release .............................. 3-19
Light ............................................................ 2-56
Trunk lid ...................................................... 3-18
Trunk lid release switch ............................... 3-18
Trunk open request switch ........................... 3-18
Trunk release power cancel switch ............... 3-19
Turn signal switch ............................................. 2-38
U
Underbody cleaning ............................................ 7-3
Uniform tire quality grading .............................. 9-20
USB memory operation ..................................... 4-61
V
Vanity mirror ..................................................... 3-27
Vanity mirror lights ........................................... 2-55
Variable voltage control system ........................ 8-18
Vehicle
Dimensions .................................................... 9-9 Identification number (VIN) .......................... 9-10
Loading information ..................................... 9-16
Recovery (freeing a stuck vehicle) ................ 6-14
Security system ........................................... 2-28
Vehicle dynamic control (VDC) off switch ...... 2-41
Vehicle dynamic control (VDC) system .......... 5-58
Vehicle information and settings (display) ...... 4-9
Ventilators ........................................................ 4-30
Voice command (Bluetooth
®Hands-Free
Phone System) .................................................. 4-93
Voice command (INFINITI voice
recognition system) ........................................ 4-108
Voice recognition system ................................ 4-101
Voice recognition, Alternate command mode ... 4-114
Voice recognition, Standard mode ................... 4-101
W
Walk-in mechanism ............................................. 1-6
Warning
Dot matrix display ....................................... 2-20
Hazard warning flasher switch ....................... 6-2
Lights .......................................................... 2-12
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-3
Warning/indicator lights and
audible reminders ........................................ 2-12
Warning labels, Air bag warning labels ............. 1-51
Warning light
Air bag warning light ......................... 1-51, 2-17
All-wheel drive (AWD) warning light ............. 2-12
10-7
