belt INFINITI Q60 COUPE 2014 Owner's Manual

Your INFINITI represents a new way of
thinking about vehicle design. It integrates
advanced engineering and superior crafts-
manship with a simple, refined aesthetic
sensitivity associated with traditional Ja-
panese culture.
The result is a different notion of luxury
and beauty. The car itself is important, but
so is the sense of harmony that the vehicle
evokes in its driver, and the sense of
satisfaction you feel with the INFINITI—
from the way it looks and drives to the high
level of retailer service.
To ensure that you enjoy your INFINITI to
the fullest, we encourage you to read this
Owner’s Manual immediately. It explains
all of the features, controls and perfor-
mance characteristics of your INFINITI; it
also provides important instructions and
safety information.
A separate Warranty Information Booklet
is included in your Owner’ s literature
portfolio. The INFINITI Service and Main-
tenance Guide explains details about
maintaining and servicing your vehicle.
Always carry it with you when you take
your vehicle to an INFINITI retailer. The
Warranty Information Booklet contents
provide complete information about all warranties covering this vehicle, the re-
quirements to keep the warranties in effect
as well as the INFINITI Roadside Assis-
tance program.
Additionally, a separate Customer Care
and Lemon Law Information Booklet will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’
s
lemon law.
In addition to factory installed options,
your vehicle may also be equipped with
additional accessories installed by INFINITI
or by your INFINITI retailer prior to delivery.
It is important that you familiarize yourself
with all disclosures, warnings, cautions
and instructions concerning proper use of
such accessories prior to operating the
vehicle and/or accessory. See an INFINITI
retailer for details concerning the particu-
lar accessories with which your vehicle is
equipped.READ FIRST —THEN DRIVE SAFELY
Before driving your vehicle, read your
Owner’s Manual carefully. This will ensure
familiarity with controls and maintenance
requirements, assisting you in the safe
operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMATION REMIN-
DERS FOR SAFETY!
Follow these important driving rules to help
ensure a safe and comfortable trip for you
and your passengers!
. NEVER drive under the influence of
alcohol or drugs.
. ALWAYS observe posted speed limits
and never drive too fast for conditions.
. ALWAYS give your full attention to
driving and avoid using vehicle features
or taking other actions that could dis-
tract you.
. ALWAYS use your seat belts and appro-
priate child restraint systems. Pre-teen
children should be seated in the rear
seat.
Foreword

Illustrated table of contents0
Safety—Seats, seat belts and supplemental restraint
system1
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition
systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
2
3
4
5
6
7
8
9
10
Table of
Contents

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)....................................................... 0-2
Exterior front ....................................................... 0-3
Exterior rear......................................................... 0-4
Exterior (INFINITI Performance Line model) ........... 0-5
Passenger compartment ...................................... 0-6 Cockpit................................................................ 0-7
Instrument panel................................................. 0-8
Meters and gauges ........................................... 0-10
Engine compartment ......................................... 0-11 VQ37VHR engine ......................................... 0-11
Warning and indicator lights ............................. 0-12

0-2Illustrated table of contents
SSI0667
1. Supplemental front-impact air bags(P.1-38)
2. Front seat-mounted side-impact sup- plemental air bags (P.1-38)
3. Seat belts (P.1-13)
4. Head restraints (P.1-9) 5. Roof-mounted curtain side-impact
supplemental air bags (P.1-38)
6. Child restraint anchor points (for top tether strap child restraint) (P.1-25)
7. Occupant classification sensor (pat- tern sensor) (P.1-43) 8. Front seats (P.1-3)
9. Seat belts with pretensioners (P.1-50)
10. Rear seat walk-in mechanism (P.1-6)
11. Rear seats (P.1-7)
—Child restraints (P.1-22)
12. LATCH (Lower Anchors and Tethers for CHildren) system (P.1-23)
SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

JVC0332X
VQ37VHR ENGINE
1. Fuse/fusible link holder (P.8-23)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-10)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (Manual Trans-mission models) (P.8-13)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-13)
8. Air cleaner (P.8-20)
9. Radiator filler cap (P.8-8) 10. Drive belts (P.8-18)
11. Coolant reservoir (P.8-8)
12. Engine oil dipstick (P.8-10)
Illustrated table of contents0-11
ENGINE COMPARTMENT

0-12Illustrated table of contents
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission check
warning light*
2-13
Brake warning light
2-13
Charge warning light2-14
Engine oil pressure warning
light 2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*
2-14
Intelligent Key warning light 2-15
Low tire pressure warning light 2-15
Master warning light
2-16
Preview Function warning light
(orange)* 2-16
Seat belt warning light 2-16
Supplemental air bag warning
light2-17
Vehicle Dynamic Control (VDC)
warning light2-17Indicator
light Name
Page
Automatic Transmission posi-
tion indicator light* 2-17
Exterior light indicator
2-18
Front fog light indicator light 2-18
Front passenger air bag status
light 2-18
High beam indicator light 2-18
Malfunction Indicator Light
(MIL)2-18
Security indicator light 2-19
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
WARNING AND INDICATOR LIGHTS

1 Safety—Seats, seat belts and supplemental
restraint system
Seats ................................................................... 1-2
Front seats ...................................................... 1-3
Rear seats ....................................................... 1-7
Head restraints (front seats) ............................ 1-9
Head restraints (rear seats) ........................... 1-13
Seat belts .......................................................... 1-13
Precautions on seat belt usage ..................... 1-13
Pregnant women ........................................... 1-16
Injured persons ............................................. 1-16
Pre-crash seat belts (front seats) (if
so equipped) ................................................. 1-16
Three-point type seat belt ............................. 1-16
Seat belt extenders ....................................... 1-19
Seat belt maintenance................................... 1-19
Child safety ....................................................... 1-20 Infants........................................................... 1-20
Small children ............................................... 1-21
Larger children .............................................. 1-21
Child restraints .................................................. 1-22
Precautions on child restraints ...................... 1-22
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................. 1-23 Rear-facing child restraint installation
using LATCH................................................. 1-25
Rear-facing child restraint installation using
the seat belts .............................................. 1-27
Forward-facing child restraint installation
using LATCH................................................. 1-29
Forward-facing child restraint installation
using the seat belts ..................................... 1-31
Installing top tether strap ............................ 1-34
Booster seats .............................................. 1-35
Supplemental restraint system .......................... 1-38 Precautions on supplemental
restraint system........................................... 1-38
INFINITI Advanced Air Bag System
(front seats) ................................................. 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ..................... 1-48
Seat belts with pretensioners (front seats).... 1-50
Supplemental air bag warning labels ........... 1-51
Supplemental air bag warning light ............. 1-51
Repair and replacement procedure............... 1-52

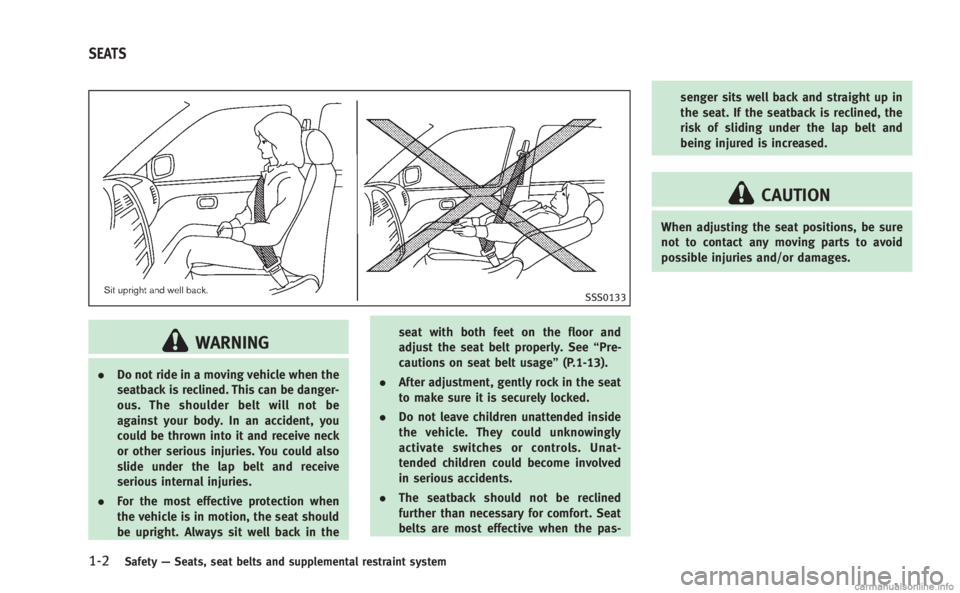

1-2Safety—Seats, seat belts and supplemental restraint system
SSS0133
WARNING
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the seat with both feet on the floor and
adjust the seat belt properly. See
“Pre-
cautions on seat belt usage” (P.1-13).
. After adjustment, gently rock in the seat
to make sure it is securely locked.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
. The seatback should not be reclined
further than necessary for comfort. Seat
belts are most effective when the pas- senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.
SEATS

FRONT SEATS
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
See “Automatic drive positioner” (P.3-28)
for the seat position memory function (if so
equipped).
SSS1051
Forward and backward:
Moving the switch
*1forward or backward
will slide the seat forward or backward to
the desired position.
Reclining:
Move the recline switch
*2backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
*2forward.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See “Precautions on
seat belt usage” (P.1-13).) Also, the seat- back can be reclined to allow occupants to
rest when the vehicle is parked.
Safety
—Seats, seat belts and supplemental restraint system1-3

1-4Safety—Seats, seat belts and supplemental restraint system
SSS1052

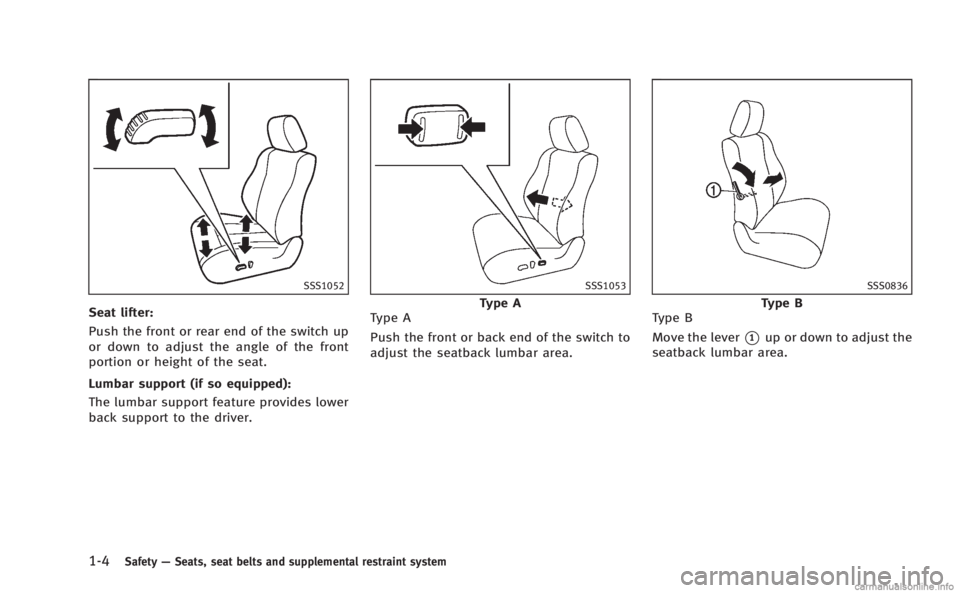

Seat lifter:
Push the front or rear end of the switch up
or down to adjust the angle of the front
portion or height of the seat.
Lumbar support (if so equipped):
The lumbar support feature provides lower
back support to the driver.
SSS1053
Type A
Type A
Push the front or back end of the switch to
adjust the seatback lumbar area.
SSS0836
Type B
Type B
Move the lever
*1up or down to adjust the
seatback lumbar area.
