jacking INFINITI Q60 COUPE 2018 Owner's Manual

6-6In case of emergency
JVE0345X
Jacking tools
SCE0702
Spare tire (if so equipped)
Getting the spare tire (if so
equipped) and tools
Raise the trunk floor cover. (While pulling
up the center strap, fold down the right end
of the trunk floor cover to pull up the trunk
floor cover.)
Remove jacking tools located inside the
trunk as illustrated.
Remove the cap
holding the spare tire.
Jacking up the vehicle and removing
the damaged tire

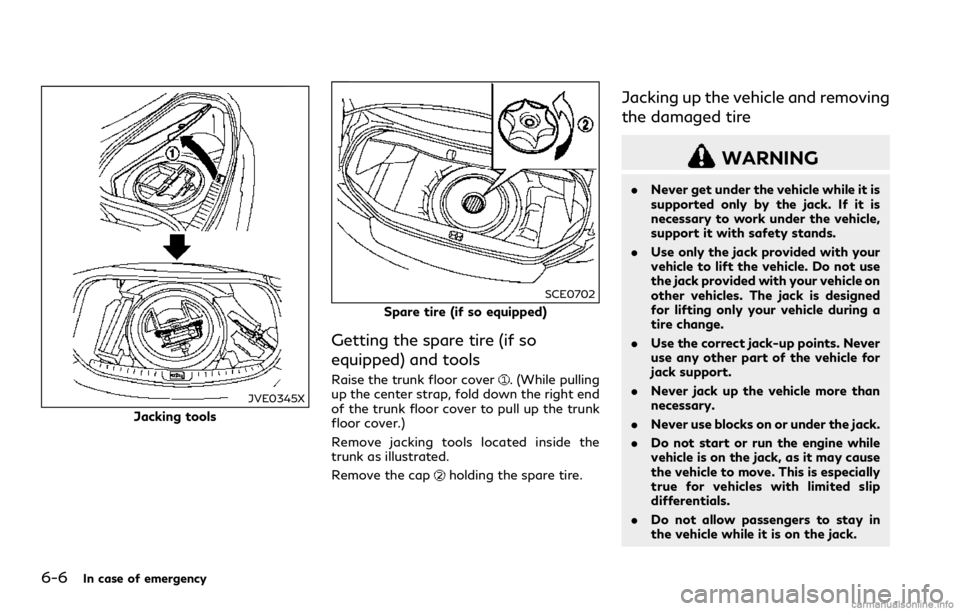

WARNING
.Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
.Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lifting only your vehicle during a
tire change.
.Use the correct jack-up points. Never
use any other part of the vehicle for
jack support.
.Never jack up the vehicle more than
necessary.
.Never use blocks on or under the jack.
.Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip
differentials.
.Do not allow passengers to stay in
the vehicle while it is on the jack.

3. With the wheel nut wrench, tighten
wheel nuts alternately and evenly in the
sequence illustrated (
,,,,) until
they are tight.
4. Lower the vehicle slowly until the tire
touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as illu-
strated. Lower the vehicle completely.

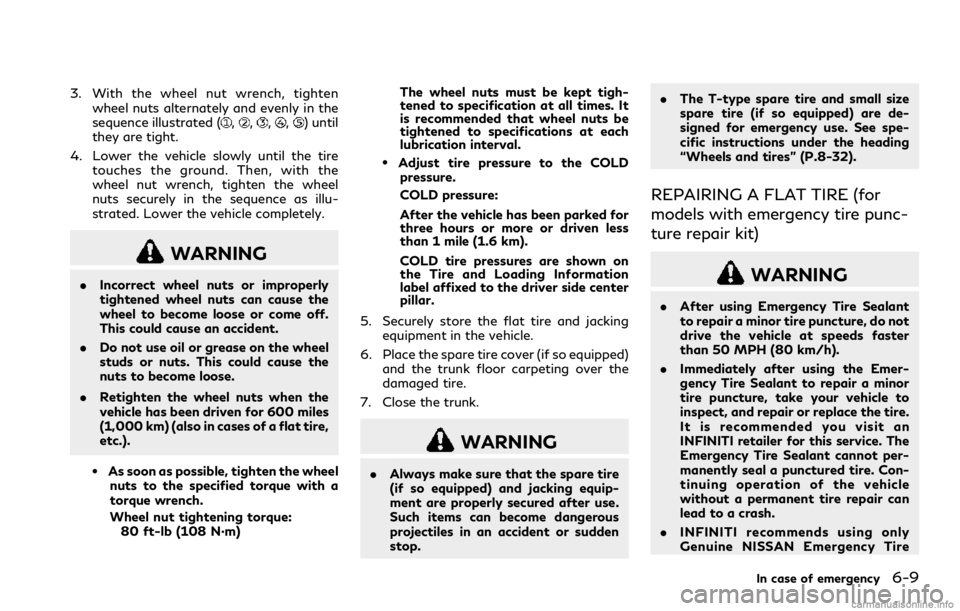

WARNING
.Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
.Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.
.Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
.As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.
Wheel nut tightening torque:
80 ft-lb (108 N·m)The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure:
After the vehicle has been parked for
three hours or more or driven less
than 1 mile (1.6 km).
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side center
pillar.
5. Securely store the flat tire and jacking
equipment in the vehicle.
6. Place the spare tire cover (if so equipped)
and the trunk floor carpeting over the
damaged tire.
7. Close the trunk.
WARNING
.Always make sure that the spare tire
(if so equipped) and jacking equip-
ment are properly secured after use.
Such items can become dangerous
projectiles in an accident or sudden
stop..The T-type spare tire and small size
spare tire (if so equipped) are de-
signed for emergency use. See spe-
cific instructions under the heading
“Wheels and tires” (P.8-32).
REPAIRING A FLAT TIRE (for
models with emergency tire punc-
ture repair kit)
WARNING
.After using Emergency Tire Sealant
to repair a minor tire puncture, do not
drive the vehicle at speeds faster
than 50 MPH (80 km/h).
.Immediately after using the Emer-
gency Tire Sealant to repair a minor
tire puncture, take your vehicle to
inspect, and repair or replace the tire.
It is recommended you visit an
INFINITI retailer for this service. The
Emergency Tire Sealant cannot per-
manently seal a punctured tire. Con-
tinuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
.INFINITI recommends using only
Genuine NISSAN Emergency Tire
In case of emergency6-9
