homelink INFINITI Q60 COUPE 2018 Quick Reference Guide

Additional information about your vehicle is also available in your Owner’s Manual, Infiniti InTouch™ Owner’s Manual and at www.InfinitiUSA.com.

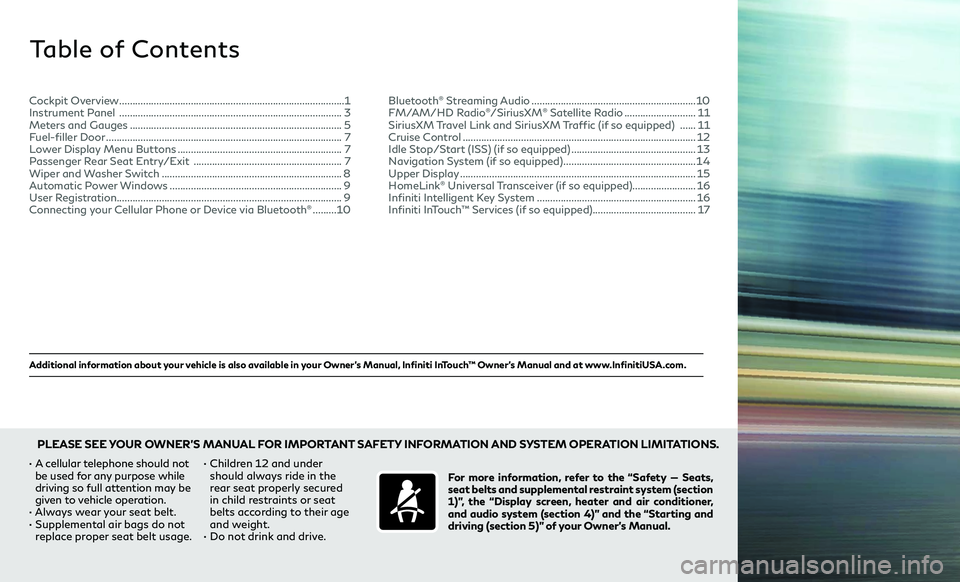

Table of Contents
• A cellular telephone should not
be used for any purpose while
driving so full attention may be
given to vehicle operation.
• Always wear your seat belt.• Supplemental air bags do not
replace proper seat belt usage. •
Children 12 and under

should always ride in the
rear seat properly secured
in child restraints or seat
belts according to their age
and weight.
• Do not drink and drive. For more information, refer to the “Safety — Seats,
seat belts and supplemental restraint system (section
1)”, the “Display screen, heater and air conditioner,
and audio system (section 4)” and the “Starting and
driving (section 5)” of your Owner’s Manual.
PLEASE SEE YOUR OWNER’S MANUAL FOR IMPORTANT SAFETY INFORMATION AND SYSTEM OPERATION LIMITATIONS.
Cockpit Overview ........................................................................\
.............1
Instrument Panel ........................................................................\
............3
Meters and Gauges ........................................................................\
........5
Fuel-filler Door ........................................................................\
.................7
Lower Display Menu Buttons ..............................................................7
Passenger Rear Seat Entry/Exit ........................................................7
Wiper and Washer Switch ....................................................................8
Automatic Power Windows .................................................................9
User Registration ........................................................................\
............. 9
Connecting your Cellular Phone or Device via Bluetooth
® .........10 Bluetooth
® Streaming Audio ..............................................................10
FM/AM/HD Radio®/SiriusXM® Satellite Radio ...........................11
SiriusXM Travel Link and SiriusXM Traffic (if so equipped) ......11
Cruise Control ........................................................................\
................12
Idle Stop/Start (ISS) (if so equipped) ...............................................13
Navigation System (if so equipped) ..................................................14
Upper Display ........................................................................\
.................15
HomeLink® Universal Transceiver (if so equipped) ........................16
Infiniti Intelligent Key System ............................................................16
Infiniti InTouch™ Services (if so equipped) .......................................17

16

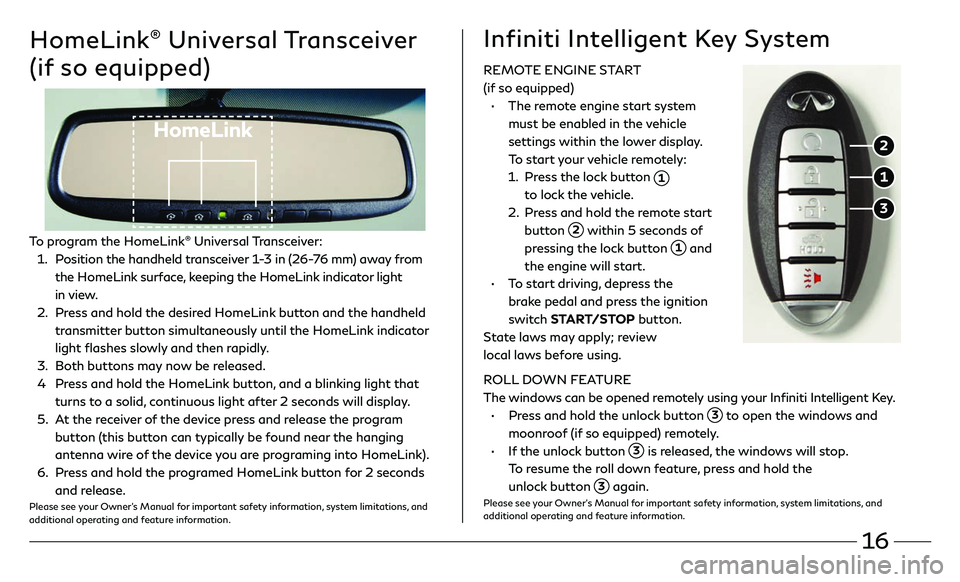

HomeLink® Universal Transceiver
(if so equipped)
HomeLink
To program the HomeLink® Universal Transceiver:
1 . Position the handheld transceiver 1-3 in (26-76 mm) away from
the HomeLink surface, keeping the HomeLink indicator light
in view.
2 . Press and hold the desired HomeLink button and the handheld
transmitter button simultaneously until the HomeLink indicator
light flashes slowly and then rapidly.
3. Both buttons may now be released.
4 Press and hold the HomeLink button, and a blinking light that
turns to a solid, continuous light after 2 seconds will display.
5 . At the receiver of the device press and release the program
button (this button can typically be found near the hanging
antenna wire of the device you are programing into HomeLink).
6. Press and hold the programed HomeLink button for 2 seconds
and release.Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
REMOTE ENGINE START
(if so equipped)
• The remote engine start system
must be enabled in the vehicle
settings within the lower display.
To start your vehicle remotely:
1. Press the lock button 1
to lock the vehicle.
2. Press and hold the remote start
button 2 within 5 seconds of
pressing the lock button 1 and
the engine will start.
• To start driving, depress the
brake pedal and press the ignition
switch START/STOP button.
State laws may apply; review
local laws before using.
ROLL DOWN FEATURE
The windows can be opened remotely using your Infiniti Intelligent Key.
• Press and hold the unlock button 3 to open the windows and
moonroof (if so equipped) remotely.
• If the unlock button 3 is released, the windows will stop.
To resume the roll down feature, press and hold the
unlock button
3 again.Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
Infiniti Intelligent Key System
1
2
3
