6-2In case of emergency
SIC2574
Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights will
flash.
WARNING
.If stopping for an emergency, be sure
to move the vehicle well off the road.
. Do not use the hazard warning
flashers while moving on the highway
unless unusual circumstances force
you to drive so slowly that your
vehicle might become a hazard to
other traffic. .
Turn signals do not work when the
hazard warning flasher lights are on.
The flasher can be actuated with the ignition
switch in any position.
When an impact that could activate the
supplemental air bags is detected, the
hazard warning flasher lights blink automa-
tically. If the hazard warning flasher switch is
pushed, the hazard warning flashers will turn
off.
WARNING
Do not turn the hazard warning flasher
switch to off until you can make sure
that it is safe to do so. Also, the hazard
flasher warning may not blink automa-
tically depending on the force of impact.
Some state laws may prohibit the use of the
hazard warning flasher switch while driving. In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada) for
details.
HAZARD WARNING FLASHER SWITCHROADSIDE ASSISTANCE PROGRAM

1. Safely move the vehicle off the road andaway from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
P (Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
For the tire removing procedure, see “Jack-
ing up the vehicle and replacing tires” (P.8-
37).
REPAIRING A FLAT TIRE (for
models with emergency tire punc-
ture repair kit)
WARNING
. After using Emergency Tire Sealant
to repair a minor tire puncture, do not
drive the vehicle at speeds faster
than 50 MPH (80 km/h).
. Immediately after using the Emer-
gency Tire Sealant to repair a minor tire puncture, take your vehicle to
inspect, and repair or replace the tire.
It is recommended you visit an
INFINITI retailer for this service. The
Emergency Tire Sealant cannot per-
manently seal a punctured tire. Con-
tinuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
. INFINITI recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit an INFINITI retailer
as soon as possible after using tire
repair sealant.
This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the
vehicle instead of a spare tire. It can be used
to temporarily repair minor tire punctures.
If you have a flat tire, follow the instructions
below.
CAUTION
. To avoid the emergency tire puncture
repair kit being damaged during sto-
rage or use:
— Only use the emergency tire puncture repair kit on your vehi-
cle. Do not use it on other vehicles.
— Only use the kit to inflate the tires of your vehicle and to check
the vehicle’s tire pressure.
— Only plug the compressor into a 12V DC car power point.
— Keep the kit free of water and dirt.
— Do not disassemble or modify the kit.
— Do not drop the kit or allow hard impacts to the kit.
. Do not use the emergency tire punc-
ture repair kit under the following
conditions. It is recommended you
visit an INFINITI retailer or profes-
sional road assistance.
— when the sealant has passed its expiration date (shown on the
label attached to the bottle)
In case of emergency6-5

6-6In case of emergency
— when the cut or the puncture isapproximately 0.25 in (6 mm) or
longer
— when the tire sidewall is damaged
— when the vehicle has been driven with extremely low tire pressure
— when the tire has come off the inside or the outside of the wheel.
— when the tire wheel is damaged
— when two or more tires are flat
Stopping the vehicle
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake.
4. Move the shift lever to the P (Park) position.
5. Turn off the engine.
6. Raise the hood to warn other traffic and to signal professional road assistance
personnel that you need assistance.
7. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmission
is shifted into P (Park).
. Never repair tires when the vehicle is
on a slope, ice or slippery areas. This
is hazardous.
. Never repair tires if oncoming traffic
is close to your vehicle. Wait for
professional road assistance.
JVE0418X
Getting emergency tire puncture
repair kit
Raise the trunk floor cover. (While pulling up
the center strap, fold down the right end of
the trunk floor cover to pull up the trunk
floor cover.) Take out the emergency tire
puncture repair kit located in the trunk.
The emergency tire puncture repair kit
consists of the following items:
.Tire sealant bottle
. Air compressor
. Speed restriction sticker

8-22Do-it-yourself

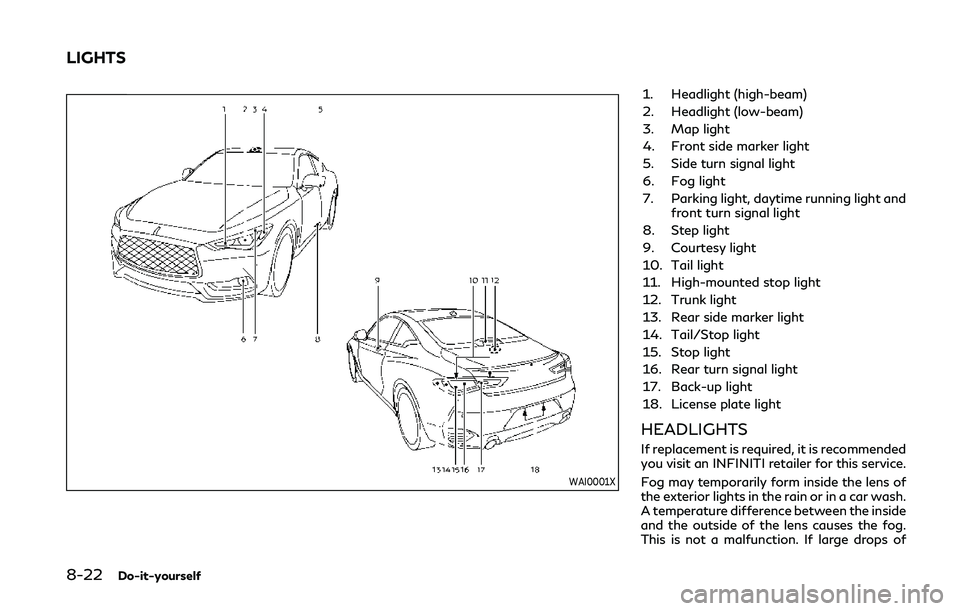

WAI0001X
1. Headlight (high-beam)
2. Headlight (low-beam)
3. Map light
4. Front side marker light
5. Side turn signal light
6. Fog light
7. Parking light, daytime running light andfront turn signal light
8. Step light
9. Courtesy light
10. Tail light
11. High-mounted stop light
12. Trunk light
13. Rear side marker light
14. Tail/Stop light
15. Stop light
16. Rear turn signal light
17. Back-up light
18. License plate light
HEADLIGHTS
If replacement is required, it is recommended
you visit an INFINITI retailer for this service.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car wash.
A temperature difference between the inside
and the outside of the lens causes the fog.
This is not a malfunction. If large drops of
LIGHTS

water collect inside the lens, it is recom-
mended you visit an INFINITI retailer for this
service.EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight* High beams LED—
Low beams LED—
Front fog light* LED—
Parking light/Daytime running light/Front turn
signal light* LED
—
Front side marker light* LED—
Side turn signal light* LED—
Rear combination light* back-up LED—
rear turn signal LED—
tail LED—
stop LED—
tail/stop LED—
rear side marker LED—
License plate light* LED—
Courtesy light* LED—
Map light* LED—
Vanity mirror light* 1.8—
Step light 5—
Console box light* 2—
Glove box light* 1.4—
Inside door handle light (if so equipped)* LED—
Door trim light (if so equipped)* LED—
Front cup holder light* LED—
Footwell light* LED—
Do-it-yourself8-23

other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are
missing, and check for any loose wheel nuts.
Tighten if necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km). If your vehicle is
equipped with different sized tires in the
front and rear, tires cannot be rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance trips.
If necessary, adjust the pressure in all tires,
including the spare, to the pressure speci-
fied. Check carefully for damage, cuts or
excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and
cap when the tires are replaced due to wear
or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect
uneven or abnormal tire wear, there may be
a need for wheel alignment. If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility. It is recommended
that you have a damaged windshield re-
paired by an INFINITI retailer, or an INFINITI
Certified Collision Center. To locate a colli-
sion center in your area, refer to http://
collision.infinitiusa.com.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your vehicle is held securely with the shift lever in
the P (Park) position without applying any
brakes.
Brake pedal:
Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, it is recommended you
visit an INFINITI retailer for this service.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position. Check
that the head restraints move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjuster and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
Maintenance and schedules9-3

Supplemental air bag warning labels ............. 1-55
Supplemental air bag warning light .... 1-55, 2-17
Supplemental restraint system ........................ 1-38Precautions on supplemental
restraint system ............................................. 1-38
Switch Autolight switch ............................................. 2-38
Fog light switch ............................................ 2-44
Hazard warning flasher switch .................... 6-2
Headlight switch ............................................ 2-38
Power door lock switch ................................. 3-5
Push-button ignition switch ....................... 5-11
Rear window and outside mirror
defroster switch ............................................. 2-37
Turn signal switch ......................................... 2-43
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-45
T
Tachometer ............................................................. 2-8
Temperature gauge
Engine coolant temperature gauge ............ 2-8
Theft (INFINITI Vehicle Immobilizer System)
Engine start ..................................................... 2-33
Three-way catalyst ................................................ 5-5
Tilt/telescopic steering ...................................... 3-27
Tire Flat Tire - Visit dealer warning ................. 2-24
Run-flat tires .................................................... 6-4
Sealant ................................................................ 6-5
Tire replacement indicator .......................... 2-27 Tire rotation .................................................... 8-33
Tire pressure Low tire pressure warning light ................ 2-14
Tire Pressure Low - Add Air warning ........... 2-24
Tires Emergency tire puncture repair kit ............. 6-5
Flat tire ............................................................... 6-3
Low tire pressure
warning system ........................... 5-5, 6-3, 8-25
Run-flat tires .................................................. 8-31
Tire and Loading
information label ............................. 8-27, 10-13
Tire chains ........................................................ 8-33
Tire dressing ...................................................... 7-4
Tire pressure ................................................... 8-25
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-25
Types of tires .................................................. 8-31
Uniform tire quality grading .................... 10-18
Wheel/tire size ............................................... 10-9
Wheels and tires ............................................ 8-25
Towing
Flat towing ................................................... 10-18
Tow truck towing .......................................... 6-14
Towing a trailer ........................................... 10-18
TPMS Tire Pressure
Monitoring System .................... 5-5, 6-3, 8-25
TPMS, Tire pressure monitoring system TPMS with Tire Inflation Indicator ............ 5-8
Trailer towing .................................................... 10-18 Transceiver
HomeLink
®Universal Transceiver ............ 2-59
Transmission
Automatic Transmission Fluid (ATF) ......... 8-9
Driving with Automatic
Transmission (AT) .......................................... 5-16
Transmission shift lever lock release ....... 5-19
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering in
another country ................................................. 10-11
Trip computer ....................................................... 2-29
Trip odometer ....................................................... 2-29
Trunk Interior trunk lid release .............................. 3-24
Light .................................................................. 2-59
Trunk hooks .................................................... 2-52
Trunk lid ........................................................... 3-22
Trunk lid release switch ............................... 3-23
Trunk open request switch ......................... 3-23
Trunk release power cancel switch .......... 3-24
Turn signal switch ............................................... 2-43
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading .......................... 10-18
V
Vanity mirror ......................................................... 3-32
Vanity mirror lights ............................................. 2-58
11-7
