2-12Instruments and controls
Anti-lock Braking System (ABS) warning
lightPower steering warning lightHigh beam assist indicator light (if so
equipped)
Brake warning lightSeat belt warning light and chimeHigh beam indicator light
Supplemental air bag warning lightMalfunction Indicator Light (MIL)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightSecurity indicator light
Forward Emergency Braking (FEB) sys-
tem warning light (if so equipped)ECO drive indicator lightTurn signal/hazard indicator lights
Low fuel warning lightExterior light indicatorVehicle Dynamic Control (VDC) off in-
dicator light
Low tire pressure warning lightFront fog light indicator light
Master warning lightFront passenger air bag status light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:
,or,,,
The following lights (if so equipped) will
come on briefly and then go off:
,or,,,,
If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-tion. It is recommended you have the system
checked by an INFINITI retailer.
Some indicators and warnings are also
displayed in the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” (P.2-20).)
WARNING LIGHTS
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

water collect inside the lens, it is recom-
mended you visit an INFINITI retailer for this
service.EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight* High beams LED—
Low beams LED—
Front fog light* LED—
Parking light/Daytime running light/Front turn
signal light* LED
—
Front side marker light* LED—
Side turn signal light* LED—
Rear combination light* back-up LED—
rear turn signal LED—
tail LED—
stop LED—
tail/stop LED—
rear side marker LED—
License plate light* LED—
Courtesy light* LED—
Map light* LED—
Vanity mirror light* 1.8—
Step light 5—
Console box light* 2—
Glove box light* 1.4—
Inside door handle light (if so equipped)* LED—
Door trim light (if so equipped)* LED—
Front cup holder light* LED—
Footwell light* LED—
Do-it-yourself8-23

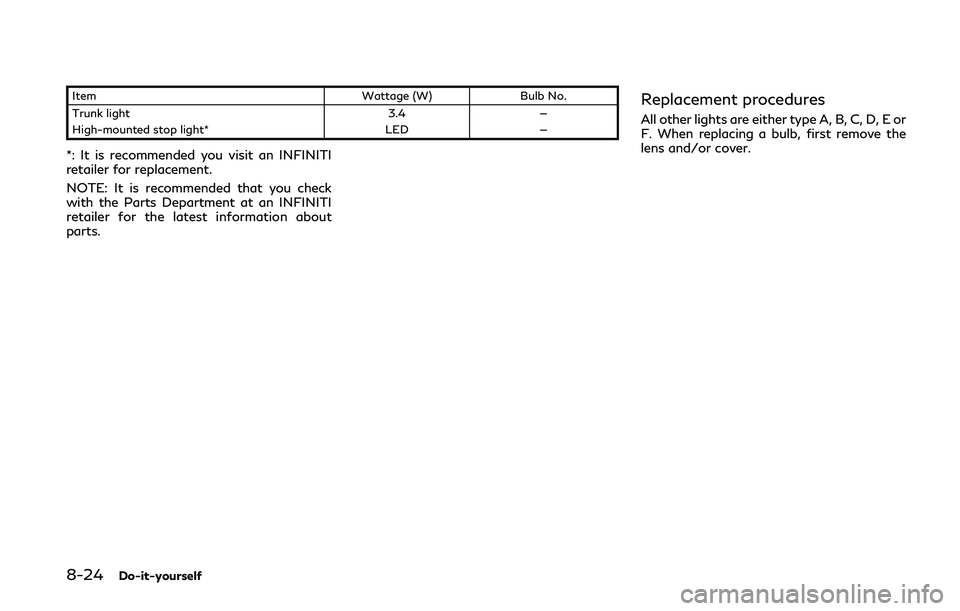

8-24Do-it-yourself
ItemWattage (W)Bulb No.
Trunk light 3.4—
High-mounted stop light* LED—
*: It is recommended you visit an INFINITI
retailer for replacement.
NOTE: It is recommended that you check
with the Parts Department at an INFINITI
retailer for the latest information about
parts.
Replacement procedures
All other lights are either type A, B, C, D, E or
F. When replacing a bulb, first remove the
lens and/or cover.

11 Index
A
ABS (Anti-lock Braking System) ................... 5-127
Active Lane Control ............................................ 5-25
Active noise cancellation ................................. 5-138
Active sound enhancement ............................ 5-138
Active trace control ......................................... 5-130
Air bag systemFront-seat mounted side-impact
supplemental air bag system ..................... 1-52
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...... 1-52
Air bag warning labels ....................................... 1-55
Air bag warning light ............................... 1-55, 2-17
Air cleaner housing filter ................................... 8-15
Air conditioner
Air conditioner operation ........................... 4-34
Air conditioner service ................................. 4-41
Air conditioner specification label ......... 10-13
Air conditioning system refrigerant
and lubricant recommendations .... 4-41, 10-7
Automatic air conditioner ........................... 4-36
Heater and air conditioner ......................... 4-34
Servicing air conditioner .............................. 4-41
Sync mode setting ......................................... 4-39
Air deflectors ..................................................... 10-14
Alarm How to stop alarm (see vehicle security
system) ............................................................. 2-33
Alcohol, drugs and driving ................................ 5-10 Antenna .................................................................. 4-42
Anti-lock Braking System (ABS) ................... 5-127
Appearance care
Exterior appearance care ............................... 7-2
Interior appearance care ................................ 7-5
Around View
®Monitor ...................................... 4-11
Audible reminders ................................................ 2-19
Autolight system .................................................. 2-38
Automatic
Automatic adjusting function
(power windows) ........................................... 2-54
Automatic air conditioner ........................... 4-36
Automatic Transmission Fluid (ATF) ......... 8-9
Driving with Automatic
Transmission (AT) .......................................... 5-16
Automatic door locks ............................................ 3-5
Automatic drive positioner ............................... 3-33
Automatic seat positioner ................................ 3-33
Avoiding collision and rollover ............................ 5-9
B
Back-up Collision Intervention (BCI) .............. 5-57
Battery .................................................................... 8-11 Battery replacement, Intelligent Key ......... 3-2
Battery saver system .................................... 2-41
Intelligent Key ................................................. 8-19
Variable voltage control system ............... 8-13
Before starting the engine ................................ 5-14
Belts (See drive belts) ......................................... 8-13 Blind Spot Intervention
®(BSI) ......................... 5-45
Blind Spot Warning (BSW) ............................... 5-37
Brake
Anti-lock Braking System (ABS) ............. 5-127
Brake fluid ......................................................... 8-9
Brake force distribution ............................. 5-129
Brake system ................................................ 5-126
Parking brake operation ............................. 5-20
Brake warning light ............................................. 2-13
Break-in schedule .............................................. 5-119
Bulb check/instrument panel ........................... 2-12
Bulb replacement ................................................. 8-22
C
Camera aiding sonar function ......................... 4-24
Capacities and
recommended fluids/lubricants ....................... 10-2
Car phone or CB radio ....................................... 4-42
Card holder ............................................................ 2-51
Catalytic converter Three-way catalyst ......................................... 5-5
Center ventilators ................................................ 4-34
Chassis control ................................................... 5-132
Check tire pressure warning ............................. 2-24
Checking intercooler coolant level .................... 8-6
Child restraints ...................................................... 1-19 LATCH system ............................................... 1-21
Precautions on child restraints .................. 1-19
Child safety ............................................................ 1-17

11-4
Indicator lights ...................................................... 2-18
Indicators for operation (vehicle
information display) ............................................ 2-23
INFINITI Drive Mode Selector ......................... 5-21
INFINITI InTouch Owner’s Manual .................. 4-2
INFINITI Vehicle Immobilizer System ............ 2-33Engine start ..................................................... 2-33
Inside mirror .......................................................... 3-29
Inspection/maintenance (I/M) test .............. 10-21
Instrument brightness control ......................... 2-43
Instrument panel ..................................................... 2-5
Intelligent All-Wheel Drive (AWD) ............... 5-121
Intelligent Cruise Control (ICC) ....................... 5-68
Intelligent Cruise Control (ICC) system
ON indicator ......................................................... 2-25
Intelligent Key .......................................................... 3-2
Intelligent Key system ........................................... 3-6 Battery replacement ..................................... 8-19
Key operating range ....................................... 3-8
Key operation ................................................... 3-9
Warning signals .............................................. 3-13
Intercooler cooling system .................................. 8-5
Interior light control switch .............................. 2-57
Interior light replacement .................................. 8-23
Interior lights ......................................................... 2-57
Interior trunk lid release .................................... 3-24
ISOFIX child restraint .......................................... 1-21J
Jump starting ........................................................ 6-10
K
Keyless entry (See remote keyless
entry system) ........................................................ 3-15
Keys ........................................................................\
.... 3-2
For Intelligent Key system ............................ 3-6
L
LabelsAir bag warning labels ................................. 1-55
Air conditioner specification label ......... 10-13
Emission control information label ........ 10-12
Engine serial number ................................. 10-12
F.M.V.S.S./C.M.V.S.S.
certification label ........................................ 10-12
Tire and Loading
information label ............................. 8-27, 10-13
Vehicle identification number (VIN) ....... 10-11
Lane Departure Warning (LDW) .................... 5-33
LATCH system ...................................................... 1-21
License plate Installing front license plate .................... 10-13
Light Air bag warning light .................................... 1-55
Bulb replacement ........................................... 8-22
Fog light switch ............................................ 2-44
Headlight switch ............................................ 2-38 Indicator lights ................................................ 2-18
Interior light control switch ........................ 2-57
Interior lights ................................................... 2-57
Map lights ........................................................ 2-57
Replacement ................................................... 8-22
Trunk light ....................................................... 2-59
Vanity mirror lights ....................................... 2-58
Warning/indicator lights and
audible reminders .......................................... 2-12
Lights
Exterior and interior light replacement .... 8-23
Loading information (See vehicle
loading information) ......................................... 10-15
Lock Automatic door locks ..................................... 3-5
Door locks .......................................................... 3-4
Power door lock ............................................... 3-4
Trunk lid ........................................................... 3-22
Locking with mechanical key ............................. 3-4
Log-in function .................................................... 3-15
Loose Fuel Cap warning ....................... 2-24, 3-27
Low fuel warning light ....................................... 2-14
Low outside temperature warning ................. 2-25
Low tire pressure warning light ...................... 2-14
Low tire pressure warning system (See Tire
Pressure Monitoring
System (TPMS)) ................................ 5-5, 6-3, 8-25
M
Maintenance
Battery .............................................................. 8-11
