Page 396 of 492
8-6Do-it-yourself

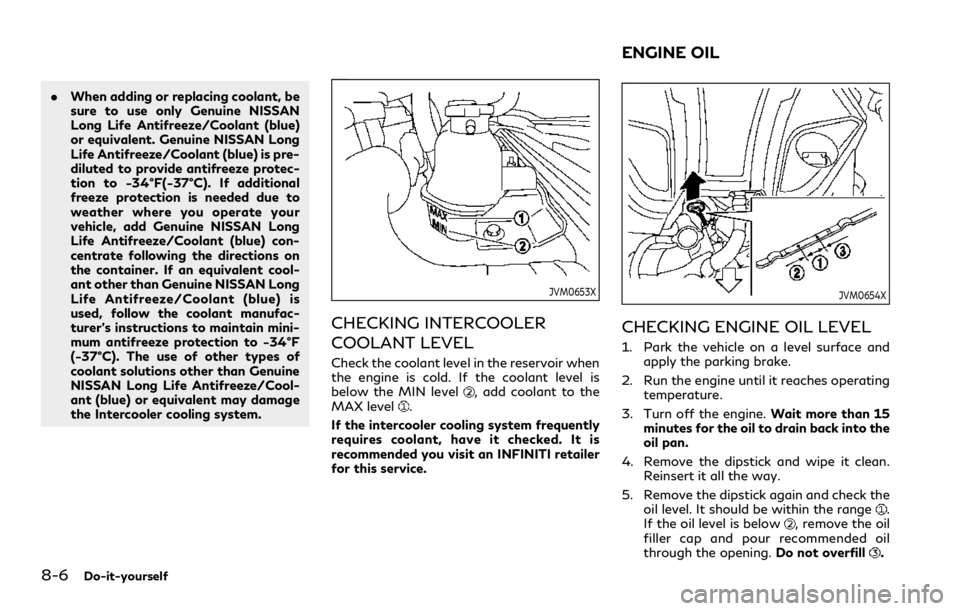

.When adding or replacing coolant, be
sure to use only Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
or equivalent. Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is pre-
diluted to provide antifreeze protec-
tion to −34°F(−37°C). If additional
freeze protection is needed due to
weather where you operate your
vehicle, add Genuine NISSAN Long
Life Antifreeze/Coolant (blue) con-
centrate following the directions on
the container. If an equivalent cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is
used, follow the coolant manufac-
turer’s instructions to maintain mini-
mum antifreeze protection to −34°F
(−37°C). The use of other types of
coolant solutions other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent may damage
the Intercooler cooling system.
JVM0653X
CHECKING INTERCOOLER
COOLANT LEVEL
Check the coolant level in the reservoir when
the engine is cold. If the coolant level is
below the MIN level
, add coolant to the
MAX level.
If the intercooler cooling system frequently
requires coolant, have it checked. It is
recommended you visit an INFINITI retailer
for this service.
JVM0654X
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn off the engine.Wait more than 15
minutes for the oil to drain back into the
oil pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the
oil level. It should be within the range
.
If the oil level is below, remove the oil
filler cap and pour recommended oil
through the opening.Do not overfill
.
ENGINE OIL
Page 400 of 492
8-10Do-it-yourself
JVM0731X
Check the fluid level in the reservoir. If the
fluid is below the MIN lineor the brake
warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalentDOT 3fluid up to the MAX line
.
If fluid must be added frequently, the system
should be checked. It is recommended you
visit an INFINITI retailer for this service.
JVM0253X
WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
Fill the window washer fluid reservoir per-
iodically. Add window washer fluid when the
low window washer fluid warning appears in
the vehicle information display.
To fill the window washer fluid reservoir, lift
the cap off the reservoir and pour the
window washer fluid into the reservoir
opening.To check the window washer fluid level, use
your finger to plug the hole
of the cap/
tube assembly, then remove it from the
reservoir. If there is no fluid in the tube,
add fluid.
Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION
.Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
.Do not fill the window washer re-
servoir with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir.
WINDOW WASHER FLUID
Page 434 of 492
9-4Maintenance and schedules
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Steering wheel:Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes:Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster:Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.
Windshield wiper and washer*:Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*:Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or
under severe condition require frequent
checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:1.Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2.Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*:Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.
Engine coolant level*:Check the coolant
level when the engine is cold.
Intercooler coolant level*:Check the coolant
level when the engine is cold.
Engine drive belts*:Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*:Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
Exhaust system:Make sure there are no
loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have
the exhaust system inspected. It is recom-
mended you visit an INFINITI retailer for this
service. (See “Precautions when starting anddriving” (P.5-4).)
Fluid leaks:Check under the vehicle for fuel,
oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use is
normal. If you should notice any leaks or if
gasoline fumes are evident, check for the
cause and have it corrected immediately.
Radiator and hoses:Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.
Underbody:The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control dust. It
is very important to remove these sub-
stances, otherwise rust will form on the
floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the
underbody should be thoroughly flushed
with plain water, being careful to clean
those areas where mud and dirt may accu-
mulate. For additional information, see
“Cleaning exterior” (P.7-2).
Windshield washer fluid*:Check that there
is adequate fluid in the reservoir.
Page 435 of 492
The following descriptions are provided to
give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The main-
tenance schedule indicates at which mile-
age/time intervals each item requires
service.
In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. Refer
to “General maintenance” (P.9-2).
Items marked with “*” are recommended by
INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your vehicle. Other
maintenance items and intervals are re-
quired.
When applicable, additional information can
be found in the “8. Do-it yourself” section of
this manual.
NOTE:
INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been
validated by INFINITI.
For recommended fuel, lubricants, fluids,grease, and refrigerant, refer to “Capacities
and recommended fluids/lubricants” (P.10-
2) of this manual.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts.
Engine air filter:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
check/replace the filter more frequently.
Engine coolant*:
Replace coolant at the specified interval.
When adding or replacing coolant, be sure to
use only Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) or equivalent with the
proper mixture. (Refer to “Engine cooling
system” (P.8-3) to determine the proper
mixture for your area.)
NOTE:
Mixing any other type of coolant or the use
of non-distilled water may reduce the
recommended service interval of the cool-
ant.
Intercooler coolant:
Intercooler coolant is maintenance-free.Engine oil and oil filter:
Replace engine oil and oil filter at the
specified intervals. For recommended oil
grade and viscosity refer to “Capacities and
recommended fluids/lubricants” (P.10-2).
Engine valve clearance*:
Inspect only if valve noise increases. Adjust
valve clearance if necessary.
Evaporative emissions control vapor lines*:
Check vapor lines for leaks or looseness.
Tighten connections or replace parts as
necessary.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tight-
en connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new
plugs of the type as originally equipped.
CHASSIS AND BODY MAINTE-
NANCE
Brake lines and cables:
Visually inspect for proper installation.
Check for chafing, cracks, deterioration,
and signs of leaking. Replace any deterio-
rated or damaged parts immediately.
Maintenance and schedules9-5
EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS
Page 448 of 492
9-18Maintenance and schedules
105,000 Miles/126 Months/
168,000 Km
Standard maintenance:.Replace In-cabin microfilter.Replace Intelligent Key battery.Perform tire rotation (1).Replace spark plugs (2) (3).Replace engine coolant* (4)Severe maintenance:
.Inspect brake pads and rotors.Inspect exhaust system.Inspect steering gear and linkage.Inspect axle and suspension parts.Inspect propeller shaft (AWD models).Inspect drive shaft boots (AWD models)
(1) If your vehicle is equipped with different sized
tires in the front and rear, tires cannot be rotated.
(2) Performed based on the number of miles only.
(3) Replace spark plug when the plug gap exceeds
0.043 in (1.1 mm) even if within specified periodic
replacement mileage.
(4) First replacement interval is 105,000 miles
(168,000 km) or 84 months. After first replace-
ment, replace every 75,000 miles (120,000 km)
or 60 months.
*: Maintenance items and intervals with "*" are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emission
warranty or manufacturer recall liability. Other
maintenance items and intervals are required.
110,000 Miles/132 Months/
176,000 Km
Standard maintenance:.Inspect brake lines and cables.Inspect brake pads and rotors.Inspect drive belts (1).Inspect propeller shaft (AWD models).Inspect drive shaft boots (AWD models).Inspect stop lamp switch and brake pedal
position switch (2)
.Inspect transfer fluid.Inspect differential gear oil.Replace engine oil and filter (3).Perform tire rotation (4)
Page 452 of 492
10-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
MeasureUS
MeasureImperial
Measure
Fuel 76 L 20 gal 16-5/8 galSee “Fuel information” (P.10-4).
Engine oil
*1Drain and refill*1: For additional
information, see
“Engine oil” (P.8-
6).Two-Wheel
Drive (2WD)
modelWith oil filter
change5.3 L 5-5/8 qt 4-5/8 qtGenuine “NISSAN Motor Oil 0W-20 SN” (or equivalent) is recommended.
If the above motor oil (or engine oil) is not available, a synthetic 0W-20 GF-5 SN motor oil (or
engine oil) may be used. Damage caused by the use of motor oil (or engine oil) other than as
recommended is not covered under INFINITI’s new vehicle limited warranty. For additional
information, see “Engine oil and oil filter recommendation” (P.10-6). Without oil fil-
ter change5.1 L 5-3/8 qt 4–1/2 qt
All-Wheel
Drive (AWD)
modelWith oil filter
change5.9 L 6-1/4 qt 5-1/4 qt
Without oil fil-
ter change5.7 L 6 qt 5 qt
Engine coolant Standard and
premium
gradeTotal (with re-
servoir)9.3 L 9-7/8 qt 8-1/8 qtPre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 0.5 L 1/2 qt 1/2 qt
Sport grade Total (with re-
servoir)10.4 L 11 qt 9-1/8 qt
Reservoir 0.5 L 1/2 qt 1/2 qt
Intercooler coolant Total (with reservoir) 3.2 L 3-3/8 qt 2-7/8 qt
Reservoir 0.4 L 3/8 qt 3/8 qt
Automatic Transmission Fluid (ATF) — — —Genuine NISSAN Matic S ATF or equivalent
INFINITI recommends using Genuine NISSAN Matic S ATF (or equivalent) ONLY in INFINITI
automatic transmissions. Do not mix with other fluids. Using fluids that are not equivalent to
Genuine NISSAN Matic S ATF may damage the automatic transmission. Damage caused by the
use of fluids other than as recommended is not covered under the INFINITI’s new vehicle limited
warranty.
Differential gear
oilFront — — —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent conventional (non-
synthetic) oil
Rear — — —Genuine NISSAN HYPOID FLUID·S1 GL-5 75W-80 or equivalent
Transfer fluid — — —Genuine NISSAN Matic J ATF or equivalent
INFINITI recommends using Genuine NISSAN Matic J ATF (or equivalent) ONLY in INFINITI
transfers. Do not mix with other fluids. Using fluids that are not equivalent to Genuine NISSAN
Matic J ATF may damage the transfer. Damage caused by the use of fluids other than as
recommended is not covered under the INFINITI’s new vehicle limited warranty.
Brake fluid Refill to the proper oil level according to
the instructions in the “8. Do-it-yourself”
section.Genuine NISSAN Super Heavy Duty Brake Fluid
*4or equivalent DOT 3*4: Available in mainland U.S.A. through an INFINITI retailer.
Multi-purpose grease — — —NLGI No. 2 (Lithium soap base)
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
Page 477 of 492
11 Index
A
ABS (Anti-lock Braking System) .................. 5-130
Active Lane Control ............................................ 5-25
Active noise cancellation ................................. 5-141
Active sound enhancement ............................ 5-141
Active trace control .......................................... 5-133
Air bag system
Front-seat mounted side-impact
supplemental air bag system ..................... 1-52
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...... 1-52
Air bag warning labels ....................................... 1-55
Air bag warning light .............................. 1-55, 2-14
Air cleaner housing filter ................................... 8-15
Air conditioner
Air conditioner operation ........................... 4-34
Air conditioner service ................................. 4-41
Air conditioner specification label ......... 10-13
Air conditioning system refrigerant
and oil recommendations ................ 4-41, 10-7
Automatic air conditioner ........................... 4-36
Heater and air conditioner ......................... 4-34
Servicing air conditioner .............................. 4-41
Sync mode setting ......................................... 4-39
Air deflectors ...................................................... 10-15
Alarm
How to stop alarm (see vehicle
security system) ............................................. 2-33
Alcohol, drugs and driving ................................ 5-10Android Auto .......................................................... 4-2
Antenna .................................................................. 4-42
Anti-lock Braking System (ABS) .................. 5-130
Appearance care
Exterior appearance care ............................... 7-2
Interior appearance care ................................ 7-5
Apple CarPlay
®...................................................... 4-2
Around View®Monitor ...................................... 4-11
Audible reminders ................................................ 2-20
Autolight system .................................................. 2-38
Automatic
Automatic adjusting function
(power windows) ........................................... 2-55
Automatic air conditioner ........................... 4-36
Automatic Transmission Fluid (ATF) ......... 8-9
Driving with Automatic
Transmission (AT) .......................................... 5-16
Automatic door locks ............................................ 3-5
Automatic seat positioner ................................ 3-33
Avoiding collision and rollover ............................ 5-9
B
Back-up Collision Intervention (BCI) .............. 5-62
Battery .................................................................... 8-11
Battery replacement, Intelligent Key ......... 3-2
Battery saver system .................................... 2-41
Intelligent Key ................................................. 8-19
Variable voltage control system ............... 8-13
Before starting the engine ................................ 5-14Belts (See drive belts) ......................................... 8-13
Blind Spot Intervention
®(BSI) ......................... 5-48
Blind Spot Warning (BSW) .............................. 5-40
Brake
Anti-lock Braking System (ABS) ............ 5-130
Brake fluid ......................................................... 8-9
Brake force distribution ............................. 5-132
Brake system ................................................ 5-129
Parking brake operation ............................. 5-20
Brake warning light ............................................. 2-13
Break-in schedule .............................................. 5-122
Bulb check/instrument panel ........................... 2-13
Bulb replacement ................................................. 8-22
C
Camera aiding sonar function ......................... 4-24
Capacities and
recommended fluids/lubricants ....................... 10-2
Car phone or CB radio ....................................... 4-42
Card holder ............................................................ 2-52
Catalytic converter
Three-way catalyst ......................................... 5-5
Center ventilators ................................................ 4-34
Chassis control ................................................... 5-135
Check tire pressure warning ............................. 2-24
Checking intercooler coolant level .................... 8-6
Child restraints ..................................................... 1-20
LATCH system ............................................... 1-22
Precautions on child restraints .................. 1-20
Page 478 of 492
11-2
Child safety ........................................................... 1-18
Chimes
Audible reminders .......................................... 2-20
Seat belt warning light
and chime ............................................. 1-13, 2-14
Circuit breaker
Fusible link ....................................................... 8-18
Cleaning exterior and interior .................... 7-2, 7-5
Climate control
Automatic air conditioner ........................... 4-36
Clock ...................................................................... 2-31
Coat hooks ............................................................ 2-53
Cockpit ...................................................................... 2-3
Cold weather driving ........................................ 5-138
Compass .................................................................... 2-9
Console box ........................................................... 2-52
Coolant
Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................... 8-5
Checking engine coolant level ...................... 8-4
Corrosion protection ............................................. 7-8
Courtesy light ....................................................... 2-60
Cruise control ....................................................... 5-70
Fixed speed cruise control (on
ICC system) .................................................... 5-88
Intelligent Cruise Control (ICC) ................. 5-72
Cruise indicator .................................................... 2-25
Cup holders ........................................................... 2-50
Current fuel consumption ................................. 2-29D
Daytime running light system .......................... 2-41
Defroster switch
Rear window and outside mirror
defroster switch ............................................. 2-37
Dimensions ......................................................... 10-10
Direct Adaptive Steering ................................. 5-127
Distance Control Assist (DCA) ........................ 5-92
Distance to empty ............................................... 2-29
Drive belts .............................................................. 8-13
Drive positioner (See Memory seat) .............. 3-33
Driver assist system indicator .......................... 2-25
Driving
Cold weather driving ................................. 5-138
Driving with Automatic
Transmission (AT) .......................................... 5-16
Precautions when starting and driving ..... 5-4
E
ECO drive indicator light ................................... 2-19
ECO mode ............................................................. 5-22
ECO pedal system ............................................... 5-22
Economy
Fuel .................................................................. 5-123
Elapsed time ......................................................... 2-29
Elapsed time and trip odometer ..................... 2-29
Emergency Call (SOS) button .......................... 2-48
Emergency tire puncture repair kit .................... 6-5
Emission control information label ............... 10-12
Emission control system warranty ............... 10-21Engine
Before starting the engine .......................... 5-14
Break-in schedule ........................................ 5-122
Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine coolant ............................... 8-5
Changing engine oil and filter ...................... 8-7
Checking engine coolant level ...................... 8-4
Checking engine oil level ............................... 8-6
Coolant temperature gauge ......................... 2-8
Emergency engine shut off ......................... 5-13
Engine block heater ................................... 5-139
Engine compartment check locations ........ 8-3
Engine cooling system ................................... 8-3
Engine oil ........................................................... 8-6
Engine oil and filter
replacement indicator ................................... 2-27
Engine oil and oil
filter recommendation .................................. 10-6
Engine serial number ................................. 10-12
Engine specifications ................................... 10-8
Engine start operation indicator ............... 2-23
If your vehicle overheats ............................. 6-13
Intercooler cooling system ............................ 8-5
Remote engine start ..................................... 3-19
Remote engine start
operation indicator ........................................ 2-23
Starting the engine ....................................... 5-15
Engine coolant temperature gauge .................. 2-8
Entry/exit function
Memory seat ................................................... 3-33
Page 479 of 492
Event Data Recorders (EDR) ........................ 10-23
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5
F
F.M.V.S.S./C.M.V.S.S. certification label .... 10-12
Filter
Air cleaner housing filter ............................. 8-15
Changing engine oil and filter ...................... 8-7
Flashers (See hazard warning
flasher switch) ......................................................... 6-2
Flat tire ...................................................................... 6-3
Repairing flat tire (with emergency tire
puncture repair kit) .......................................... 6-5
Flat Tire - Visit dealer warning ....................... 2-24
Flat towing .......................................................... 10-19
Floor mat cleaning ................................................. 7-6
Floor mat installation ............................................ 7-6
Fluid
Automatic Transmission Fluid (ATF) ......... 8-9
Brake fluid ......................................................... 8-9
Capacities and
recommended fluids/lubricants ................. 10-2
Engine coolant .................................................. 8-3
Engine oil ........................................................... 8-6
Intercooler coolant .......................................... 8-5
Window washer fluid .................................. 8-10
Fog light switch ................................................... 2-44
Forward Emergency Braking (FEB) system
warning light ......................................................... 2-15Forward Emergency Braking (FEB) with
pedestrian detection system ......................... 5-103
Front passenger air bag and status light ..... 1-46
Front power seat adjustment ............................. 1-3
Front seat
Front seat adjustment .................................... 1-3
Fuel
Capacities and
recommended fluids/lubricants ................. 10-2
Fuel economy ............................................... 5-123
Fuel information ........................................... 10-4
Fuel octane rating ........................................ 10-4
Fuel-filler cap .................................................. 3-25
Fuel-filler door ............................................... 3-25
Gauge .................................................................. 2-9
Fuel Efficient Driving Tips .............................. 5-122
Fuses ....................................................................... 8-17
Fusible links ........................................................... 8-18
G
Garage door opener
HomeLink®Universal Transceiver ............ 2-61
Gas cap ................................................................... 3-25
Gauge ......................................................................... 2-6
Engine coolant temperature gauge ............ 2-8
Fuel gauge ......................................................... 2-9
Odometer ............................................................ 2-7
Speedometer ...................................................... 2-7
Tachometer ....................................................... 2-8
Trip computer ................................................. 2-29
General maintenance ............................................. 9-2Glove box ............................................................... 2-51
H
Hazard warning flasher switch ........................... 6-2
Head restraints/headrests .................................. 1-7
Headlights
Aiming control (See Adaptive Front
lighting System (AFS)) ................................. 2-42
Headlight switch ............................................ 2-37
Heated seats ......................................................... 2-45
Heated steering wheel ....................................... 2-46
Heater
Engine block heater ................................... 5-139
Heater and air conditioner ................................ 4-34
High beam assist ................................................. 2-39
Hill start assist system ..................................... 5-135
HomeLink
®Universal Transceiver .................. 2-61
Hood release ......................................................... 3-22
Hook
Coat hooks ...................................................... 2-53
Trunk hooks .................................................... 2-53
Horn ......................................................................... 2-44
I
Ignition switch
(Push-button) ................................................. 5-11
Immobilizer system .............................................. 2-33
Indicator
Vehicle information display ........................ 2-20
11-3
Page 483 of 492
Switch
Autolight switch ............................................. 2-38
Emergency Call (SOS) button ................... 2-48
Fog light switch ............................................ 2-44
Hazard warning flasher switch .................... 6-2
Headlight switch ............................................ 2-37
Power door lock switch ................................. 3-5
Push-button ignition switch ....................... 5-11
Rear window and outside mirror
defroster switch ............................................. 2-37
Turn signal switch ......................................... 2-43
Vehicle Dynamic Control (VDC)
off switch ........................................................ 2-44
T
Tachometer ............................................................. 2-8
Temperature gauge
Engine coolant temperature gauge ............ 2-8
Theft (INFINITI Vehicle Immobilizer System)
Engine start ..................................................... 2-33
Three-way catalyst ................................................ 5-5
Tilt/telescopic steering ...................................... 3-27
Tire
Flat Tire - Visit dealer warning ................. 2-24
Run-flat tires .................................................... 6-4
Sealant ................................................................ 6-5
Tire replacement indicator .......................... 2-27
Tire rotation ................................................... 8-34
Tire pressure
Low tire pressure warning light ................ 2-15
Tire Pressure Low - Add Air warning ........... 2-24Tires
Emergency tire puncture repair kit ............. 6-5
Flat tire ............................................................... 6-3
Low tire pressure
warning system ........................... 5-5, 6-3, 8-25
Run-flat tires .................................................. 8-32
Tire and Loading
information label ............................. 8-27, 10-13
Tire chains ....................................................... 8-34
Tire dressing ...................................................... 7-4
Tire pressure ................................................... 8-25
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-25
Types of tires .................................................. 8-32
Uniform tire quality grading .................... 10-20
Wheel/tire size ............................................... 10-9
Wheels and tires ............................................ 8-25
Towing
Flat towing ................................................... 10-19
Tow truck towing .......................................... 6-14
Towing a trailer ........................................... 10-19
TPMS
Tire Pressure
Monitoring System .................... 5-5, 6-3, 8-25
TPMS, Tire pressure monitoring system
TPMS with Tire Inflation Indicator ............ 5-8
Trailer towing ..................................................... 10-19
Transceiver
HomeLink
®Universal Transceiver ............ 2-61
Transmission
Automatic Transmission Fluid (ATF) ......... 8-9Driving with Automatic
Transmission (AT) .......................................... 5-16
Transmission shift lever lock release ....... 5-19
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering in
another country ................................................. 10-11
Trip computer ....................................................... 2-29
Trip odometer ....................................................... 2-29
Trunk
Interior trunk lid release .............................. 3-24
Light ................................................................. 2-60
Trunk hooks .................................................... 2-53
Trunk lid ........................................................... 3-22
Trunk lid release switch ............................... 3-23
Trunk open request switch ......................... 3-23
Trunk release power cancel switch .......... 3-24
Turn signal switch ............................................... 2-43
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading .......................... 10-20
V
Vanity mirror ......................................................... 3-33
Vanity mirror lights ............................................. 2-60
Variable voltage control system ..................... 8-13
Vehicle
Dimensions ................................................... 10-10
Recovery (freeing a stuck vehicle) ............ 6-16
11-7
