INFINITI Q70 2014 Owner's Manual

Black plate (19,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-AE45F736-D98A-4CF8-9862-081B0785133E
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light* 2-11
Anti-lock Braking System (ABS)
warning light2-11
Automatic Transmission check
warning light
2-11
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (orange)*2-12
Brake warning light
2-11
Charge warning light2-12
Distance Control Assist (DCA)
system warning light (orange)* 2-12
Engine oil pressure warning
light2-13
Intelligent Cruise Control (ICC)
system warning light (orange)*2-13
Lane Departure Warning (LDW)
light (orange)*
2-13
Low tire pressure warning light 2-13
Master warning light
2-15
Preview Function warning light
(orange)* 2-15Warning
light Name Page
Seat belt warning light and
chime 2-15
Supplemental air bag warning
light
2-15
Vehicle Dynamic Control (VDC)
warning light2-16
Indicator light Name
Page
Adaptive Front lighting System
(AFS) off indicator light* 2-16
Automatic Transmission (AT)
position indicator light
2-16
Blind Spot Intervention (BSI) ON
indicator light
(green)*2-16
ECO drive indicator light
2-17
Exterior light indicator2-17
Front fog light indicator light
2-17
Front passenger air bag status
light2-17
High beam indicator light
2-17
Intelligent Brake Assist (IBA) off
indicator light*2-17
Lane Departure Warning (LDW)
light (green)*2-17Indicator
light Name Page
Malfunction Indicator Light
(MIL) 2-18
Security indicator light 2-18
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
Illustrated table of contents0-13
WARNING AND INDICATOR LIGHTS
Condition:

Black plate (20,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
0-14Illustrated table of contents
MEMO
Condition:

Black plate (21,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
1 Safety—Seats, seat belts and supplemental
restraint system
Seats ...
................................................................... 1-2
Front seats ...
...................................................... 1-3
Armrest ...
........................................................... 1-4
Head restraints/headrests ...
................................... 1-5
Adjustable head
restraint/headrest components ...
........................ 1-6
Non-adjustable head
restraint/headrest components ...
........................ 1-7
Remove ...
........................................................... 1-7
Install ...
.............................................................. 1-8
Adjust ...
............................................................. 1-8
Front-seat Active Head Restraints ...
.................... 1-9
Seat belts ...
.......................................................... 1-10
Precautions on seat belt usage ...
..................... 1-10
Pregnant women ...
........................................... 1-13
Injured persons ...
............................................. 1-13
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ...
......................... 1-13
Three-point type seat belt ...
............................. 1-13
Seat belt extenders ...
....................................... 1-17
Seat belt maintenance ...
................................... 1-17
Child safety ...
....................................................... 1-18
Infants ...
........................................................... 1-18
Small children ...
............................................... 1-19
Larger children ...
.............................................. 1-19 Child restraints
...
................................................. 1-20
Precautions on child restraints ...
..................... 1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................ 1-21
Rear-facing child restraint installation
using LATCH ...
................................................. 1-24
Rear-facing child restraint installation using
the seat belts ...
.............................................. 1-26
Forward-facing child restraint installation
using LATCH ...
................................................. 1-28
Forward-facing child restraint installation
using the seat belts ...
..................................... 1-30
Installing top tether strap ...
............................ 1-34
Booster seats ...
.............................................. 1-34
Supplemental restraint system ...
.......................... 1-38
Precautions on supplemental
restraint system ...
........................................... 1-38
INFINITI Advanced Air Bag System
(front seats) ...
................................................. 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
..................... 1-48
Seat belts with pretensioners (front seats) ...
.... 1-50
Supplemental air bag warning labels ...
........... 1-51
Supplemental air bag warning light ...
............. 1-51
Repair and replacement procedure ...
............... 1-52
Condition:

Black plate (22,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
1-2Safety—Seats, seat belts and supplemental restraint system
Y51D-V-E01-F6C5647E-51C1-45DD-A527-B12A30FCBE2A
SSS0133
WARNING
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the seat with both feet on the floor and
adjust the seat belt properly. See
“Pre-
cautions on seat belt usage” (P.1-10).
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
. The seatback should not be reclined
further than necessary for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.
SEATS
Condition:

Black plate (23,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
FRONT SEATSY51D-V-E01-B05814F9-B0D6-4237-8C0F-FFC8B717E1A4
Front power seat adjustmentY51D-V-E01-152CA959-546B-4E86-887B-45E9AF10E014
Operating tips:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
See “Automatic drive positioner” (P.3-27)
for the seat position memory function.
SSS1051
Forward and backward:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Moving the switch*1forward or backward
will slide the seat forward or backward to
the desired position.
Reclining:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Move the recline switch*2backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
*2forward.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See “Precautions on
seat belt usage” (P.1-10).) Also, the seat- back can be reclined to allow occupants to
rest when the vehicle is parked.
Safety
—Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (24,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

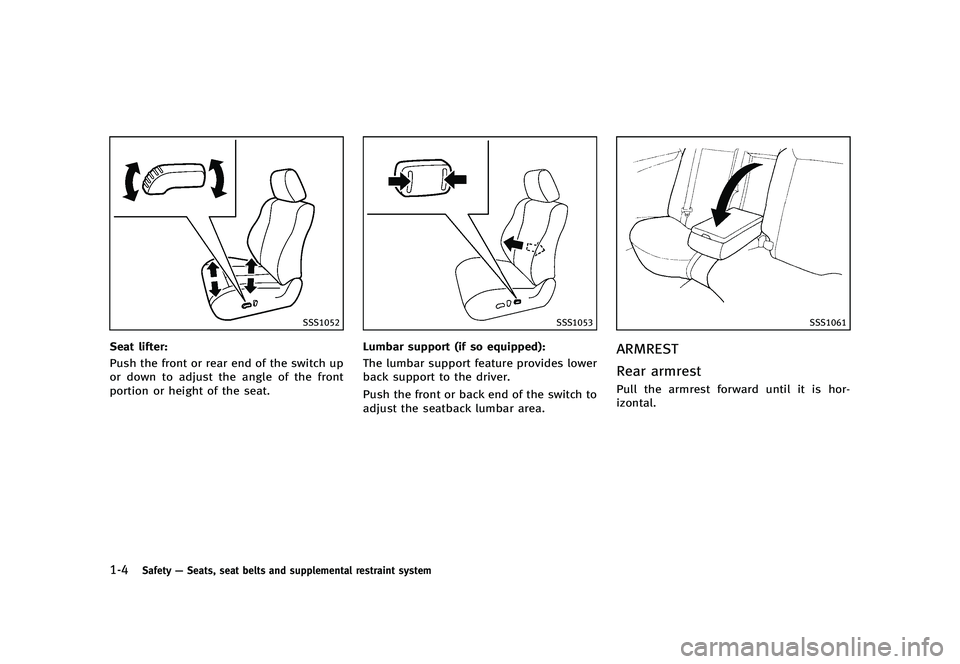

1-4Safety—Seats, seat belts and supplemental restraint system
SSS1052
Seat lifter:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Push the front or rear end of the switch up
or down to adjust the angle of the front
portion or height of the seat.
SSS1053
Lumbar support (if so equipped):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The lumbar support feature provides lower
back support to the driver.
Push the front or back end of the switch to
adjust the seatback lumbar area.
SSS1061
ARMRESTY51D-V-E01-B67CC69D-E0E2-4C69-AED0-DD1B63B8B5F4
Rear armrestY51D-V-E01-68D9BA12-7A81-42C1-9CD0-E4249D591424Pull the armrest forward until it is hor-
izontal.
Condition:

Black plate (25,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SSS0479
Trunk pass-throughY51D-V-E01-872F8DB3-DEF6-476E-B2DE-8902080F1241The rear center seatback can be folded to
allow trunk access from inside of the
vehicle.
To access the trunk, pull down the rear
center armrest and pull out the trunk pass-
through lid
*1.
To lock the lid, use the mechanical key and
turn it to the LOCK position
*2. To unlock,
turn the mechanical key to the UNLOCK
position
*3. For the mechanical key usage,
see “Keys” (P.3-2).
Make sure that the mechanical key is
removed from the trunk pass-through lid key cylinder before opening or closing the
lid. Otherwise the lid and the rear armrest
may be damaged.
Y51D-V-E01-FC284699-D495-49A3-89A2-0699DC970523
WARNING
Head restraint/headrest supplement the
other vehicle safety systems. They may
provide additional protection against injury
in certain rear end collisions. Adjustable
head restraints/headrests must be adjusted
properly, as specified in this section. Check
the adjustment after someone else uses the
seat. Do not attach anything to the head
restraint/headrest stalks or remove the
head restraint/headrest. Do not use the
seat if the head restraint/headrest has been
removed. If the head restraint/headrest was
removed, reinstall and properly adjust the
head restraint/headrest before an occupant
uses the seating position. Failure to follow
these instructions can reduce the effective-
ness of the head restraint/headrest. This
may increase the risk of serious injury or
death in a collision.
Safety
—Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS
Condition:

Black plate (26,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
1-6Safety—Seats, seat belts and supplemental restraint system
JVR0089X
The illustration shows the seating posi-
tions equipped with head restraint/head-
rest.
Indicates the seating position is
equipped with a head restraint.
Indicates the seating position is
equipped with a headrest.
+ indicates the seating position is not
equipped with a head restraint or head-
rest.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable. .
Adjustable head restraints/headrests
have multiple notches along the stalk
to lock them in a desired adjustment
position.
. The non-adjustable head restraints/
headrests have a single locking notch
to secure them to the seat frame.
. Proper Adjustment:
— For the adjustable type, align the
head restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head re-
straint/headrest.
— If your ear position is still higher
than the recommended alignment,
place the head restraint/headrest at
the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
Y51D-V-E01-0164EA90-CBB8-4652-8D80-FD9EFFFBA1091. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
Condition:

Black plate (27,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
Y51D-V-E01-15FAC2F7-19E9-42D2-BBB8-27C642986FBC1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVEY51D-V-E01-D21DF91F-83B2-453A-9EBD-F3AD8FB187F7Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up tothe highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest
from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose
in the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position.
Safety
—Seats, seat belts and supplemental restraint system1-7
Condition:

Black plate (28,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
1-8Safety—Seats, seat belts and supplemental restraint system
SSS0996
INSTALLY51D-V-E01-13998155-E1A8-4A01-8233-71A170E9AFD51. Align the head restraint/headrest
stalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the adjustment notch
*1must be
installed in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/
headrest before an occupant uses the
seating position.
SSS0997
ADJUSTGUID-1D8DABFE-EC7D-431E-B6B7-C941433CC04DFor adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
JVR0259X
For non-adjustable head restraint/head-
rest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Condition:
