window INFINITI Q70 2014 Owner's Manual

Black plate (137,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3 Pre-driving checks and adjustments
Keys...
.................................................................... 3-2
Intelligent Key ...
................................................. 3-2
Valet hand-off ...
.................................................. 3-3
Doors ...
.................................................................. 3-4
Locking with mechanical key ...
........................... 3-4
Opening and closing windows with the
mechanical key ...
................................................ 3-4
Locking with inside lock knob ...
......................... 3-5
Locking with power door lock switch ...
............... 3-5
Automatic door locks ...
....................................... 3-5
Child safety rear door lock ...
.............................. 3-6
Intelligent Key system ...
......................................... 3-6
Intelligent Key operating range ...
........................ 3-8
Door locks/unlocks precaution ...
....................... 3-9
Intelligent Key operation ...
................................. 3-9
Battery saver system ...
..................................... 3-11
Warning signals ...
............................................. 3-11
Troubleshooting guide ...
................................... 3-12
Remote keyless entry system ...
............................. 3-13
How to use remote keyless entry system ...
....... 3-13
Hood ...
................................................................. 3-17
Trunk lid ...
............................................................ 3-17
Trunk lid release switch ...
................................. 3-18 Trunk open request switch
...
........................... 3-18
Opening with key ...
......................................... 3-19
Trunk button ...
................................................ 3-19
Trunk release power cancel switch ...
............... 3-19
Auto closure ...
................................................ 3-19
Interior trunk lid release ...
.............................. 3-20
Fuel-filler door ...
................................................... 3-21
Opening the fuel-filler door ...
.......................... 3-21
Fuel-filler cap ...
............................................... 3-21
Tilt/telescopic steering ...
...................................... 3-23
Electric operation ...
......................................... 3-23
Sun visors ...
......................................................... 3-24
Mirrors ...
.............................................................. 3-25
Inside mirror ...
................................................ 3-25
Outside mirrors ...
............................................ 3-25
Vanity mirror ...
................................................ 3-27
Automatic drive positioner ...
................................ 3-27
Entry/exit function ...
....................................... 3-27
Seat synchronization function ...
..................... 3-28
Memory storage ...
........................................... 3-29
Setting memory function ...
.............................. 3-30
System operation ...
......................................... 3-30
Condition:

Black plate (140,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3-4Pre-driving checks and adjustments
Y51D-V-E01-177D3333-D318-4851-983B-CCA9E4D9C481
WARNING
.Always have the doors locked while
driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally opening
the doors, and will help keep out
intruders.
. Before opening any door, always look for
and avoid oncoming traffic.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
SPA2527
LOCKING WITH MECHANICAL KEYY51D-V-E01-C25772FF-54AB-4B29-905A-20D8DCADE361The power door lock system allows you to
lock or unlock all doors simultaneously
using the mechanical key.
.Turning the driver’s door key cylinder to
the front of the vehicle
*1will lock all
doors.
. Turning the driver’s door key cylinder
once to the rear of the vehicle
*2will
unlock the driver’s door. After returning
the key to the neutral position
*3,
turning it to the rear again within 60
seconds will unlock all doors. .
You can switch the lock system to the
mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
16).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
Y51D-V-E01-4F532F02-D91C-4F3D-A52B-22AB4EC3B1EBThe driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-52).)
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.
This function can also be performed by
pushing and holding the door UNLOCK
button of the Intelligent Key. (See “Remote
keyless entry system” (P.3-13).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked
and the window keeps closing while turn-
ing the key.
DOORS
Condition:

Black plate (149,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-C688401E-E9F3-470C-9900-CC16F907F8D2
WARNING
The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA
advises that the radio waves may affect
aircraft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure the buttons
are not operated unintentionally when the
unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-
filler door, activate the panic alarm and
open the windows by pushing the buttons
on the Intelligent Key from outside the
vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelli-
gent Key can operate at a distance of
approximately 33 ft (10 m) from the
vehicle. (The effective distance depends
upon the conditions around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concern-
ing the purchase and use of additional
Intelligent Keys, contact an INFINITI retai-
ler.The lock and unlock buttons on the
Intelligent Key will not operate when:
.
the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
. the Intelligent Key battery is dis-
charged.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons,
approach the vehicle to about 3 ft (1 m)
from the door.SPA2100
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Y51D-V-E01-17AB4EB7-4769-4F15-B7CB-CAD2CBDD45D7When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash
and the horn (or the outside chime) will
sound as a confirmation. For details, see
“Setting hazard indicator and horn mode”
(P.3-15).
Pre-driving checks and adjustments3-13
REMOTE KEYLESS ENTRY SYSTEM
Condition:

Black plate (150,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3-14Pre-driving checks and adjustments
Locking doors and fuel-filler doorY51D-V-E01-E9C01606-95CE-4FEE-9BEC-65E3B96B27331. Push the ignition switch to the OFFposition and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors.
3. Push the LOCK
button*1on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC
or ON position.
Unlocking doors and fuel-filler doorY51D-V-E01-CACAF5DB-E00C-4137-8A50-620148E048581. Push the UNLOCKbutton*2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will
unlock.
3. Push the UNLOCK
button on the
Intelligent Key again within 1 minute.
4. The hazard indicator flashes once
again. All the doors will unlock.
All doors will be locked automatically
unless one of the following operations is performed within 1 minute after pushing
the UNLOCK button on the Intelligent Key
while the doors are locked. If during this 1-
minute time period, the UNLOCK button on
the Intelligent Key is pushed, all doors will
be locked automatically after another 1
minute.
.
Opening any door
. Pushing the ignition switch
Opening windowsY51D-V-E01-C312D8D6-DA39-443A-B386-43A24CA3CA9AThe UNLOCKbutton*2operation also
allows you to open the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-52).)
To open the window, push the door
UNLOCK
button on the Intelligent Key
for about 3 seconds after the door is
unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the UNLOCK
button again until the window opens
completely.
Window cannot be closed using the In-
telligent Key. The door window can also be operated by
turning the mechanical key in a door lock.
(See
“Doors” (P.3-4).)
Opening trunk lidY51D-V-E01-DE9E3776-94FB-4A31-AD24-12EE8E6283111. Push the TRUNKbutton*3on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
If the trunk lid does not unlock, push the
trunk open request switch and manually lift
the trunk lid if:
. there is snow on the trunk lid.
. a heavy object such as rear spoiler is
attached to the trunk lid.
. the trunk lid is frozen.
Using panic alarmY51D-V-E01-C48ED9A1-9FD0-4D97-98ED-384A5E9B57B7If you are near your vehicle and feel
threatened, you may activate the alarm to
call attention as follows:
1. Push the PANIC
button*4on the
key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or
Condition:

Black plate (162,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3-26Pre-driving checks and adjustments
SPA2739
Adjusting outside mirrorsY51D-V-E01-0B4E65C5-2077-45A9-98FC-A8E07B696D9BThe outside mirror control switch is located
on the armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Move the switch right or left to select the
right or left side mirror
*1, then adjust
using the control switch
*2.
Defrosting outside mirrorsY51D-V-E01-16A73C41-5F8D-482E-96CB-1F7AF0A050F6The outside mirrors will be heated when
the rear window defroster switch is oper-
ated.
SPA2738
Foldable outside mirrorsY51D-V-E01-25F8CC36-EC21-493D-ABB8-F73A7158209E
CAUTION
. Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
. Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.
. If the mirrors were folded or unfolded by
hand, there is a chance that the mirror
will move forward or backward during
driving. If the mirrors were folded or
unfolded by hand, be sure to adjust them again electrically before driving.
The outside rearview mirror remote control
operates when the ignition switch is in the
“ACC”
or“ON” position.
To fold the outside rearview mirrors, push
the outside rearview mirror folding switch
to the CLOSE position
*1. To unfold, push
to the OPEN position
*2.
If mirrors are manually operated or
bumped, the mirror body can become
loose at the pivot point. To correct electro-
nic mirror operation, cycle mirrors by
pushing “CLOSE” until completely closed,
then push “OPEN”until mirror is in the
open position.
Reverse tilt-down featureY51D-V-E01-3922E781-5D55-4D69-925C-6C97E4BD6F11When backing up the vehicle, the right and
left outside mirrors will turn downward
automatically to provide better rear visibi-
lity.
1. Push the ignition switch to the ON position.
2. Move the shift lever to the R (Reverse) position.
3. Select the right or left side mirror by operating the outside mirror control
Condition:

Black plate (185,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Audio settingsY51D-V-E01-D6BC25CF-55FF-40AA-91C1-9D749AA404B2The display as illustrated will appear when
pushing the SETTING button and selecting
the“Audio” key.
Bass/Treble/Balance/Fade:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To adjust the speaker tone quality and
sound balance, select the “Bass”,“Treble”,
“Balance ”or “Fade” key and adjust it with
the INFINITI controller.
These items can also be adjusted by
pushing and turning the AUDIO knob.
Speed Sensitive Vol. (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The audio system’s volume is increased
with the vehicle speed. Select the “Speed
Sensitive Vol.” key and adjust the effect
level with the INFINITI controller. The Speed
Sensitive Volume function is turned off
when the level is set to OFF. Increasing the
value will cause the volume to increase
faster with vehicle speed.
Precision Phased Audio (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, super high
pitch sound and super low pitch sound are
emphasized and midrange sound is played
naturally. BOSE
®Centerpoint®(if so equipped):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, an exciting
surround sound effect is generated from a
traditional stereo recording.
BOSE
®AudioPilot®(if so equipped):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0BOSE®AudioPilot®adjusts the volume and
sound quality depending on the changes of
the vehicle speeds and the noise picked up
by the microphone. It compensates for
noise for different road surface conditions
and open windows.
Surround Effect (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To adjust the surround sound volume,
select “Surround Effect” key and adjust it
with the INFINITI controller.
DivX
®Registration Code (models with
navigation system):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The registration code for a device that is
used to download DivX®files will be
displayed on the screen. If a disc is loaded
or a USB memory is connected to the audio
system, this function will not be activated.
Display Album Cover Art (models with
navigation system):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, the album
cover image is displayed when playing
iPod
®or MP3 music files through a CD, DVD or USB memory. When the image is
not properly embedded in the file or
device, the image will not be displayed.
Phone settings (models with navi-
gation system)
Y51D-V-E01-7D06210B-67BA-47C1-B33F-0F7AE684A83BFor details of the
“Phone”settings, see
“Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85).
Bluetooth®settings (models with
navigation system)
Y51D-V-E01-5F39FAB1-CA3C-42C4-A0E5-B7F0A83ADD39For details of the “Bluetooth®”settings,
see “Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85)
or “Bluetooth
®streaming audio (models
with navigation system)” (P.4-74).
Monitor, climate, audio, phone and voice recognition systems4-17
Condition:

Black plate (194,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-26Monitor, climate, audio, phone and voice recognition systems
file.
.
(Previous)
Select the “
”key to display the
previous file.
Setting the Image Viewer:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The Image Viewer setting display will
appear when selecting the “Settings”key
on the full screen display. The following
settings are available for the full screen
display.
. Slideshow Speed
Select the “Slideshow Speed” key.
From the following display, select the
changing time from 5, 10, 30, 60
seconds or “No Auto Change”.
. Slideshow Order
Select the “Slideshow Order” key. From
the following display, select “Random”
or “Order List”. For “Order List”, the
image order is the order of the files as
stored on the USB memory.
Operating tips:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0. Only files that meet the following
conditions will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg —
Maximum Resolution: 2048 61536
pixels
— Maximum Size: 2-MB
— Colors: 32768 (15-bit)
— Maximum File Name lengths: 253-
Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the
vehicle using a USB cable, no image
will be displayed on the screen.
. If the file name is too long, some file
names may not be entirely displayed.
. When the total number of characters in
the file name exceeds 100 or if 1 file
name in a directory exceeds 100
characters, all files will show a shor-
tened 8-character version. The image
will still be displayed when selected.
Y51D-V-E01-271DBDA3-B643-4EE3-8C00-86C5980EDFB3When the shift lever is shifted into the “R”
(Reverse) position, the monitor display
shows view to the rear of the vehicle.
The system is designed as an aid to the
driver in detecting large stationary objects
to help avoid damaging the vehicle. The
system will not detect small objects below
the bumper and may not detect objects
close to the bumper or on the ground.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RearView Monitor
could result in serious injury or death.
. The RearView monitor is a convenience
but it is not a substitute for proper
backing. Always turn and look out the
windows, and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
. The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
. The system cannot completely eliminate
blind spots and may not show every
object.
REARVIEW MONITOR
Condition:

Black plate (201,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SONAR INDICATOR (if so equipped)GUID-2AED7CC9-67C4-43A9-897B-20E1F52A93A6When the“Sonar Display” key is ON, the
sonar indicator will appear in the display.
(See “How to use SETTING button” (P.4-16)
and “Sonar system” (P.5-95).)
OPERATING TIPSY51D-V-E01-16C7552D-B5BC-4836-8F67-634EDD5F81E9.When the shift lever is shifted to the “R”
(Reverse) position, the monitor screen
automatically changes to the RearView
monitor mode. However, the radio can
be heard.
. It may take some time until the Rear-
View monitor is displayed after the shift
lever has been shifted to “R”from
another position or to another position
from “R”. Objects may be distorted
momentarily until the RearView monitor
screen is displayed completely.
. When the temperature is extremely high
or low, the screen may not clearly
display objects. This is not a malfunc-
tion.
. When strong light directly enters the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on
the screen. This is due to strong
reflected light from the bumper. This is not a malfunction.
. The screen may flicker under fluores-
cent light. This is not a malfunction.
. The colors of objects on the RearView
monitor may differ somewhat from
those of the actual object.
. Objects on the monitor may not be clear
in a dark place or at night. This is not a
malfunction.
. If dirt, rain or snow attaches to the
camera, the RearView monitor may not
clearly display objects. Clean the cam-
era.
. Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with
diluted mild cleaning agent and then
wipe with a dry cloth.
. Do not damage the camera as the
monitor screen may be adversely af-
fected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted
with water.
Y51D-V-E01-A6C0DC71-8A00-4DE2-9C56-DCE4B7D79C9B
SAA3142
Front
SAA3012
Rear
Monitor, climate, audio, phone and voice recognition systems4-33
VENTILATORS
Condition:

Black plate (202,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-34Monitor, climate, audio, phone and voice recognition systems
Open or close, and adjust the air flow
direction of ventilators.
: This symbol indicates that the ventilators areclosed.
: This symbol indicates that the ventilators are
open.
Y51D-V-E01-831339F1-4467-48FB-A690-ADADBB7677FF
WARNING
. The air conditioner cooling function
operates only when the engine is run-
ning.
. Do not leave children or adults who
would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. On hot, sunny
days, temperatures in a closed vehicle
could quickly become high enough to
cause severe or possibly fatal injuries to
people or animals.
. Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
Start the engine and operate the automatic
climate control system.
NOTE:
.Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.
. When parking, set the heater and air
conditioner controls to turn off air
recirculation to allow fresh air into the passenger compartment. This
should help reduce odors inside the
vehicle.
AUTOMATIC CLIMATE CONTROL
Condition:

Black plate (204,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-36Monitor, climate, audio, phone and voice recognition systems

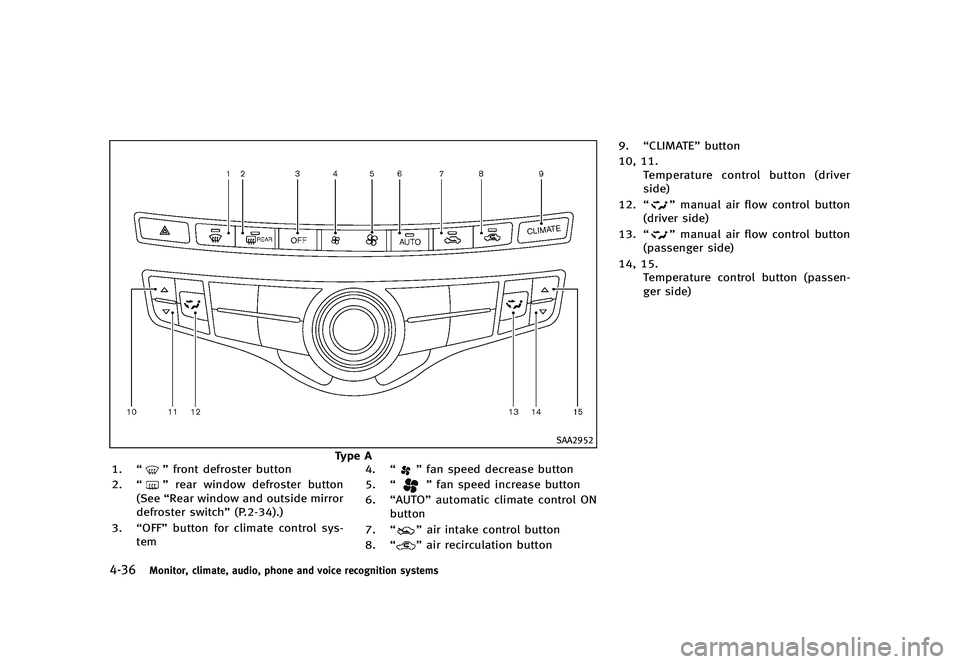

SAA2952
Type A
1. “”front defroster button
2. “
”rear window defroster button
(See “Rear window and outside mirror
defroster switch” (P.2-34).)
3. “OFF” button for climate control sys-
tem 4.
“
”fan speed decrease button
5. “
”fan speed increase button
6. “AUTO” automatic climate control ON
button
7. “
”air intake control button
8. “
”air recirculation button 9.
“CLIMATE” button
10, 11. Temperature control button (driver
side)
12. “
”manual air flow control button
(driver side)
13. “
”manual air flow control button
(passenger side)
14, 15. Temperature control button (passen-
ger side)
Condition:
