technical data INFINITI Q70 2014 Owners Manual

Black plate (487,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
9 Technical and consumer information
Capacities and recommended fuel/lubricants...
....... 9-2
Fuel information ...
.............................................. 9-4
Engine oil and oil filter recommendation ...
......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ...
............................. 9-7
Specifications ...
...................................................... 9-8
Engine ...
............................................................. 9-8
Wheels and tires ...
............................................. 9-9
Dimensions ...
................................................... 9-10
When traveling or registering your vehicle in
another country ...
................................................. 9-11
Vehicle identification ...
......................................... 9-11
Vehicle Identification Number (VIN) plate ...
....... 9-11
Vehicle identification number
(chassis number) ...
........................................... 9-11
Engine serial number ...
.................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
.......... 9-12
Emission control information label ...
................ 9-13
Tire and loading information label ...
................. 9-13
Air conditioner specification label ...
.................. 9-13 Installing front license plate
...
.............................. 9-14
Vehicle loading information ...
............................... 9-15
Terms ...
.......................................................... 9-15
Vehicle load capacity ...
................................... 9-17
Loading tips ...
................................................. 9-18
Measurement of weights ...
.............................. 9-18
Towing a trailer ...
................................................. 9-19
Flat towing ...
................................................... 9-19
Uniform tire quality grading ...
.............................. 9-19
Treadwear ...
.................................................... 9-19
Traction AA, A, B and C ...
................................ 9-20
Temperature A, B and C ...
............................... 9-20
Emission control system warranty ...
..................... 9-20
Reporting safety defects ...
.................................... 9-21
Readiness for Inspection/Maintenance (I/M) test
(US only) ...
........................................................... 9-22
Event Data Recorders (EDR) ...
............................... 9-23
Owner’s Manual/Service Manual
order information ...
.............................................. 9-23
Condition:

Black plate (491,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

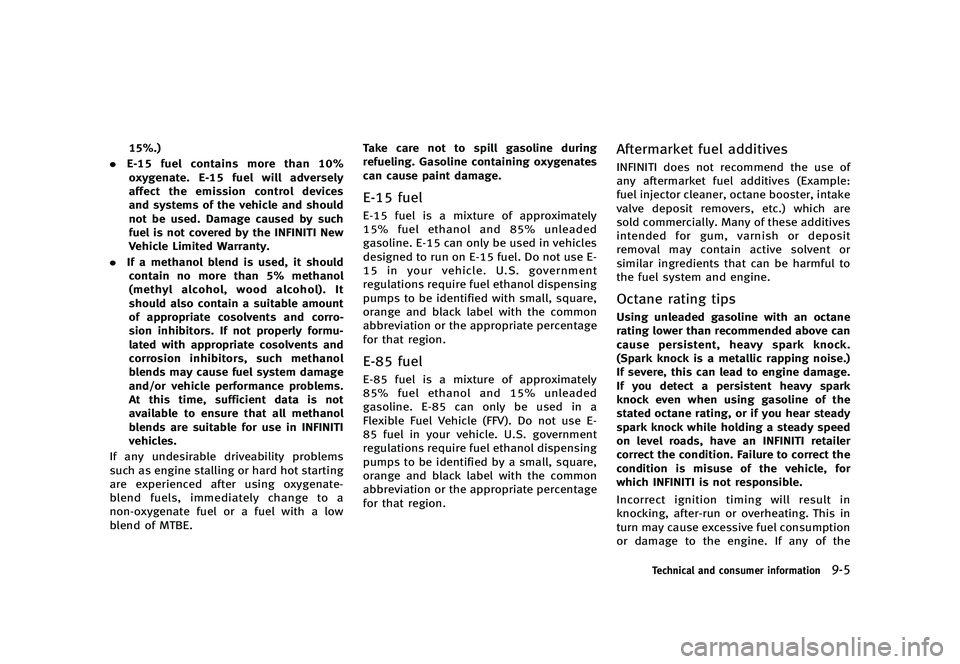

15%.)
. E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the INFINITI New
Vehicle Limited Warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in INFINITI
vehicles.
If any undesirable driveability problems
such as engine stalling or hard hot starting
are experienced after using oxygenate-
blend fuels, immediately change to a
non-oxygenate fuel or a fuel with a low
blend of MTBE. Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuelGUID-55AA3E5D-B4B7-4387-A6C1-514DB0C16738E-15 fuel is a mixture of approximately
15% fuel ethanol and 85% unleaded
gasoline. E-15 can only be used in vehicles
designed to run on E-15 fuel. Do not use E-
15 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified with small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
E-85 fuelY51D-V-E01-019B5956-3FF3-4BF6-B50B-B0FD9BE1DD27E-85 fuel is a mixture of approximately
85% fuel ethanol and 15% unleaded
gasoline. E-85 can only be used in a
Flexible Fuel Vehicle (FFV). Do not use E-
85 fuel in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
Aftermarket fuel additivesY51D-V-E01-0241A1D6-50DD-4735-AB1B-1BF6D3FF4840INFINITI does not recommend the use of
any aftermarket fuel additives (Example:
fuel injector cleaner, octane booster, intake
valve deposit removers, etc.) which are
sold commercially. Many of these additives
intended for gum, varnish or deposit
removal may contain active solvent or
similar ingredients that can be harmful to
the fuel system and engine.
Octane rating tipsY51D-V-E01-0C94128B-44FC-407D-B5D4-1374AB611F20Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, have an INFINITI retailer
correct the condition. Failure to correct the
condition is misuse of the vehicle, for
which INFINITI is not responsible.
Incorrect ignition timing will result in
knocking, after-run or overheating. This in
turn may cause excessive fuel consumption
or damage to the engine. If any of the
Technical and consumer information9-5
Condition:

Black plate (509,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

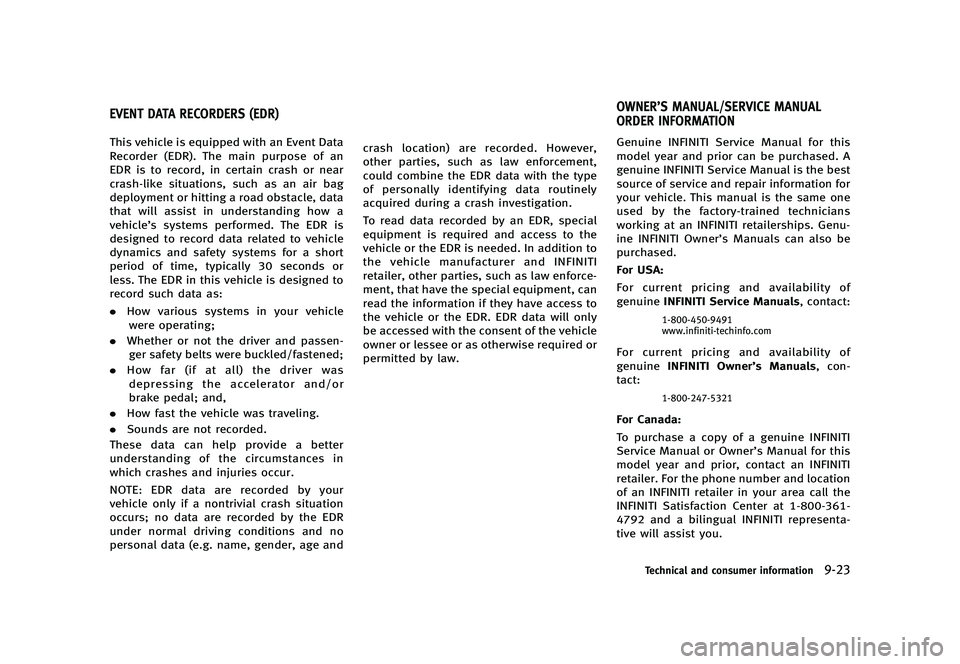

Y51D-V-E01-BC64BE2A-EB25-4897-82DE-302B00964F20This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fastened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and crash location) are recorded. However,
other parties, such as law enforcement,
could combine the EDR data with the type
of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI
retailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.Y51D-V-E01-286B764D-AFDB-4EF1-A188-EB0EDBD40366Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at an INFINITI retailerships. Genu-
ine INFINITI Owner’s Manuals can also be
purchased.
For USA:
For current pricing and availability of
genuine
INFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of
genuine INFINITI Owner’s Manuals, con-
tact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, contact an INFINITI
retailer. For the phone number and location
of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representa-
tive will assist you.
Technical and consumer information9-23
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION
