Page 17 of 458
Hybrid System-10Hybrid System Overview
JVO0011X
1. Electric motor inverter
2. High voltage harnesses (orange)
3. Lithium ion (Li-ion) battery
4. DC/DC converter
5. Service plug
6. Electric compressor7. Electric motor
8. 12-volt battery
The hybrid system uses high voltage up to
approximately 408 volts. High voltage com-
ponents are indicated in the illustration. High
voltage harnesses are orange. The system
can be hot while and after starting. Becareful of both the high voltage and the
high temperature.
HYBRID VEHICLE CHARACTER-
ISTICS
WARNING
.
When you leave your vehicle, be sure
to place the ignition switch in the
OFF position.
. Be sure to put the transmission in the
P (Park) position because the vehicle
can move when the READY to drive
indicator light is on even if the gaso-
line engine is not running. When the
READY to drive indicator light is on,
do not leave your vehicle in a shift
position other than the P (Park)
position. The vehicle will creep and
start abruptly if the accelerator pedal
is depressed by mistake. This may
cause serious injury or death.
CAUTION
If the vehicle is parked for a long period
of time, the battery discharges gradu-
ally. To avoid this occurrence, drive the
Page 22 of 458
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS).................................................................\
...... 0-2
Exterior front....................................................................... 0-3
Exterior rear........................................................................\
. 0-4
Passenger compartment.................................................. 0-5
Cockpit........................................................................\
.......... 0-6Instrument panel................................................................ 0-8
Meters and gauges........................................................... 0-9
Engine compartment..................................................... 0-10
VQ35HR engine....................................................... 0-10
Warning and indicator lights........................................ 0-11
Page 27 of 458
0-6Illustrated table of contents
JVC1098X
1. Instrument brightness control switch(P.2-42)
2. Adaptive Front lighting System (AFS) switch (if so equipped) (P.2-40) 3. Headlight, fog light and turn signal
switch (P.2-38)
4. Trip computer switch (P.2-28) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-35)
7. Shift lever (P.5-15)
8. Vehicle Dynamic Control (VDC) OFF switch (P.5-122)
9. Rear sunshade switch (if so equipped) (P.2-58)
10. Steering heater switch (if so equipped) (P.2-43)
11. Trunk lid release switch (P.3-18)
12. Warning systems switch (if so equipped) (P.5-21, P.5-31)
13. Electric tilting/telescopic steering wheel lever (P.3-24)
14. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Voice recognition system switch*
— Bluetooth
®Hands-Free Phone Sys-
tem switch*
15. Steering wheel — Horn (P.2-44)
— Driver supplemental air bag (P.1-37)
— Heated steering wheel (if so
equipped) (P.2-43)
COCKPIT
Page 29 of 458
0-8Illustrated table of contents
JVO0132X
1. Side ventilator (P.4-32)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.6-2)
4. Rear window and outside mirrordefroster switch (P.2-37)
5. Center display* — Navigation system* (if so equipped)
— Around View®Monitor (if so
equipped) (P.4-10)
— RearView Monitor (if so equipped)
(P.4-3)
6. Clock (P.2-48) 7. Center multi-function control panel*
8. Automatic climate control system
(P.4-32)
9. Center ventilator (P.4-32)
10. Audio system*
11. Front passenger supplemental air bag (P.1-37)
12. Hood release handle (P.3-17)
13. Fuse box cover (P.8-19)
14. Parking brake — Parking (P.5-18)
15. Push-button ignition switch (P.5-9)
16. Front passenger air bag status light (P.1-45)
17. Climate controlled seat switch (if so equipped) (P.2-45)/Seat heater switch
(if so equipped) (P.2-44)
18. INFINITI Drive Mode Selector (P.5-19)
19. Storage box (P.2-52) — Power outlet (P.2-48)
20. Glove box lid release handle (P.2-51)
21. Trunk release power cancel switch (P.3-20)
*: Refer to the Infiniti InTouch Owner’s Manual.
INSTRUMENT PANEL
Page 30 of 458
JVI0200X
1. Tachometer (P.2-8)
2. Warning and indicator lights (P.2-10)
3. Speedometer (P.2-7)
4. Assist charge gauge (P.2-8)
5. Vehicle information display/Od-ometer/twin trip odometer (P.2-21) 6. Fuel gauge (P.2-8)
Illustrated table of contents0-9
METERS AND GAUGES
Page 32 of 458
Warninglight Name
Page
12-volt battery charge
warning light 2-11
Anti-lock Braking System
(ABS) warning light2-11
Automatic Transmission
check warning light
2-11
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (or-
ange) (if so equipped)2-11
Brake system warning light
(yellow)
2-12
Brake warning light (red) 2-12
Direct Response Hybrid®
System warning light2-13
Distance Control Assist
(DCA) system warning light
(orange) (if so equipped)2-13
Engine oil pressure warning
light
2-13
Forward Emergency Braking
(FEB) system warning light (if
so equipped) 5-
101
High temperature warning
light 2-14Warning
light Name
Page
Hybrid EPS (Electrical Power
Steering) warning light 2-14
Intelligent Cruise Control
(ICC) system warning light
(orange) (if so equipped) 2-15
Lane Departure Warning
(LDW) indicator light (or-
ange) (if so equipped)2-15
Low tire pressure warning
light
2-15
Master warning light 2-16
Seat belt warning light and
chime 2-17
Supplemental air bag warn-
ing light
2-17
Vehicle Dynamic Control
(VDC) warning light2-17Indicator
light Name
Page
Adaptive Front lighting Sys-
tem (AFS) off indicator light
(if so equipped) 2-18
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
indicator light2-18
Automatic Transmission (AT)
position indicator light
2-18
Blind Spot Intervention (BSI)
ON indicator light
(green) (if so equipped)2-18
ECO drive indicator light 2-18
EV indicator light
2-18
Exterior light indicator 2-18
Front fog light indicator light 2-19
Front passenger air bag sta-
tus light 2-19
High beam indicator light 2-19
Lane Departure Prevention
(LDP) ON indicator light
(green) (if so equipped)2-19
Malfunction Indicator Light
(MIL)
2-19
READY to drive indicator
light2-20
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS
Page 34 of 458
1 Safety — Seats, seat belts and supplementalrestraint system
Seats........................................................................\
............... 1-2
Front seats ...................................................................... 1-3
Armrest........................................................................\
.... 1-4
Head restraints/headrests............................................... 1-5 Adjustable head
restraint/headrest components ................................ 1-6
Non-adjustable head
restraint/headrest components ................................ 1-6
Remove........................................................................\
..... 1-6
Install........................................................................\
......... 1-7
Adjust........................................................................\
........ 1-7
Front-seat Active Head Restraints......................... 1-8
Seat belts........................................................................\
....... 1-9
Precautions on seat belt usage................................. 1-9
Pregnant women........................................................ 1-12
Injured persons............................................................ 1-12
Pre-crash seat belts with comfort function
(front seats) (if so equipped)................................... 1-12
Three-point type seat belt....................................... 1-12
Seat belt extenders.................................................... 1-15
Seat belt maintenance .............................................. 1-16
Child safety........................................................................\
1-16 Infants........................................................................\
.... 1-17
Small children............................................................... 1-17
Larger children ............................................................ 1-17 Child restraints................................................................. 1-19
Precautions on child restraints............................. 1-19
Lower Anchors and Tethers for CHildren
System (LATCH)....................................................... 1-21
Rear-facing child restraint installation
using LATCH ............................................................. 1-23
Rear-facing child restraint installation using
the seat belts............................................................. 1-25
Forward-facing child restraint installation
using LATCH ............................................................. 1-27
Forward-facing child restraint installation
using the seat belts.................................................. 1-30
Booster seats............................................................. 1-34
Supplemental restraint system.................................... 1-37 Precautions on supplemental
restraint system ........................................................ 1-37
INFINITI Advanced Air Bag System
(front seats)................................................................ 1-43
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover supplemental
air bag systems ......................................................... 1-48
Seat belts with pretensioners (front seats) ...... 1-49
Supplemental air bag warning labels.................. 1-50
Supplemental air bag warning light .................... 1-51
Repair and replacement procedure..................... 1-52
Page 44 of 458
.Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person to
use the same seat belt.
. Never carry more people in the ve-
hicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition
switch is in the ON position with all
doors closed and all seat belts fas-
tened, it may indicate a malfunction
in the system. Have the system
checked. It is recommended you visit
an INFINITI retailer for this service.
. No changes should be made to the
seat belt system. For example, do not
modify the seat belt, add material or
install devices that may change the
seat belt routing or tension. Doing so
may affect the operation of the seat
belt system. Modifying or tampering
with the seat belt system may result
in serious personal injury.
. Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. It is recommended you visit
an INFINITI retailer for this service. .
All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion. It is recommended you visit an
INFINITI retailer for this service.
INFINITI recommends that all seat
belt assemblies in use during a colli-
sion be replaced unless the collision
was minor and the belts show no
damage and continue to operate
properly. Seat belt assemblies not in
use during a collision should also be
inspected and replaced if either da-
mage or improper operation is noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the re-
straint manufacturer’s inspection in-
structions and replacement
recommendations. The child re-
straints should be replaced if they
are damaged.
SSS0016
SSS0014
Safety — Seats, seat belts and supplemental restraint system1-11
Page 58 of 458
5. Check to make sure the child restraint isproperly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
REAR-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS

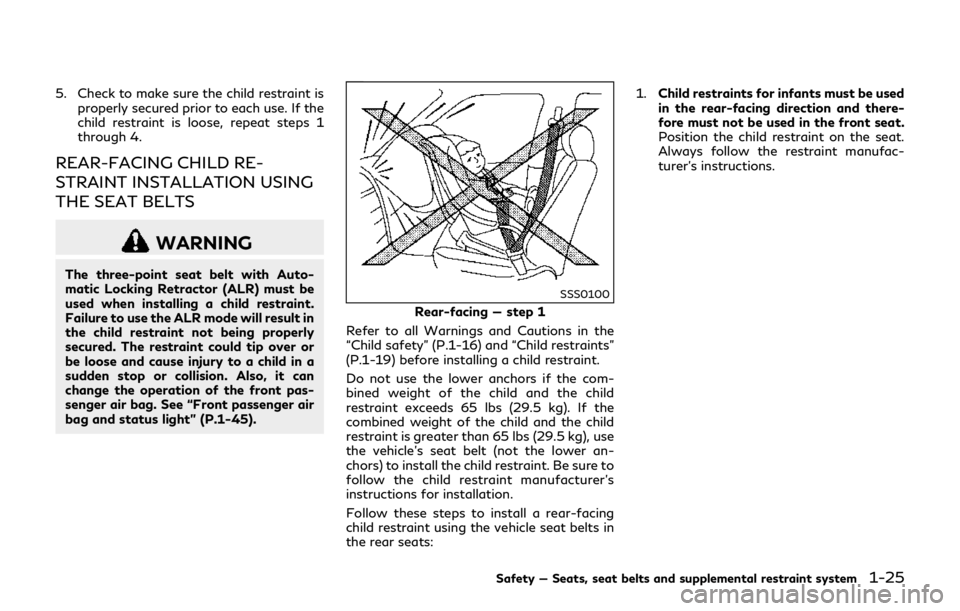

WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-45).
SSS0100
Rear-facing — step 1
Refer to all Warnings and Cautions in the
“Child safety” (P.1-16) and “Child restraints”
(P.1-19) before installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats: 1.
Child restraints for infants must be used
in the rear-facing direction and there-
fore must not be used in the front seat.
Position the child restraint on the seat.
Always follow the restraint manufac-
turer’s instructions.
Safety — Seats, seat belts and supplemental restraint system1-25
Page 63 of 458
1-30Safety — Seats, seat belts and supplemental restraint system
sure to reinstall the head restraint or
headrest when the child restraint is
removed.
See “Head restraints/headrests” (P.1-
5) for head restraint or headrest adjust-
ment, removal and installation informa-
tion.
Position the top tether strap over the top
of the seatback.
3. Secure the tether strap to the tether anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this sec-
tion before tightening the tether strap.
If you have any questions when installing a
top tether strap, it is recommended you
visit an INFINITI retailer for this service.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-45).
SSS0640
Forward-facing (front passenger seat) —
step 1
Refer to all Warnings and Cautions in the
“Child safety” and “Child restraints” sections
before installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front
