1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
3To block glare from the side and front, swing
down the sub-sun visor.
4Slide the extension sun visor in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor forc-
edly downward.
VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The vanity
mirror will illuminate when the mirror cover is
open.
LPD0256
LPD0257
SUN VISORS
3-26Pre-driving checks and adjustments
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature operates only when the ignition
switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off. To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on the automatic anti-glare out-
side mirrors, see “Automatic anti-glare outside
mirrors” later in this section.
For information on HomeLink
Universal Trans-
ceiver operation, see “HomeLink Universal
Transceiver” in the “Instrument and controls” sec-
tion of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.
Rotate the round switch
1to select the right or
left mirror. Adjust each mirror to the desired po-
sition pushing the round switch.
LPD0469LPD0418
MIRRORS
Pre-driving checks and adjustments3-27
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


WARNING
●Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Power folding outside mirrors
CAUTION
Do not manually fold the power folding
mirrors. Manually folding the mirrors can
damage the mirrors.
Push the switch to open or close the mirrors.
Automatic anti-glare outside mirror
(Driver’s side only)
The outside mirror will automatically dim during
nighttime conditions to reduce the glare from the
headlights of trailing vehicles. The automatic anti- glare feature operates only when the ignition
switch is in the ON position.
The automatic anti-glare feature will be on when
starting the vehicle. The indicator light on the
automatic anti-glare rearview mirror will illuminate
when the automatic anti-glare feature is operat-
ing.
To turn off the anti-glare feature, press the
button on the rearview mirror. The indicator light
will turn off.
To turn on the anti-glare feature again, press
the
button on the rearview mirror. The in-
dicator light will turn on.
For information on the automatic anti-glare rear-
view mirror, see “Automatic anti-glare rearview
mirror” earlier in this section.
Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.
LPD0417
3-28Pre-driving checks and adjustments
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane

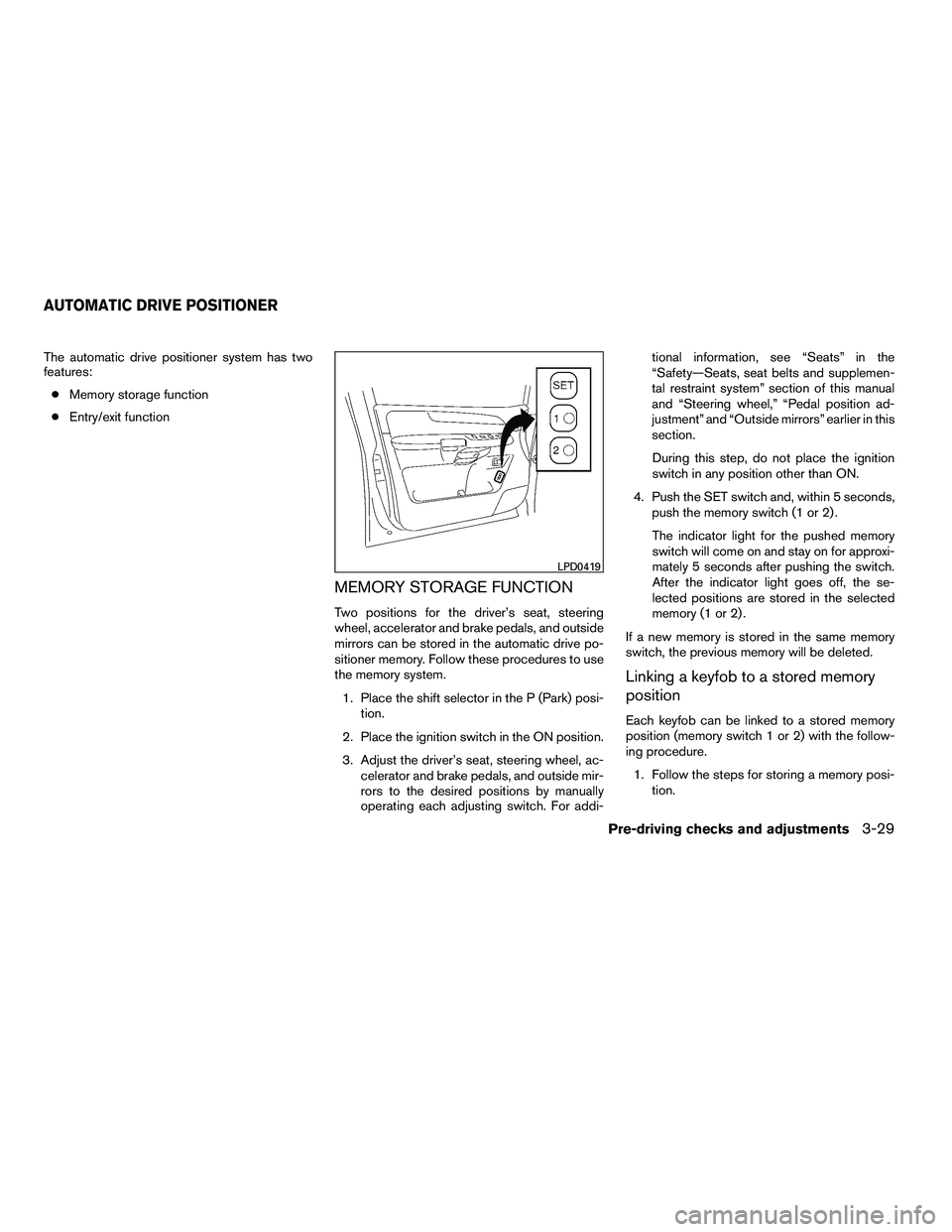

The automatic drive positioner system has two
features:● Memory storage function
● Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
wheel, accelerator and brake pedals, and outside
mirrors can be stored in the automatic drive po-
sitioner memory. Follow these procedures to use
the memory system.
1. Place the shift selector in the P (Park) posi- tion.
2. Place the ignition switch in the ON position.
3. Adjust the driver’s seat, steering wheel, ac- celerator and brake pedals, and outside mir-
rors to the desired positions by manually
operating each adjusting switch. For addi- tional information, see “Seats” in the
“Safety—Seats, seat belts and supplemen-
tal restraint system” section of this manual
and “Steering wheel,” “Pedal position ad-
justment” and “Outside mirrors” earlier in this
section.
During this step, do not place the ignition
switch in any position other than ON.
4. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the se-
lected positions are stored in the selected
memory (1 or 2) .
If a new memory is stored in the same memory
switch, the previous memory will be deleted.
Linking a keyfob to a stored memory
position
Each keyfob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure. 1. Follow the steps for storing a memory posi- tion.
LPD0419
AUTOMATIC DRIVE POSITIONER
Pre-driving checks and adjustments3-29
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


2. While the indicator light for the memoryswitch being set is illuminated for 5 sec-
onds, press the
button on the keyfob.
The indicator light will blink. After the indica-
tor light goes off, the keyfob is linked to that
memory setting.
When the ignition switch is moved back to the
OFF position, press the
button on the key-
fob. The driver’s seat, steering wheel, accelerator
and brake pedals, and outside mirrors will move
to the memorized position.
NOTE:
If a new memory position is saved to the
memory switch, the keyfob automatically
re-links.
Confirming memory storage
● Place the ignition switch in the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored the position,
the indicator light will stay on for approxi-
mately 5 seconds. ●
If the battery cable is disconnected, or if the
fuse opens, the memory storage function will
be canceled and must be restarted before a
stored memory position can be set again.
Drive the vehicle over 25 MPH (40 km/h) to
restart the memory storage function. You
can also restart the memory storage function
using the following procedure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
Once the memory storage function has been
restarted, you can store a memory position.
See “Memory storage function” earlier in this
section.Selecting the memorized position
Set the shift selector to the P (Park) position,
then: ● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) or
● Turn the ignition switch to the ON position
and push the memory switch (1 or 2) .
The driver’s seat, steering wheel, accelerator and
brake pedals, and outside mirrors will move to the memorized position with the indicator light blink-
ing, and then the light will stay on for approxi-
mately 5 seconds.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and steering wheel will automatically move when
the shift selector is placed in the P (Park) posi-
tion. This allows the driver to get into and out of
the driver’s seat more easily.
The driver’s seat and steering wheel will slide
backward:
● When the driver’s door is opened with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to LOCK with the driver’s door open.
The driver’s seat and steering wheel will return to
the previous position: ● When the driver’s door is closed with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to ON while the shift selector is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed. See “Comfort & convenience settings” in
the “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
3-30Pre-driving checks and adjustments
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


Restarting the entry/exit function
If the battery cable is disconnected or if the fuse
opens, the entry/exit function will be disabled.
Drive the vehicle over 25 MPH (40 km/h) to
restart the entry/exit function. You can also restart
the entry/exit function using the following proce-
dure.1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
The entry/exit function should now work properly.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions: ● When the vehicle speed is above 4 MPH (7
km/h) .
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating. ●
When the memory switch (1 or 2) is not
pushed and held for at least 1 second.
● When the seat has been already moved to
the memorized position.
● When no seat position is stored in the
memory switch.
● When the shift selector is moved from P
(Park) to any other position.
● When the driver’s door remains open more
than 45 seconds and the ignition switch is
not in the ON position.
The automatic drive positioner system can be
adjusted and canceled. See “Comfort & Conve-
nience settings” in the “Monitor, climate, audio,
phone and voice recognition systems” section of
this manual.
Pre-driving checks and adjustments3-31
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System.................................4-2
How to use the INFINITI controller ................4-3
How to use the touch screen ....................4-3
Start-up screen ................................4-5
How to select menus on the screen ..............4-5
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-6
How to use the SETTING button ................4-11
OFF button............................. 4-18
RearView Monitor ................................ 4-18
How to read the displayed lines .................4-19
Adjusting the screen ........................... 4-19
Operating tips ................................. 4-20
Vents ........................................... 4-21
Heater and air conditioner (automatic) ..............4-22
Automatic operation ........................... 4-22
Manual operation .............................. 4-23
Operating tips ................................. 4-24
Rear seat air conditioner . . . .......................4-24
Controls ...................................... 4-25
Servicing air conditioner ........................... 4-25
Audio system . . . ................................. 4-26Radio
........................................ 4-26
FM radio reception ............................ 4-26
AM radio reception ............................ 4-26
Satellite radio reception ........................ 4-27
Audio operation precautions ....................4-27
FM/AM/SAT radio with compact disc (CD)
player ........................................ 4-34
CompactFlash (CF) player operation ...........4-39
Music Box™ Hard Drive audio system ............4-41
CD/CF (CompactFlash) care and cleaning ......4-50
Steering wheel switch for audio control ..........4-51
Rear audio controls ............................ 4-53
Antenna ...................................... 4-54
INFINITI mobile entertainment system (MES)
(if so equipped) .................................. 4-54
Digital video disc (DVD) player controls ..........4-56
Remote control ................................ 4-57
Flip-down screen .............................. 4-57
Before operating the DVD mobile
entertainment system .......................... 4-58
Playing a digital versatile disc (DVD) .............4-60
Remote

control operation ....................... 4-64
Care and maintenance ......................... 4-66
REVIEW COPY—2010 Infiniti QX56(iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


How to handle the DVD........................ 4-67
Car phone or CB radio ............................ 4-69
Bluetooth Hands-Free Phone System ..............4-70
Regulatory Information ......................... 4-72
Voice commands .............................. 4-73
Pairing procedure ............................. 4-73
Phonebook . . ................................. 4-74
Making a call .................................. 4-76
Receiving a call ............................... 4-77
During a call .................................. 4-78
Ending a call .................................. 4-78
Phone setting ................................. 4-79Call volume
................................... 4-81
INFINITI Voice Recognition System .................4-82
INFINITI Voice Recognition Standard Mode .......4-82
Using the system .............................. 4-84
Before Starting ................................ 4-84
Giving voice commands ........................ 4-85
INFINITI Voice Recognition Alternate
Command Mode .............................. 4-93
Using the system ............................. 4-100
Speaker Adaptation Function ..................4-102
Troubleshooting guide ........................ 4-105
REVIEW COPY—2010 Infiniti QX56(iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest INFINITI
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. STATUS button(P. 4-6)
2. DEST button*
3. INFINITI controller (P. 4-3)
4. PHONE button** 5.
OFF brightness control button
(P. 4-18)
6. INFO button (P. 4-6)
7. SETTING button (P. 4-11)
8. VOICE button*
LHA0880
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM
4-2Monitor, climate, audio, phone and voice recognition systems
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


9. BACK (previous) button (P. 4-3)
10. ROUTE button*
11. ZOOM IN button*
12. MAP button*
13. ZOOM OUT button*
*For Navigation system control buttons, refer to
the separate Navigation System Owner’s
Manual.
**For information on the PHONE button, see
“Bluetooth Hands-Free Phone System” later in
this section.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ENTER button — This is a button on the control
panel.
“Display” key — This is a select key on the screen.
By selecting this key, you can proceed to the next
function.
HOW TO USE THE INFINITI
CONTROLLER
Use the INFINITI controller to choose an item on
the display screen. Select an item on the display
using the main directional buttons
2(certain
Navigation System functions use the additional
directional buttons
6) or the center dial3.
Then press the ENTER button
1to select the
item or perform the action.
The BACK button
4has two functions:
● Go back to the previous display (cancel) . If you press the BACK button
4during setup,
the setup will be canceled and/or the display will
return to the previous screen.
● Finish setup.
In some screens, pressing the BACK button
4
accepts the changes made during setup.
For the VOICE button
5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass breaks, do
not touch the liquid crystalline material,
which contains a small amount of mer-
cury. In case of contact with skin, wash
immediately with soap and water.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
LHA0882
Monitor, climate, audio, phone and voice recognition systems4-3
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane
