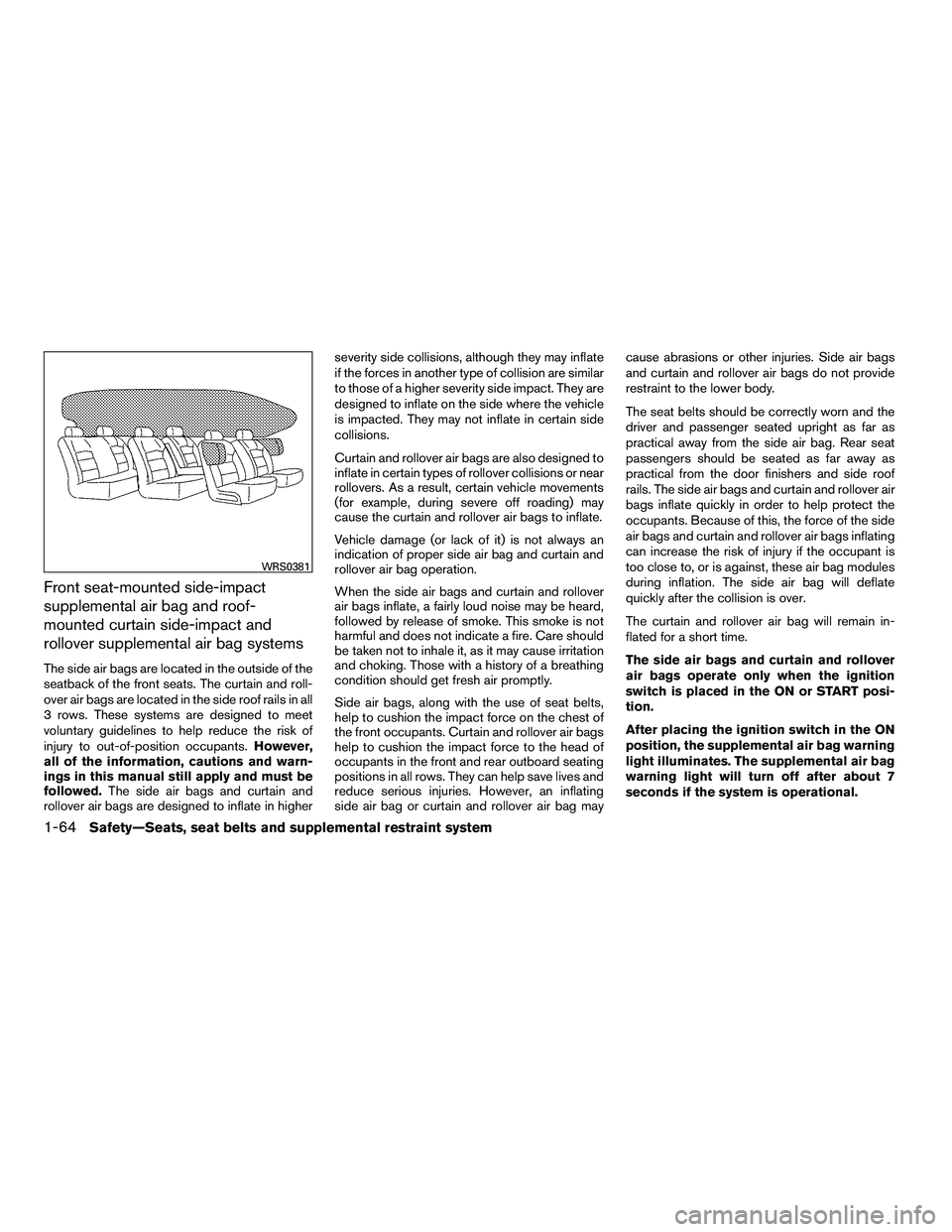

Front seat-mounted side-impact
supplemental air bag and roof-
mounted curtain side-impact and
rollover supplemental air bag systems
The side air bags are located in the outside of the
seatback of the front seats. The curtain and roll-
over air bags are located in the side roof rails in all
3 rows. These systems are designed to meet
voluntary guidelines to help reduce the risk of
injury to out-of-position occupants.However,
all of the information, cautions and warn-
ings in this manual still apply and must be
followed. The side air bags and curtain and
rollover air bags are designed to inflate in higher severity side collisions, although they may inflate
if the forces in another type of collision are similar
to those of a higher severity side impact. They are
designed to inflate on the side where the vehicle
is impacted. They may not inflate in certain side
collisions.
Curtain and rollover air bags are also designed to
inflate in certain types of rollover collisions or near
rollovers. As a result, certain vehicle movements
(for example, during severe off roading) may
cause the curtain and rollover air bags to inflate.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain and
rollover air bag operation.
When the side air bags and curtain and rollover
air bags inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care should
be taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest of
the front occupants. Curtain and rollover air bags
help to cushion the impact force to the head of
occupants in the front and rear outboard seating
positions in all rows. They can help save lives and
reduce serious injuries. However, an inflating
side air bag or curtain and rollover air bag may
cause abrasions or other injuries. Side air bags
and curtain and rollover air bags do not provide
restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain and rollover air
bags inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bags and curtain and rollover air bags inflating
can increase the risk of injury if the occupant is
too close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.
The curtain and rollover air bag will remain in-
flated for a short time.
The side air bags and curtain and rollover
air bags operate only when the ignition
switch is placed in the ON or START posi-
tion.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
WRS0381
1-64Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2010 Infiniti QX56
(iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


WARNING

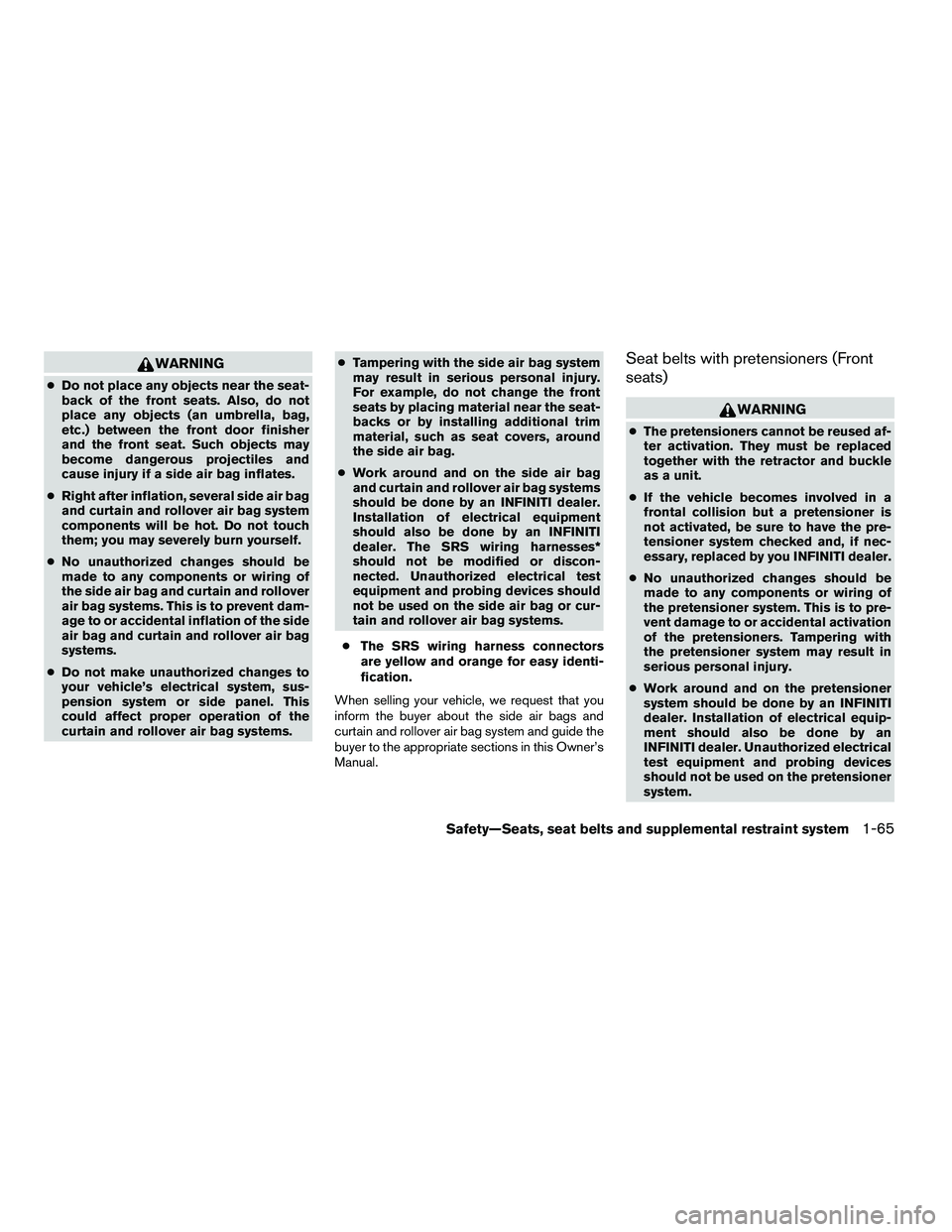

●Do not place any objects near the seat-
back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become dangerous projectiles and
cause injury if a side air bag inflates.
● Right after inflation, several side air bag
and curtain and rollover air bag system
components will be hot. Do not touch
them; you may severely burn yourself.
● No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain and rollover
air bag systems. This is to prevent dam-
age to or accidental inflation of the side
air bag and curtain and rollover air bag
systems.
● Do not make unauthorized changes to
your vehicle’s electrical system, sus-
pension system or side panel. This
could affect proper operation of the
curtain and rollover air bag systems. ●
Tampering with the side air bag system
may result in serious personal injury.
For example, do not change the front
seats by placing material near the seat-
backs or by installing additional trim
material, such as seat covers, around
the side air bag.
● Work around and on the side air bag
and curtain and rollover air bag systems
should be done by an INFINITI dealer.
Installation of electrical equipment
should also be done by an INFINITI
dealer. The SRS wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should
not be used on the side air bag or cur-
tain and rollover air bag systems.
● The SRS wiring harness connectors
are yellow and orange for easy identi-
fication.
When selling your vehicle, we request that you
inform the buyer about the side air bags and
curtain and rollover air bag system and guide the
buyer to the appropriate sections in this Owner’s
Manual.
Seat belts with pretensioners (Front
seats)
WARNING
● The pretensioners cannot be reused af-
ter activation. They must be replaced
together with the retractor and buckle
as a unit.
● If the vehicle becomes involved in a
frontal collision but a pretensioner is
not activated, be sure to have the pre-
tensioner system checked and, if nec-
essary, replaced by you INFINITI dealer.
● No unauthorized changes should be
made to any components or wiring of
the pretensioner system. This is to pre-
vent damage to or accidental activation
of the pretensioners. Tampering with
the pretensioner system may result in
serious personal injury.
● Work around and on the pretensioner
system should be done by an INFINITI
dealer. Installation of electrical equip-
ment should also be done by an
INFINITI dealer. Unauthorized electrical
test equipment and probing devices
should not be used on the pretensioner
system.
Safety—Seats, seat belts and supplemental restraint system1-65
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


●If you need to dispose of a pretensioner
or scrap the vehicle, contact an INFINITI
dealer. Incorrect disposal procedures
could cause personal injury.
The pretensioner system activates in conjunction
with the front air bag system. The pretensioner
system also activates with the curtain and rollover
air bags in certain types of rollover collisions or
near rollovers. Working with the seat belt retrac-
tor, it helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same way
as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest. If any abnormality occurs in the pretensioner sys-
tem, the supplemental air bag warning
light
will not come on, will flash intermit-
tently or will turn on for 7 seconds and remain on
after the ignition switch has been placed in the
ON or START position. In this case, the preten-
sioner system may not function properly. They
must be checked and repaired. Take your vehicle
to the nearest INFINITI dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

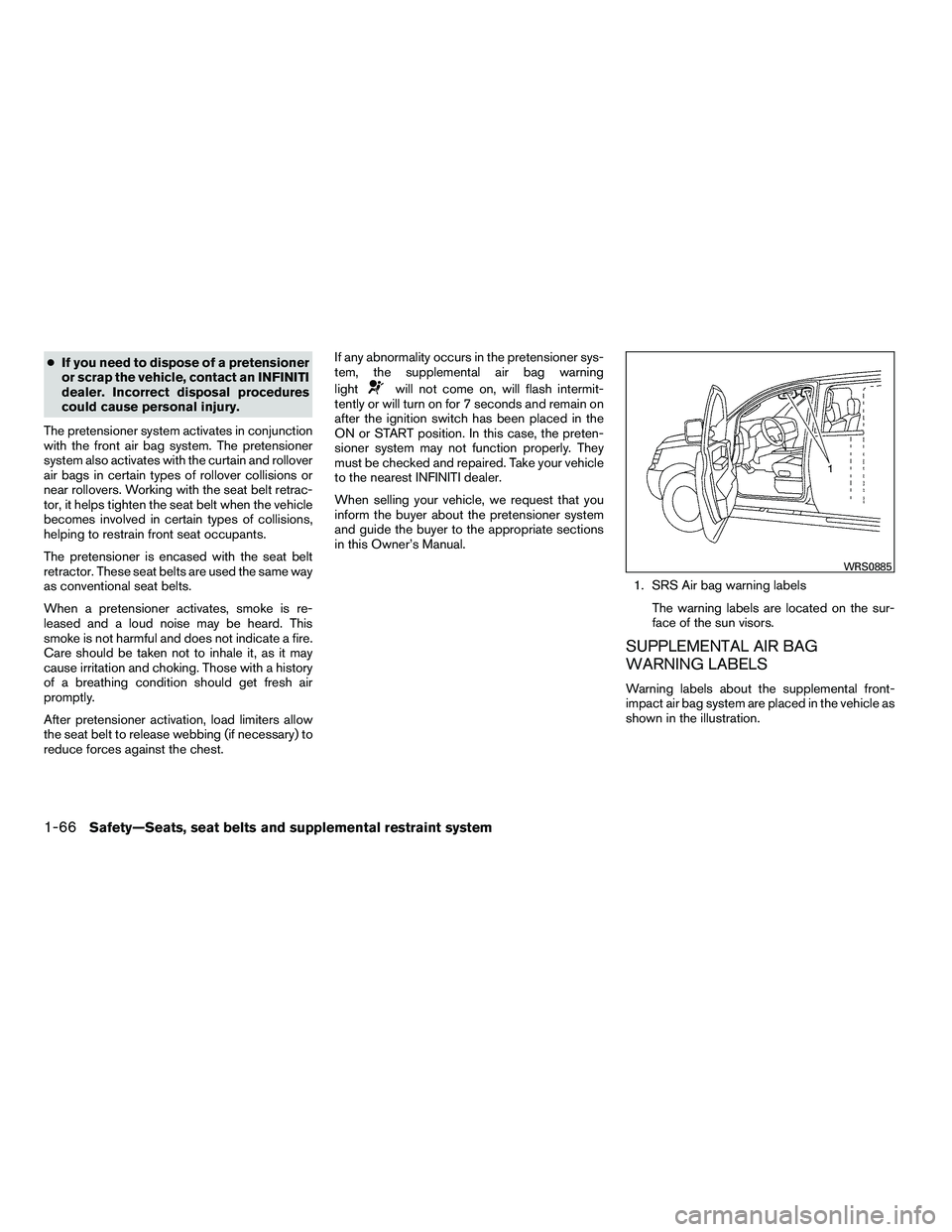

1. SRS Air bag warning labelsThe warning labels are located on the sur-
face of the sun visors.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WRS0885
1-66Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits of the supplemental front-impact
air bag, front seat-mounted side-impact supple-
mental air bag, roof-mounted curtain side-impact
and rollover supplemental air bag and seat belt
pretensioner systems. The monitored circuits in-
clude the Air bag Control Unit (ACU) , crash zone
sensor, satellite sensors, rollover sensor, occu-
pant classification system, front air bag modules,
side air bag modules, curtain and rollover air bag
modules, pretensioners and all related wiring. When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain and rollover air bag or pretensioner
systems may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain and rollover air bag
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury
to yourself or others, have your vehicle
checked by an INFINITI dealer as soon as
possible.
Repair and replacement procedure
The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to inflate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light remains illuminated after inflation
has occurred. Repair and replacement of these
supplemental air bag systems should be done
only by an INFINITI dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain and
rollover air bags, pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should al-
ways be in the LOCK position when working
under the hood or inside the vehicle.
LRS0100
Safety—Seats, seat belts and supplemental restraint system1-67
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane

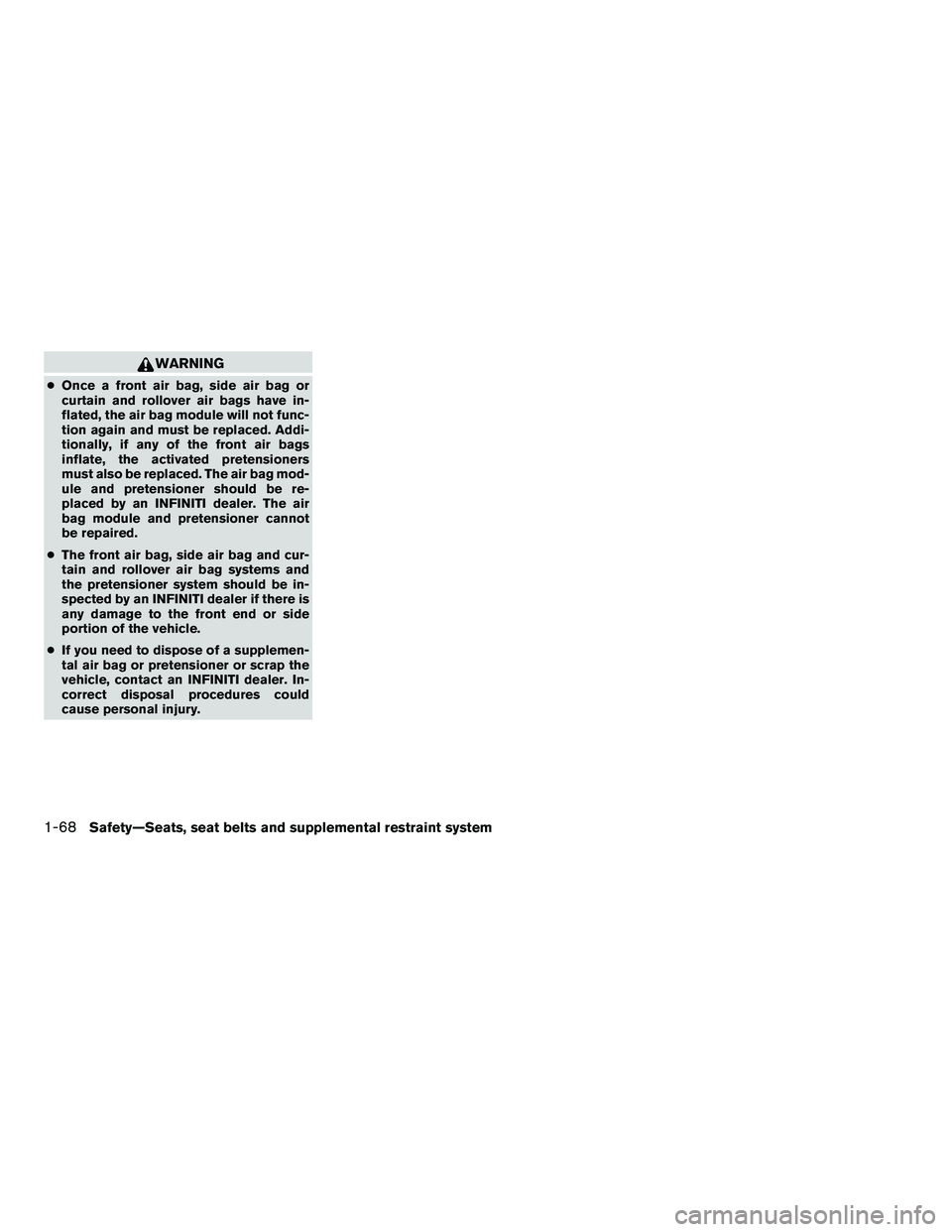

WARNING
●Once a front air bag, side air bag or
curtain and rollover air bags have in-
flated, the air bag module will not func-
tion again and must be replaced. Addi-
tionally, if any of the front air bags
inflate, the activated pretensioners
must also be replaced. The air bag mod-
ule and pretensioner should be re-
placed by an INFINITI dealer. The air
bag module and pretensioner cannot
be repaired.
● The front air bag, side air bag and cur-
tain and rollover air bag systems and
the pretensioner system should be in-
spected by an INFINITI dealer if there is
any damage to the front end or side
portion of the vehicle.
● If you need to dispose of a supplemen-
tal air bag or pretensioner or scrap the
vehicle, contact an INFINITI dealer. In-
correct disposal procedures could
cause personal injury.
1-68Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


Safety—Seats, seat belts and supplemental restraint system1-69

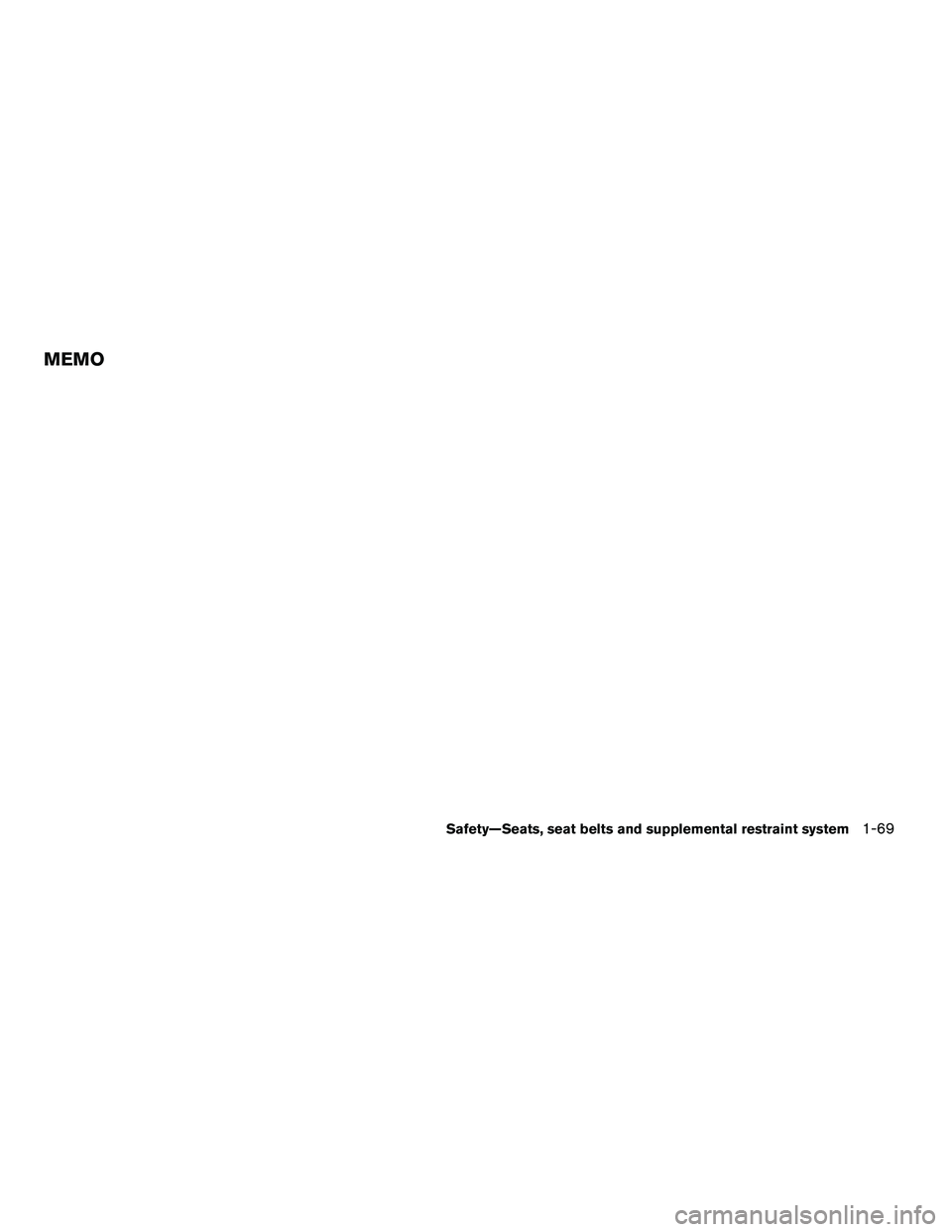

MEMO

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge . . ..................................2-6
Engine oil pressure gauge .......................2-6
Voltmeter ......................................2-7
Warning/indicator lights and audible reminders .......2-8
Checking bulbs ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-13
Audible reminders ............................. 2-15
Vehicle Information Display ........................2-16
Vehicle information display warnings and
indicators ..................................... 2-17
Security systems ................................. 2-20
Vehicle security system ......................... 2-20
INFINITI vehicle immobilizer system ..............2-21
Windshield wiper and washer switch ...............2-22
Switch operation .............................. 2-22
Rear window wiper and washer switch ..............2-23
Rear window and outside mirror defroster switch .....2-24 Headlight and turn signal switch
....................2-24
Xenon headlights .............................. 2-24
Headlight control switch ........................ 2-25
Daytime running light system (Canada only) ......2-28
Instrument brightness control ...................2-28
Turn signal switch ............................. 2-29
Fog light switch ............................... 2-29
Hazard warning flasher switch .....................2-29
Horn ............................................ 2-30
Heated seats .................................... 2-30
Heated steering wheel ............................ 2-31
Vehicle Dynamic Control (VDC) OFF switch .........2-32
Rear sonar system off switch (if so equipped) ........2-32
Front sonar system off switch (If so equipped) .......2-33
Tow mode switch ................................. 2-33
Clock ........................................... 2-34
Adjusting
the time............................. 2-34
Power outlet ..................................... 2-34
Storage ......................................... 2-36
Console box .................................. 2-36
Glove box .................................... 2-37
Sunglasses holder ............................. 2-37
Map pockets .................................. 2-38
REVIEW COPY—2010 Infiniti QX56(iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


Seatback pocket.............................. 2-38
Overhead console ............................. 2-39
Cup holders .................................. 2-40
2nd row center console (if so equipped) .........2-42
Cargo area storage bin ......................... 2-43
Luggage hooks ................................ 2-44
Cargo net . . . ................................. 2-45
Roof rack ..................................... 2-46
Windows ........................................ 2-47
Power windows ............................... 2-47
Power vent windows ........................... 2-50
Moonroof ........................................ 2-50
Automatic moonroof ........................... 2-50
Interior light ...................................... 2-52Console light
.................................. 2-53
Personal lights ................................... 2-53
Map lights ....................................... 2-54
Cargo light ...................................... 2-54
HomeLink universal transceiver ...................2-54
Programming HomeLink .......................2-55
Programming HomeLink for Canadian
customers .................................... 2-56
Operating the HomeLink universal
transceiver .................................... 2-56
Programming trouble-diagnosis .................2-56
Clearing the programmed information ............2-57
Reprogramming a single HomeLink button......2-57
If your vehicle is stolen ......................... 2-57
REVIEW COPY—2010 Infiniti QX56(iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


1. Vents (P. 4-21)
2. Headlight/fog light/turn signal switch(P. 2-24)
3. Steering wheel switch for audio control
and Bluetooth Hands-Free Phone
System (P. 4-51, 4-70)
4. Driver supplemental air bag/horn
(P. 1-52, P.2-30)
5. Meters, gauges and warning/indicator
lights (P. 2-3, 2-8)
6. Instrument brightness control (P. 2-28)
7. Cruise control main/set switches (if so
equipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-17, P.5-19)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-22, P. 2-23)
9. Ignition switch (P. 5-9)
10. Navigation system* (P. 4-2)
11. Navigation system* controls (P. 4-2)
12. Audio system controls (P. 4-26)
13. Front passenger supplemental air bag
(P. 1-52)
14. Glove box (P. 2-37)
15. Hazard lights (P. 2-29)
16. Climate controls (P. 4-22)
WIC1379
INSTRUMENT PANEL
2-2Instruments and controls
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane


17. Power outlet (P. 2-34)
18. Heated seat switch (P. 2-30)
19. Tow mode switch (P. 2-33)
20. Vehicle dynamic control (VDC) OFFswitch (P. 2-32)
21. Shift selector (P. 5-12)
22. Heated steering wheel switch (P.2-31)
23. Clock (P. 2-34)
24. Power outlet (P. 2-34)
25. Front passenger air bag status light
(P. 1-61)
26. Auxiliary jack (P. 4-39
27. 4WD shift switch (if so equipped)
(P. 5-41)
28. Tilt steering wheel control (P. 3-24)
29.. Rear or front and rear sonar system off
switch (P. 5-52)
30. Pedal position adjustment switch
(P. 3-25)
31. Headlight aiming control (P. 2-27)
32. Power vent windows switch (P. 2-50)
33. Lift gate open/close switch (P. 3-18)
*: Refer to the separate Navigation System Own-
er’s Manual.
See the page number indicated in paren-
theses for operating details.1. Warning/indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Engine oil pressure gauge 6. Odometer/Twin trip odometer, A/T po-
sition indicator, 4WD shift indicator
light (if so equipped)/vehicle information
display
7. Voltmeter
8. Fuel gauge
LIC1169
METERS AND GAUGES
Instruments and controls2-3
REVIEW COPY—2010 Infiniti QX56 (iwz)
Owners Manual (owners)—USA_English (nna)
02/12/09—diane
