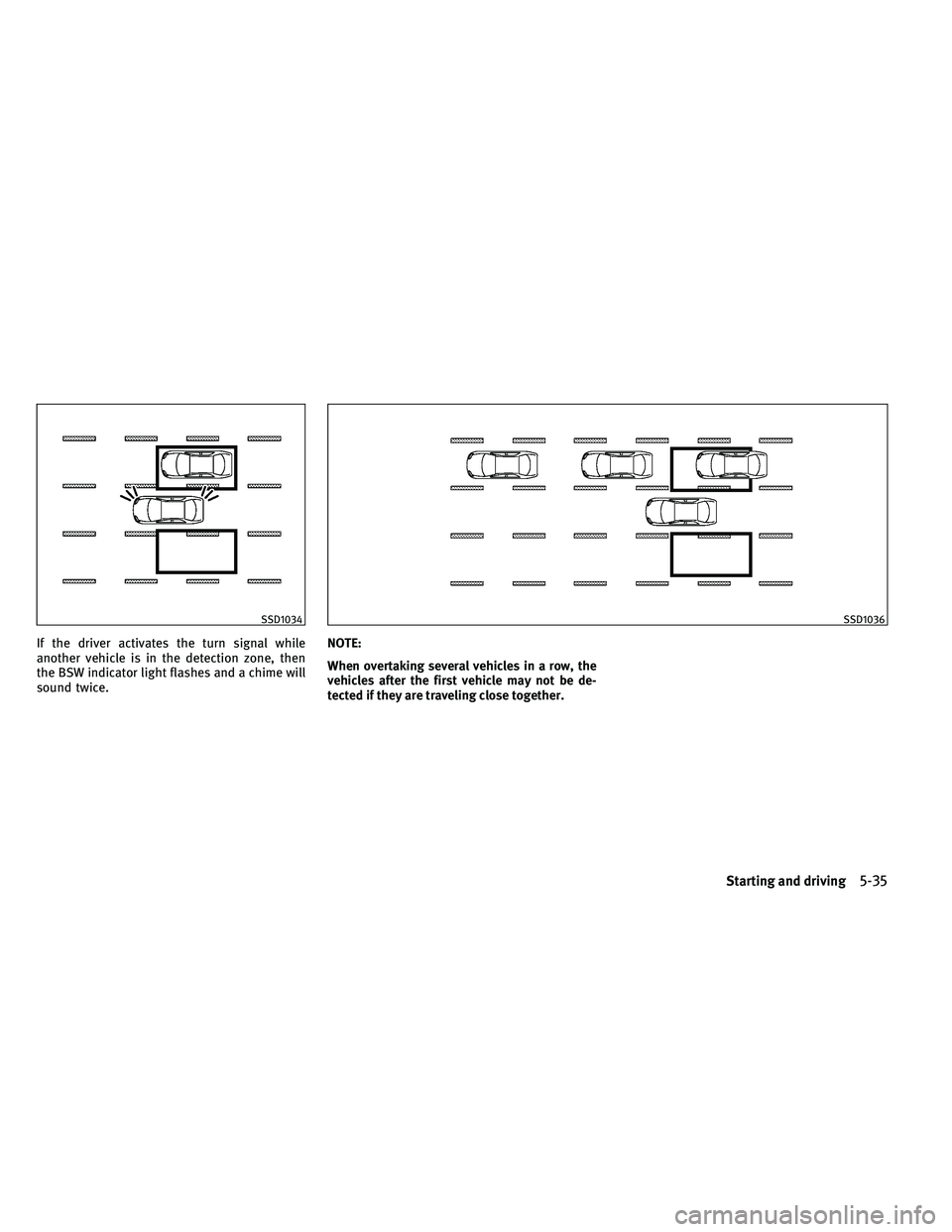

If the driver activates the turn signal while
another vehicle is in the detection zone, then
the BSW indicator light flashes and a chime will
sound twice.NOTE:
When overtaking several vehicles in a row, the
vehicles after the first vehicle may not be de-
tected if they are traveling close together.
SSD1034SSD1036
Starting and driving5-35

Entering from the side
The BSW indicator light illuminates if a vehicle
enters the detection zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed as
your vehicle when it enters the detection zone.If the driver activates the turn signal, then the
BSW indicator light flashes and a chime will
sound twice.
NOTE:
If the driver activates the turn signal before a
vehicle enters the detection zone, the BSW indi-
cator light will flash but no chime will sound
when another vehicle is detected.
BSW temporarily not available
●
When radar blockage is detected, the BSW
system will be turned off automatically, a
beep will sound and the BSW system warn- ing light (orange) will blink. The BSW system
is not available until the condition no longer
exists.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be
caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above condition no longer exists, the
BSW system will resume automatically.
If the warning light (orange) continues to blink,
have the BSW system checked by an INFINITI
retailer.
BSW MALFUNCTION
When the BSW system malfunctions, they will
be turned off automatically, a beep will sound
and the BSW system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine.
If the warning light (orange) continues to illu-
minate, have the BSW system checked by an
INFINITI retailer.
SSD1037SSD1038
5-36Starting and driving

SYSTEM MAINTENANCE
The two radar sensor units1for the BSW
system is located near the rear bumper. Always
keep the area near the radar sensors clean. Do
not attach stickers (including transparent mate-
rial), install accessories or apply additional
paint near the radar sensors. Do not strike or
damage the area around the radar sensors.
Consult an INFINITI retailer if the area around
the radar sensors is damaged due to a collision.
Radio frequency statement
This device complies with part 15 of the FCC
Rules and RSS-310 of Industry Canada.
Operation is subject to the following two con-
ditions:
1. This device may not cause harmful inter- ference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Frequency of operation: 24.05GHz — 24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m
The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modifications to this equipment. Such modifi-
cations could void the user’s authority to oper-
ate the equipment.
PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The CRUISE indica-
tor light on the meter panel will then blink to
warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the CRUISE indicator light blinks, turn the
cruise control main switch off and have the
system checked by your INFINITI retailer.
● The CRUISE indicator light may sometimes
blink when the cruise control main switch is
turned ON while pushing the RESUME/
ACCELERATE, SET/COAST or CANCEL switch.
To properly set the cruise control system,
perform the steps below in the order indi-
cated.
SSD1085
CRUISE CONTROL
Starting and driving5-37

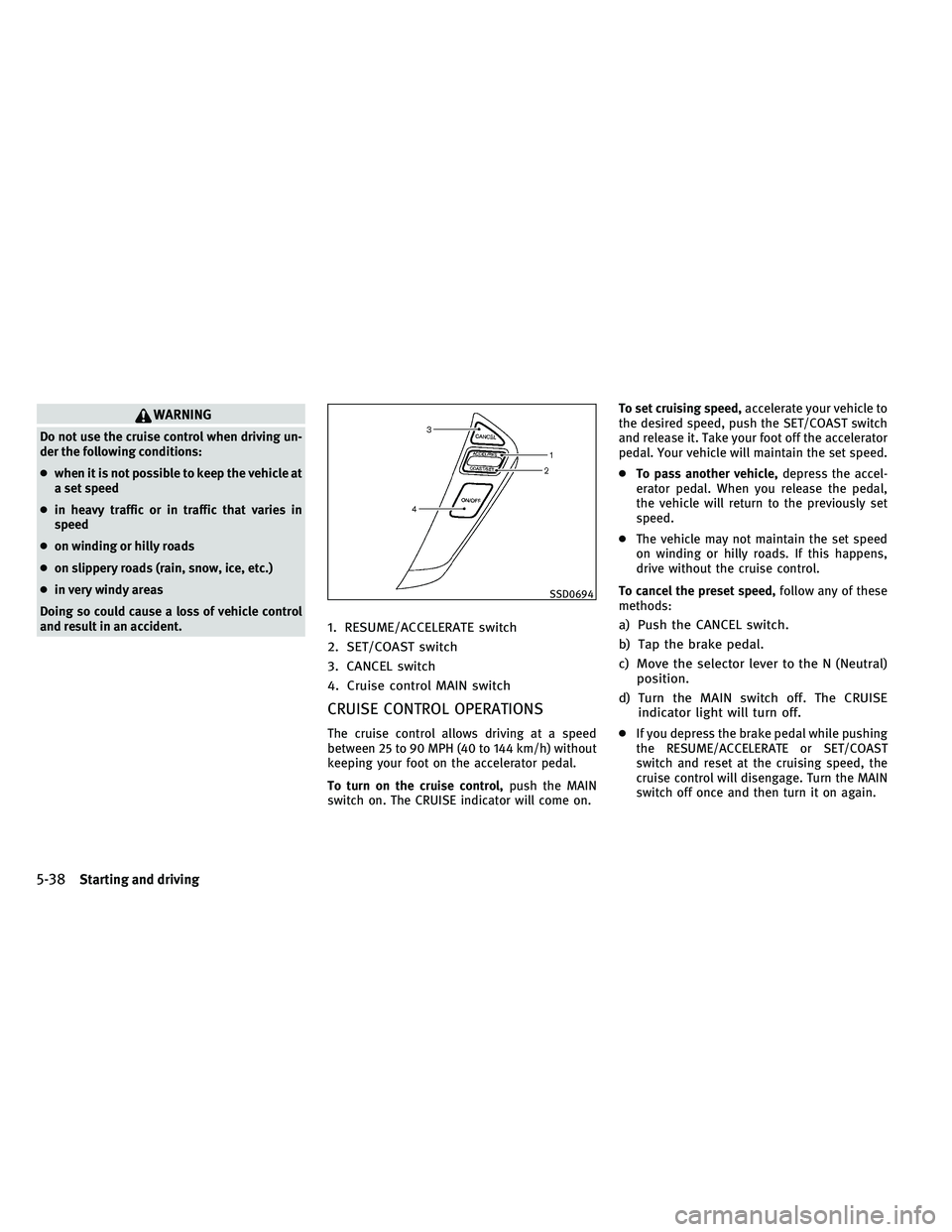

WARNING
Do not use the cruise control when driving un-
der the following conditions:
●when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle control
and result in an accident.
1. RESUME/ACCELERATE switch
2. SET/COAST switch
3. CANCEL switch
4. Cruise control MAIN switch
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 to 90 MPH (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the MAIN
switch on. The CRUISE indicator will come on. To set cruising speed,
accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.
● To pass another vehicle, depress the accel-
erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
● The vehicle may not maintain the set speed
on winding or hilly roads. If this happens,
drive without the cruise control.
To cancel the preset speed, follow any of these
methods:
a) Push the CANCEL switch.
b) Tap the brake pedal.
c) Move the selector lever to the N (Neutral) position.
d) Turn the MAIN switch off. The CRUISE indicator light will turn off.
●If you depress the brake pedal while pushing
the RESUME/ACCELERATE or SET/COAST
switch and reset at the cruising speed, the
cruise control will disengage. Turn the MAIN
switch off once and then turn it on again.
SSD0694
5-38Starting and driving

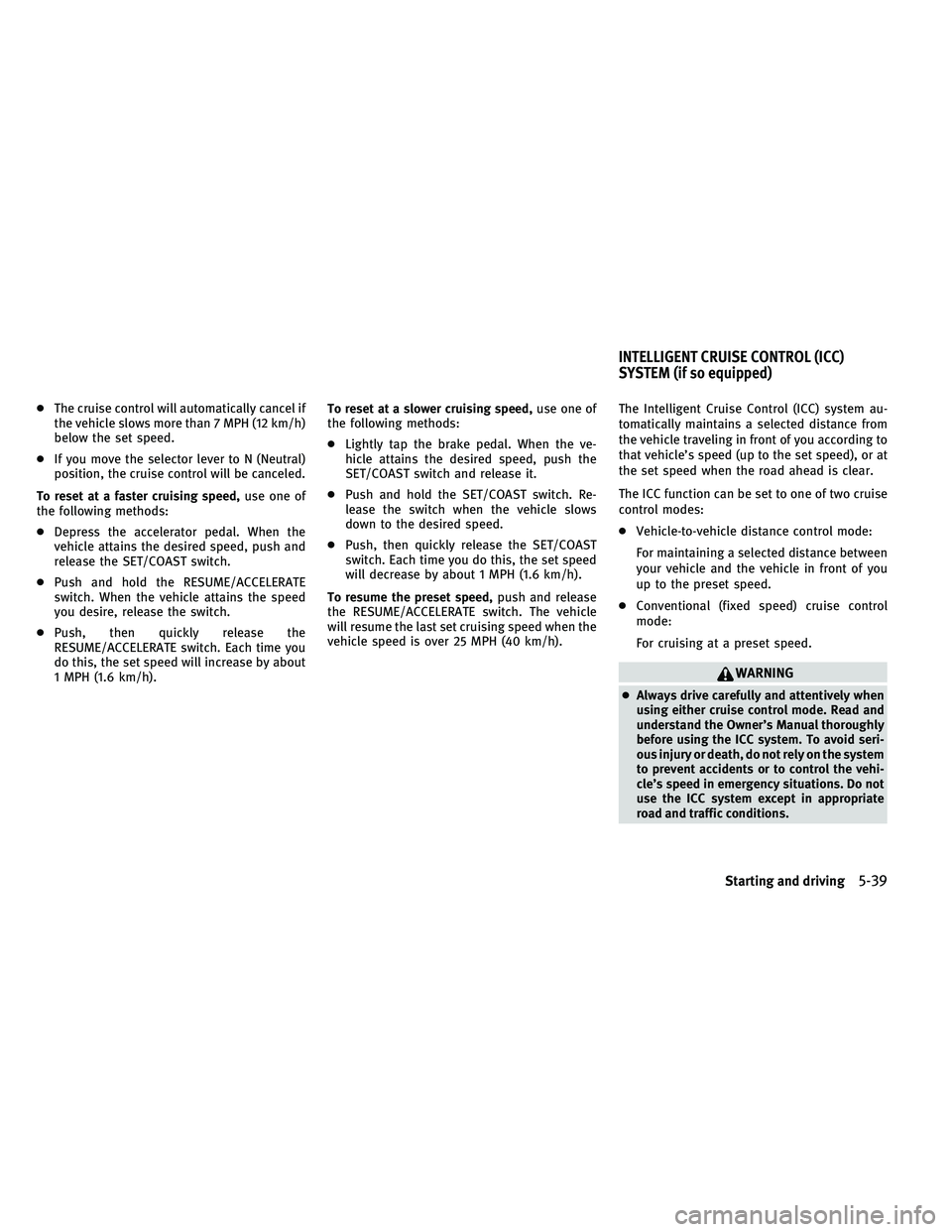

●The cruise control will automatically cancel if
the vehicle slows more than 7 MPH (12 km/h)
below the set speed.
● If you move the selector lever to N (Neutral)
position, the cruise control will be canceled.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
● Push and hold the RESUME/ACCELERATE
switch. When the vehicle attains the speed
you desire, release the switch.
● Push, then quickly release the
RESUME/ACCELERATE switch. Each time you
do this, the set speed will increase by about
1 MPH (1.6 km/h). To reset at a slower cruising speed,
use one of
the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/COAST switch and release it.
● Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
● Push, then quickly release the SET/COAST
switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h). The Intelligent Cruise Control (ICC) system au-
tomatically maintains a selected distance from
the vehicle traveling in front of you according to
that vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
The ICC function can be set to one of two cruise
control modes:
●
Vehicle-to-vehicle distance control mode:
For maintaining a selected distance between
your vehicle and the vehicle in front of you
up to the preset speed.
● Conventional (fixed speed) cruise control
mode:
For cruising at a preset speed.
WARNING
● Always drive carefully and attentively when
using either cruise control mode. Read and
understand the Owner’s Manual thoroughly
before using the ICC system. To avoid seri-
ous injury or death, do not rely on the system
to prevent accidents or to control the vehi-
cle’s speed in emergency situations. Do not
use the ICC system except in appropriate
road and traffic conditions.
INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM (if so equipped)
Starting and driving5-39

SELECTING VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
To choose the vehicle-to-vehicle distance con-
trol mode
1, quickly push and release the
MAIN switch
A.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control mode,
the Intelligent Cruise Control (ICC) system auto-
matically maintains a selected distance from
the vehicle traveling in front of you according to
that vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
With ICC, the driver can maintain the same
speed as other vehicles without the constant
need to adjust the set speed as you would with
a normal cruise control system.
PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL MODE
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
WARNING
● This system is only an aid to assist the driver
and is not a collision warning or avoidance
device. It is the driver’s responsibility to stay
alert, drive safely and be in control of the
vehicle at all times.
● The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
● This system will not adapt automatically to
road conditions. This system should be used
in evenly flowing traffic. Do not use the sys-
tem on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
The distance sensor will not detect the follow-
ing objects:
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel
lane
SSD1047
Starting and driving5-41

WARNING
●As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control (ICC) system.
This system does not correct careless, inat-
tentive or absent-minded driving, or over-
come poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within the
limitations of the system. The system will
cancel once it judges that the vehicle has
come to a standstill and sound a warning
chime. To prevent the vehicle from moving,
the driver must depress the brake pedal.
● The system may not function properly under
the following conditions. To avoid accidents,
never use the ICC system under the following
conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc. – On off-road surfaces such as on sand or
rock, etc.
– During bad weather (rain, fog, snow, etc.)
– When the windshield wipers are operat- ing at high speed. The system may cancel
when the wipers are set to the AUTO
position.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration
– When towing a trailer or other vehicle ●
In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
5-42Starting and driving

4. Indicates your vehicle
5. Set vehicle speed indicator:
Indicates the set vehicle speed.
For Canadian models, the speed is displayed
in km/h.
6. Intelligent Cruise Control (ICC) systemwarning light (orange):
The light comes on if there is a malfunction
in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.
Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control,quickly push and
release the MAIN switch
Aon. The MAIN
switch indicator, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0979SSD1052
5-48Starting and driving

When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and the set vehicle
speed indicator will blink.
●When the SNOW mode is pushed (SNOW
mode switch) (To use the ICC system, turn off
the SNOW mode switch, push the MAIN
switch to turn off the ICC and reset the ICC
switch by pushing the MAIN switch again.)
For details about the SNOW mode switch,
see “SNOW MODE” later in this section. ●
When the 4WD shift switch is in the 4H or 4L
position. (To use the ICC system, place the
4WD shift switch in the AUTO position, push
the MAIN switch to turn off the ICC system
and reset the ICC switch by pushing the
MAIN switch again (for 4WD models).
For details about the 4WD shift switch, see
“INFINITI ALL-MODE 4WD” earlier in this
section.
● When the VDC system is off (To use the ICC
system, turn on the VDC system. Push the
MAIN switch to turn off the ICC system and
reset the ICC switch by pushing the MAIN
switch again.)
For details about the VDC system, see “VE-
HICLE DYNAMIC CONTROL (VDC) SYSTEM”
later in this section.
● When ABS or VDC (including the traction
control system) is operating
● When driving into a strong light (i.e., sun-
light)
● When a wheel is slipping (To use the ICC
system, make sure the wheels are no longer
slipping. Push the MAIN switch to turn off
the ICC, and reset the ICC system by pushing
the MAIN switch again.)
SSD1106
5-50Starting and driving

1. System set display with vehicle ahead
2. System set display without vehicle ahead
System operation
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically accel-
erates or decelerates your vehicle according to
the speed of the vehicle ahead. Depress the
accelerator to properly accelerate your vehicle
when acceleration is required for a lanechange. Depress the brake pedal when decel-
eration is required to maintain a safe distance
to the vehicle ahead due to its sudden braking
or if a vehicle cuts in. Always stay alert when
using the Intelligent Cruise Control (ICC)
system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead.
The ICC system displays the set speed. Vehicle detected ahead :
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.
The stoplights of the vehicle come on when brak-
ing is performed by the ICC system.
When the brake operates, a noise may be heard
or felt. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected :
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
If a vehicle ahead appears during acceleration
to the set vehicle speed or any time the ICC
system is in operation, the system controls the
distance to that vehicle.
SSD1107
Starting and driving5-51
