window INFINITI QX 2011 Workshop Manual

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
Vk56vd engine model ........................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-8
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-9
Checking engine oil level ....................... 8-9
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid .............................. 8-12
Brake fluid ...................................... 8-12
Brake fluid ................................... 8-13
Window washer fluid ............................. 8-14
Battery .......................................... 8-15
Jump starting ................................. 8-16
Variable voltage control system ...................8-16
Drive belts ....................................... 8-17Spark plugs
..................................... 8-17
Replacing spark plugs ......................... 8-18
Air cleaner ....................................... 8-18
Windshield wiper blades .......................... 8-19
Cleaning ...................................... 8-19
Replacing ..................................... 8-19
Rear window wiper blades ........................8-20
Brakes .......................................... 8-20
Self-adjusting brakes .......................... 8-20
Brake pad wear warning ....................... 8-20
Brake booster ................................. 8-21
Fuses ........................................... 8-21
Engine compartment ........................... 8-22
Passenger compartment ....................... 8-23
Intelligent Key battery replacement ................8-24
Lights ........................................... 8-26
Headlights .................................... 8-27
Exterior

and interior lights ..................... 8-27
Wheels and tires ................................. 8-29
Tire pressure .................................. 8-29
Tire labeling .................................. 8-33
Types of tires ................................. 8-35
Tire chains ................................... 8-35
Changing wheels and tires..................... 8-36

VK56VD ENGINE MODEL
1. Window washer fluid reservoir
2. Fuse/fusible link holder
3. Engine oil dipstick
4. Power steering fluid reservoir5. Engine oil filler cap
6. Brake fluid reservoir
7. Fuse/fusible link holder
8. Battery
9. Radiator filler cap10. Engine coolant reservoir
11. Drive belts
12. Air cleaner
SDI2585
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself

WARNING
Antifreeze is poisonous and should be stored
carefully in marked containers out of the reach
of children.Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
window washer fluid warning illuminates.
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window
washer fluid into the tank opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a wind-
shield washer antifreeze. Follow the manufac-
turer’s instructions for the mixture ratio.
Refill the reservoir more frequently when driv-
ing conditions require an increased amount of
window washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
CAUTION
●
Do not substitute engine anti-freeze coolant
for window washer solution. This may result
in damage to the paint.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
● Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water.
SDI2517
WINDOW WASHER FLUID
8-14Maintenance and do-it-yourself

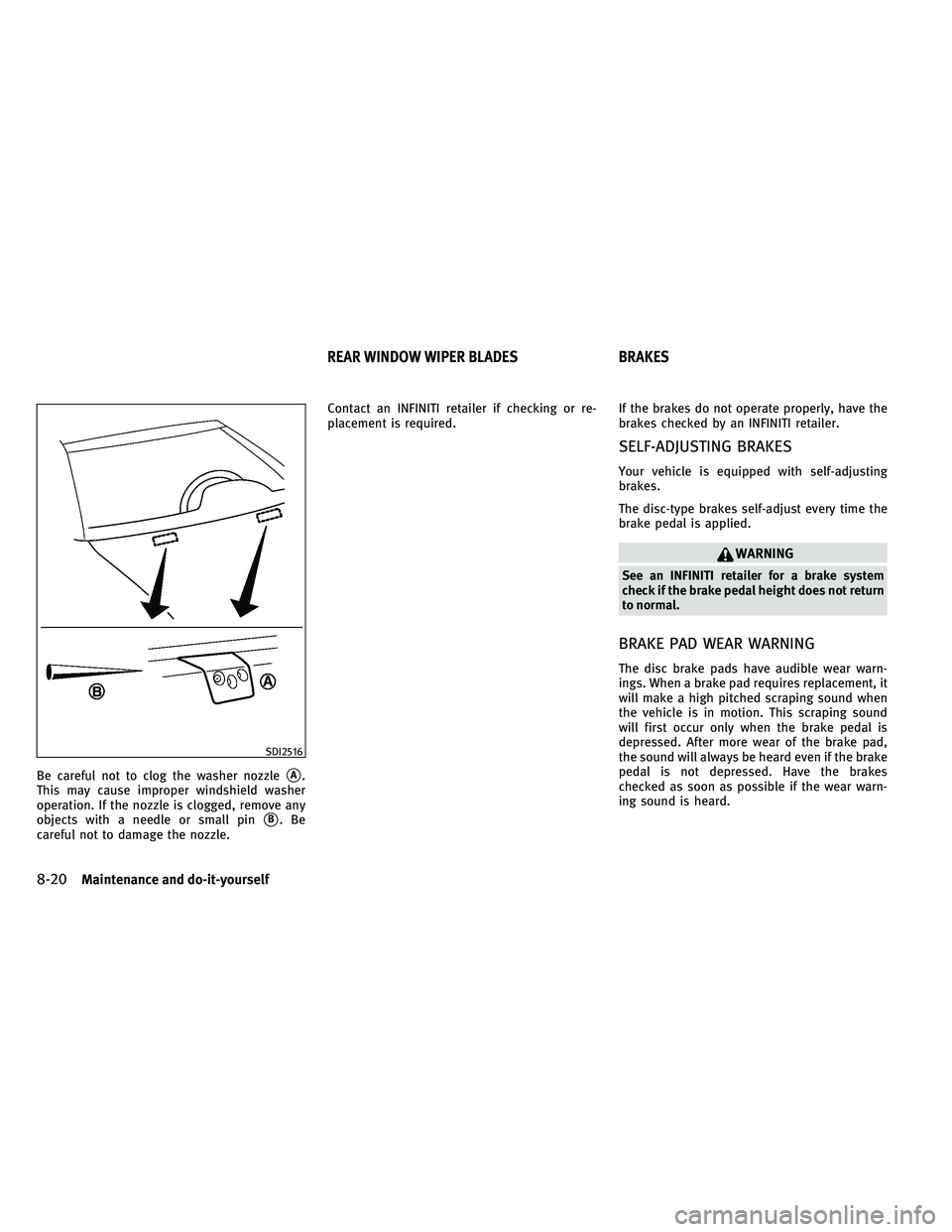

Be careful not to clog the washer nozzleA.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
B.Be
careful not to damage the nozzle. Contact an INFINITI retailer if checking or re-
placement is required.
If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.
SDI2516
REAR WINDOW WIPER BLADES
BRAKES
8-20Maintenance and do-it-yourself

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp mea- sureLiter
Fuel 26 gal 21-5/8 gal 98.4 See “FUEL RECOMMENDATION” later in this section.
Engine oil*1
Drain and refill With oil filter change 6-7/8 qt 5-3/4 qt 6.5 •Engine oil with API Certification Mark*2, *3
•Viscosity SAE 5W-30
Without oil filter change 6-1/2 qt 5-1/2 qt 6.2
Cooling system With reservoir 15-3/4 qt 13-1/8 qt 14.9 50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
50% Demineralized or distilled water
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*4
Transfer fluid ——— Genuine NISSAN Transfer Fluid for ATX90A transfer*5*6
Front differential gear oil ——— Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90*7
Rear differential gear oil ——— Genuine NISSAN differential oil synthetic 75W-90 or API GL-5 synthetic gear oil, Viscosity
SAE 75W-90*8
Power steering fluid (PSF) Refill to the proper oil level according to the
instructions in the “8. Maintenance and do-it-
yourself” section. Genuine NISSAN PSF or equivalent*9
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid*10 or equivalent DOT 3
Suspension fluid ——— Genuine NISSAN Hydraulic Suspension Fluid*11*12
Multi-purpose grease ——— NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ——— HFC-134a (R-134a)*13
Air conditioning system lubricants ——— NISSAN A/C System Oil Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see “ENGINE OIL” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*2: For additional information, see “ENGINE OIL AND OIL FILTER RECOMMENDATION” later in this section.
*3:INFINITI recommends Genuine NISSAN Ester Engine Oil available at INFINITI retailers.
*4: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission, which is not
covered by the INFINITI new vehicle limited warranty.
*5: Using transfer fluid other than Genuine NISSAN Transfer Fluid will damage the transfer, which is not covered by the INFINITI new vehicle limited warranty.
*6: See your INFINITI retailer for recommended transfer fluid.
*7: For hot climates, Viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

Floor mat cleaning................7-5
Fluid Automatic transmission fluid (ATF) ....8-11
Brake fluid .............. 8-12, 8-13
Capacities and recommended
fuel/lubricants ................9-2
Engine coolant ................8-7
Engine oil ...................8-9
Power steering fluid ............8-12
Window washer fluid ............8-14
FM-AM-SAT radio with Compact Disc (CD)
player ...................... 4-54
Fog light switch ................. 2-42
Forward Collision Warning (FCW) system . . . 5-75
Front passenger air bag and status light . . . 1-57
Front power seat adjustment ..........1-2
Front seat Front seat adjustment .........1-2, 1-16
Front-seat active head restraint ........1-12
Fuel Capacities and recommended
fuel/lubricants ................9-2
Fuel economy ................ 5-83
Fuel economy information (display) ....4-9
Fuel octane rating ..............9-4
Fuel recommendation ............9-4
Fuel-filler cap ................ 3-23
Fuel-filler door ............... 3-23
Gauge .....................2-8
LOOSE FUEL CAP warning .........3-25
Fuses ....................... 8-21
Fusible links .................. 8-22 G
Garage door opener, HomeLink Universal
Transceiver ................... 2-68
Gascap ..................... 3-23
Gauge .......................2-5
Engine coolant temperature gauge .....2-7
Engine oil pressure gauge .........2-8
Fuel gauge ..................2-8
Odometer ...................2-6
Speedometer .................2-6
Tachometer ..................2-7
Trip computer ................ 2-27
General maintenance ..............8-2
Glove box .................... 2-57
H
Hands-Free Phone System, Bluetooth . . . 4-96
Hazard warning flasher switch ........2-43
Head

restraints ..................1-8
Headlight washer ................ 2-41
Headlights Aiming control ............... 2-39
Aiming control (See adaptive front
lighting system (AFS)) ...........2-40
Bulb replacement .............. 8-27
Headlight switch .............. 2-37
Xenon headlights .............. 2-36
Heated seats .................. 2-44
Heated steering wheel .............2-43
Heater Automatic climate control ......4-31, 4-34
Engine block heater ............5-102
Hill start assist system .............5-91HomeLink
Universal Transceiver .......2-68
Hood release .................. 3-18
Hook Coat hooks ................. 2-59
Luggage hook ................ 2-59
Horn ....................... 2-44
I
Ignition switch (Push-button) .........5-10
Immobilizer system ............... 2-31
In-cabin microfilter ............... 4-39
Indicator Dot matrix display ............. 2-21
Lights ..................... 2-17
INFINITI Vehicle Immobilizer System . ....2-31
INFINITI voice recognition system ......4-106
INFO button ....................4-7
Inside mirror .................. 3-27
Inspection/maintenance (I/M) test ......9-31
Instrument brightness control .........2-41
Instrument panel .................2-4
Intelligent Brake Assist (IBA) off indicator
light ....................... 2-18
Intelligent Brake Assist (IBA) system .....5-80
Intelligent cruise control (ICC) system ....5-39
Main

switch indicator ........... 2-24
Intelligent Cruise Control (ICC) system
warning light .................. 2-14
Intelligent Key ..................3-2
Intelligent Key system ..............3-6
Battery replacement ............8-24
Key operating range .............3-8
Key operation ................3-9
Warning light ................ 2-14
10-3

N
New vehicle break-in .............. 5-83
O
Odometer .....................2-6
Off-road recovery .................5-7
Oil Capacities and recommended
fuel/lubricants ................9-2
Changing engine oil and filter .......8-9
Checking engine oil level ..........8-9
Engine oil ...................8-9
Engine oil pressure gauge .........2-8
Engine oil viscosity .............9-6
Oil filter replacement indicator ......2-25
Operation, Indicators for operation ......2-23
Outside air temperature ............2-28
Outside mirrors ................. 3-28
Overheat, If your vehicle overheats ......6-13
Owner’s Manual/Service Manual order
information ................... 9-32
P
Panic alarm ................... 3-16
Parking Brake break-in ............... 5-94
Parking brake operation ..........5-19
Parking on hills ............... 5-92
Phone Bluetooth Hands-Free Phone System . . 4-96
Car phone or CB radio ...........4-95Pocket
...................... 2-58
Power Front seat adjustment ............1-2
Power door lock ...............3-4
Power outlet ................. 2-52
Power steering fluid ............8-12
Power steering system ...........5-94
Power windows ............... 2-61
Precautions Audio operation .............. 4-40
Braking precautions ............5-94
Child restraints ............... 1-30
Cruise control ................ 5-37
Driving safety .................5-8
Lane departure warning (LDW) system . . 5-20
Maintenance .................8-5
On-pavement and off-road driving .....5-6
Seat belt usage ............... 1-18
Supplemental

restraint system ......1-50
When starting and driving .........5-2
Preview function ................ 5-95
Preview Function warning light ........2-16
Push starting .................. 6-13
Push-button ignition switch ..........5-10
R
Radio ...................... 4-40
Car phone or CB radio ...........4-95
FM-AM-SAT radio with Compact Disc (CD)
player .................... 4-54
Rain-sensing auto wiper system .......2-33
Rapid air pressure loss .............5-7
Readiness for inspection/maintenance (I/M)
test........................ 9-31Rear door lock, Child safety rear door lock . . 3-6
Rear personal lights
.............. 2-66
Rear window wiper and washer switch . . . 2-34
Rear window wiper blades ..........8-20
Recorders, Event data .............9-32
Registering your vehicle in another
country ......................9-9
Remote controller (DVD) ............4-92
Remote keyless entry system .........3-15
Reporting safety defects ............9-30
Roadside assistance program . . . . . . . . . 6-2
Rollover ......................5-6
Roof Moonroof .................. 2-64
Roof rack .................. 2-60
S
Safety Child seat belts ............... 1-28
Towing safety ................ 9-21
Satellite radio operation ............4-55
Seat adjustment Front power seat adjustment ........1-2
Front seats ............... 1-2, 1-16
Seat belt(s) Child safety ................. 1-28
Infants .................... 1-29
Injured persons ............... 1-21
Larger children ............... 1-29
Precautions on seat belt usage . . ....1-18
Pregnant women .............. 1-21
Seat

belt cleaning ..............7-6
Seat belt extenders ............. 1-27
Seat belt maintenance ...........1-28
10-5

Trailer towing.................. 9-17
Transceiver, HomeLink Universal
Transceiver ................... 2-68
Transmission Automatic transmission fluid (ATF) ....8-11
Driving with automatic transmission . . . 5-15
Transmission selector lever lock
release .................... 5-18
Transmitter
(See remote keyless entry system) ......3-15
Traveling or registering your vehicle in
another country .................9-9
Trip computer .................. 2-27
Trip odometer .................. 2-27
Turn signal switch ............... 2-42
U
Underbody cleaning ...............7-3
Uniform tire quality grading ..........9-28
USB memory operation ............4-61
V
Vanity mirror .................. 3-30
Vanity mirror lights .............. 2-68
Variable voltage control system ........8-16
Vehicle Dimensions ..................9-9
Identification number (VIN) ........9-10
Loading information ............9-12
Recovery (freeing a stuck vehicle) .....6-17
Security system ............... 2-29Vehicle dynamic control (VDC) off
switch
.................... 2-51
Vehicle dynamic control (VDC) system . . 5-98
Vehicle dynamic control (VDC) warning
light ..................... 2-17
Vehicle information and settings
(display) ....................4-7
Ventilators ................... 4-30
Voice command (INFINITI voice recognition
system) ................. 4-112, 4-122
Voice recognition system ...........4-106
Voice recognition, Alternate command
mode ...................... 4-119
Voltmeter .....................2-9
W
Warning Check tire pressure warning .......2-24
Dot matrix display ............. 2-21
Hazard warning flasher switch ......2-43
Lane departure warning (LDW) system . . 5-20
Lights ..................... 2-11
Loose fuel cap warning ..........2-24
Tire
pressure monitoring system
(TPMS) .................. 5-3, 6-2
Warning/indicator lights and audible
reminders .................. 2-10
Warning labels, Air bag warning labels . . . 1-63
Warning light 4WD warning light ............. 5-89
Air bag warning light .........1-63, 2-16
Anti-lock braking system (ABS) warning
light ...................... 2-11
Brake warning light ............. 2-12Intelligent Key warning light
........2-14
Lane departure warning light . . . . . . . 2-14
Low tire pressure warning light . .....2-14
Seat belt warning light and chime ....2-16
Warranty, Emission control system
warranty ..................... 9-29
Washer switch Rear window wiper and washer
switch .................... 2-34
Windshield wiper and washer switch . . . 2-32
Washing ......................7-2
Waxing ......................7-3
Welcome light .................. 2-65
Wheel/tire size ..................9-9
Wheels and tires ................ 8-29
Care of wheels ................7-3
Cleaning aluminum alloy wheels . . . . . . 7-4
Window washer fluid .............. 8-14
Window(s) Cleaning ....................7-3
Power windows ............... 2-61
Windshield wiper and washer switch .....2-32
Wiper Rain-sensing auto wiper system .....2-33
Rear window wiper and washer
switch .................... 2-34
Windshield wiper and washer switch . . . 2-32
Wiper blades ................ 8-19
X
Xenon headlights ................ 2-36
10-7
