fog light bulb INFINITI QX30 2017 Owner's Manual

Anti-lock Braking System (ABS) warning
lightSeat belt (driver and front passenger)
warning lightHigh beam indicator light
Brake warning light (red)Supplemental Restraint System (SRS) air
bag warning lightRear fog light indicator light
Low tire pressure warning light*Low fuel warning lightSide light indicator light
Malfunction indicator light (yellow)Turn signal/hazard indicator lightsVehicle Dynamic Control (VDC) warning
light
Distance warning light*Low beam indicator lightFront passenger air bag status light**
Parking brake warning light (red)Vehicle Dynamic Control (VDC) OFF indica-
tor light
Parking brake warning light (yellow)Front fog light indicator light*
Coolant warning lightHigh beam assist indicator light * *: if equipped**: located above heater and air conditioner controls
Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer see
Vehicle information displayin the
2. Instruments and controls section.CHECKING LIGHTS
With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on, ,
,,,,
,,,,. These lights
should go out within a few seconds after start-
ing the engine. If any light fails to come on or
operates in a way other than described, it may indicate a burned out bulb and/or a system
malfunction. Have the system checked. It is
recommended you visit an INFINITI retailer for
this service.
WARNING LIGHTS
Also see
Vehicle information display later in
this section.
WARNING LIGHTS, INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls

MessagePossible causes/consequences and solutions
[Check Left Brake Lamp] or
[Check Right Brake Lamp] The left-hand or right-hand brake light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Main Beam] or
[Check Right Main Beam]The left or right-hand high beam headlight is faulty.•Check whether you are permitted to replace the bulb yourself (see
Lightsin the8. Do-it-yourself section).
or:
•Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[License Plate Lamp] The left or right-hand license plate light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Fog Lamp] or [Check
Right Fog Lamp]The left or right-hand fog light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Rear Fog Lamp]
The rear fog light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Front Left Sidemarker
Lamp] or [Check Front Right
Sidemarker Lamp]The front left or front right parking light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Backup Light]
The reversing light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left tail lamp] or [Check
Right tail lamp]The left or right-hand tail light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
Instruments and controls2-41

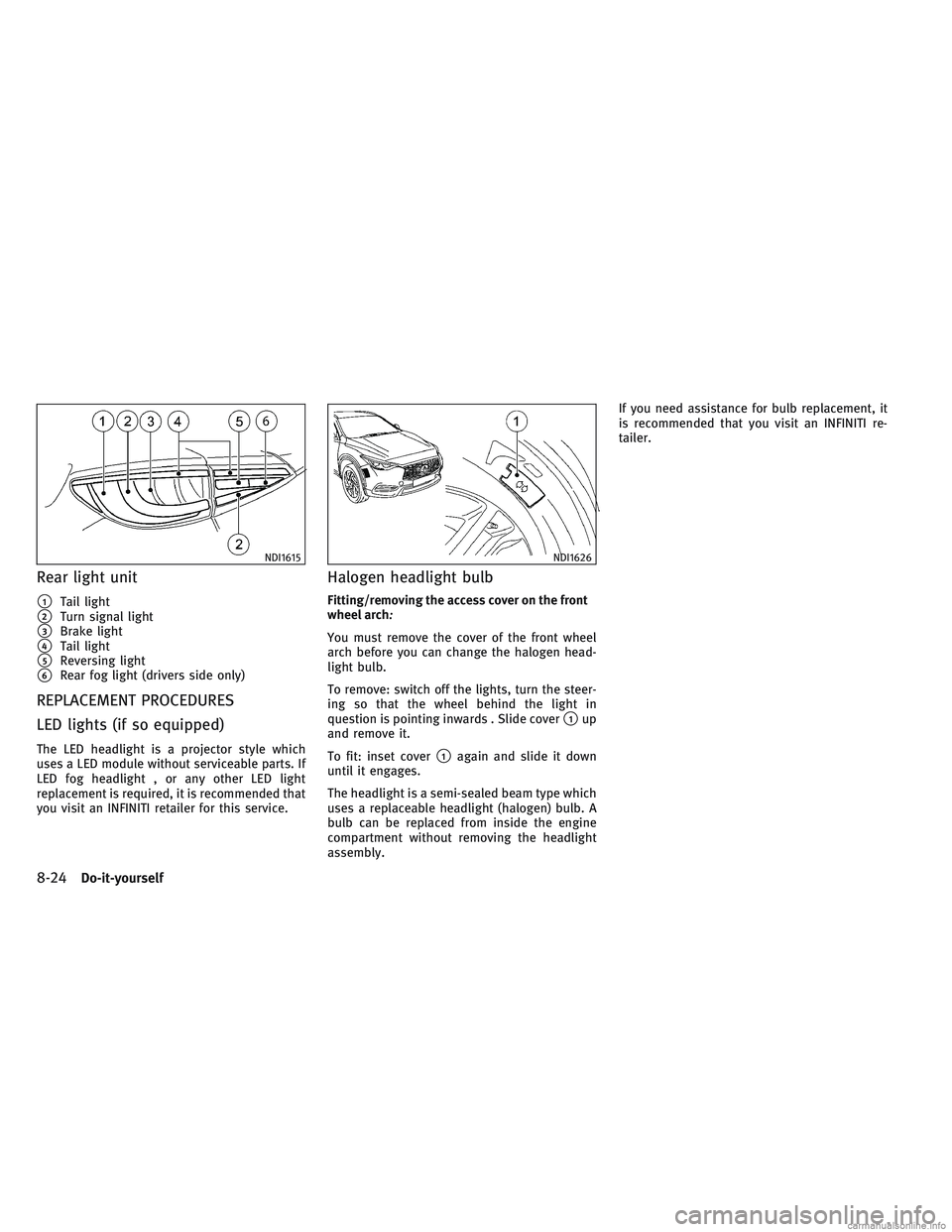

Rear light unit
1Tail light
2Turn signal light
3Brake light
4Tail light
5Reversing light
6Rear fog light (drivers side only)
REPLACEMENT PROCEDURES
LED lights (if so equipped)
The LED headlight is a projector style which
uses a LED module without serviceable parts. If
LED fog headlight , or any other LED light
replacement is required, it is recommended that
you visit an INFINITI retailer for this service.
Halogen headlight bulb
Fitting/removing the access cover on the front
wheel arch:
You must remove the cover of the front wheel
arch before you can change the halogen head-
light bulb.
To remove: switch off the lights, turn the steer-
ing so that the wheel behind the light in
question is pointing inwards . Slide cover
1up
and remove it.
To fit: inset cover
1again and slide it down
until it engages.
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. A
bulb can be replaced from inside the engine
compartment without removing the headlight
assembly. If you need assistance for bulb replacement, it
is recommended that you visit an INFINITI re-
tailer.
NDI1615NDI1626
8-24Do-it-yourself

Low/High beam Headlight bulb replacement:
1. Open the hood. For details, seeHoodin the
3. Pre-driving checks and adjustments sec-
tion.
2. Disconnect the negative (—) battery cable.
3. Remove the corresponding access cover from the wheel arch.
4. Turn housing cover
1counterclockwise and
remove it.
5. Turn bulb holder
2counterclockwise and
pull out
6. Take the headlight bulb out of bulb holder
2.
7. Insert the new bulb into bulb holder
2.
8. Insert bulb holder
2and turn it clockwise. 9. Press on housing cover
1and turn it to the
right.
10. Replace the cover in the front wheel arch
11. Reconnect the negative (—) battery cable and close the hood.
NOTE
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. The
fog is caused by a temperature difference be-
tween the inside and the outside of the lens. This
is not a malfunction. If large droplets can be
seen, it is recommended that you visit an
INFINITI retailer.
Front turn signal light bulb
replacement (non-LED system only)
1. Open the hood. For details, see Hoodin the
3. Pre-driving checks and adjustments sec-
tion.
2. Disconnect the negative (—) battery cable.
3. Turn housing cover
1counterclockwise and
remove it.
4. Turn bulb holder
2counterclockwise and
pull out
5. Take the headlight bulb out of bulb holder
2.
6. Insert the new bulb into bulb holder
2.
7. Insert bulb holder
2and turn it clockwise.
NDI1611NDI1612
Do-it-yourself8-25
