heater INFINITI QX30 2017 Owner's Manual

Table of contents
Illustrated table of contents
Safety — seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater and air conditioner, and audio system
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and Schedules
Technical information
Index
0
1
2
3
4
5
6
7
8
9
10
11

1. Ventilators (P. 4-41)
2. Center display* (P. 4-5)
3. Meters and gauges (P. 2-4)
4. Light switch (P. 2-63)
5. Parking brake (P. 3-25)6. Steering wheel
— Power steering system (P. 5-86)
— Horn (P. 2-70)
— Driver’s supplemental front-impact air
bag (P. 1-38)
7. Audio system (P. 4-52) 8. Ignition switch (P. 3-16)
9. Heater and air conditioner (P. 4-42)
10. Switch panel
— Seat heater switches* (P. 2-70)
— Hazard indicator flasher switch (P. 6-2)
— Idle Stop/Start system on/off switch
(P. 6-28)
— Front passenger air bag status light
(P. 6-47)
11. Vehicle Information Display (P. 2-15)
12. Glove box (P. 2-78)
13. Front passenger supplemental air bag (P. 1-38)
*: if equipped
NIC2898
INSTRUMENT PANEL
Illustrated table of contents0-7

1 Safety — seats, seat belts and supplemental
restraint system
Seats............................. .1-2
Front seats .........................1-3
Seat heater (if equipped) .................1-5
Rear seats ..........................1-5
Armrest (if equipped) .................. .1-7
Head restraints/Headrests ..................1-7
Adjustable head restraint components ........1-8
Remove .......................... .1-8
Install ........................... .1-9
Adjust ........................... .1-9
Rear seat head restraints/headrests .........1-10
Seat belts .......................... .1-11
Precautions on seat belt usage ............1-11
Pregnant women .................... .1-13
Injured persons ..................... .1-13
Seat belt warning light .................1-14
Three-point type seat belt with retractor .......1-14
Seat belt extenders .................. .1-17
Seat belt maintenance ..................1-17
Child safety ..........................1-18
Infants .......................... .1-18Small children
..................... .1-19
Larger children ..................... .1-19
Child restraints ....................... .1-20
Precautions on child restraints ............1-20
Rear-facing child restraint installation using
LATCH .......................... .1-23
Rear-facing child restraint installation using
the seat belts ...................... .1-25
Forward-facing child restraint installation using
LATCH .......................... .1-28
Forward-facing child restraint installation
using the seat belts .................. .1-31
Booster seats ...................... .1-35
Supplemental Restraint System (SRS) ..........1-38
Precautions on Supplemental Restraint System
(SRS) ........................... .1-38
Supplemental air bag systems .............1-45
Supplemental air bag warning labels ........
.1-55
Supplemental air

bag warning light ..........1-55
Repair and replacement procedure ..........1-56

Lumbar support:
The lumbar support feature provides lower back
support to the driver.
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
SEAT HEATER (IF EQUIPPED)
The seats can be warmed by built-in heaters.
The switches are located on the center console
(for front seats) and can be operated indepen-
dently of each other. For more information on
the seat heater, seeSeat heating (if
equipped) in the2. Instruments and controls
section.
REAR SEATS
WARNING
•Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-
down position. Use of these areas by pas-
sengers without proper restraints could re-
sult in serious injury or deathin an accident
or sudden stop.
•Properly secure all cargo with ropes or straps
to help prevent it from sliding or shifting. Do
not place cargo higher than the seatbacks. In
a sudden stop or collision, unsecured cargo
could cause personal injury.
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. Be sure everyone in your
vehicle is in a seat and using a seat belt
properly.
•Do not allow more than one person to use
the same seat belt.
•Do not fold down the rear seats when occu-
pants are in the rear seat area or any lug-
gage is on the rear seats. – Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
•Head restraints/headrests should be ad-
justed properly as they may provide signifi-
cant protection against injury in an acci-
dent. Always replace and adjust them
properly if they have been removed for any
reason.
•If the head restraints/headrests are re-
moved for any reason, they should be se-
curely stored to prevent them from causing
injury to passengers or damage to the ve-
hicle in case of sudden braking or an acci-
dent.
•When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
NIC2607
Safety — seats, seat belts and supplemental restraint system1-5

1. Ventilators (P. 4-41)
2. Center display* (P. 4-5)
3. Meters and gauges (P. 2-4)
4. Light switch (P. 2-63)
5. Parking brake (P. 3-25)6. Steering wheel
— Power steering system (P. 5-86)
— Horn (P. 2-70)
— Driver’s supplemental front-impact air bag
(P. 1-38)
7. Audio system (P. 4-52) 8. Ignition switch (P. 3-16)
9. Heater and air conditioner (P. 4-42)
10. Switch panel
— Seat heater switches* (P. 2-70)
— Hazard indicator flasher switch (P. 6-2)
— Idle Stop/Start system on/off switch
(P. 6-28)
— Front passenger air bag status light
(P. 6-47)
11. Vehicle Information Display (P. 2-15)
12. Glove box (P. 2-78)
13. Front passenger supplemental air bag (P. 1-38)
*: if equipped
NIC2898
INSTRUMENT PANEL
Instruments and controls2-3

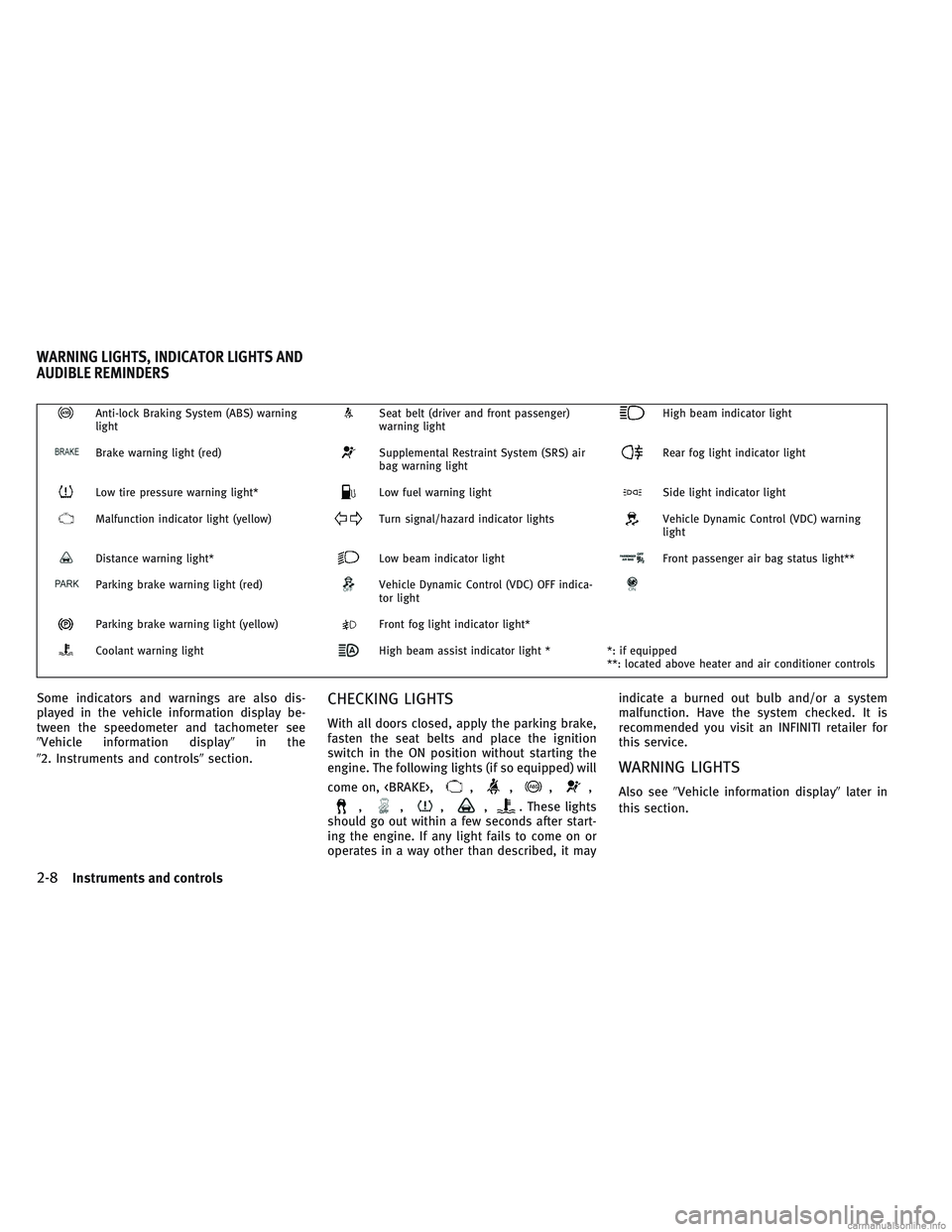

Anti-lock Braking System (ABS) warning
lightSeat belt (driver and front passenger)
warning lightHigh beam indicator light
Brake warning light (red)Supplemental Restraint System (SRS) air
bag warning lightRear fog light indicator light
Low tire pressure warning light*Low fuel warning lightSide light indicator light
Malfunction indicator light (yellow)Turn signal/hazard indicator lightsVehicle Dynamic Control (VDC) warning
light
Distance warning light*Low beam indicator lightFront passenger air bag status light**
Parking brake warning light (red)Vehicle Dynamic Control (VDC) OFF indica-
tor light
Parking brake warning light (yellow)Front fog light indicator light*
Coolant warning lightHigh beam assist indicator light * *: if equipped**: located above heater and air conditioner controls
Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer see
Vehicle information displayin the
2. Instruments and controls section.CHECKING LIGHTS
With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on, ,
,,,,
,,,,. These lights
should go out within a few seconds after start-
ing the engine. If any light fails to come on or
operates in a way other than described, it may indicate a burned out bulb and/or a system
malfunction. Have the system checked. It is
recommended you visit an INFINITI retailer for
this service.
WARNING LIGHTS
Also see
Vehicle information display later in
this section.
WARNING LIGHTS, INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls

Seat belt reminder chime
A chime will sound for approximately 120 sec-
onds if the vehicle’s speed exceeds 16 MPH
(25 km/h) and the driver’s seat belt or front
passenger’s seat belt, if occupied is not se-
curely fastened. SeeSeat belt warning light in
the 1. Safety — seats, seat belts and supple-
mental restraint system section.
Idle Stop/Start System reminder
chime (if equipped)
The engine will shift to the normal stopped
state if any of the following operations is made
during Idle Stop/Start System activation, and
the Idle Stop/Start System chime will sound if:
– The vehicle engine hood is open.
When the above condition continues for over 3
minutes the Idle Stop/Start System chime will
sound in 5-minute intervals as a reminder to
prevent the possibility of a discharged battery.
Use the ignition switch to turn off the engine.
Close the hood or the driver’s door, or fasten
the seat belt then restart the engine using the
ignition switch.
For more information, see Idle Stop/Start
System (if equipped) in the5. Starting and
driving section. The vehicle information display1is located
between the tachometer and the speedometer.1Permanent display: depending on vehicle
specification: outside temperature or speed
2Time
3Text field
4Menu bar
5Drive program
6Shift lever position
Text field
3shows the selected menu or
submenu as well as display messages.
NOTE
Set the time using the INFINITI controller and the
[Settings] menu available in the central display
(see Clock settings in the4. Display screen,
heater and air conditioner, and audio system
section).
NIC2751NIC2752
VEHICLE INFORMATION DISPLAY
Instruments and controls2-15

CAUTION
•When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
•When operating the defroster continuously,
be sure to start the engine. Otherwise, it
may cause the battery to discharge.
•When cleaning the inner side of the window,
be careful not to scratch or damage the elec-
trical conductors on the surface of the
window.The windshield de-icer switch (defogger switch)
Aoperates when the ignition switch is in the
ON position.
You can use this function to defrost the wind-
shield or to demist the inside of the windshield
and the side windows
NOTE
You should only select the windshield de-icer
function until the windshield is clear again.
When the switch
is pushed, the indicator
light in the switch illuminates. The climate
control system switches to the following func-
tions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air recirculation mode off
NOTE
The “Windshield demisting” function automati-
cally sets the blower output to the optimum de-
misting effect. As a result, the airflow may in-
crease or decrease automatically after the
button is pressed
NOTE
You can adjust the blower output manually while
the “Windshield demisting” function is in opera-
tion: by adjusting the airflow control for the air-
conditioning or climate control system (see
Heater and air conditioner in the4. Display
screen, heater and air conditioner, and audio
system section).
To deactivate the de-icer:
•Press thebutton. The indicator lamp in
thebutton turns off. The previous
settings are reactivated. Air-recirculation
mode remains deactivated.
or
•Automatic climate control: press the
button. The indicator lamp in the
NAA1659
WINDSHIELD DE-ICER SWITCH (IF
EQUIPPED)
2-62Instruments and controls

button turns off. Airflow and air distribution
are set to automatic mode.
or
•Air-conditioning system or automatic climate
control: adjust the temperature control (see
Heater and air conditionerin the4. Display
screen, heater and air conditioner, and audio
system section).
HEADLIGHT SWITCH
1Left-hand parking lights
2Right-hand parking lights
3Side lights and license plate light-
ing
4 Automatic headlight mode, con-
trolled by the light sensor
5Low beam/high beam headlights
6Rear fog light
7Front fog lights (if equipped)
8Headlight aiming control (halogen head-
lights only)
INFINITI recommends that you consult the local
regulations concerning the use of lights. If you hear a warning tone when you leave the
vehicle, the side lights may still be switched on.
Turn the light switch to
.
The exterior lighting (except the side lights/
parking lights) switches off automatically if you:
•Remove the key from the ignition switch (if
equipped).
•Open the driver’s door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running to
avoid discharging the vehicle battery.
NIC2619LED headlightsNIC2697Halogen headlights
HEADLIGHT AND TURN SIGNAL SWITCHES
Instruments and controls2-63

The rear fog light should be used only when
visibility is seriously reduced. (Generally, to
less than 50 m (116 ft))To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inabil-
ity to feel pain in body parts that contact the
seat. Use of the seat heater by such people
could result in serious injury.
CAUTION
•The battery could run down if the seat
heater is operated while the engine is not
running.
•Do not use the seat heater for extended pe-
riods or when no one is using the seat.
•Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
•Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
•Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
•When cleaning the seat, never use gasoline,
benzine, thinner, or any similar materials.
NIC2717
HORNSEAT HEATING (IF EQUIPPED)
2-70Instruments and controls
