USB INFINITI QX30 2017 Owner's Manual

1st command 2nd command 3rd command Action
Audio USB Play Song

iPod Play Song
Switches to the USB or iPod, selecting the track. You can speak the commands successively.
USB Play Song
iPod Play SongSwitches to the USB or iPod, selecting the track. You can speak the commands successively.
Play Plays the spoken audio source.
Play AM Switches to the AM band, selecting the station last played.
FM Switches to the FM band, selecting the station last played.
SXM SiriusXM Satellite Radio band, selecting the channel last played
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod, selecting the last played mode.
CD Turns on the CD, selecting the last played mode.
Bluetooth Audio Turns on the Bluetooth Audio, selecting the last played mode.
iPod Playlist
<1 — 6> Turns on the iPod, playing the spoken playlist.
iPod Play Playlist Turns on the iPod, playing the spoken playlist.
USB All Artists Displays the USB all artists list.
USB All Albums Displays the USB all albums list.
USB All Folders Displays the USB all folders list.
iPod All Artists Displays the iPod all artists list.
iPod All Albums Displays the iPod all albums list.
iPod All Songs Displays the iPod all songs list.
4-114Display screen, heater and air conditioner, and audio system

Notes on operating audio by voice recognition:
•An audio device connected via Bluetooth®
cannot be operated with the Voice Recogni-
tion system. Source change is only available
for Bluetooth® streaming Audio.
•Song title and Artist name information will
be overwritten when another iPod
R/iPhone
Ris connected after song titles and artist
names in the previously connected iPod
R/
iPhon
Re have been installed.
•If two USB devices are connected at the same
time, voice operation will only be available for
use with one registered and selected device.When selecting “YES” in the pop-up screen that
displays after a new USB audio device is con-
nected, the USB audio device is registered in
the voice recognition system and is selected
automatically. One iPod and one USB device
can be registered in the system. If a USB audio
device is newly registered, old data is overwrit-
ten. It may take a few moments to register an
audio device. If you want to enable voice opera-
tion for music stored on a previously registered
audio device, select the device you want to use
in advance.
Voice recognition settingsin the5. Starting
and drivingsection
Even when a device has been previously
registered, simply connecting the device will
not result in it being selected automatically.
•The Voice Recognition system may not func-
tion when the song information is too long
(artist names, album titles, song titles and
playlists, etc.).
•The SXM function will not operate without a
subscription to SiriusXM Satellite Radio.
Information command
1st command 2nd command Action
Information Voice Menu Connects to the INFINITI InTouchTMServices Response Specialists. Refer to the Navigation Owner’s Manual for details.
Operator Connects to the INFINITI InTouchTMServices Response Specialists. Refer to the Navigation Owner’s Manual for details.
Where am I?* Displays the information of the current position.
Fuel Prices Displays the fuel prices.
Weather Forecast Displays the weather forecast.
Current Weather Displays the nearby weather (current weather).
Sports Scores Displays the sports scores.
Traffic Information* Turns the traffic information system on or off.
Route Information* Displays the route information.
*: Models with navigation system only.
Display screen, heater and air conditioner, and audio system4-115

iPod player
Symptom Possible cause Possible solution
The system does not recognize an iPod. The connector cable is not correctly connected or the
iPod does not correctly operate.Connect the connector cable again. If the system
does not recognize the iPod after performing the
procedure above, reset the iPod.
The iPod that is to be connected is not compatible
with the system.Check the iPod model and firmware versions
available for the system.
The USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected
from the USB connector.Slowly connect or disconnect the USB cable.
An iPod cannot be operated. The iPod is connected to the in-vehicle audio system
while headsets, etc. are connected to the iPod.Remove all equipment from the iPod after
disconnecting the iPod from the system, and then
connect it to the system again.
The iPod is not operating normally. Disconnect and re-connect the iPod to the in-vehicle
audio system.
The system plays back an album/track that includes
particular album art.Disconnect the iPod from the in-vehicle audio system
and then reset the iPod. Disable the album art and
then re-connect the iPod to the system.
An iPod does not respond. There are too many tracks in a category. Decrease the number of tracks in a category (less
than 3,000 tracks).
The shuffle function is turned on. Turn off the shuffle function if many tracks are stored
on the iPod.
Music cannot be played back. The connector is not connected to the iPod. Firmly connect the connector until it clicks.
Music stops playing. The sound cuts off due to vibration resulting from the
iPod being in an unstable location.Place the iPod in a stable location where it does not
roll over.
The sound is distorted. The EQ (equalizer) function of the iPod is turned on. Turn off the EQ (equalizer) function.
The iPod battery requires more time than usual to
charge.Charging the iPod battery may take longer while the
iPod is playing.If the iPod requires charging, it is recommended to
stop playback
4-130Display screen, heater and air conditioner, and audio system

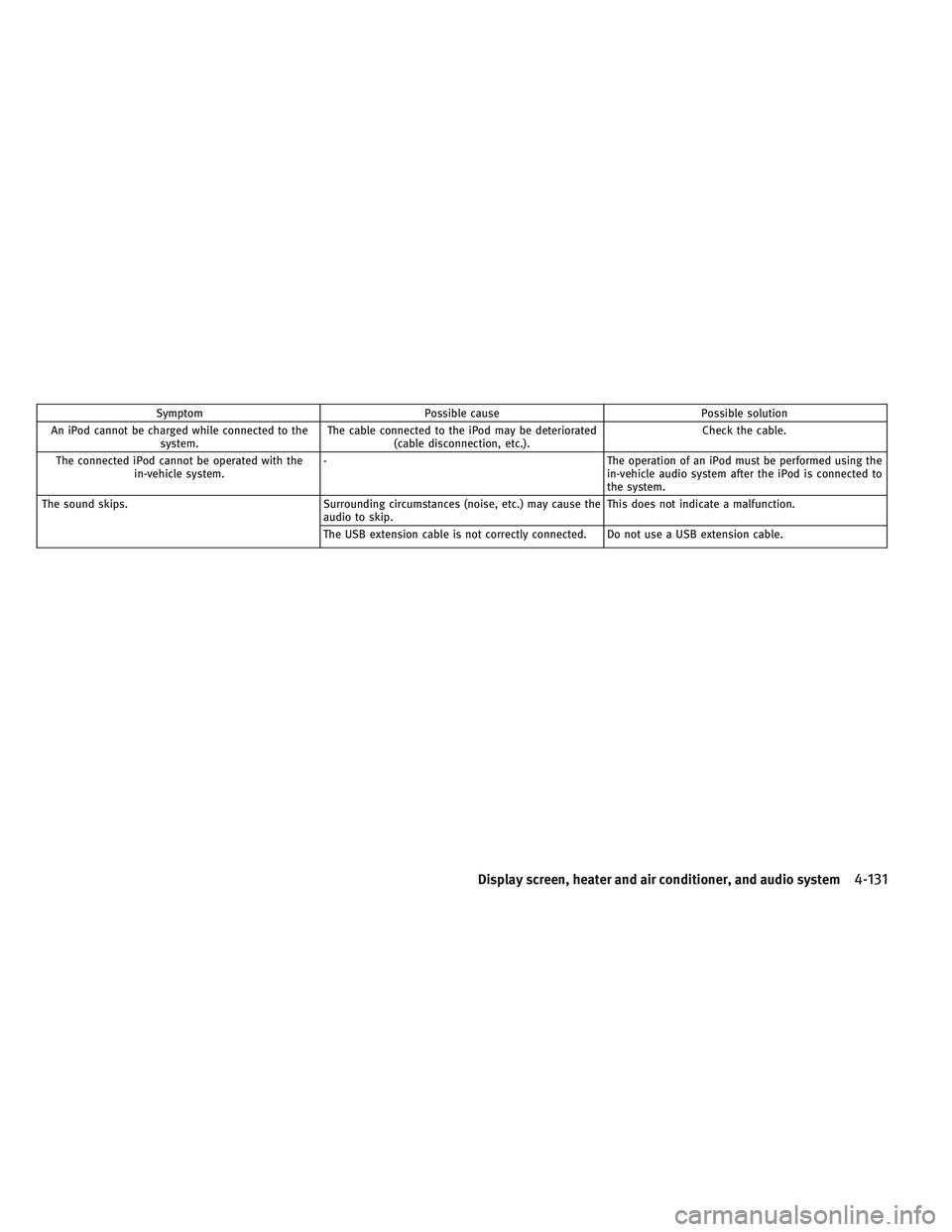

Symptom Possible cause Possible solution
An iPod cannot be charged while connected to the
system.The cable connected to the iPod may be deteriorated
(cable disconnection, etc.).Check the cable.
The connected iPod cannot be operated with the
in-vehicle system.- The operation of an iPod must be performed using the
in-vehicle audio system after the iPod is connected to
the system.
The sound skips. Surrounding circumstances (noise, etc.) may cause the
audio to skip.This does not indicate a malfunction.
The USB extension cable is not correctly connected. Do not use a USB extension cable.
Display screen, heater and air conditioner, and audio system4-131

USB memory
Symptom Possible cause Possible solution
The system does not recognize a USB device. A USB extension cable is used. Do not use a USB extension cable.
A USB hub is used. Do not use a USB hub.
Connection or disconnection operation of the USB
device was too abrupt.Connect or disconnect the USB device slowly.
4-132Display screen, heater and air conditioner, and audio system

Symptom Possible cause Possible solution
The USB memory device cannot operate with voice
recognition.Depending on the device, an iPhone
Ror iPodRmay be recognized as a USB memory device.This is not a malfunction
More than one audio device is connected to USB
port.Only one audio device can be operated with the voice
recognition system even when multiple numbers of
devices are connected. Select an audio source to operate
with the voice recognition system.
The USB/iPod operation screen is grayed out. The audio device is not connected. Connect an audio device to the system.
An audio source to be operated with the voice
recognition system has not been selected.Select an audio source to be operated with the voice
recognition system.
An error message is displayed when trying to select
a track and operate the USB/iPod.The track information is being processed for
registration by the system.Song information will be loaded into the system when a
new audio device is registered for the first time or when
the song information in the pre-registered device has
been changed. Wait for the loading to complete (this may
take from a few minutes to up to an hour).
The number of songs stored on the connected audio
device exceeds its capacity.Decrease the number of songs stored on the audio
device.
No song is stored on the audio device. Store songs on the connected audio device. Storing
songs with information such as artist name, album name,
song name, and playlist, etc., will make voice recognition
song search available.
The Navigation item is not displayed in the voice
operation menu screen.Voice Recognition command preparation for the
navigation system is not completed immediately
after the system is started.Display any screen other than the Voice Recognition
screen, and then push<
>.
The system does not correctly recognize a Point of
Interest (POI) name spoken.There are some rare cases where a POI is
unavailable by Voice Recognition but the location
can be found on the map.This is not a malfunction. Consider using an alternative
search method, like street address.
Partial or Alias name is spoken. For best results, speak the full name.
Some POI category names can only be searched
when nearby.This is not a malfunction.
Display screen, heater and air conditioner, and audio system4-139
