If the brakes do not operate properly, it is
recommended that you have the brakes
checked. It is recommended that you visit an
INFINITI retailer for this service.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes. The disc-type brakes self-adjust every
time the brake pedal is applied.Blown fuses must be replaced with fuses of the
same rating, which you can recognise by the
color and fuse rating. The fuse ratings are listed
in the fuse allocation chart.
If the newly inserted fuse also blows, have the
cause traced and rectified. It is recommended
you visit an INFINITI retailer for this service.
The fuses in your vehicle disconnect faulty
circuits. if a fuse blows, all the components on
the circuit and their functions will fail.
BEFORE REPLACING A FUSE
•Secure the vehicle against rolling away.
•Switch off all electrical consumers.
•Remove the key from the ignition lock.
The fuses are located in various fuse boxes:
•Fusebox in the engine compartment on the
left-hand side of the vehicle, when viewed in
the direction of travel.
•Fuse box in the front-passenger footwell.
The fuse allocation chart is on the fuse box in
the front-passenger footwell.
ENGINE COMPARTMENT
WARNING
Never use a fuse of higher or lower amperage
rating than that specified on the fuse box
cover. This could damage the electrical system
or electronic control units or cause a fire.
BRAKES FUSES
Do-it-yourself8-17

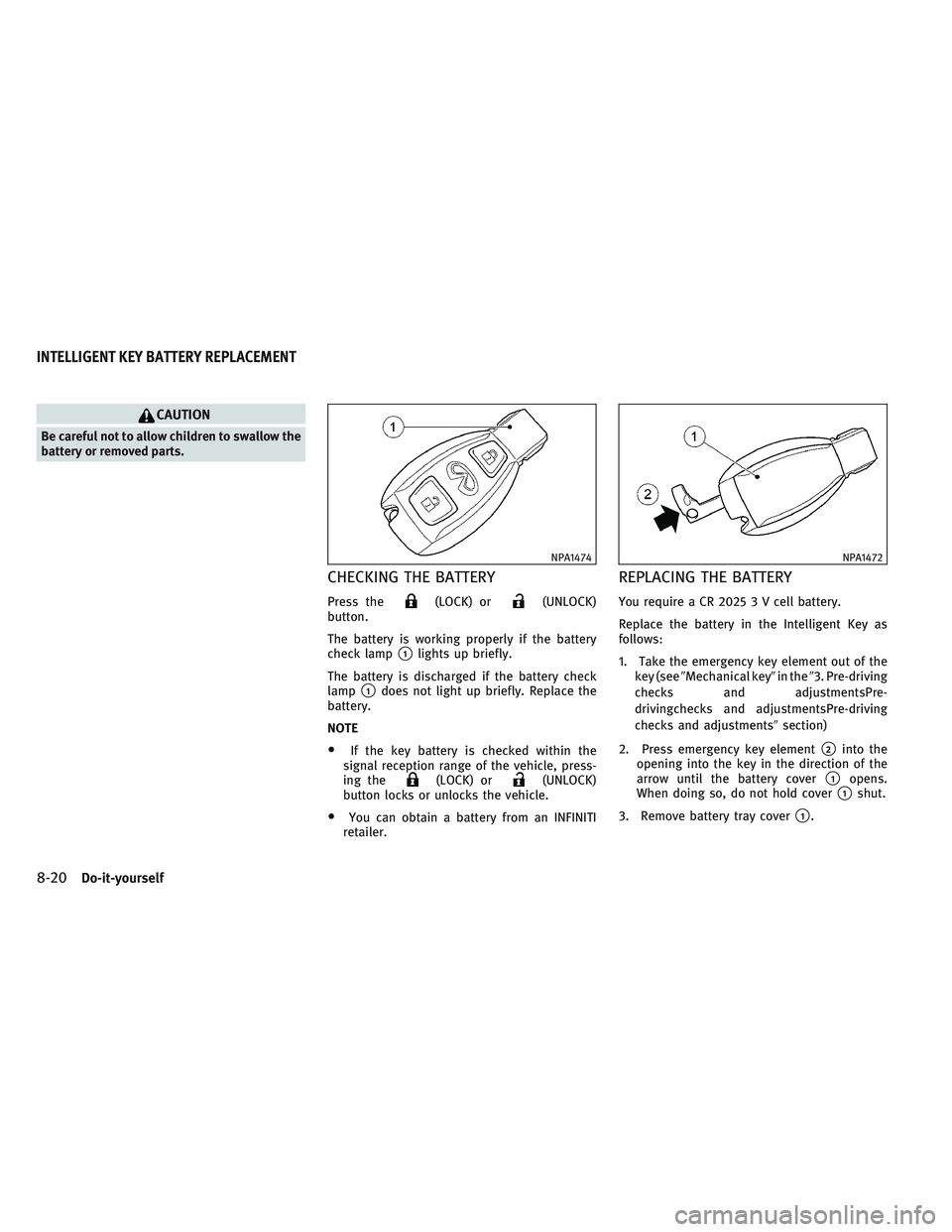

CAUTION
Be careful not to allow children to swallow the
battery or removed parts.
CHECKING THE BATTERY
Press the(LOCK) or(UNLOCK)
button.
The battery is working properly if the battery
check lamp
1lights up briefly.
The battery is discharged if the battery check
lamp
1does not light up briefly. Replace the
battery.
NOTE
•If the key battery is checked within the
signal reception range of the vehicle, press-
ing the
(LOCK) or(UNLOCK)
button locks or unlocks the vehicle.
•You can obtain a battery from an INFINITI
retailer.
REPLACING THE BATTERY
You require a CR 2025 3 V cell battery.
Replace the battery in the Intelligent Key as
follows:
1. Take the emergency key element out of the
key (seeMechanical keyin the3. Pre-driving
checks and adjustmentsPre-
drivingchecks and adjustmentsPre-driving
checks and adjustmentssection)
2. Press emergency key element
2into the
opening into the key in the direction of the
arrow until the battery cover
1opens.
When doing so, do not hold cover
1shut.
3. Remove battery tray cover
1.
NPA1474NPA1472
INTELLIGENT KEY BATTERY REPLACEMENT
8-20Do-it-yourself

4. Repeatedly tap the key against your palm
until battery
1falls out.5. Insert the new battery with the positive
terminal facing upwards. Use a lint-free cloth
to do so.
6. Make sure that the surface of the battery is
free of lint, grease and other contamination.
7. Insert the front tabs of battery cover
1and
then press to close it.
8. Insert emergency key element into the key
(seeMechanical keyin the3. Pre-driving
checks and adjustmentssection).
9. Check the function of all key buttons on the
vehicle.
If you need assistance with replacement, it is
recommended that you visit an INFINITI retailer
for this service.FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
NPA1473SPA0784Z
Do-it-yourself8-21

CHASSIS & BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever
comes first.51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
months 6 12 18 24 30 36 42 48 54 60 66 72
Brake lines and cables I I I I I I
Brake pads and rotors* I I I I I I
Brake fluid * R R R
Automatic transmission fluid I I I
Automatic transmission fluid and
filterReplace every 60,000 miles or 60 months
Differential gear oil I I I I I I
Steering gear and linkage, axle and
suspension parts*III
Tire rotation See NOTE (1)
Propeller shaft & drive shaft boots
(4WD models)*IIIIII
Exhaust system* I I I
In-cabin microfilter R R R
I-key battery R R R R
NOTE:
(1) Refer toTire rotation*earlier in this section.
9-12Maintenance and Schedules

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x
1,000MAINTENANCE INTERVAL
Perform at number of miles, kilome-
ters or months, whichever comes first.65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192)
months 78 84 90 96 102 108 114 120 126 132 138 144
Brake lines and cables I I I I I I
Brake pads and rotors* I I I I I I
Brake fluid* R R R
Automatic transmission fluid I I I
Automatic transmission fluid and
filterReplace every 60,000 miles or 60 months
Differential gear oil I I I I I I
Steering gear and linkage, axle and
suspension parts*II I
Tire rotation See NOTE (1)
Propeller shaft & drive shaft boots
(4WD models)*IIII I I
Exhaust system* I I I
In-cabin microfilter R R R
I-key battery R R R R
NOTE:
(1) Refer toTire rotation*earlier in this section.
* Maintenance items with “*” should be performed more frequently according toMaintenance under severe driving conditionslater in this section
Maintenance and Schedules9-13
