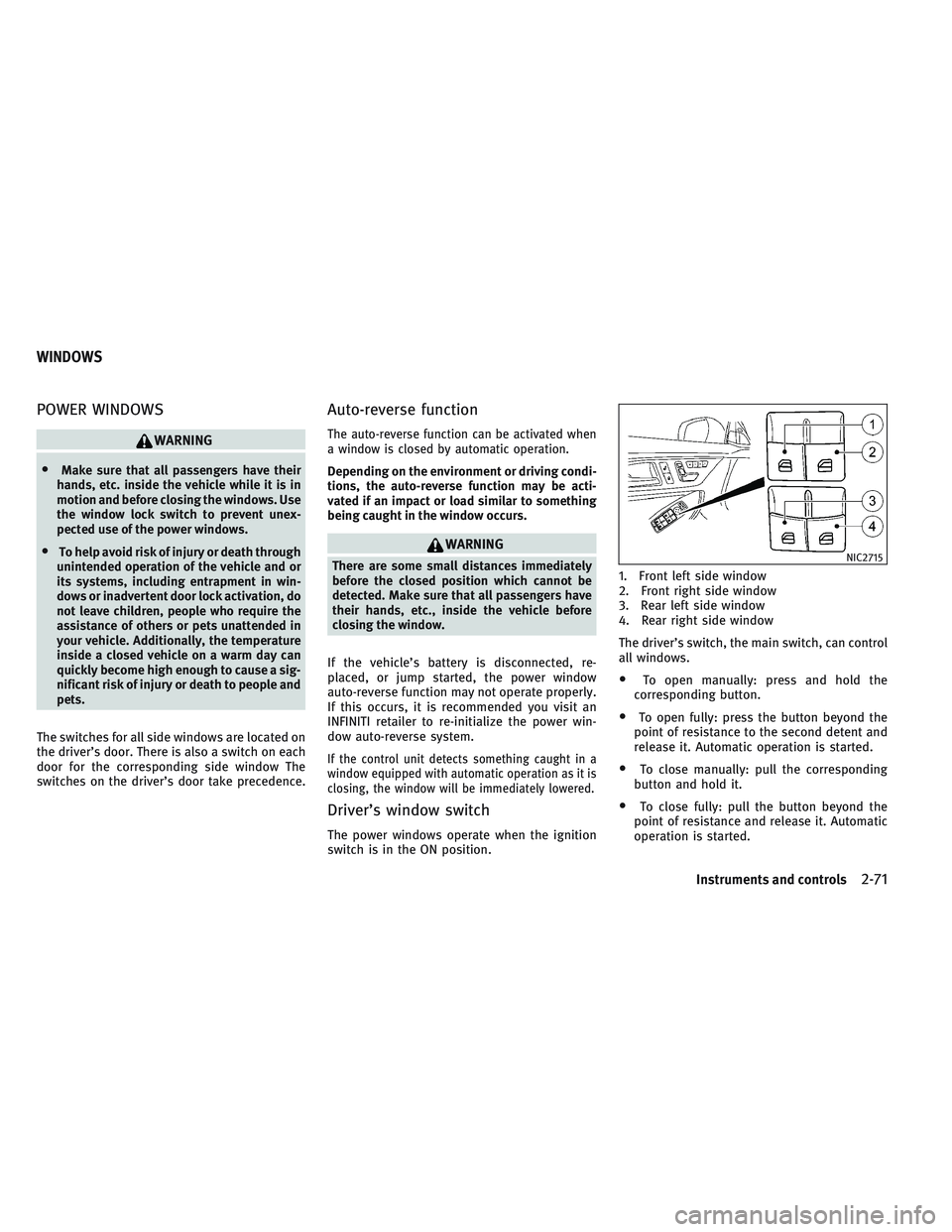

POWER WINDOWS
WARNING
•Make sure that all passengers have their
hands, etc. inside the vehicle while it is in
motion and before closing the windows. Use
the window lock switch to prevent unex-
pected use of the power windows.
•To help avoid risk of injury or death through
unintended operation of the vehicle and or
its systems, including entrapment in win-
dows or inadvertent door lock activation, do
not leave children, people who require the
assistance of others or pets unattended in
your vehicle. Additionally, the temperature
inside a closed vehicle on a warm day can
quickly become high enough to cause a sig-
nificant risk of injury or death to people and
pets.
The switches for all side windows are located on
the driver’s door. There is also a switch on each
door for the corresponding side window The
switches on the driver’s door take precedence.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving condi-
tions, the auto-reverse function may be acti-
vated if an impact or load similar to something
being caught in the window occurs.
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers have
their hands, etc., inside the vehicle before
closing the window.
If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate properly.
If this occurs, it is recommended you visit an
INFINITI retailer to re-initialize the power win-
dow auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it is
closing, the window will be immediately lowered.
Driver’s window switch
The power windows operate when the ignition
switch is in the ON position.1. Front left side window
2. Front right side window
3. Rear left side window
4. Rear right side window
The driver’s switch, the main switch, can control
all windows.
•To open manually: press and hold the
corresponding button.
•To open fully: press the button beyond the
point of resistance to the second detent and
release it. Automatic operation is started.
•To close manually: pull the corresponding
button and hold it.
•To close fully: pull the button beyond the
point of resistance and release it. Automatic
operation is started.
NIC2715
WINDOWS
Instruments and controls2-71

Symptom Possible causeRemedy
The engine
cannot be
started using
the keyThe on-board
voltage is too
low
•Switch off non-essential consumers, e. g. seat heating or interior lighting, and try to start the engine again
If this does not work:
•Check the starter battery and charge it if necessary (seeBatteryin the8. Do-it-yourselfsection)
or
•Jump-start the vehicle (seeJump startingin the6. In case of emergencysection)
or
•Have the system checked. It is recommended you consult an INFINITI retailer.
You have lost
a key—
•Have the key deactivated. It is recommended you visit an INFINITI retailer for this service.•Report the loss immediately to the vehicle insurers•If necessary, have the locks changed as well
You have lost
the emer-
gency key
element
•Report the loss immediately to the vehicle insurers•If necessary, have the locks changed as well.
Pre-driving checks and adjustments3-13

6 In case of emergency
Hazard warning flasher switch...............6-2
Flat tire.............................6-2
Tire Pressure Monitoring System (TPMS).......6-2
Stopping vehicle.....................6-3
Warning triangle (if equipped).............6-4
Run-flat tires........................6-4Removing and fitting wheels..............6-5
Jump starting.........................6-10
Push starting.........................6-12
If your vehicle overheats..................6-13
Towing your vehicle.....................6-14
Towing recommended by INFINITI...........6-14

For the jump-starting procedure, use only the
jump-starting connection point, consisting of a
positive terminal and an earth point, in the
engine compartment.
WARNING
•If done incorrectly, jump starting can lead
to a battery explosion, resulting in severe
injury or death. It could also damage your
vehicle.
•Explosive hydrogen gas is always present
in the vicinity of the battery. Keep all sparks
and flames away from the battery.
•Do not allow battery fluid to come into con-
tact with eyes, skin, clothes or painted sur-
faces. Battery fluid is a corrosive sulfuric
acid which can cause severe burns. If the
fluid should come into contact with any-
thing, immediately flush the contacted area
with water.
•Keep the battery out of the reach of chil-
dren.
•The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle.
•Whenever working on or near a battery,
always wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
•Do not attempt to jump start a frozen bat-
tery. It could explode and cause serious in-
jury.
•Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
JUMP STARTING
6-10In case of emergency

WARNING
Always follow the instructions below. Failure
to do so could result in damage to the charging
system and cause personal injury.1. If the booster battery is in another vehicle,
position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.2. Check if the parking brake is applied.
If not, after connecting the vehicle with the
booster battery (after step 8), apply the
parking brake.
The vehicle has an electric parking brake, for
more information see,Parking brakein the
3. Pre-driving checks and adjustmentssec-
tion
3. Press the P (Park) button.
4. Switch off all unnecessary electrical sys-
tems (headlights, hazard lights etc,).
5. Ensure that the ignition switch of the vehicle
being jump-started is in the OFF position.
6. Open the hood. For details, seeHoodin
the3. Pre-driving checks and adjustments
section.
7. Remove the vent caps (if equipped) on the
battery and cover the battery with an old
cloth.
8. Connect the jump leads in the sequence (
1→2→3→4) as illustrated.NDI1595
In case of emergency6-11

CAUTION
•Always connect positive+to positive+and negative-to body ground (for ex-
ample, strut mounting bolt, engine lift
bracket, etc.) – not to the battery’s negative
-.
•Be sure that the jumper cables do not touch
moving parts in the engine compartment
and that the cable clamps do not contact
any other metal.
9. Start the engine of the other vehicle
Aand
let it run for a few minutes. Keep the engine
speed at about 2,000 rpm.
10. Start the engine of your vehicle
Bin the
normal way.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does not
start right away, place the ignition switch in
the OFF position and wait 10 seconds before
trying again.11. After starting the engine of your vehicle,
carefully disconnect the negative lead and
then the positive lead (
4→3→2→
1).
12. Remove and dispose of the cloth that was
used to cover the ventilator holes as it may
be contaminated with corrosive acid.
13. Install the ventilator caps (if equipped).
14. Close the hood.
NOTE
For models which incorporate the Idle Stop/
Start System:
•Ensure that the battery fitted is the special
battery that is enhanced with regard to the
charge-discharge capacity and life perfor-
mance. Avoid using any other battery for the
Idle Stop/Start System, as this may cause
early deterioration of the battery or a mal-
function of the Idle Stop/Start System. It is
recommended that a Genuine INFINITI bat-
tery is fitted. For more information, it is
recommended you contact an INFINITI re-
tailer.
•If the battery terminal is disconnected (for
battery replacement, etc.) and then recon-
nected, there may be some delay before the
Idle top/Start System reactivates.Do not attempt to start the engine by pushing
the vehicle.
CAUTION
•Automatic Transmission (AT) model cannot
be push-started or tow-started. Attempting
to do so may cause damage to the transmis-
sion.
•Three-way catalyst equipped models
should not be started by pushing. Attempt-
ing to do so may cause damage to the three-
way catalyst.
•Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
PUSH STARTING
6-12In case of emergency

8 Do-it-yourself
Maintenance precautions..................8-2
Engine compartment check locations...........8-3
2.0L Gasoline engine...................8-3
Engine cooling system....................8-3
Checking engine coolant level.............8-4
Changing engine coolant................8-5
Engine oil............................8-5
Checking engine oil level................8-5
Changing engine oil...................8-5
Changing engine oil filter................8-6
Automatic Transmission Fluid (ATF)............8-7
Brake fluid...........................8-7
Window washer fluid.....................8-8
Battery.............................8-9
Accessing Vehicle battery...............8-10
Maintenance free battery................8-10
Models with Idle Stop/Start System.........8-11
Battery replacement...................8-11
Reinitialisation procedure after battery
reconnection.......................8-12
Jump-starting.......................8-12
Drive belt...........................8-12
Spark plugs..........................8-13
Air cleaner filter.......................8-13
Wiper blades.........................8-13Cleaning..........................8-13
Replacing front window wiper blades........8-14
Replacing rear window wiper blade..........8-15
Brakes.............................8-17
Self-adjusting brakes..................8-17
Fuses..............................8-17
Before replacing a fuse.................8-17
Engine compartment...................8-17
Passenger compartment................8-18
Intelligent key battery replacement..........
.8-20
Checking the battery..................8-20
Replacing the battery..................8-20
Lights.............................8-22
Exterior and interior lights...............8-22
Replacement procedures................8-24
Wheels and tires.......................8-27
Tire Pressure.......................8-27
Tire inflation pressure.................8-29
Tire labeling.......................8-30
Types of tires.......................8-31
Tire chains........................8-33
Tire wear and damage.................8-33
Tire rotation.......................8-34
Replacing wheels and tires..............8-34
Wheel balance......................8-36

4. Fit the replacement battery in the vehicle.
REINITIALISATION PROCEDURE AFTER
BATTERY RECONNECTION
If the battery has been reconnected, check the
following items:
•Clock setting (if so equipped). For details,
seeClockin the2. Instruments and con-
trolssection, or the separately provided
navigation system Owner’s Manual, or the
audio device descriptions inAudio system
(if equipped)in the4. Display screen,
heater and air conditioner, and audio sys-
temsection.
•Reset the desired radio stations to the
preset station buttons. For details, see the
audio device descriptions in the “4. Heater
and air conditioner, and audio system”.
JUMP-STARTING
If jump-starting is necessary, seeJump
startingin the6. In case of emergencysec-
tion. If the engine does not start by jump
starting, the battery may have to be replaced. It
is recommended that you visit an INFINITI re-
tailer for this service.
WARNING
Be sure the ignition switch is in the OFF posi-
tion before servicing drive belt. The engine
could rotate unexpectedly.
1. Visually inspect each belt for signs of un-
usual wear, cuts, fraying or looseness. If the
belt is in poor condition or loose, have it
replaced or adjusted. It is recommended that
you visit an INFINITI retailer for this service.
2. Have the belts checked regularly for condi-
tion and tension in accordance with the
maintenance schedule as shown in a sepa-
rately provided Warranty Information and
Maintenance booklet.
NDI1635
DRIVE BELT
8-12Do-it-yourself

11 Index
ABS (Anti-lock Braking System).........2-9
Warninglight .................2-9
Active sound enhancement..........5-67
Operation...................5-67
Adaptive Front lighting System........2-64
Aids .......................5-60
Forward emergency braking system....5-60
Hill Start Assist (HSA)............5-93
Intelligent Parking Assist (IPA).......5-68
Air bags.....................1-47
Front passenger air bag switch.......1-47
Overview....................0-2
Repair and replacement...........1-56
Supplemental Restraint System......1-39
Warninglight..............1-55, 2-12
Air cleaner filter.................8-13
Air conditioner.................4-43
Heater and air conditioner.........4-43
Refrigerant and lubricant..........10-6
Servicing...................4-52
Specification label.............10-12
Airfresheners...................7-4
Anti-theft alarm system.............2-57
AppGarage...................4-100
Screen....................4-100
Settings screen...............4-101
Around View Monitor..............4-25
Moving object detection (MOD)......4-38Settings....................4-33
Audible reminders................2-14
Audio.......................4-53
Operation precautions...........4-53
Settings...................4-82
Sourcebar..................4-66
System....................4-53
Automatic transmission.............8-7
Fluid(ATF)...................8-7
Operation...................5-17
Battery......................8-9
Cautionlabel .................8-9
Coldweather.................5-93
Jump-starting.................6-10
Replacement - Intelligent Key.......8-20
Saver system.................2-85
Vehicle battery................8-10
Blind Spot Warning (BSW) system......5-35
Bluetooth®...................4-86
Hands-Free Phone System.....4-86,4-134
Information..................4-98
Streamingaudio ..............4-133
Booster seats..................1-36
Precautions..................1-36
Brakes......................8-17
ABS (Anti-Lock Braking System)......5-88
Adjustment..................8-17
Fluid ......................8-7Forward emergency braking system....5-60
Parking brake................5-25
Precautions..................5-87
System....................5-87
Warninglight .................2-9
Break-inschedule................5-81
Brightness....................2-68
Instrumentpanel ..............2-68
Capacities and recommendations.......10-2
Coolant....................10-2
Fuel......................10-2
Oil.......................10-2
Refrigerant..................10-2
Cardholder...................2-78
Center multi-function control panel......4-2
Changing .....................8-5
Enginecoolant ................8-5
Engineoil ...................8-5
Engine oil filter................8-6
Tires and wheels..............8-34
Checking.....................8-4
Coolantlevel .................8-4
Engine oil level................8-5
Child restraints.................1-20
Anchorage ..................1-23
ISOFIX installation..............1-24
Precautions..................1-20

Lights — Operation..............2-84
Overview....................0-5
Interior rear view mirror.............3-17
Interior rear view mirrors............3-17
iPod player...................4-130
ISOFIX.......................1-24
Installation...................1-24
Jump starting...................6-10
Keys......................3-2,3-7
Emergencykey.................3-2
Intelligent Key battery replacement....8-20
Locking.....................3-5
Labels......................10-12
Air conditioner................10-12
Battery.....................8-9
Chassis number...............10-11
Tires......................10-12
Lane Departure..................5-31
Limitations...................5-31
Warning(LDW) ................5-29
Lights.......................8-22
Adaptive Front lighting System.......2-64
Bulbinformation...............8-22
Fog light switch................2-68
Frontfoglights................2-68
Headlights...............2-62,8-24
Interior.....................2-84
LEDheadlight.................8-24
Locations ...................8-22
Luggage compartment............2-85
Maplights...................2-84Rear fog lights................2-68
Rear personal lights.............2-85
Rear room light................2-85
Vanity mirror lights..............2-85
Warning/Indicator lights...........2-8
Loading information..............10-14
Locks........................3-7
Child safety...................3-7
Door locks...................3-4
Lift gate.....................3-7
Locking inside lock knob...........3-6
Lockingkey...................3-5
Locking power door lock switch.......3-6
Steering lock.................5-14
Unlocking inside door handle........3-6
Maintenance....................9-2
Generalmaintenance...........9-2,9-5
Log.......................9-15
Precautions...................8-2
Requirements..................9-2
Schedules....................9-7
Seatbelts ...................1-17
Severe driving conditions..........9-14
Standard maintenance............9-10
Maplights ....................2-84
Meters and gauges................2-4
Engine coolant temperature..........2-6
Fuel .......................2-7
Overview....................0-8
Speedometer..................2-5
Tachometer...................2-6Mirrors.......................3-17
Anti-glare rear view mirror..........3-17
Exterior rear view mirrors..........3-17
Interior rear view mirrors...........3-17
Vanity mirror..................3-17
Vanity mirror lights..............2-85
Mobile Apps...................4-104
Monitor system.................4-137
Troubleshooting...............4-137
Moving object detection (MOD)........4-38
Oil.........................10-2
Capacities and recommendations......10-2
Changingengineoil..............8-5
Changing engine oil filter...........8-6
Checking engine oil level...........8-5
Overheating....................6-13
Engine.....................6-13
Engine coolant temperature gauge......2-6
Overview......................0-6
Cockpit...................0-6,2-2
Engine compartment...........0-9,8-3
Exterior.....................0-3
Interior .....................0-5
Seats, Seat belts, Supplemental restraint
system.....................0-2
Parcel shelf....................2-82
Installation..................2-82
Removal....................2-82
Parking......................5-84
Brake......................5-25
Parking sensor system............5-73
11-4Index
