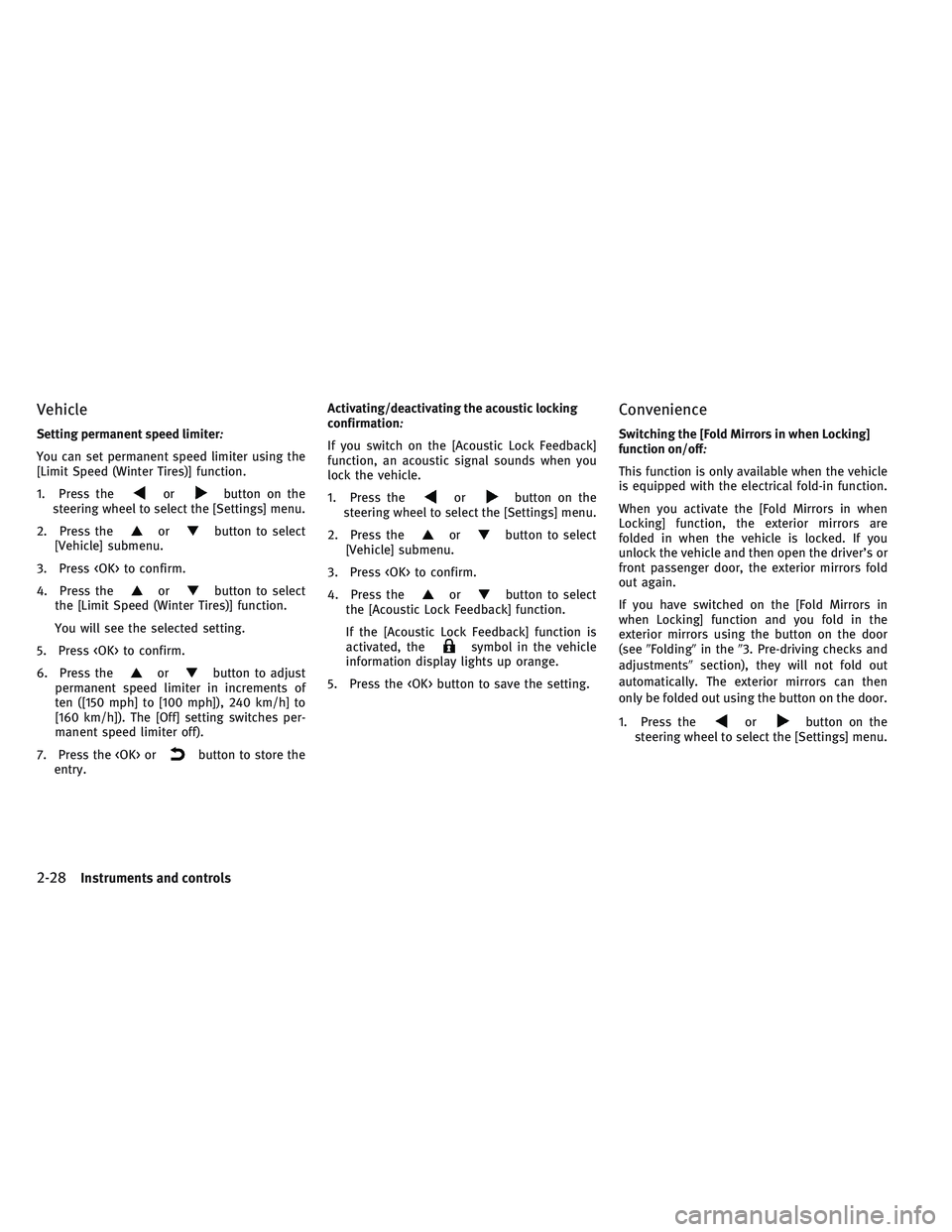

Vehicle
Setting permanent speed limiter:
You can set permanent speed limiter using the
[Limit Speed (Winter Tires)] function.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Vehicle] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Limit Speed (Winter Tires)] function.
You will see the selected setting.
5. Press to confirm.
6. Press the
orbutton to adjust
permanent speed limiter in increments of
ten ([150 mph] to [100 mph]), 240 km/h] to
[160 km/h]). The [Off] setting switches per-
manent speed limiter off).
7. Press the or
button to store the
entry.Activating/deactivating the acoustic locking
confirmation
:
If you switch on the [Acoustic Lock Feedback]
function, an acoustic signal sounds when you
lock the vehicle.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Vehicle] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Acoustic Lock Feedback] function.
If the [Acoustic Lock Feedback] function is
activated, the
symbol in the vehicle
information display lights up orange.
5. Press the button to save the setting.
Convenience
Switching the [Fold Mirrors in when Locking]
function on/off:
This function is only available when the vehicle
is equipped with the electrical fold-in function.
When you activate the [Fold Mirrors in when
Locking] function, the exterior mirrors are
folded in when the vehicle is locked. If you
unlock the vehicle and then open the driver’s or
front passenger door, the exterior mirrors fold
out again.
If you have switched on the [Fold Mirrors in
when Locking] function and you fold in the
exterior mirrors using the button on the door
(seeFoldingin the3. Pre-driving checks and
adjustmentssection), they will not fold out
automatically. The exterior mirrors can then
only be folded out using the button on the door.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2-28Instruments and controls

3 Pre-driving checks and adjustments
Keys...............................3-2
INFINITI Intelligent key..................3-2
INFINITI Vehicle immobilizer system keys.......3-3
Doors..............................3-4
Locking with the key...................3-4
Locking with the mechanical key............3-5
Locking with inside door knob.............3-6
Locking with Power door lock switch.........3-6
Automatic door locks...................3-6
Child safety rear door lock...............3-7
Lift gate lock........................3-7
INFINITI intelligent key system...............3-7
Operating range......................3-9
Door locks/unlocks precaution............3-10
INFINITI intelligent key operation...........3-10Changing the settings of the locking system. . . .3-11
Troubleshooting guide.................3-12
Hood..............................3-14
Fuel-filler door........................3-15
Opening fuel-filler door.................3-15
Fuel-filler cap.......................3-15
Steering wheel.......................3-16
Sun visors...........................3-16
Vanity mirror.......................3-17
Mirrors.............................3-17
Automatic anti-glare rear view mirror.........3-17
Outside mirrors......................3-17
Memory function (if equipped)..............3-20
Storing settings.....................3-20
Calling up a stored setting...............3-21

WARNING
•Do not adjust the steering wheel while driv-
ing. You could lose control of your vehicle
and cause an accident.
•Do not adjust the steering wheel any closer
to you than is necessary for proper steering
operation and comfort. The driver’s air bag
inflates with great force. If you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it when
it inflates. Always sit back against the seat-
back and as far away as practical from the
steering wheel. Always use the seat belts.Release the lock lever
1as illustrated and
adjust the steering wheel to the desired posi-
tion (up or down
2, forwards or backwards
3). Firmly push the lock lever back into posi-
tion to lock the steering wheel in place.
1. To block out glare from the front, swing
down the sun visor
1.
2. To block glare from the side, remove the sun
visor from the center mount and swing the
visor to the side
2.
NPA1481
SIC2872
STEERING WHEELSUN VISORS
3-16Pre-driving checks and adjustments

Parking brake*:
Check the parking brake operation regularly.
Also make sure that the vehicle is held securely
on a fairly steep hill when only the parking
brake is applied. If the parking brake needs
adjustment, it is recommended you visit an
INFINITI retailer for this service.
Seats
:
Check seat position controls such as seat ad-
justers, seatback recliner, etc. to ensure they
operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Seat belts
:
Check that all parts of the seat belt system (for
example, buckles, anchors, adjusters and re-
tractors) operate properly and smoothly, and
are installed securely. Check the belt webbing
for cuts, fraying, wear or damage.
Steering wheel
:
Check for changes in the steering condition,
such as excessive free play, hard steering or
strange noises.Warning lights and chimes
:
Make sure that all warning lights and chimes
are operating properly.
Windshield defroster
:
Check that the air comes out of the defroster
outlets properly and in good quantity when
operating the heater or air conditioner.
Windshield wiper and washer*
:
Check that the wipers and washer operate
properly and that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*
:
Except for maintenance free battery, check the
fluid level in each cell. It should be between the
“UPPER” and “LOWER” lines. Vehicles operated
in high temperatures or under severe condi-
tions require frequent checks of the battery
fluid level.NOTE
Care should be taken to avoid situations that can
lead to potential battery discharge and potential
no-start conditions such as:
1. Installation or extended use of electronic ac-
cessories that consume battery power when
the engine is not running (Phone chargers,
GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only
driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*
:
Make sure that the brake fluid level is between
the “MAX” and “MIN” lines on the reservoir.
Coolant level*
:
Check the coolant level when the engine is cold.
Engine drive belt(s)*
:
Make sure that no belt is frayed, worn, cracked
or oily.
Engine oil level*
:
Check the level after parking the vehicle on a
level spot and turning off the engine. Wait more
than 15 minutes for the oil to drain back into the
oil pan.
9-4Maintenance and Schedules

Parkingsensors .................5-79
OFF switch...................5-79
Phone.......................4-88
During a call.................4-90
Favorites....................4-97
Makingacall.................4-88
Phonebook..................4-97
Receiving a call................4-89
Selection...................4-88
Settings....................4-94
Power........................3-6
Door lock switch................3-6
Outlet .....................2-75
Seat adjustment................1-4
Steering....................5-86
Windows....................2-71
Precautions....................4-53
Audio......................4-53
Boosterseats.................1-36
Brake......................5-87
Child restraints................1-20
Intelligent Parking Assist (IPA).......5-68
Maintenance..................8-2
Safety......................4-2
Seatbeltusage ................1-11
Starting and driving..............5-4
Supplemental Restraint System.......1-39
Tire Pressure Monitoring System (TPMS) . .5-5
Pregnant women.................1-13
Protection.....................7-7
Corrosion....................7-7Push-starting...................6-12
Rearseats .....................1-5
Folding......................1-6
RearViewmonitor.................4-17
Maintenance .................4-24
Repairing.....................8-24
Headlights...................8-24
Replacement...................1-56
Air bags....................1-56
Air cleaner filter................8-13
Enginecoolant.................8-5
Engineoil....................8-5
Engine oil filter.................8-6
Intelligent Key battery............8-20
Sparkplugs..................8-13
Tires and wheels...............8-34
Wiperblades .................8-13
Roof........................2-74
Glass......................2-74
Sunshade operation.............2-74
Roof Rack.....................2-82
Safety.......................1-18
Children ...................
.1-18
Child safety rear door locks..........3-7
Head restraints.................1-7
Injuredpersons................1-13
Precautions...................4-2
Pregnant women................1-13
Reporting safety defects..........10-18
Seat belts..................1-11, 1-14
Adjustment...................1-16Children-Infants...............1-18
Children - Larger...............1-19
Children - Small................1-19
Child safety..................1-18
Cleaning.....................7-5
Maintenance..................1-17
Overview....................0-2
Precautions...................1-11
Warninglight .................2-11
Warnings....................1-14
Seats........................1-2
Adjustment...................1-4
Adjustment(Manual)..............1-3
Booster seats.................1-36
Head restraints.................1-7
Heating....................2-69
Leather .....................7-6
Memory....................3-20
Overview....................0-2
Rear .......................1-5
Rear seats - Folding..............1-6
Seatbelts....................1-11
Security system.................2-57
Servicing.....................4-52
Air conditioner................4-52
Sparkplugs....................8-13
Information..................8-13
Replacement..................8-13
Speedometer....................2-5
Starting......................5-15
Before starting the engine..........5-15
Index11-5

Engine.....................5-16
Jump-starting.................6-10
Precautions...................5-4
Push-starting.................6-12
Steering......................5-86
Power steering system............5-86
Steering lock.................5-14
Steering lock...................5-14
Steering wheel..................3-16
Adjustment..................3-16
Steering wheel controls.............4-3
Storage......................2-76
Luggage hooks................2-80
Luggagenet..................2-81
Mappocket..................2-81
Sunshade.....................2-74
Operation...................2-74
Sunvisors.....................3-16
Supplemental Restraint System.........1-39
Overview....................0-2
Supplemental Restraint System (SRS).....0-2
Air bags.....................0-2
Switches.....................2-68
Brightness...................2-68
Defroster ...................2-60
Foglights...................2-68
Front passenger air bag...........1-47
Hazard warning flasher............6-2
Headlight ...................2-62
Ignition.....................5-14
Ignition positions...............5-15Parkingbrake.................5-25
Parking sensor system............5-79
Power door lock................3-6
Seat ......................3-20
Seat adjustment................1-4
Turn signal..................2-64
Windshield de-icer..............2-61
Wiperandwasher ..............2-58
Tachometer....................2-6
Three-way catalyst.................5-4
Precautions...................5-4
Tire chains....................8-33
Tires........................8-34
Changing...................8-34
Coldweather .................5-94
Equipment...................5-94
Flat tire.....................6-2
Inflation pressure...............8-27
Placard....................10-12
Quality grading
................10-17
Sizes......................10-8
tire chains...................8-33
Wear and damage..............8-33
Wheelbalance ................8-36
Wheels and tires............8-27, 10-8
Touchpanel ....................4-5
Operation....................4-5
Towing.......................6-14
Recommendations..............6-14
Your vehicle..................6-14Trailer ......................10-16
Towing ....................10-16
Transferring registration to another
country......................10-10
Transmission...................5-17
Automatic Transmission (AT) operation . . .5-17
Automatic transmission fluid (ATF)......8-7
Traveling.....................10-10
Turn signal....................8-22
Bulb information...............8-22
Operation...................8-22
USB connection..................4-3
Vanity mirror...................3-17
Lights.....................2-85
Vehicle......................4-102
Apps Manager................4-102
Vehicle Dynamic Control (VDC).........5-90
Vehicle identification..............10-10
Air conditioner label.............10-12
Engine serial number............10-11
Number (VIN) (chassis number).......10-11
Number (VIN) plate.............10-10
Tire and loading information label.....10-12
Vehicle Immobilizer system...........5-14
Vehicle information display...........2-15
Warnings and indicators...........2-29
Vehicle loading information..........10-14
Ventilators....................4-42
Voice Recognition system...........4-105
Command list................4-110
Giving voice commands...........4-106
11-6Index
