1. Ventilators (P. 4-42)
2. Center display* (P. 4-5)
3. Meters and gauges (P. 2-4)
4. Light switch (P. 2-62)
5. Parking brake (P. 3-25)6. Steering wheel
— Power steering system (P. 5-86)
— Horn (P. 2-69)
— Driver’s supplemental front-impact air
bag (P. 1-39)
7. Audio system (P. 4-53)8. Ignition switch (P. 3-16)
9. Heater and air conditioner (P. 4-43)
10. Switch panel
— Seat heater switches* (P. 2-69)
— Hazard indicator flasher switch (P. 6-2)
— Idle Stop/Start system on/off switch
(P. 6-28)
— Front passenger air bag status light
(P. 6-47)
11. Vehicle Information Display (P. 2-15)
12. Glove box (P. 2-77)
13. Front passenger supplemental air bag
(P. 1-39)
*: if equipped
NIC2898
INSTRUMENT PANEL
Illustrated table of contents0-7

1. Ventilators (P. 4-42)
2. Center display* (P. 4-5)
3. Meters and gauges (P. 2-4)
4. Light switch (P. 2-62)
5. Parking brake (P. 3-25)6. Steering wheel
— Power steering system (P. 5-86)
— Horn (P. 2-69)
— Driver’s supplemental front-impact air
bag (P. 1-39)
7. Audio system (P. 4-53)8. Ignition switch (P. 3-16)
9. Heater and air conditioner (P. 4-43)
10. Switch panel
— Seat heater switches* (P. 2-69)
— Hazard indicator flasher switch (P. 6-2)
— Idle Stop/Start system on/off switch
(P. 6-28)
— Front passenger air bag status light
(P. 6-47)
11. Vehicle Information Display (P. 2-15)
12. Glove box (P. 2-77)
13. Front passenger supplemental air bag
(P. 1-39)
*: if equipped
NIC2898
INSTRUMENT PANEL
Instruments and controls2-3

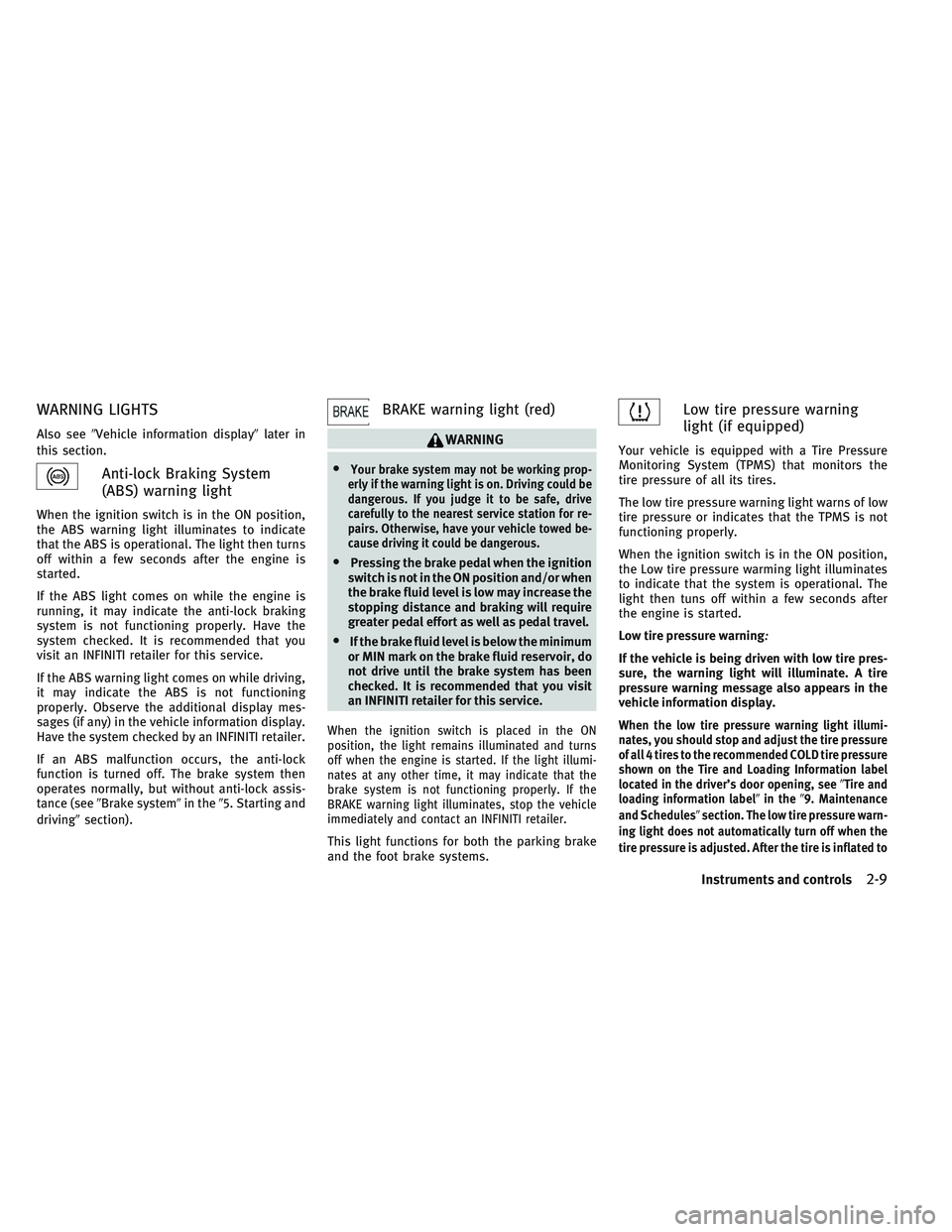

WARNING LIGHTS
Also seeVehicle information displaylater in
this section.
Anti-lock Braking System
(ABS) warning light
When the ignition switch is in the ON position,
the ABS warning light illuminates to indicate
that the ABS is operational. The light then turns
off within a few seconds after the engine is
started.
If the ABS light comes on while the engine is
running, it may indicate the anti-lock braking
system is not functioning properly. Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.
If the ABS warning light comes on while driving,
it may indicate the ABS is not functioning
properly. Observe the additional display mes-
sages (if any) in the vehicle information display.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance (seeBrake systemin the5. Starting and
drivingsection).
BRAKE warning light (red)
WARNING
•Your brake system may not be working prop-
erly if the warning light is on. Driving could be
dangerous. If you judge it to be safe, drive
carefully to the nearest service station for re-
pairs. Otherwise, have your vehicle towed be-
cause driving it could be dangerous.
•Pressing the brake pedal when the ignition
switch is not in the ON position and/or when
the brake fluid level is low may increase the
stopping distance and braking will require
greater pedal effort as well as pedal travel.
•If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked. It is recommended that you visit
an INFINITI retailer for this service.
When the ignition switch is placed in the ON
position, the light remains illuminated and turns
off when the engine is started. If the light illumi-
nates at any other time, it may indicate that the
brake system is not functioning properly. If the
BRAKE warning light illuminates, stop the vehicle
immediately and contact an INFINITI retailer.
This light functions for both the parking brake
and the foot brake systems.
Low tire pressure warning
light (if equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all its tires.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
When the ignition switch is in the ON position,
the Low tire pressure warming light illuminates
to indicate that the system is operational. The
light then tuns off within a few seconds after
the engine is started.
Low tire pressure warning
:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. A tire
pressure warning message also appears in the
vehicle information display.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pressure
of all 4 tires to the recommended COLD tire pressure
shown on the Tire and Loading Information label
located in the driver’s door opening, seeTire and
loading information labelin the9. Maintenance
and Schedulessection. The low tire pressure warn-
ing light does not automatically turn off when the
tire pressure is adjusted. After the tire is inflated to
Instruments and controls2-9

the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to acti-
vate the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to check
the tire pressure.
The low tire pressure warning message appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warn-
ing light remains illuminated.
For additional information, seeVehicle infor-
mation displaylater in this section andTire
Pressure Monitoring System (TPMS)in the5.
Starting and drivingStarting and drivingsec-
tion.
TPMS malfunction
:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after 1 minute. Have the system checked. It is
recommended that you visit an INFINITI retailer
for this service. The low tire pressure warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, seeTire Pressure
Monitoring System (TPMS)in the5. Starting
and drivingsection.
WARNING
•Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
•If the light does not illuminate with the
ignition switch pushed ON, have the vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
•If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road
to a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur
and may lead to an accident and could result
in serious personal injury or death. Check
the tire pressure for all four tires. Adjust the
tire pressure to the recommended COLD tire
pressure shown on the tire placard, located
in the driver’s door opening, to turn the low
tire pressure warning light off. If the light
still illuminates while driving after adjust-
ing the tire pressure, a tire may be flat. If you
have a flat tire, replace it with a replacement
tire as soon as possible.
•If a replacement tire is mounted or a wheel
is replaced without a TPMS sensor tire pres-
sure will not be indicated, the TPMS will not
function and the low tire pressure warning
light will flash for approximately 1 minute.
The light will remain on after 1 minute. Have
your vehicle’s tires replaced and/or TPMS
system reset as soon as possible. It is rec-
ommended you visit an INFINITI retailer for
these services.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION
•The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
•If the vehicle is being driven at speeds of
less than 16 MPH (25 km/h), the TPMS may
not operate correctly.
•Be sure to install the specified size of tires
to all four wheels correctly.
2-10Instruments and controls

The seat belt warning light may also illuminate
if there are objects on the front passenger seat.
Remove the objects and stow them in a safe
place.
If the seat belt warning light flashes, together
with an intermittent warning tone, this means
that the driver or passenger has not fastened
their seat belt, and the speed of the vehicle is
exceeding 15 MPH (25 km/h).
Supplemental Restraint
System (SRS) air bag warning
light
WARNING
If the supplemental air bag warning light is on,
it could mean that the front air bag, driver’s
knee air bag, side air bag, curtain air bag
and/or pretensioner systems will not operate
in an accident. To help avoid injury to yourself
or others, have your vehicle checked by an
INFINITI retailer as soon as possible.
When the ignition switch is in the ON position,
the Supplemental Restraint System (SRS) air
bag warning light illuminates to indicate that
the system is operational. The light then tuns
off within a few seconds after the engine is
started.If any of the following conditions occur, the
front air bag, front seat-mounted side-impact
air bag, roof-mounted curtain air bag and pre-
tensioner systems need servicing:
•The supplemental air bag warning light
remains on for longer than a few seconds
once the engine is running.
•The supplemental air bag warning light
flashes intermittently.
•The supplemental air bag warning light does
not come on at all.
It is recommended you visit an INFINITI retailer
for these services. Unless checked and re-
paired, the supplemental restraint system (air
bag system) and/or the pretensioner systems
may not function properly. For additional infor-
mation, refer toSupplemental Restraint Sys-
tem (SRS)in the1. Safety — seats, seat belts
and supplemental restraint systemsection.
Coolant warning light
WARNING
If the coolant warning light is lit, the engine
may not be being cooled sufficiently and may
be damaged.
Never drive with an overheated engine. Driving
when your engine is overheated can causesome fluids which may have leaked into the
engine compartment to catch fire.
In addition, steam from an overheated engine
can cause serious burns, which can occur just
by opening the hood.
There is a risk of injury
If the red coolant warning light lights up while the
engine is running and the coolant temperature
gauge is at the start of the scale, the temperature
sensor for the coolant temperature gauge is
faulty. The coolant temperature is no longer being
monitored. There is a risk of engine damage if the
coolant temperature is too high.
Stop the vehicle immediately, paying attention
to road and traffic conditions, and switch off the
engine. Do not continue driving under any
circumstances.
Consult an INFINITI retailer.
If the red coolant warning light comes on while
the engine is running, with or without an ac-
companying warning tone, it could mean that:
•The coolant level is too low.
•If the coolant level is correct, the airflow to
the engine radiator may be blocked or the
electric engine radiator fan may be malfunc-
tioning.
2-12Instruments and controls

•The coolant is too hot and the engine is no
longer being cooled sufficiently.
Observe the additional display messages in the
vehicle information display.
Stop the vehicle immediately, paying attention
to road and traffic conditions, and switch off the
engine.
Secure the vehicle against rolling away.
Leave the vehicle and keep a safe distance from
the vehicle until the engine has cooled down.
Check the coolant level and top up the coolant,
observing the warning notes (seeIf your ve-
hicle overheatsin the6. In case of emergency
section).
If you have to top up the coolant frequently,
have the engine cooling system checked.
Make sure that the air supply to the engine
radiator is not blocked, e. g. by frozen slush.
Do not start the engine again until the coolant
temperature is below 250
oF (120oC). The
engine may otherwise be damaged.
Low fuel warning light
This light comes on when the fuel level in the
fuel tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches 0 (Empty).There will be a small reserve
of fuel in the tank when the fuel gauge reaches 0
(Empty).
Vehicle Dynamic Control
(VDC) warning light
The VDC warning light blinks when the Vehicle
Dynamic Control (VDC) system is operating,
thus alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, this is
normal.
The light will continue to blink for a few seconds
after the VDC system stops limiting wheel spin.
Cruise control or Intelligent Cruise Control is
deactivated.
For additional information seeVehicle Dy-
namic Control (VDC) OFF indicator lightin the
2. Instruments and controlssection andVe-
hicle Dynamic Control (VDC) systemin the5.
Starting and drivingStarting and drivingsec-
tion.
INDICATOR LIGHTS
Turn signal/hazard indicator
lights
The appropriate light flashes when the turn
signal switch is activated. Both lights flash
when the hazard switch is turned on.
Low beam indicator light
This light comes on when the switch is turned to
the position:The headlights will come on
and front side, tail, number plate and instru-
ment lights remain on.
Vehicle Dynamic Control (VDC)
OFF indicator light
The light comes on when the Vehicle Dynamic
Control (VDC) has been disabled. This indicates
that the VDC system is not operating.
Disabling the VDC system causes the Forward
Emergency Braking system to become unavail-
able. SeeForward emergency braking (FEB)
system (if equipped)in the5. Starting and
drivingsection for more details.
This light also comes on briefly when the igni-
tion switch is turned to the ON position. The
light will turn off after approximately 1 second if
the VDC system is operational.
Instruments and controls2-13

When the VDC OFF indicator light and VDC
warning light (seeVehicle Dynamic Control
(VDC) warning lightlater in this section) come
on with the VDC system turned on, it alerts the
driver to the fact that the system’s fail-safe
mode is operating. This means that the system
may not be functioning properly. Have the
system checked. It is recommended you visit an
INFINITI retailer for these services.
If an abnormality occurs in the system, the VDC
system function will be canceled, but the ve-
hicle is still driveable. For additional informa-
tion, seeVehicle Dynamic Control (VDC)
systemin the5. Starting and drivingsection.
WARNING
VDC should remain on unless freeing a vehicle
from mud or snow.
While the VDC system is operating, you might
feel a slight vibration or hear the system work-
ing when starting the vehicle or accelerating,
but this is normal.
Front fog light indicator light (if
equipped)
The light comes on when the front fog lights are
switched on (seeFog light switch (If so
equipped)later in this section).
High beam assist indicator light
(if equipped)
The indicator light illuminates when the head-
lights come on while the headlight switch is in
the AUTO position with the high beam selected.
This indicates that the high beam assist system
is operational. (See 2-62.)
High beam indicator light
This blue light comes on when the headlight
high beams are on and goes out when the low
beams are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Rear fog light indicator light
The light comes on when the rear fog light is
switched on (seeFog light switch (If so
equipped)later in this section).
Side light and headlight
indicator light
This light comes on when the side light or
headlight position is selected, seeHeadlight
and turn signal switcheslater in this section
for further details.
/Front passenger air
bag status light
The front passenger air bag status light ()
located on the center console above the shift
lever will illuminate when the front passenger
air bag is turned OFF. When the front passenger
air bag is turned on, the front passenger air bag
status light ON (
) will illuminate.
For more details, seeFront passenger air bag
and status lightin the1. Safety — seats, seat
belts and supplemental restraint systemsec-
tion.
AUDIBLE REMINDERS
Parking brake reminder chime
A chime will sound when driving away if the
parking brake has not been released. Stop the
vehicle and release the parking brake.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s door
is opened if the side lights are on. Turn the
headlight control switch off before leaving the
vehicle.
2-14Instruments and controls

Seat belt reminder chime
A chime will sound for approximately 120 sec-
onds if the vehicle’s speed exceeds 16 MPH (25
km/h) and the driver’s seat belt or front pas-
senger’s seat belt, if occupied is not securely
fastened. SeeSeat belt warning lightin the1.
Safety — seats, seat belts and supplemental
restraint systemsection.
Idle Stop/Start System reminder
chime (if equipped)
The engine will shift to the normal stopped
state if any of the following operations is made
during Idle Stop/Start System activation, and
the Idle Stop/Start System chime will sound if:
– The vehicle engine hood is open.
When the above condition continues for over 3
minutes the Idle Stop/Start System chime will
sound in 5-minute intervals as a reminder to
prevent the possibility of a discharged battery.
Use the ignition switch to turn off the engine.
Close the hood or the driver’s door, or fasten
the seat belt then restart the engine using the
ignition switch.
For more information, seeIdle Stop/Start
System (if equipped)in the5. Starting and
drivingsection.The vehicle information display1is located
between the tachometer and the speedometer.1Permanent display: depending on ve-
hicle specification: outside temperature
or speed
2Time
3Text field
4Menu bar
5Drive program
6Shift lever position
Text field
3shows the selected menu or
submenu as well as display messages.
NOTE
Set the time using the INFINITI controller and the
[Settings] menu available in the central display
(seeClock settingsin the4. Display screen,
heater and air conditioner, and audio system
section).
NIC2751NIC2752
VEHICLE INFORMATION DISPLAY
Instruments and controls2-15

2. Press theorbutton to select
[Convenience] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Fold Mirrors in when Locking] function.
If the [Fold Mirrors in when Locking] function
is activated, the vehicle’s exterior mirror is
shown in orange in the vehicle information
display.
5. Press the button to save the setting.
Resetting to factory settings
1. Press theorbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Factory Setting] submenu.
3. Press to confirm.
The [Reset All Settings?] message appears.
4. Press the
orbutton to select
[No] or [Yes].
5. Press the button to confirm the selec-
tion.
If you have selected [Yes], the vehicle infor-
mation display shows a confirmation mes-
sage.For safety reasons, not all functions are reset:
the [Limit Speed (Winter Tires)] function in
permanent speed limiter can only be set in the
[Vehicle] submenu.
If you want to reset the Daytime driving lights
function in the Lights submenu, you must
switch the ignition switch to the ACC position.
DISPLAY MESSAGES
Display messages appear in the vehicle infor-
mation display.
Display messages with graphic symbols are
simplified in the Owner’s Manual and may differ
from the symbols in the vehicle information
display.
Certain display messages are accompanied by
an audible warning tone or a continuous tone.
When the ignition is switched off, all display
messages are deleted apart from some high-
priority display messages. Once the causes of
the high-priority display messages have been
rectified, these display messages are deleted
as well.
When you stop and park the vehicle, please
observe the notes on parking (seeParkingin
the5. Starting and drivingsection).
Hiding display messages
Press the orbutton to hide the
display message. The display message is hid-
den.
The vehicle information display shows high-
priority display messages in red. Some high-
priority display messages cannot be hidden.
The vehicle information display shows these
messages continuously until the causes for the
messages have been remedied.
Message memory
The vehicle information display saves certain
messages in the message memory. You can call
up these display messages:
1. Press the
orbutton on the
steering wheel to select the [Service] menu.
If there are display messages, the vehicle
information display shows [2 messages], for
example.
2. Press the
orbutton to select
the entry, e.g. [2 messages].
3. Press to confirm.
4. Press the
orbutton to scroll
through the display messages.
Instruments and controls2-29

Message Possible causes/consequences and solutions
[Inoperative See Operator’s
Manual]EBD (electronic brake force distribution) ABS (Anti-Lock Braking System), BAS (Brake Assist System), VDC (Vehicle Dynamic Contro), and
hill start assist are not available due to a malfunction.
Forward Emergency Braking (FEB) may also have failed.
A warning tone sounds.
In addition, the
,andwarning lights may light up in the combination meter.
WARNING
The brake system continues to function normally, but without the functions listed above. The front and rear wheels could therefore lock if
you brake hard, for example.
The steering and braking characteristics may be severely affected. The braking distance may increase in an emergency braking situation.
If VDC is not operational, VDC is unable to stabilize the vehicle. There is an increased danger of skidding and risk of an accident.
Drive on carefully and have the system checked immediately. It is recommended you visit an INFINITI retailer for this service.
[Turn On The Ignition to Re-
lease the Parking Brake]The redindicator light lights up.
You attempted to release the electric parking brake while the ignition was switched off.
Key: turn the key to the ON position in the ignition switch
[Please Release Parking
Brake]The redindicator light flashes and a warning tone sounds. A condition for automatic release of the electric parking brake is not
fulfilled (seeApplying automatically (vehicles with automatic transmission)in the5. Starting and drivingsection).
You are driving with the electric parking brake applied.
Release the electric parking brake manually.
The red
indicator light flashes and a warning tone sounds.
You are making an emergency stop using the electric parking brake (seeEmergency brakingin the5. Starting and drivingsection)
[Parking Brake See Opera-
tor’s Manual]The yellowwarning light lights up.
The electric parking brake is malfunctioning.
To apply:
1. Switch the ignition off.
2. Press the electric parking brake handle for at least ten seconds.
3. Press the P (Park) button.
4. Have the system checked. It is recommended you consult an INFINITI retailer.
2-32Instruments and controls
