5. Press and hold button6on the hand held
transmitter until indicator light
1lights
up green. When indicator light
1: lights
up green: programing is finished.
When indicator light
1flashes green:
programing was successful. The next step
is to synchronize the rolling code.
6. Release button
6on the hand held trans-
mitter
5for the garage door drive sys-
tem.
If indicator light
1lights up red: repeat
the programing procedure for the corre-
sponding button on the rear-view mirror.
When doing so, vary the distance be-
tween the hand held transmitter
5and
the rear-view mirror.
The required distance between the hand
held transmitter
5and the integrated ga-
rage door opener depends on the garage
door drive system. Several attempts might
be necessary. You should test every posi-
tion for at least 25 seconds before trying
another position.
Synchronizing the rolling code
If the garage door system uses a rolling code,
you will also have to synchronize the garage
door system with the integrated garage door
opener in the rear-view mirror. To do this you
will need to use the programing button on thedoor drive control panel. The programing
button may be positioned at different loca-
tions depending on the manufacturer. It is
usually located on the door drive unit on the
garage ceiling.
Familiarize yourself with the garage door
drive operating instructions before carrying
out the following steps.
Your vehicle must be within reach of the ga-
rage door or gate opener drive. Make sure
that neither your vehicle nor any persons/
objects are present within the sweep of the
door or gate.
1. Turn the ignition key to the ON position.
2. Get out of the vehicle.
3. Press the programing button on the door
drive unit.
Usually, you now have 30 seconds to ini-
tiate the next step.
4. Get into the vehicle.
5. Press previously programed button
2,3or4on the HomeLink® until the door
closes.
The rolling code synchronization is then
complete.
If you live in Canada
Canadian radio frequency laws require a
"break" (or interruption) of the transmission
signals after broadcasting for a few seconds.
Therefore, these signals may not last long
enough for the integrated garage door
opener. The signal is not recognized during
programing. Comparable with Canadian law,
some U.S. garage door openers also feature a
"break".
Proceed as follows:
•If you live in Canada
•If you have difficulties programing the ga-
rage door opener (regardless of where you
live) when using the programing steps.
1. Press and hold one of buttons
2to4on
the HomeLink®. After a short time, indi-
cator light
1lights up yellow.
2. Release the button.
Indicator light
1flashes yellow.
3. Press button
6of the hand held trans-
mitter
5for two seconds, then release it
for two seconds.
4. Press button
6again for two seconds.
5. Repeat this sequence on button
6of the
hand held transmitter
5until indicator
light
1lights up green.
Instruments and controls2-91

When indicator light1lights up green:
programing is finished.
When indicator light
1flashes green:
programing was successful. The next step
is to synchronize the rolling code.
6. Release button
6of the hand held trans-
mitter
5for the garage door drive.
If indicator light
1lights up red: repeat
the programing process for the corre-
sponding button on the rear-view mirror.
When doing so, vary the distance be-
tween the hand held transmitter
5and
the rear-view mirror.
The required distance between the hand
held transmitter
5and the HomeLink®
depends on the garage door drive system.
Several attempts might be necessary. You
should test every position for at least
25 seconds before trying another posi-
tion.
PROGRAMMING TROUBLE
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
•Check the transmitter frequency used by
garage door drive hand-held transmitter
5and whether it is supported. The trans-
mitter frequency can usually be found onthe back of the garage door drive hand-
held transmitter. HomeLink® is compat-
ible with devices that have units which
operate in the frequency range of 280 to
433 MHz.
•Replace the hand-held transmitter5bat-
teries with new batteries.
This increases the likelihood that the hand-
held transmitter
5will transmit a strong
and precise signal to the HomeLink®.
•When programing, hold the hand-held
transmitter
5at varying distances and
angles from the button which you are pro-
graming. Try various angles at a distance
between 2 and 12 inches (5 to 30 cm) or at
the same angle but at varying distances.
•If another hand-held transmitter is avail-
able for the same garage door drive, re-
peat the same programing steps with this
hand-held transmitter
5. Before per-
forming these steps, make sure that new
batteries have been installed in the hand-
held transmitter
5.
•Note that some hand-held transmitters
only transmit for a limited amount of time
(the indicator light on the hand-held trans-
mitter goes out). Press button
6on re-
mote hand-held transmitter
5again be-
fore transmission ends.
•Align the antenna cable of the garage door
opener unit. This can improve signal
reception/ transmission.
If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com or 1-800-355-3515.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device.
1. Turn the ignition key to the ON position.
2. Press button
2,3or4which you have
programed to operate the garage door.
Garage door system with a fixed code:
indicator light
1lights up green
Garage door system with a rolling code:
indicator light
1flashes green.
The transmitter will transmit a signal as long
as the button is pressed. The transmission is
halted after a maximum of ten seconds and
indicator light
1lights up yellow. Press but-
ton
2,3or4again if necessary.
For convenience, the hand-held transmitter
of the device may also be used at any time.
2-92Instruments and controls

CLEARING THE PROGRAMMED
INFORMATION
Make sure that you clear the memory of the
integrated garage door opener before selling
the vehicle.
1. Turn the ignition key to the ON position.
2. Press and hold buttons
2and4.
The indicator light initially lights up yellow
and then green.
3. Release buttons
2and4.
The memory of the integrated garage door
opener in the rear-view mirror is cleared.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner’s Manual of each device
or call the manufacturer of those devices
for additional information or contact an
INFINITI retailer.
Instruments and controls2-93

3 Pre-driving checks and adjustments
Keys..............................3-2
INFINITI Intelligent key................3-2
INFINITI Vehicle immobilizer system keys.....3-3
Doors.............................3-4
Locking with the key..................3-4
Locking with the mechanical key..........3-5
Locking with inside door knob............3-6
Locking with Power door lock switch.......3-6
Automatic door locks.................3-7
Child safety rear door lock..............3-7
Lift gate lock.......................3-7
INFINITI Intelligent Key system.............3-8
Operating range.....................3-9
Door locks/unlocks precaution..........3-10
INFINITI Intelligent Key operation........3-10Changing the settings of the locking system . .3-11
Troubleshooting guide................3-12
Hood.............................3-15
Fuel-filler door.......................3-16
Opening fuel-filler door...............3-16
Fuel-filler cap......................3-16
Steering wheel.......................3-17
Sun visors..........................3-18
Vanity mirror......................3-18
Mirrors............................3-18
Automatic anti-glare rear view mirror......3-18
Outside mirrors....................3-18
Memory function (if equipped).............3-21
Storing settings....................3-22
Calling up a stored setting.............3-22

1. To block out glare from the front, swing
down the sun visor
1.
2. To block glare from the side, remove the
sun visor from the center mount and
swing the visor to the side
2.
VANITY MIRROR
To use the front vanity mirror3, pull down
the sun visor
1and pull up the cover4.
AUTOMATIC ANTI-GLARE REAR
VIEW MIRROR
The inside mirror is designed so that it auto-
matically dims according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature operates only
when the ignition switch is in the ON position.
It will not operate if reverse gear is engaged or
if the interior lighting is switched on.
OUTSIDE MIRRORS
The driver's-side outside mirror is designed so
that it automatically dims according to the in-
tensity of the headlights of the vehicle follow-
ing you. The automatic anti-glare feature op-
erates only when the ignition switch is in the
ON position. It will not operate if reverse gear
is engaged or if the interior lighting is switched
on.SIC2872
NIC2676NDI1630
SUN VISORSMIRRORS
3-18Pre-driving checks and adjustments

Adjusting
The outside rear view mirror remote control
will operate only when the ignition switch is in
the ACC or ON position.
1. Move the switch to select the left
1or
right mirror
2.
2. Adjust each mirror to the desired position
using the large switch
3.
Defogging
The exterior rear view mirrors will be heated
when the rear window defogger switch is
operated.
WARNING
•Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
•Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Folding
Manual type (if equipped):
Fold the outside rear-view mirror by pushing
it towards the rear of the vehicle.
Remote control type (if equipped):
The exterior rear view mirror remote control
operates when the ignition switch is in the
ACC or ON position.
Briefly press button
1. Both exterior mirrors
fold in or out.
Power folding outside mirrors (if so
equipped)
CAUTION
•Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
•Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.
The exterior rear-view mirrors automatically
unfold when the ignition is switched on or
when the vehicle doors are unlocked. Use the
[Fold Mirrors in when Locking] option under
the [CONVENIENCE] menu of the Vehicle
NIC2636NIC2638
Pre-driving checks and adjustments3-19

Information Display to specify that the
mirrors are to be automatically folded and
unfolded. The Auto fold feature can also
be switched off. See "Switching the [Fold
Mirrors in when Locking] function on/off".
If the [Fold Mirrors in when Locking] option
has been activated in the Vehicle information
display:
•The exterior mirrors fold in automatically
as soon as you lock the vehicle from the
outside.
•The exterior mirrors fold out again auto-
matically as soon as you unlock the vehicle
and then open the driver's or front-
passenger door.
Automatic parking positioner (if so
equipped)
The Parking position for the exterior mirror
on the front-passenger side function is only
available if the vehicle is equipped with the
Memory package.
1Button for the exterior mirror on the left
hand side.
2Button for the exterior mirror on the right
hand side.
3Adjustment button.
4Memory button M.
Setting and storing the parking position
using reverse gear:
You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
You can store this position.
1. Make sure that the vehicle is stationary.
2. Switch the ignition switch to the ON po-
sition.
3. Press button
2for the external mirror on
the front-passenger side.4. Engage reverse gear. The exterior mirror
on the front-passenger side moves to the
preset parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror
The parking position is stored.
NOTE
•If you shift the transmission to another
position, the exterior mirror on the front
passenger side returns to the driving posi-
tion.
•If the driver's side mirror is currently se-
lected, the passenger side mirror will not
move when reverse gear is engaged.
Setting and storing the parking position
using the memory button:
You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
This setting can be stored using memory but-
ton M
4.
1. Make sure that the vehicle is stationary.
2. Switch the ignition switch to the ON po-
sition.
3. Press button
2for the external mirror on
the front-passenger side.
NIC2639
3-20Pre-driving checks and adjustments

4. Engage reverse gear. The exterior mirror
on the front-passenger side moves to the
preset parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
6. Press memory button M
4and one of the
arrows on adjustment button
3within
three seconds. The parking position is
stored if the exterior mirror does not
move.
7. If the mirror moves out of position, repeat
the steps.Calling up a stored parking position:
1. Switch the ignition switch to the ON po-
sition.
2. Adjust the exterior mirror on the front
passenger side with the corresponding
button.
3. Engage reverse gear. The exterior mirror
on the front-passenger side moves to the
stored parking position
The exterior mirror on the front-passenger
side moves back to its original position:
•As soon as you exceed a speed of 15 km/h.
•About ten seconds after you have disen-
gaged reverse gear.
•If you press button1for the exterior
mirror on the driver's side.
WARNING
•If you use the memory function on the driv-
er's side while driving, the adjustments
could cause you to lose control of the ve-
hicle. There is a risk of an accident. Only use
the memory function on the driver's side
while the vehicle is stationary.
Only use the memory function on the driv-
er's side while the vehicle is stationary.
•If the memory function adjusts the
seat, you and other vehicle occupants-
particularly children-could become
trapped. There is a risk of injury.
While the memory function is making ad-
justments, make sure that no one has any
part of their body within the sweep of the
NIC2637
MEMORY FUNCTION (IF EQUIPPED)
Pre-driving checks and adjustments3-21

seat. If someone becomes trapped, imme-
diately release the memory function posi-
tion button The adjustment is stopped.
•If children activate the memory func-
tion, they could become trapped, espe-
cially if they are unattended. There is a
risk of injury.
When leaving the vehicle, always take
the key with you and lock the vehicle.
Never leave children unattended in the
vehicle.
The memory function can be used at any
time, e.g. even when the key isn't in the igni-
tion lock.
STORING SETTINGS
With the memory function, you can store up
to three different settings, for example, for
three different people. The following settings
are stored as a single memory preset:
•Seat and seatback position
•Driver's side: position of the exterior mir-
rors on the driver's and front-passenger
sides.
To store settings:
1. Adjust the seat (see "Power seat adjust-
ment").
2. Adjust the exterior mirror on the driver's
side (see "Adjusting").
3. Briefly press the M memory button
1,
and then press preset position button 1, 2
or 3
2within three seconds.
The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.
CALLING UP A STORED SETTING
Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.
NOTE
The setting procedure is interrupted as soon
as you release the storage position button.
3-22Pre-driving checks and adjustments

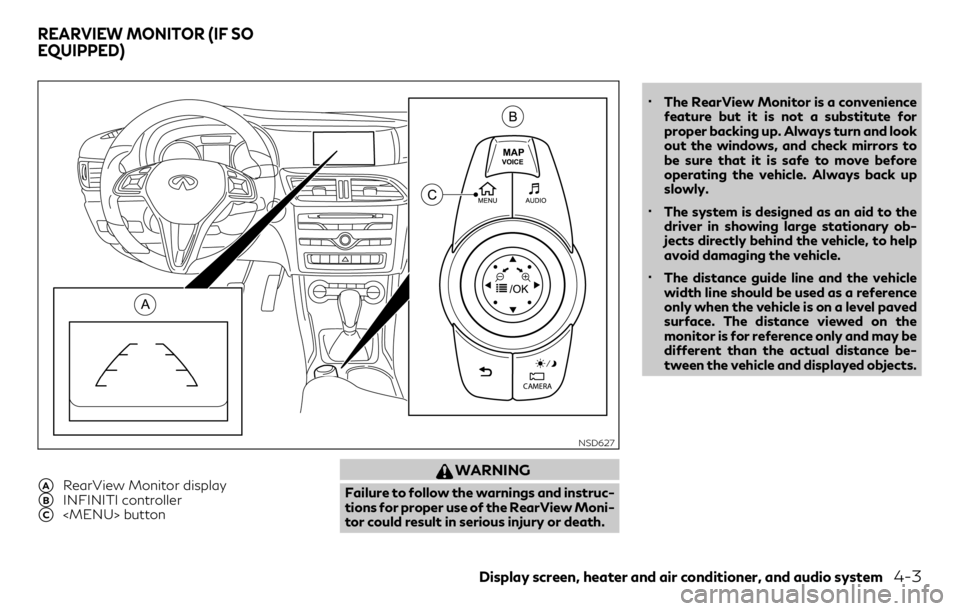

ARearView Monitor display
BINFINITI controller
C
