DRIVING WITH AUTOMATIC
TRANSMISSION
Driving precautions
•Do not depress the accelerator pedal
while shifting from P (Park) or N (Neutral)
to R (Reverse), D (Drive), or M (Manual
shift mode). Always depress the brake
pedal until shifting is completed. Failure
to do so could cause you to lose control
and have an accident.
•Cold engine idle speed is high, so use cau-
tion when shifting into a forward or re-
verse gear before the engine has warmed
up.
•Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
•Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
WARNING
•Do not downshift abruptly on slippery
roads. this may cause a loss of control.
CAUTION
•To avoid possible damage to your ve-
hicle; when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this pur-
pose.
•Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
Starting the vehicle
1. After starting the engine, fully depress the brake pedal before shifting the shift lever
to R (Reverse), D (Drive) or Manual shift
mode.
2. Keep the brake pedal depressed and push the shift lever to shift into a driving gear.
3. Release the parking brake and brake, then gradually put the vehicle in motion by
pressing the accelerator pedal.
The automatic transmission is designed so
that the brake pedal MUSTbe depressed
before shifting from P (Park) to any drive
position while the ignition switch is ON.
DRIVING THE VEHICLE
5-20Starting and driving

Shifting
P Park position with parking lock
R Reverse
N Neutral
D DriveTransmission position display:
NOTE
If the transmission position display in the ve-
hicle information display is not working, you
should pull away carefully to check whether
the desired transmission position IS en-
gaged. Ideally, you should select transmis-
sion position D and automatic drive program
EorS.
The shift lever indicator
1located in the
lower part of the vehicle information display
shows the current position of the transmis-
sion.
It shows the P,R,N,D modes when the trans-
mission is in auto mode or the shift position
when the transmission is in manual mode.
WARNING
Apply the parking brake if the shift lever is
in any position while the engine is not run-
ning. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away
and result in serious personal injury or
property damage.
CAUTION
Use the P (Park) or R (Reverse) position
only when the vehicle is completely
stopped.NSD585NSD649
Starting and driving5-21

P (Park):
CAUTION
To prevent transmission damage, use the P
(Park) position only when the vehicle is
completely stopped.
Use this position when the vehicle is parked
or when starting the engine. Always make
sure that the vehicle is completely stopped
before pressing button
1to engage the P
(Park) position. For maximum safety, the
brake pedal must be depressed before en-
gaging the P (Park) position. Use this position
together with the parking brake. When park-
ing on a hill, first depress the brake pedal,
apply the parking brake and then engage the
P (Park) position. The parking lock should not
be used as a brake when parking. In order to secure the vehicle, always apply the electric
parking brake in addition to the parking lock.
In the event of a malfunction of the vehicle's
electronics, the transmission may lock in po-
sition P (Park). Have the vehicle electronics
checked immediately. It is recommended you
visit an INFINITI retailer for this service.
Park position P is automatically engaged if:
•You switch off the engine using the key
and remove the key.
•You open the driver's door when the ve-
hicle is stationary or driving at very low
speed and the transmission is in position D
(Drive) or R (Reverse).
R (Reverse):
CAUTION
To prevent transmission damage, use the R
(Reverse) position only when the vehicle is
completely stopped.
Use this position to back up the vehicle.
Make sure the vehicle is completely stopped
before selecting the R (Reverse) position. The
brake pedal must be depressed and the shift
lever button pushed in to move the shift le-
ver from P (Park), N (Neutral) or any drive
position to R (Reverse). N (Neutral):
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to N (Neutral) and restart a stalled
engine while driving the vehicle.
D (Drive):
Use this position for all normal forward driv-
ing.
The automatic transmission changes gear
automatically. All forward gears are avail-
able.
Changing gear
The automatic transmission shifts to the in-
dividual gears automatically when it is in
transmission position D (Drive). Shifting is de-
termined by:
•The selected drive program.
•The position of the accelerator pedal.
•The road speed.
Accelerator pedal position:
Your style of driving influences how the au-
tomatic transmission shifts gear:
•little throttle: early upshifts
•more throttle: late upshifts
NSD586
5-22Starting and driving

Holding the vehicle stationary on
uphill gradients
WARNING
If the transmission overheats, the elec-
tronic management system is automati-
cally deactivated. This interrupts the
power transmission from the engine to the
wheels. The vehicle may, for example, roll
backwards on gradients. There is a risk of
an accident. Never hold the vehicle station-
ary on uphill gradients by depressing the
accelerator.
The transmission may overheat if you hold
the vehicle stationary on uphill gradients by
depressing the accelerator pedal. If the trans-
mission overheats, a warning tone sounds
and the [Stop Vehicle Shift to P Leave Engine
Running] display message appears in the ve-
hicle information display. You will only be able
to continue your journey once the transmis-
sion has cooled down and the display mes-
sage in the vehicle information display has
disappeared. Never hold the vehicle stationary on uphill
gradients by depressing the accelerator. In-
stead, only ever hold the vehicle stationary on
uphill gradients by:•Depressing the brake pedal.
•Engaging the electric parking brake.
Kickdown
Use kickdown for maximum acceleration:
•Depress the accelerator pedal beyond the
pressure point.
The transmission shifts to a lower gear
depending on the engine speed.
•Ease off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up.
Drive mode switch
The drive mode switch allows you to choose
between drive programs with different driv-
ing characteristics.
Press drive mode switch
1. The selected
drive program appears in the vehicle informa-
tion display.
The automatic transmission switches to drive
program E each time the engine is started.
E (Economy): comfortable, economical driv- ing
S (Sport): sporty driving style
M (Manual): manual gear shifting
For more details of the manual drive program
see "Manual drive program" later in this sec-
tion.
NSD587
Starting and driving5-23

Activating the manual drive program:
•Permanently: Press the drive mode switch
1repeatedly until M appears in the ve-
hicle information display. Manual drive
program M remains active until drive pro-
gram E or S is engaged.
•Temporarily: Pull the right or left steering
wheel gearshift paddle (see "Steering
wheel gearshift paddles" later in this sec-
tion). Manual drive program M is tempo-
rarily active. Depending on which gearshift
paddle is pulled, the automatic transmis-
sion immediately shifts into the next gear
down or up. When manual drive program M is activated
via the steering wheel gearshift paddles, the
temporarily active manual drive program M
will be deactivated automatically after a lim-
ited time, if the driving situation permits. The
automatic transmission switches to the pre-
viously activated drive program E or S. When
driving on downhill gradients, the temporarily
active manual drive program M will only be
deactivated if the accelerator pedal is de-
pressed while the vehicle is rolling downhill.
Upshifting:
Pull the right-hand steering wheel gearshift
paddle (see "Steering wheel gearshift
paddles" earlier in this section). The auto-
matic transmission shifts up to the next gear.
In order to prevent engine damage the auto-
matic transmission automatically shifts up if
the maximum engine speed on the currently
engaged gear is reached and you depress the
accelerator pedal.
Gearshift recommendation:
The gearshift recommendations assist you in
adopting an economical driving style. The
recommended gear is shown in the vehicle
information display.
Shift to recommended gear1according to
gearshift recommendation
2when shown in
the vehicle information display.
Downshifiting:
Pull the left-hand steering wheel gearshift
paddle (see "Steering wheel gearshift
paddles" earlier in this section). The auto-
matic transmission shifts down to the next
gear.
If you slow down or stop without shifting
down, the automatic transmission automati-
cally shifts down.
NSD587NSD589
Starting and driving5-25

For maximum acceleration, pull the left-hand
steering wheel gearshift paddle until the
transmission selects the optimum gear for
the current speed.
If the engine exceeds the maximum engine
speed when shifting down, the automatic
transmission protects against engine dam-
age by not shifting down.Kickdown:
You can also use kickdown for maximum ac-
celeration in manual drive program M
•Depress the accelerator pedal beyond the
pressure point The transmission shifts to a
lower gear depending on the engine
speed.
•Shift back up once the desired speed is
reached.
During kickdown, you cannot shift gears us-
ing the steering wheel gearshift paddles.
If you apply full throttle, the automatic trans-
mission shifts up to the next gear when the maximum engine speed is reached. This pre-
vents the engine from overrevving.
Deactivating the temporary manual drive
program:
Pull and hold the right steering wheel gear-
shift paddle until the automatic transmission
shifts into the last active automatic drive pro-
gram E or S.
When manual drive program M is deacti-
vated, the automatic transmission in auto-
matic drive program E or S may shift from the
current gear into a higher or lower gear. This
is dependent on the position of the accelera-
tor pedal, speed and load.
Problems with the transmission:
Problem Possible causes/consequences and solutions
The transmission has
problems shifting
gear The transmission is losing oil.
Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
The acceleration abil-
ity is deteriorating
The transmission no
longer shifts into all
of the gears Reverse
gear can no longer be
engaged The transmission is in emergency mode.
•Stop.•Shift the transmission to position P (Park).•Switch off the engine.•Wait at least ten seconds before restarting the engine.•Shift the transmission to position D (Drive).•Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
5-26Starting and driving

Before driving, check that the brake warning
lightgoes out. For additional informa-
tion, see "Warning lights, indicator lights and
audible reminders" in the "2. Instruments and
controls" section.
The electric parking brake can only be re-
leased when the ignition switch is in the ON
position.
APPLYING AUTOMATICALLY
(VEHICLES WITH AUTOMATIC
TRANSMISSION)
The electric parking brake is automatically
applied when:
•Intelligent cruise control (if equipped)
brings the vehicle to a standstill.
or
•Intelligent Parking Assist (if equipped) is
keeping the vehicle stationary.
The red
indicator light lights up in the
combination meter.
The electric parking brake is not automati-
cally applied if the engine is switched off by
the Idle Stop/Start function.
RELEASING AUTOMATICALLY
The electric parking brake can only be re-
leased automatically in vehicles with auto-
matic transmission.
The electric parking brake of your vehicle is
released automatically when all of the fol-
lowing conditions are fulfilled:
•The engine is running.
•The transmission is in position D (Drive) or
R (Reverse).
•The seat belt is fastened.
•You depress the accelerator pedal.
If the transmission is in position R, the lift
gate must be closed.
If your seat belt is not fastened, the following
conditions must be fulfilled to automatically
release the electric parking brake:
•The driver's door is closed
•You have shifted out of transmission posi-
tion P (Park) or you have previously driven
faster than 2 MPH (3 km/h).
Ensure that you do not depress the accelera-
tor pedal unintentionally. Otherwise, the
parking brake will be released and the vehicle
will start to move.
EMERGENCY BRAKING
The vehicle can also be braked during an
emergency by using the electric parking
brake.
While driving, push handle
1of the electric
parking brake. The vehicle is braked as long as
you keep handle
1of the electric parking
brake pressed. The longer the electric parking
brake handle
1is depressed, the greater the
braking force.
During braking:
•A warning tone sounds.
•The [Please Release Parking Brake] mes-
sage appears.
•The redindicator light in the combi-
nation meter flashes.
When the vehicle has been braked to a stand-
still, the electric parking brake is applied.
5-28Starting and driving

The Idle Stop/Start function switches the
engine off automatically if the vehicle is
stopped under certain conditions.
When pulling away again, the engine starts
automatically. The Idle Stop/Start function
thereby helps you to reduce the fuel con-
sumption and emissions of your vehicle.
WARNING
If the engine is switched off automatically
and you exit the vehicle, the engine is re-
started automatically. The vehicle may be-
gin moving There is a risk of accident and
injury.
If you wish to exit the vehicle, always turn
off the ignition and secure the vehicle
against rolling away.If the
Idle Stop/Start symbol is shown
in green in the vehicle information display, the
Idle Stop/Start function switches the engine
off automatically once the vehicle stops mov-
ing.
The Idle Stop/Start function is automatically
activated each time you start the engine with
the ignition key.
If the Idle Stop/Start function has been
manually deactivated (see "Deactivating/
activating the Idle Stop/Start function" later
in this section) or a malfunction has caused
the system to be deactivated, the
Idle
Stop/Start symbol is not displayed.
AUTOMATIC ENGINE
SWITCH-OFF
The Idle Stop/Start function is operational
and theIdle Stop/Start symbol is dis-
played in green in the vehicle information dis-
play, if:
•The indicator light in the ECO button is lit
green.
•The outside temperature is within the
range that is suitable for the system.
•The engine is at normal operating tem-
perature.
•The set temperature for the vehicle interior
has been reached.
•The battery is sufficiently charged.
•The system detects that the windshield is
not misted up when the air-conditioning
system is switched on.
•The hood is closed.
•The driver's door is closed and the driver's
seat belt is fastened.
If the conditions for automatic engine
switch-off are not all fulfilled, the
Idle
Stop/Start symbol is shown in yellow.
NSD620
Idle Stop/Start symbol
IDLE STOP/START SYSTEM (IF
EQUIPPED)
Starting and driving5-29

All of the vehicle's systems remain active
when the engine is switched off automati-
cally.
The engine can be switched off automatically
a maximum of four times (initial stop, then
three subsequent stops) in succession. The
Idle Stop/Start symbol is shown in yel-
low in the vehicle information display after
the engine has been started automatically for
the fourth time. When the
Idle Stop/
Start symbol is shown in green in the vehicle
information display, automatic engine
switch-off is again possible.
NOTE
If the hood is opened while the engine is run-
ning and the Idle Stop/Start function is op-
erational, the engine will switch off auto-
matically.
If the vehicle is brought to a standstill in D or
N, the Idle Stop/Start function switches off
the engine automatically.
AUTOMATIC ENGINE START
The engine is started automatically if:
•You switch off the Idle Stop/Start func-
tion by pressing the ECO button.
•You engage Reverse R or Drive D.
•You unfasten your seat belt or open the
driver's door.
•The vehicle starts to roll.
•The brake system requires this.
•The temperature in the vehicle interior de-
viates from the set range.
•The system detects moisture on the wind-
shield when the air-conditioning system is
switched on.
•The battery's charge status is too low.
The engine is started automatically if you:
•Release the brake pedal in transmission
position D (Drive) or N (Neutral).
•Depress the accelerator pedal.
•Move the transmission out of position P
(Park).
Shifting the transmission to position P (Park)
does not start the engine.
If you shift the transmission from R (Reverse)
to D (Drive), the Idle Stop/Start function is
available again once the
Idle Stop/
Start symbol reappears in green in the vehicle
information display.
DEACTIVATING/ACTIVATING
THE IDLE STOP/START
FUNCTION
•To deactivate: press ECO button1. Indi-
cator light
2and theIdle Stop/
Start symbol in the vehicle information dis-
play turn off.
•To activate: press ECO button1. Indica-
tor light
2lights up. If all conditions for
automatic engine switch-off (see "Auto-
matic engine switch-off" earlier in this sec-
tion) are fulfilled, the
Idle Stop/Start
symbol is shown in green in the vehicle
information display.
NIC2633
5-30Starting and driving

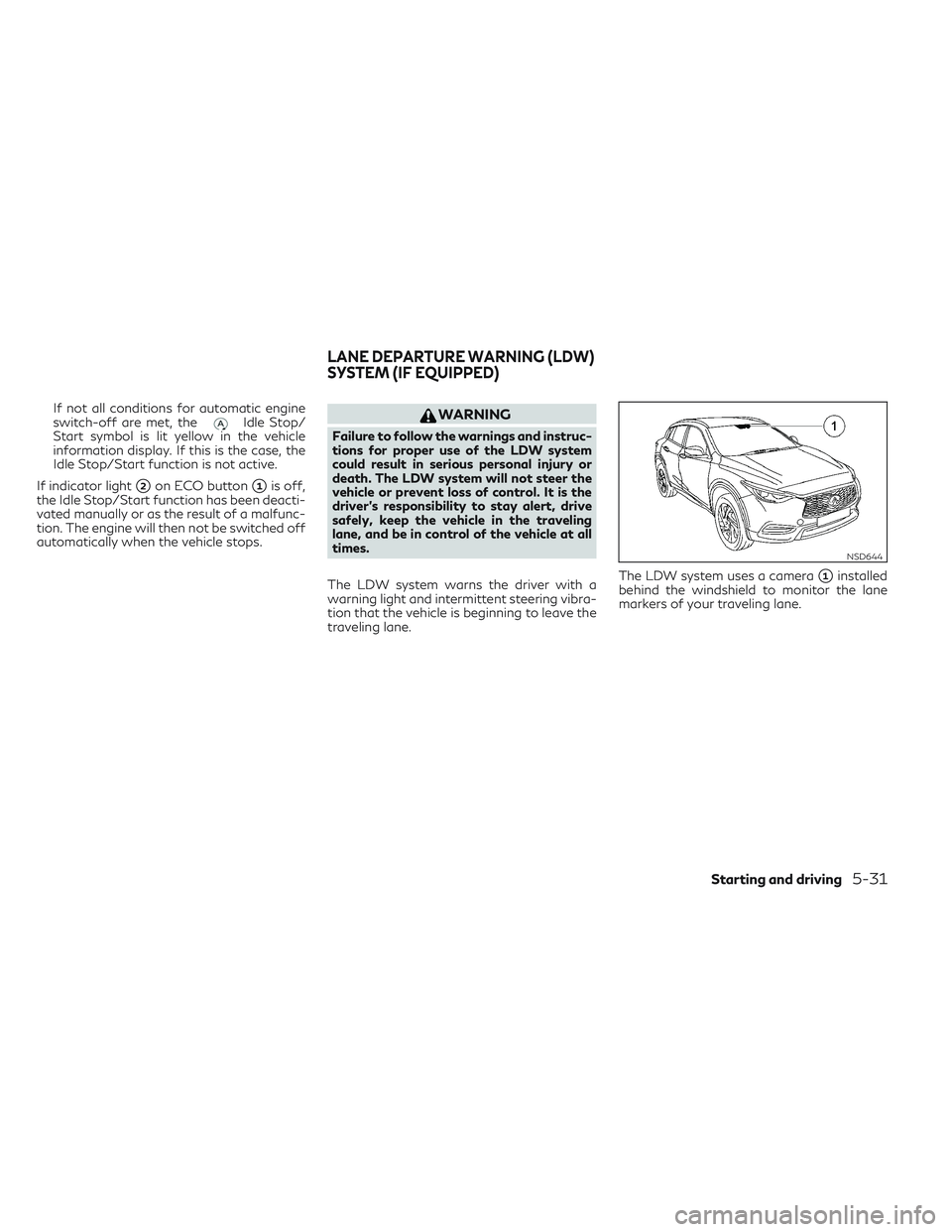

If not all conditions for automatic engine
switch-off are met, theIdle Stop/
Start symbol is lit yellow in the vehicle
information display. If this is the case, the
Idle Stop/Start function is not active.
If indicator light
2on ECO button1is off,
the Idle Stop/Start function has been deacti-
vated manually or as the result of a malfunc-
tion. The engine will then not be switched off
automatically when the vehicle stops.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the LDW system
could result in serious personal injury or
death. The LDW system will not steer the
vehicle or prevent loss of control. It is the
driver’s responsibility to stay alert, drive
safely, keep the vehicle in the traveling
lane, and be in control of the vehicle at all
times.
The LDW system warns the driver with a
warning light and intermittent steering vibra-
tion that the vehicle is beginning to leave the
traveling lane. The LDW system uses a camera
1installed
behind the windshield to monitor the lane
markers of your traveling lane.
NSD644
LANE DEPARTURE WARNING (LDW)
SYSTEM (IF EQUIPPED)
Starting and driving5-31
