MessagePossible causes/consequences and solutions
[Stop Vehicle See
Operator's Manual] The battery is no longer being charged and the battery charge level is too low.
A warning tone also sounds.
1. Stop the vehicle immediately, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Observe the instructions in the display message.
4. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Engine Oil At Next
Refueling]The engine oil level has dropped to the minimum level.
A warning tone also sounds.
CAUTIONAvoid long journeys when there is too little engine oil in the engine. Otherwise the engine will be damaged.
1. Check the oil level when next refueling, at the latest (see "Engine oil" in the "8. Do-it-yourself" section).
2. If necessary, top up the engine oil.
3. If the engine oil needs topping up more often than usual, have the engine checked. It is recommended you visit an INFINITI
retailer for this service.
[Check Engine Oil Level
(Add 1 Liter)] The engine oil level has dropped to the minimum level.
A warning tone also sounds.
CAUTIONAvoid long journeys when there is too little engine oil in the engine. Otherwise the engine will be damaged.
1. Check the oil level when next refueling, at the latest (see "Engine oil" in the "8. Do-it-yourself" section).
2. If necessary, top up the engine oil.
3. If the engine oil needs topping up more often than usual, have the engine checked. It is recommended you visit an INFINITI
retailer for this service.
[Engine Oil Level Low Stop
vehicle Turn Engine Off] The engine oil level is too low. There is risk of engine damage.
1. Stop the vehicle immediately, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Check the engine oil level (see "Engine oil" in the "8. Do-it-yourself" section)
4. If necessary, top up the engine oil .
2-46Instruments and controls

MessagePossible causes/consequences and solutions
[Only Shift to 'P' when
Vehicle is Stationary] The vehicle is moving.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Shift the shift lever to position P.
[Reversing Not Possible
Service Required] The automatic transmission is malfunctioning. You cannot drive in reverse.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction] The automatic transmission is malfunctioning. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction
Stop] The automatic transmission is malfunctioning.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the
engine.
2. Secure the vehicle against rolling away
3. It is recommended you consult an INFINITI retailer.
[Stop vehicle Shift to P
Leave Engine Running] The automatic transmission has overheated.
Drive on carefully. If the display message disappears, the automatic transmission is available again.
If the display message continues to be displayed:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the
engine.
2. Secure the vehicle against rolling away
3. Wait until the automatic transmission has cooled down and the display message goes out.
[Auxiliary Battery Malfunc-
tion] The auxiliary battery for the automatic transmission is no longer being charged.
1. It is recommended you visit an INFINITI retailer at the next opportunity.
2. Until then, press the P (Park) button before you switch off the engine.
3. Before leaving the vehicle, apply the electric parking brake.
[Trans. Oil Overheated
Drive On With Care] Manual drive program M and the temporarily active manual drive program are no longer available. Engine power output is reduced
Allow the vehicle to cool down.
Instruments and controls2-55

You do not have to remove the start/stop
button from the ignition lock when you leave
the vehicle. You should, however, always
take the key with you when leaving the ve-
hicle. As long as the key is in the vehicle:
•The vehicle can be started using the push-
button ignition switch.
•The electrically powered equipment can be
operated.
EMERGENCY ENGINE SHUT OFF
To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
•Rapidly push the push-button ignition
switch 3 consecutive times in less than 1.5
seconds, or
•Push and hold the push-button ignition
switch for more than 2 seconds.
•Make sure the area around the vehicle is
clear.
•Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.
•Check that all windows and lights are
clean.
•Visually inspect tires for their appearance
and condition. Measure and check the tire
pressure for proper inflation.
•Check that all doors are closed.
•Position seat and adjust head restraints/
headrests.
•Adjust the inside and outside rear view
mirrors.
•Fasten your seat belt and ask all passen-
gers to do likewise.
•Check the operation of the warning lights
when the ignition switch is pushed to the
ON position.
STARTING PROCEDURE WITH
THE KEY
0OFF position
1ACC position
2ON position
3START position
1. Apply the parking brake.
2. Shift the transmission to position P (Park) by pressing the

button.
The transmission position indicator in the
vehicle information display shows

When the transmission is in position N
(Neutral), you can also start the engine
with the brake pedal depressed.
The starter is designed not to operate if the
shift lever is in any of the driving positions.
NPA1483
BEFORE STARTING ENGINE STARTING ENGINE
5-18Starting and driving

For maximum acceleration, pull the left-hand
steering wheel gearshift paddle until the
transmission selects the optimum gear for
the current speed.
If the engine exceeds the maximum engine
speed when shifting down, the automatic
transmission protects against engine dam-
age by not shifting down.Kickdown:
You can also use kickdown for maximum ac-
celeration in manual drive program M
•Depress the accelerator pedal beyond the
pressure point The transmission shifts to a
lower gear depending on the engine
speed.
•Shift back up once the desired speed is
reached.
During kickdown, you cannot shift gears us-
ing the steering wheel gearshift paddles.
If you apply full throttle, the automatic trans-
mission shifts up to the next gear when the maximum engine speed is reached. This pre-
vents the engine from overrevving.
Deactivating the temporary manual drive
program:
Pull and hold the right steering wheel gear-
shift paddle until the automatic transmission
shifts into the last active automatic drive pro-
gram E or S.
When manual drive program M is deacti-
vated, the automatic transmission in auto-
matic drive program E or S may shift from the
current gear into a higher or lower gear. This
is dependent on the position of the accelera-
tor pedal, speed and load.
Problems with the transmission:
Problem Possible causes/consequences and solutions
The transmission has
problems shifting
gear The transmission is losing oil.
Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
The acceleration abil-
ity is deteriorating
The transmission no
longer shifts into all
of the gears Reverse
gear can no longer be
engaged The transmission is in emergency mode.
•Stop.•Shift the transmission to position P (Park).•Switch off the engine.•Wait at least ten seconds before restarting the engine.•Shift the transmission to position D (Drive).•Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
5-26Starting and driving

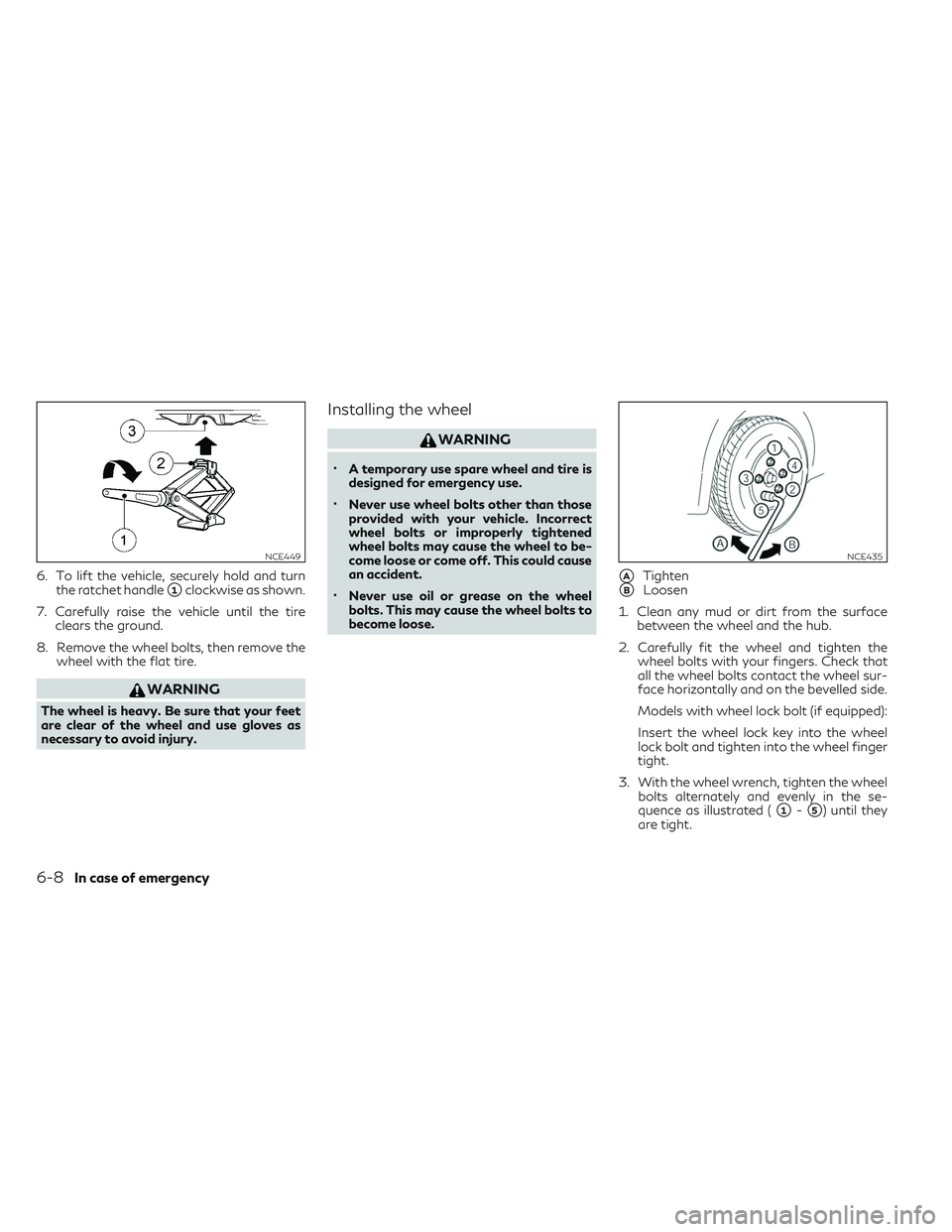

6. To lift the vehicle, securely hold and turnthe ratchet handle
1clockwise as shown.
7. Carefully raise the vehicle until the tire clears the ground.
8. Remove the wheel bolts, then remove the wheel with the flat tire.
WARNING
The wheel is heavy. Be sure that your feet
are clear of the wheel and use gloves as
necessary to avoid injury.
Installing the wheel
WARNING
•A temporary use spare wheel and tire is
designed for emergency use.
•Never use wheel bolts other than those
provided with your vehicle. Incorrect
wheel bolts or improperly tightened
wheel bolts may cause the wheel to be-
come loose or come off. This could cause
an accident.
•Never use oil or grease on the wheel
bolts. This may cause the wheel bolts to
become loose.
ATighten
BLoosen
1. Clean any mud or dirt from the surface between the wheel and the hub.
2. Carefully fit the wheel and tighten the wheel bolts with your fingers. Check that
all the wheel bolts contact the wheel sur-
face horizontally and on the bevelled side.
Models with wheel lock bolt (if equipped):
Insert the wheel lock key into the wheel
lock bolt and tighten into the wheel finger
tight.
3. With the wheel wrench, tighten the wheel bolts alternately and evenly in the se-
quence as illustrated (
1-5) until they
are tight.
NCE449NCE435
6-8In case of emergency

REMOVING SPOTS
Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the paint surface to avoid lasting damage or
staining. Special cleaning products are avail-
able at an INFINITI retailer or any automotive
accessory store.
UNDERBODY
In areas where road salt is used in the winter,
it is necessary to clean the vehicle’s under-
body regularly in order to prevent dirt and salt
from building up and causing the acceleration
of corrosion on the underbody and suspen-
sion.
Before the winter and again in the spring, the
underseal must be checked and, if necessary,
re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
WHEELS
•Wash the wheels when washing the ve-
hicle to maintain their appearance.
•Clean the inner side of the wheels when
the wheel is changed or the underside of
the vehicle is washed.
•Do not use abrasive cleaners when wash-
ing the wheels.
•Inspect wheel rims regularly for dents or
corrosion. This may cause loss of pressure
or damage the tire bead.
•INFINITI recommends that the road
wheels be waxed to protect against road
salt in areas where it is used during winter.
ALUMINUM ALLOY WHEELS
Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter in areas where road salt is used. The salt residue from road salt could discolor
the wheels if it is not washed off regularly.
CAUTION
Follow the directions below to avoid stain-
ing or discoloring the wheels:
•Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
•Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.
•Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS
Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGS
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.
Appearance and care7-3

8 Do-it-yourself
Maintenance precautions.................8-2
Engine compartment check locations .........8-3
2.0L Gasoline engine ................ .8-3
Engine cooling system .................. .8-3
Checking engine coolant level ............8-4
Changing engine coolant ...............8-4
Engine oil .......................... .8-5
Checking engine oil level ...............8-5
Changing engine oil ................. .8-5
Changing engine oil filter ...............8-6
Automatic Transmission Fluid (ATF) ..........8-7
Brake fluid ......................... .8-7
Window washer fluid .................. .8-8
Battery ........................... .8-9
Accessing Vehicle battery ..............8-10
Maintenance free battery ..............8-10
Models with Idle Stop/Start System .......8-11
Battery replacement ................ .8-11
Reinitialisation procedure after battery
reconnection ..................... .8-12
Jump-starting .................... .8-12
Drive belt ......................... .8-12
Spark plugs ........................ .8-13
Air cleaner filter ..................... .8-13
Wiper blades ....................... .8-13Cleaning
........................ .8-13
Replacing front window wiper blades ......8-14
Replacing rear window wiper blade .......8-16
Brakes ........................... .8-17
Self-adjusting brakes ................ .8-17
Fuses ............................ .8-17
Before replacing a fuse ...............8-17
Engine compartment ................ .8-17
Passenger compartment ..............8-18
Intelligent Key battery replacement ........
.8-20
Checking

the battery ................ .8-20
Replacing the battery ............... .8-20
Lights ........................... .8-22
Exterior and interior lights ..............8-22
Replacement procedures ..............8-24
Wheels and tires ..................... .8-27
Tire Pressure ..................... .8-27
Tire inflation pressure ............... .8-29
Tire labeling ..................... .8-29
Types of tires ..................... .8-31
Tire chains ...................... .8-32
Tire wear and damage ............... .8-33
Tire rotation ..................... .8-34
Replacing wheels and tires .............8-34
Wheel balance .................... .8-35

2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P.8-3)
2. Engine oil dipstick (P.8-5)
3. Engine oil filler cap (P.8-5)
4. Brake fluid reservoir (P.8-7)
5. Engine air cleaner filter (P.8-13)6. Battery (P.8-9)
7. Fuse box (P.8-17)
8. Window washer fluid reservoir (P.8-8)
WARNING
The engine cooling system is filled at the
factory with a high-quality, year-round,
antifreeze coolant solution. The antifreeze
solution contains rust and corrosion inhibi-
tors, therefore additional cooling system
additives are not necessary.
•Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high-pressure fluid escaping from the
radiator. For additional information on
precautions, refer to "If your vehicle
overheats" in the "6. In case of emer-
gency" section
•The engine coolant reservoir tank is
equipped with a pressure type cap. To
prevent engine damage, use only a
genuine INFINITI pressure cap.
CAUTION
•Never use any cooling system additives
such as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.
NIC2833
ENGINE COMPARTMENT CHECK
LOCATIONS ENGINE COOLING SYSTEM
Do-it-yourself8-3

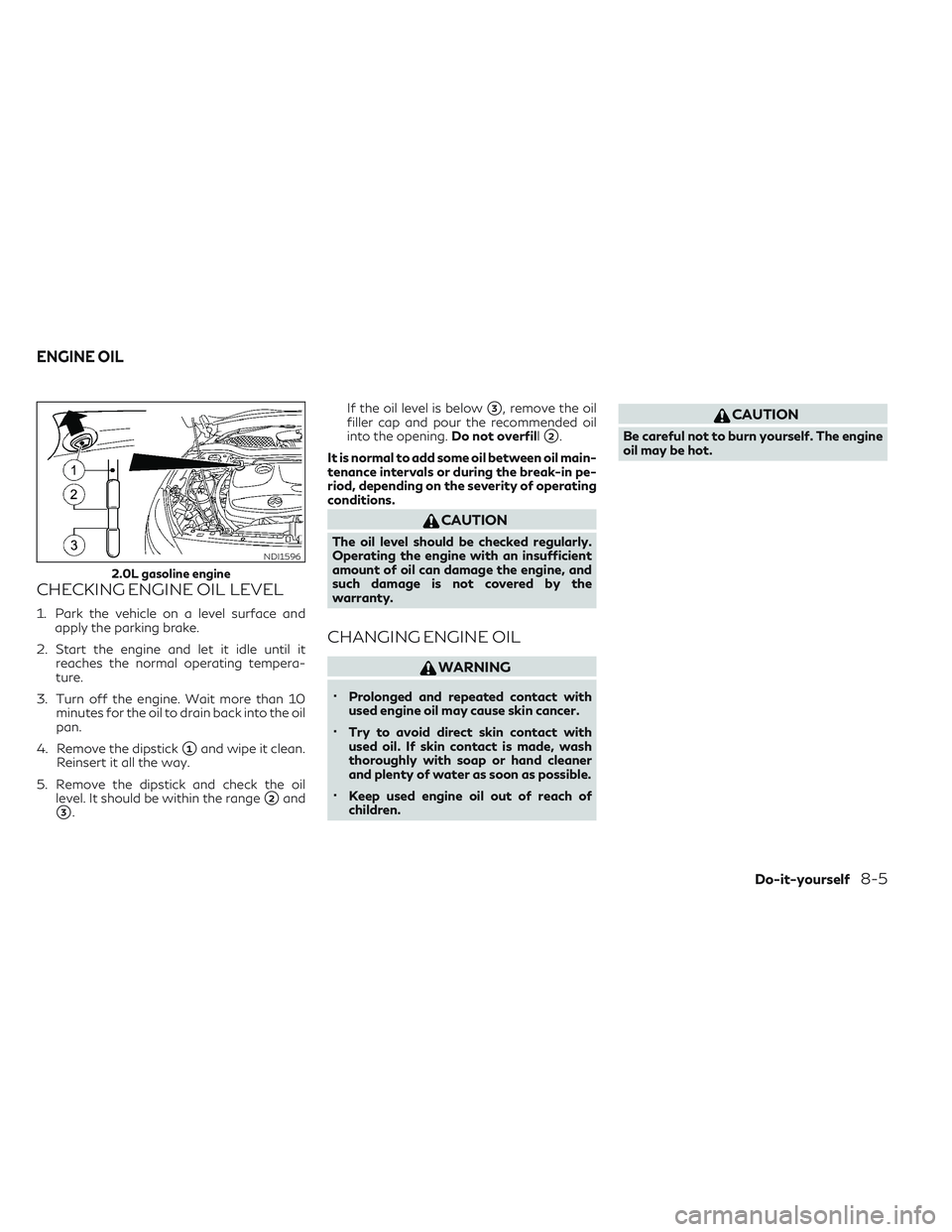

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches the normal operating tempera-
ture.
3. Turn off the engine. Wait more than 10 minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick
1and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick and check the oil level. It should be within the range
2and
3. If the oil level is below
3, remove the oil
filler cap and pour the recommended oil
into the opening. Do not overfill
2.
It is normal to add some oil between oil main-
tenance intervals or during the break-in pe-
riod, depending on the severity of operating
conditions.
CAUTION
The oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by the
warranty.
CHANGING ENGINE OIL
WARNING
•Prolonged and repeated contact with
used engine oil may cause skin cancer.
•Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
and plenty of water as soon as possible.
•Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
NDI1596
2.0L gasoline engine
ENGINE OIL
Do-it-yourself8-5

1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches the normal operating tempera-
ture, then turn it off.
3. Remove the oil filler cap by turning it counterclockwise.
4. Remove the engine undershield.
5. Place a large drain pan under the drain plug.
6. Remove the drain plug with a wrench by turning it counterclockwise and com-
pletely drain the oil. If the oil filter is to be
changed, remove and replace it at this
time. For additional information, refer to
"Changing engine oil filter" later in this
section.
•Waste oil must be disposed of prop-
erly.
•Check your local regulations.
7. Clean and reinstall the drain plug and a new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 22 ft-lb, 30
N•m
8. Refill engine with recommended oil through the oil filler opening, then install
the oil filler cap securely.
For additional information on drain and
refill capacity, refer to "Recommended
fluids/lubricants and capacities" in the "9.
Maintenance and Schedules" section.
The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only.
Always use the dipstick to determine
when the proper amount of oil is in the
engine.
9. Start the engine. Check for leakage around the drain plug and oil filter. Correct
as required.
10. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface andapply the parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
1.
4. Loosen the oil filter
1with an oil filter
wrench by turning it counterclockwise.
Then remove the oil filter by turning it by
hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
NDI1622NDI1610
2.0L gasoline engine
8-6Do-it-yourself
